All NewsMoon Recessed Wall Wash.
Unexpected effects

Moon Recessed Wall Wash.
Unexpected effects

09.04.2024

Due to its unique aesthetics and functionality, MOON RECESSED WALL WASH stands out within the GRIVEN ESSENTIALS family of in-ground uplighters for its distinctive features and remarkable performance.

With a further reduced recess depth for hassle-free installation even in extremely limited spaces, Moon Recessed Wall Wash White Light is the ideal in-ground solution for uniform illumination of façades and architectural elements. Thanks to the black screen printing on half of its glass, which also prevents any unpleasant glare, this elegant uplighter:
1)  delivers surprisingly even wall wash illumination
2)  ensures a well-defined light projection from ground level, according to the chosen distance from the surface to illuminate
3)  avoids any unrequired scallop effect owing to its very large beam.

Year

2024

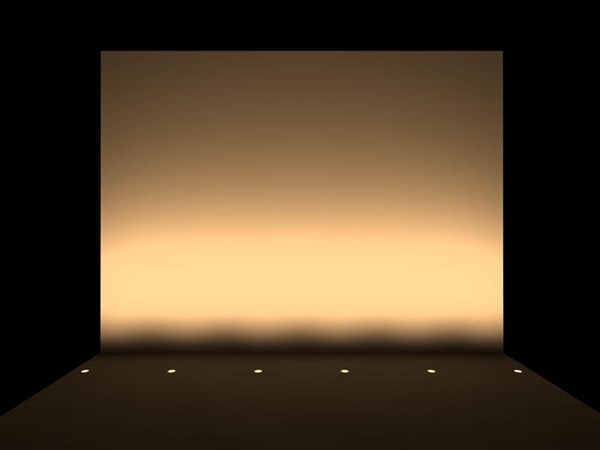

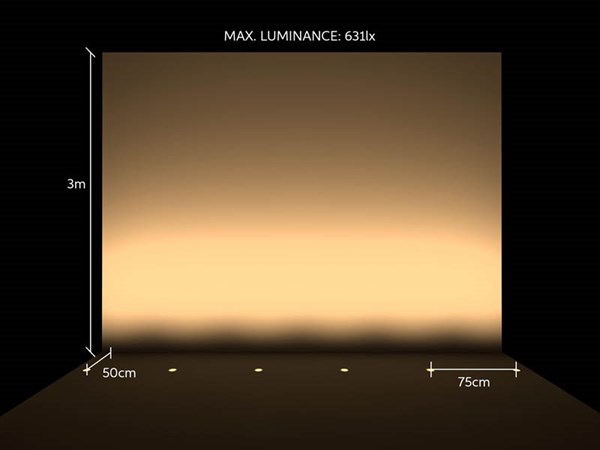

Distance from the wall: 50cm

Distance form the wall: 50 cm

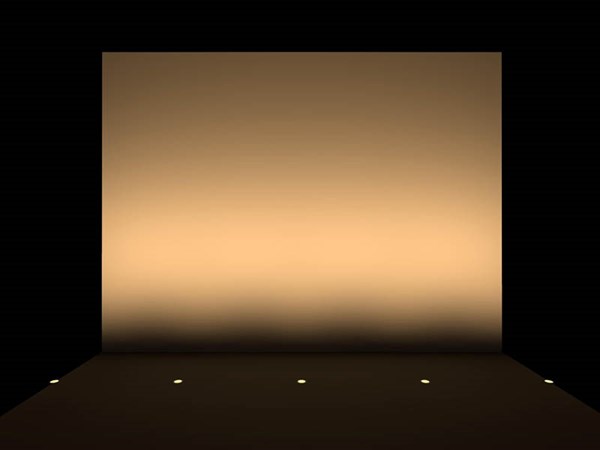

Distance from the wall: 75 cm

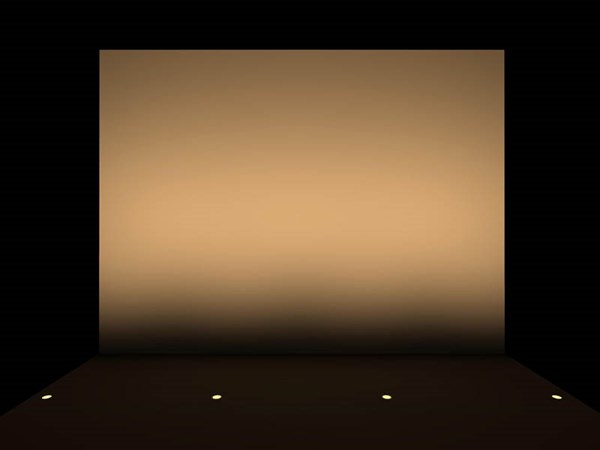

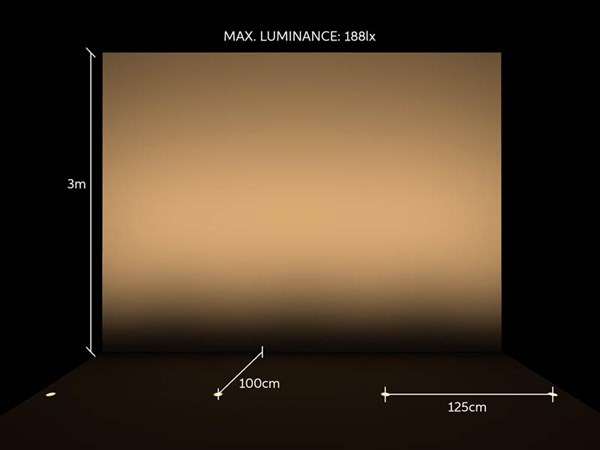

Distance from the wall: 100 cm

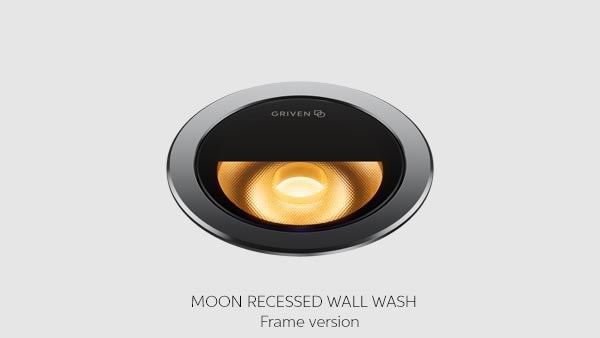

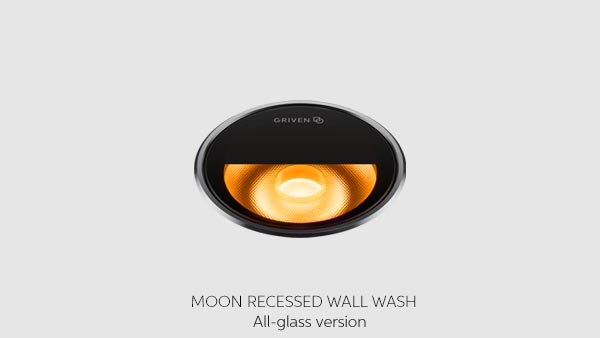

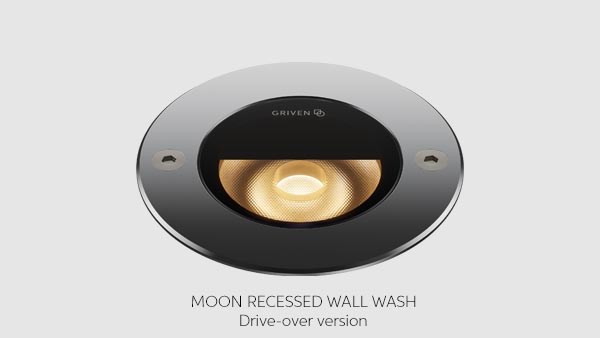

Designed to be used with a remote PSU, Moon Recessed Wall Wash W is available in two walk-on configurations, either with a stainless steel frame or a flush-mount full-glass design for an elegant and discreet appearance. Featuring a 2000 kg load-bearing capacity, a robust drive-over version fitted with a larger flange is suitable for installation in vehicular areas. Selectable in 2700K, 3000K, and 4000K white light color temperatures, all available versions rely on an IP68 protection degree for utmost dependability and water resistance, even in heavy rain.

To better explain how this small uplighter works, we have created a brief demo video showcasing some of the possible installation configurations of this luminaire for different wall heights and lengths. The video demonstrates the resulting light distribution and luminance obtained on a flat surface, based on the chosen distance from the illuminated surface and the pitch between the fixtures.
