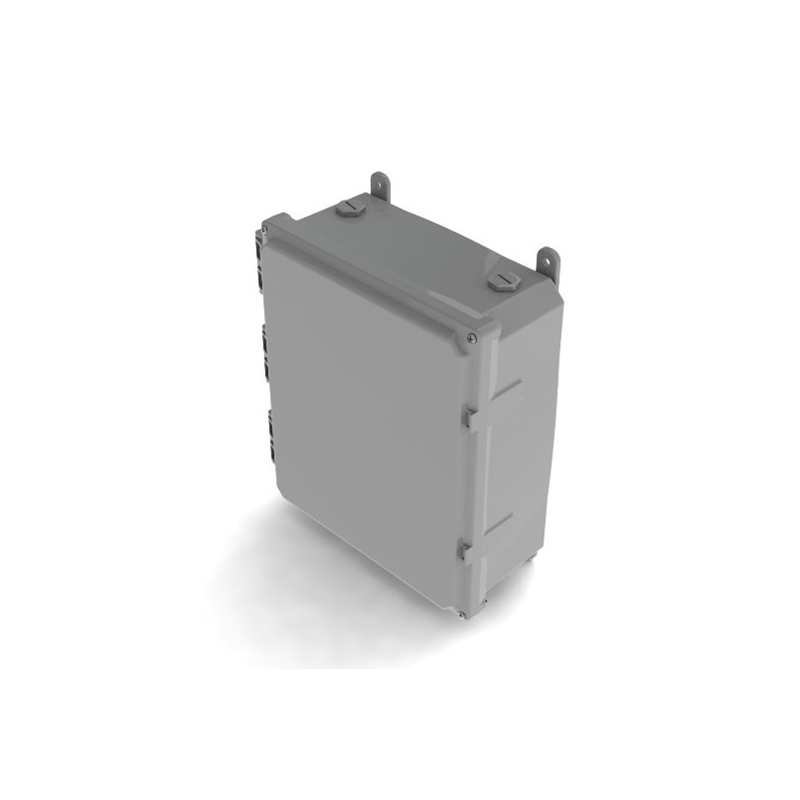

The Griven IP67 Enclosure starts with a NEMA UL 6P/IP67 rated enclosure and adds all the features needed to protect electronic components, such as a DMX/RDM repeater and a 24vDC power supply, from the environment.
• Voltage barrier for 120V/277V with 18 AWG ground lead
• Cover: Hinged to for easy access and includes (4) stainless steel screws for weather tight closure
• Color: Opaque light grey with gloss finish
• Material: High impact, UV resistant polycarbonate
• UL flame rating: UL94/5VA
• Outdoor UV exposure: UL/F1
• (4) Mounting feet with stainless steel screws
• DIN rail for DIN rail compatible devices. Includes 18 AWG ground lead.
• (2) ½” NPT plugs which can be removed for line voltage in and line voltage out, as required (½” NPT conduit fittings not included).
• (4) ½” NPT plugs which can be removed for DMX lines, as required (½” NPT conduit fittings not included).
This enclosure is not intended for direct burial or for installation in high temperature or highly corrosive industrial environments.
