Capital 200 Discrete Dynamic White

CP200
CP200PE Polar Edition

  • Surface mount floodlight
  • Comprehensive selection of optical configurations
  • High brightness dynamic white power LEDs
  • 18.7" L x 3.5" W x 10.9" H

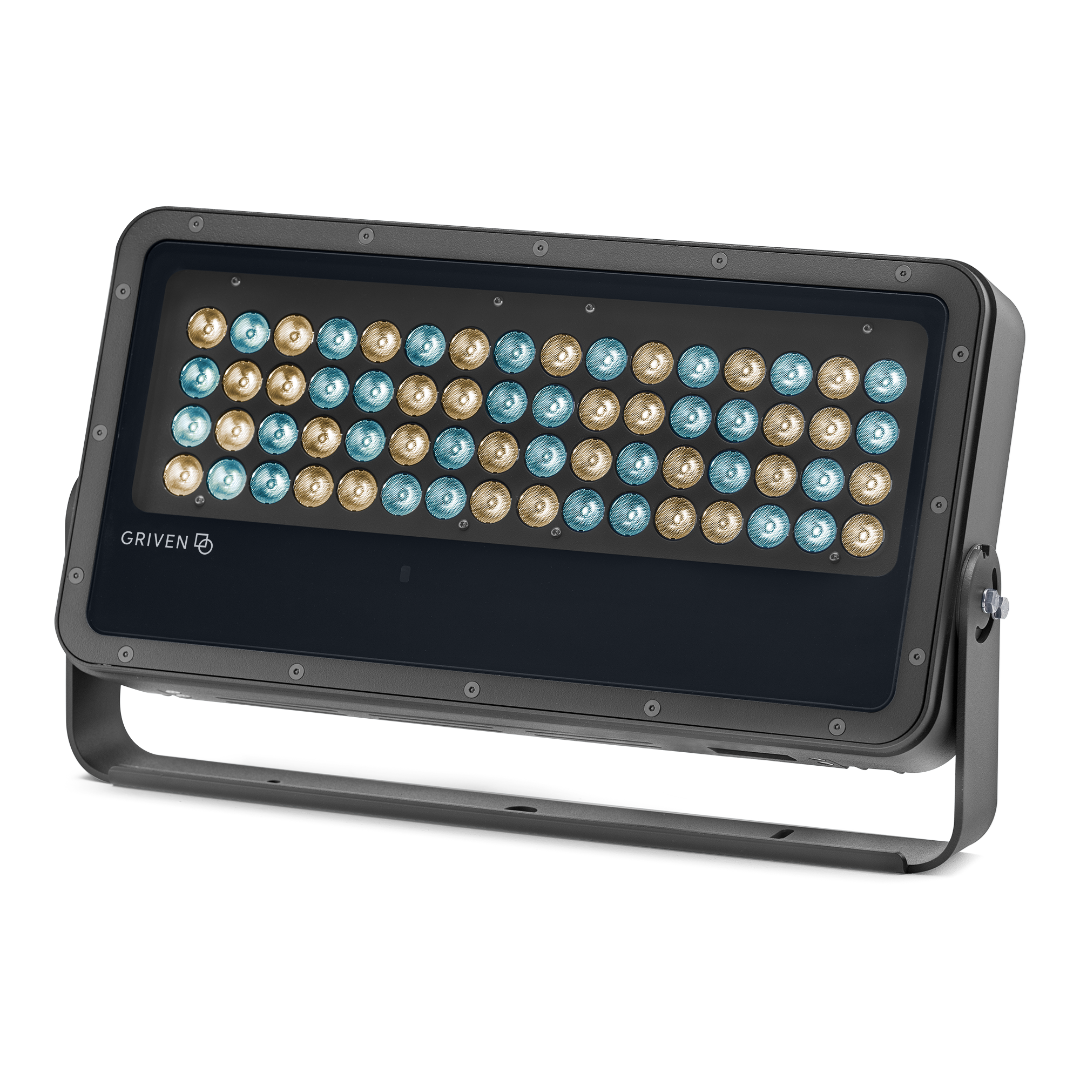

View finishes: Anthracite Grey
  • Anthracite Grey

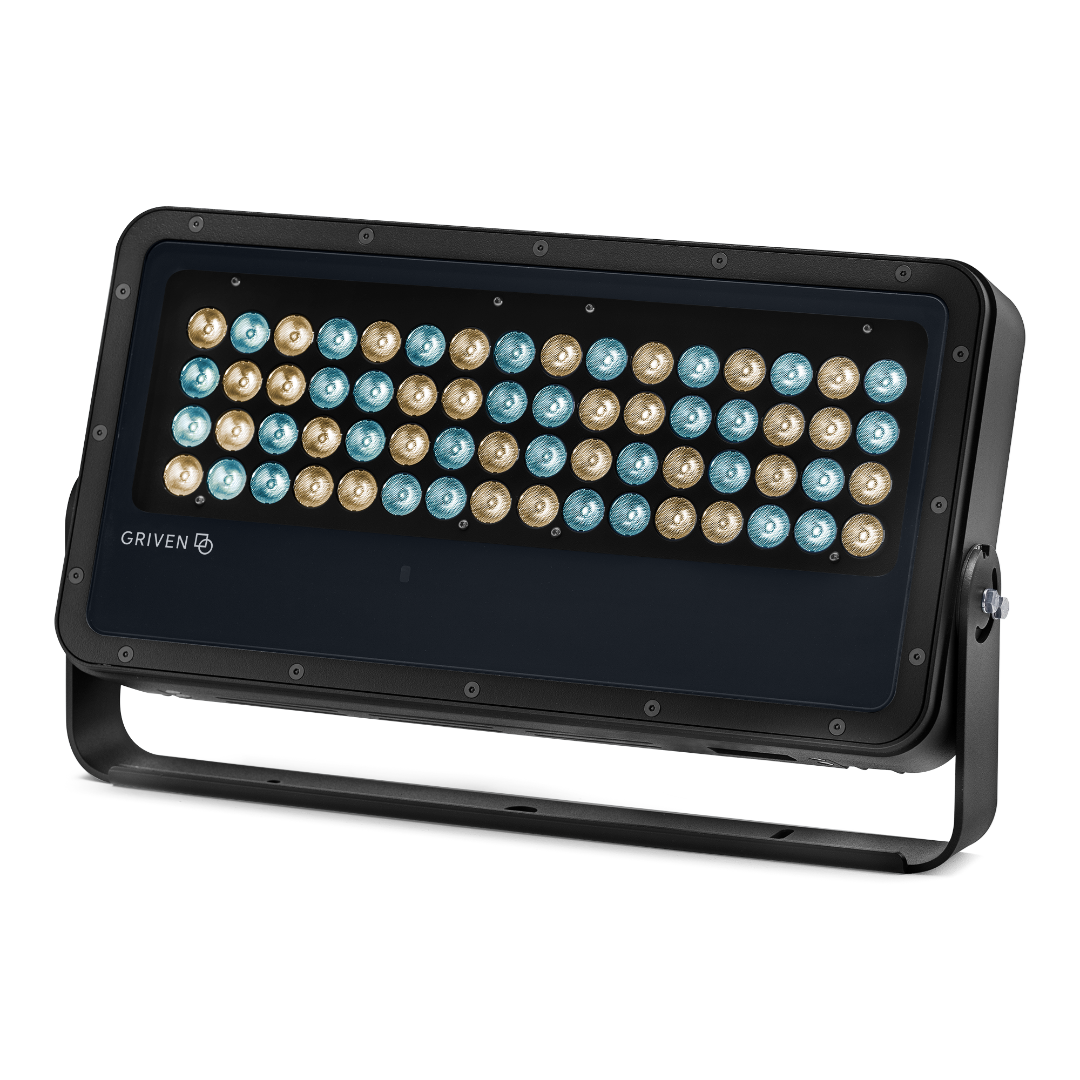

  • Black
  • Griven Silver Grey

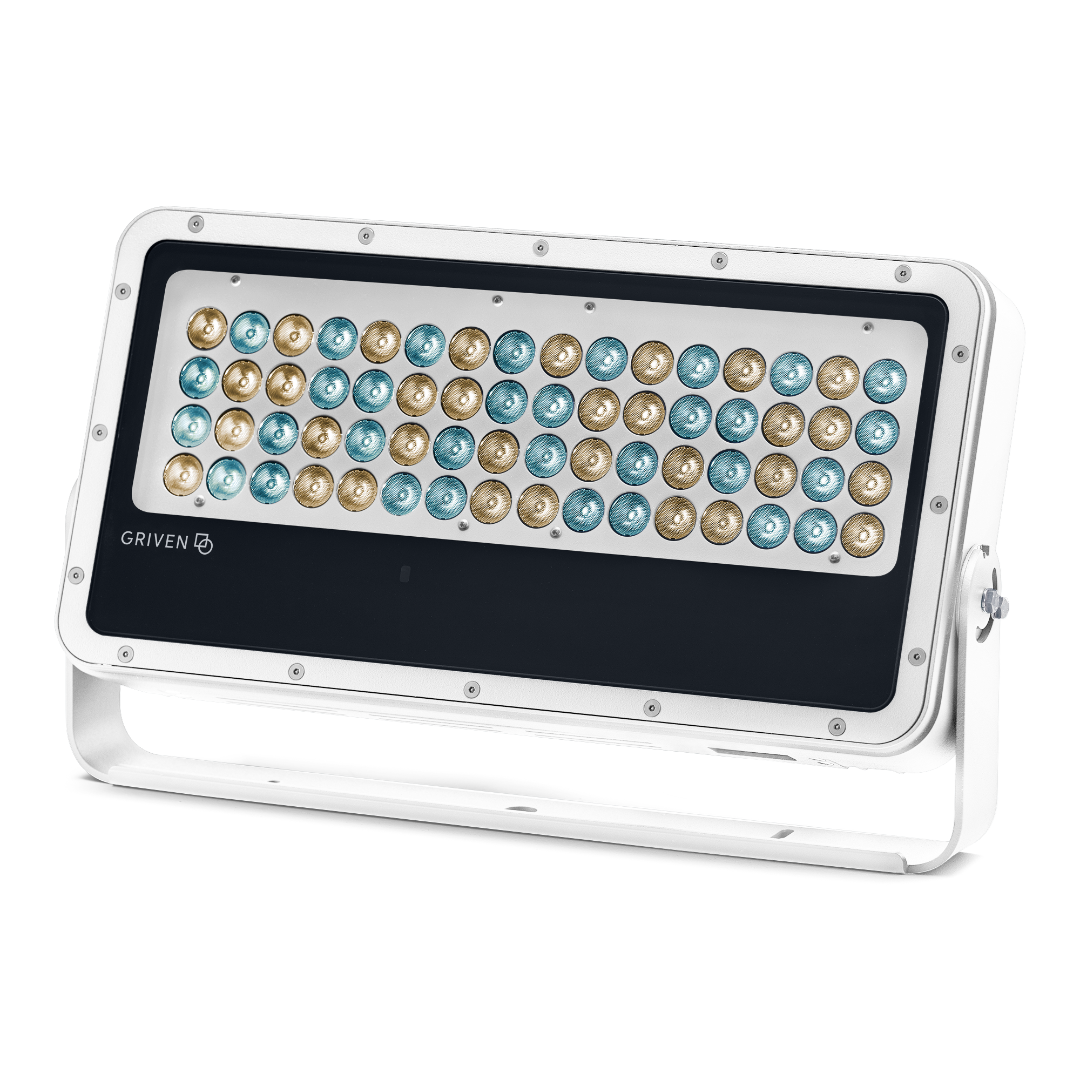

  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
Contact us  Save product
DYNAMIC WHITE
print

Capital 200 Discrete Dynamic White

General Features

CAPITAL 200 blends unobtrusively into every architectural background through modern design and an extremely sleek profile. The floodlight delivers high output from a compact body with outstanding performance. Available in eight light distributions, this versatile luminaire delivers balanced projection and photometric flexibility tailored to the selective demands of the most sophisticated architectural needs.
Color configuration
High brightness Dynamic White LEDs with an adjustable colour temperature range between 2700K and 6500K
Optical configuration
13° SP (Spot)
16° NB (Narrow)
25° MB (Medium)
46° WB (Wide)
64° EW (Extra wide)
40°h x 14°v ELH (Elliptical Horizontal)
38°h x 23°v ELWH (Elliptical Wide Horizontal)
36°h x 19°v WW (Wall Wash)

*Contact factory for internal spreading diffusers
Max. Delivered lumen output
From 11798 to 16438 lumens depending on distribution
Max. lumen/Watt
Up to 111 lumens per watt
Input voltage
120 - 277V
Amperage
1.23A @ 120V, 0.53A @ 277V
Power consumption
148 watts
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal
  • Wall Wash


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • ETL Listed

Optional Features

  • Optional Polar

Downloads
