Capital 200 Discrete RGBW

CP200
CP200PE Polar Edition

  • Surface mount floodlight
  • Comprehensive selection of optical configurations
  • High brightness RGB+W 3000K or 4000K power LEDs
  • 18.7" L x 3.5" W x 10.9" H

View finishes: Anthracite Grey

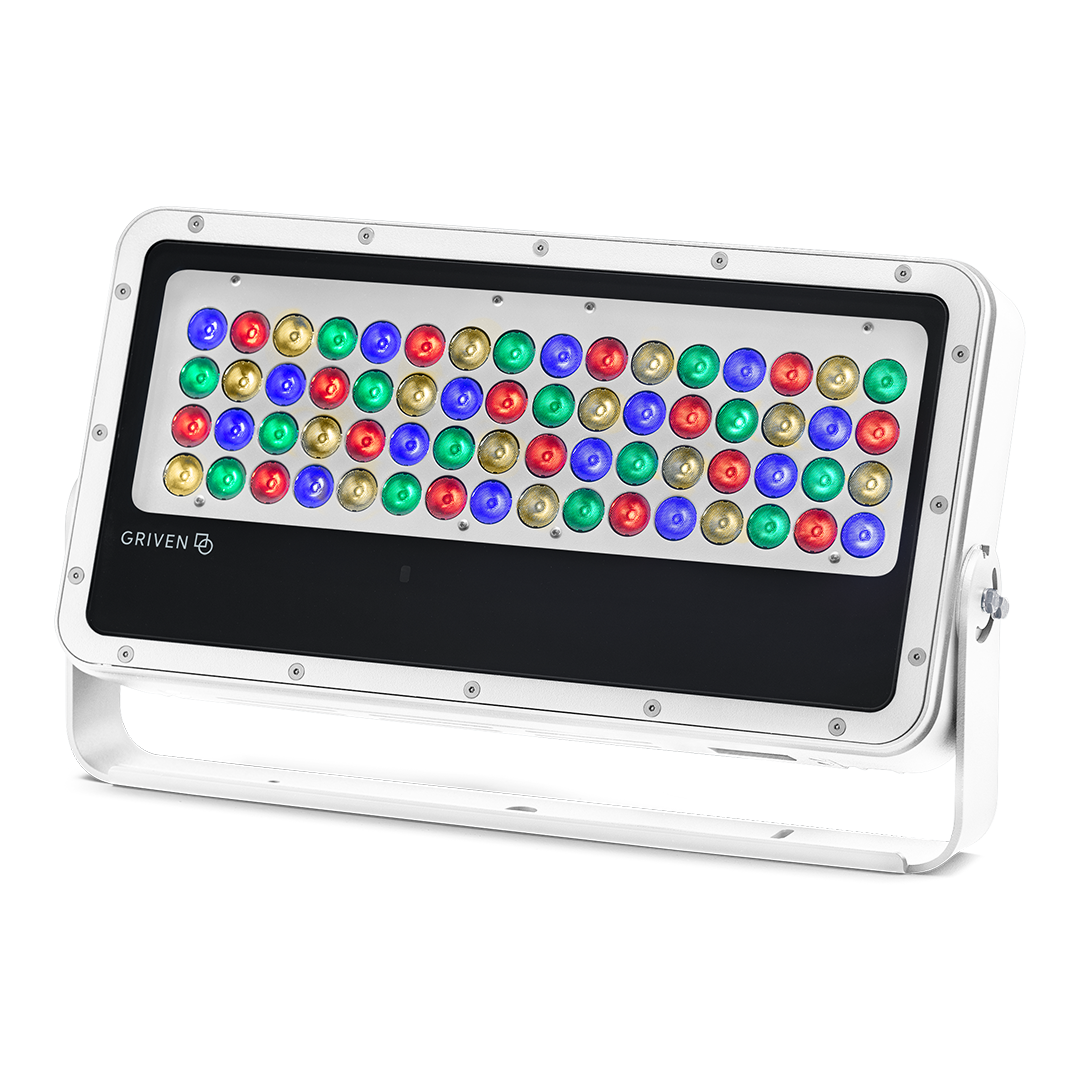

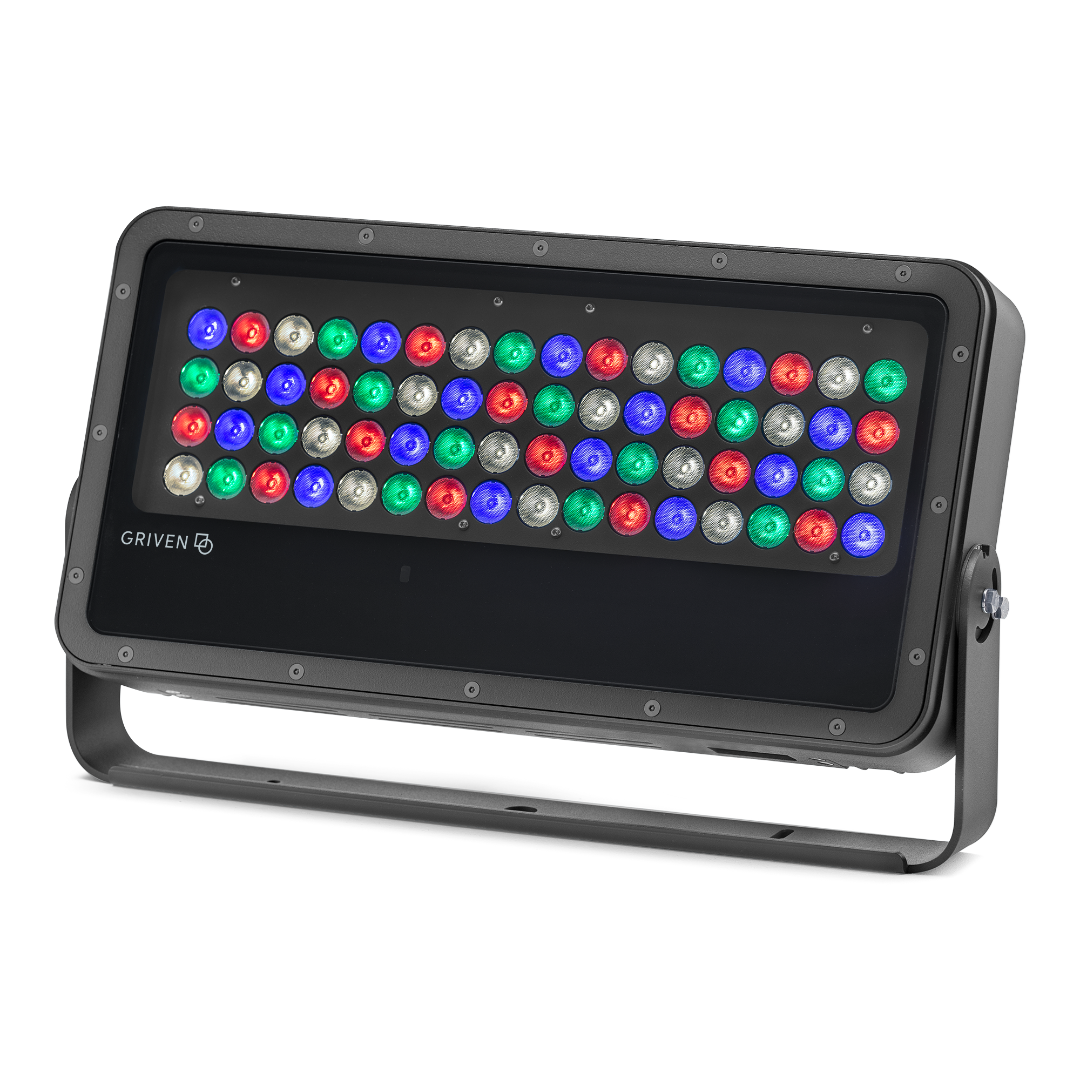

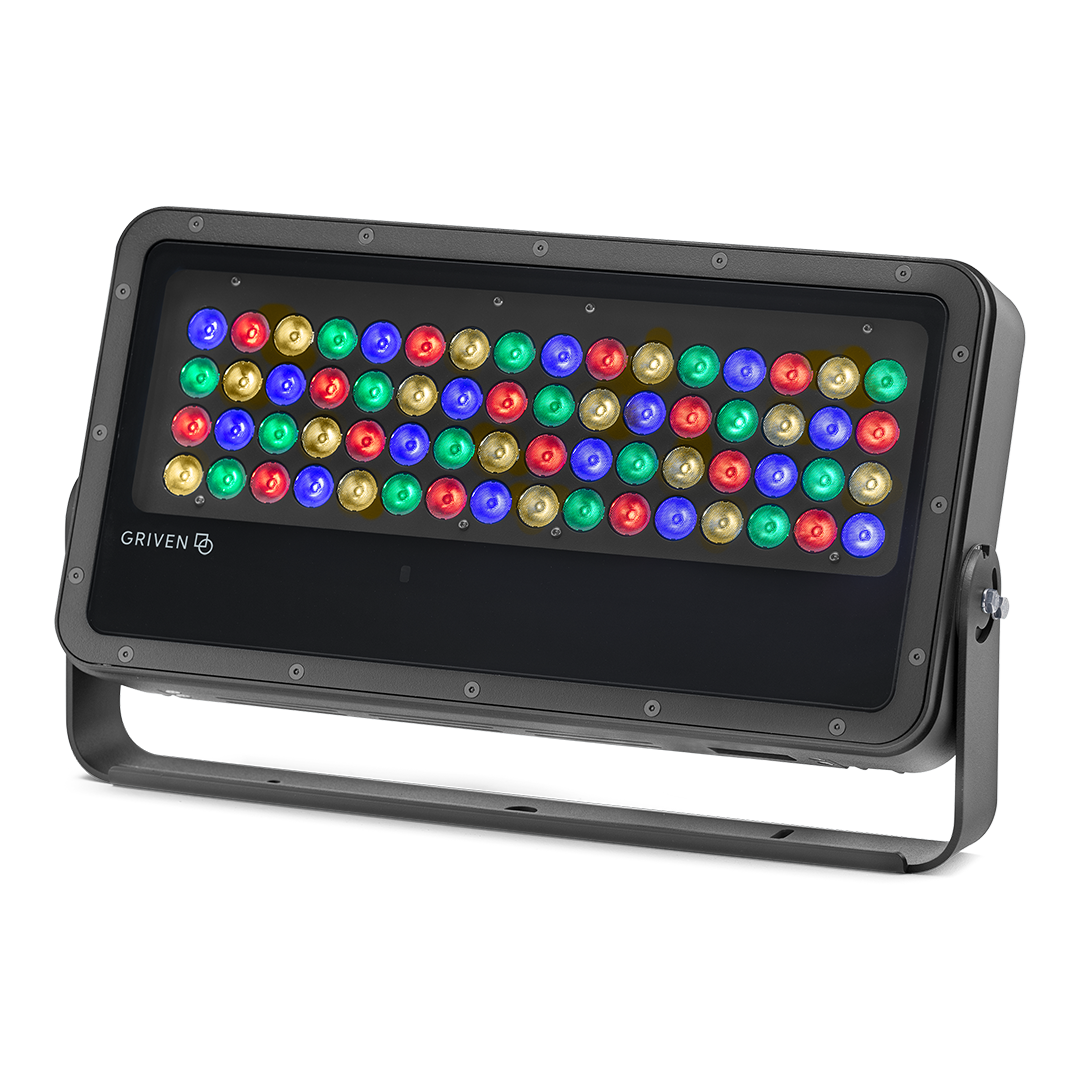

  • Anthracite Grey

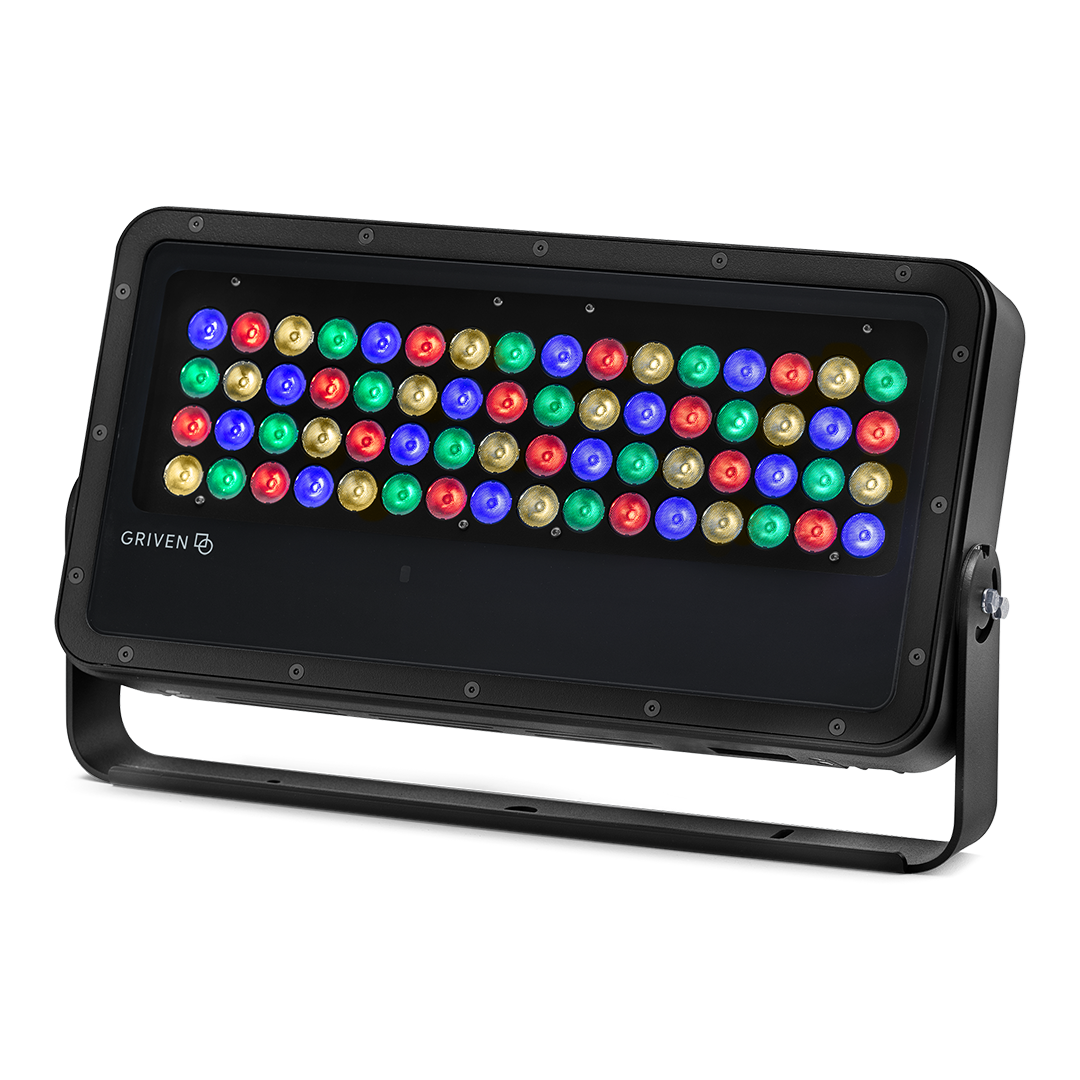

  • Black

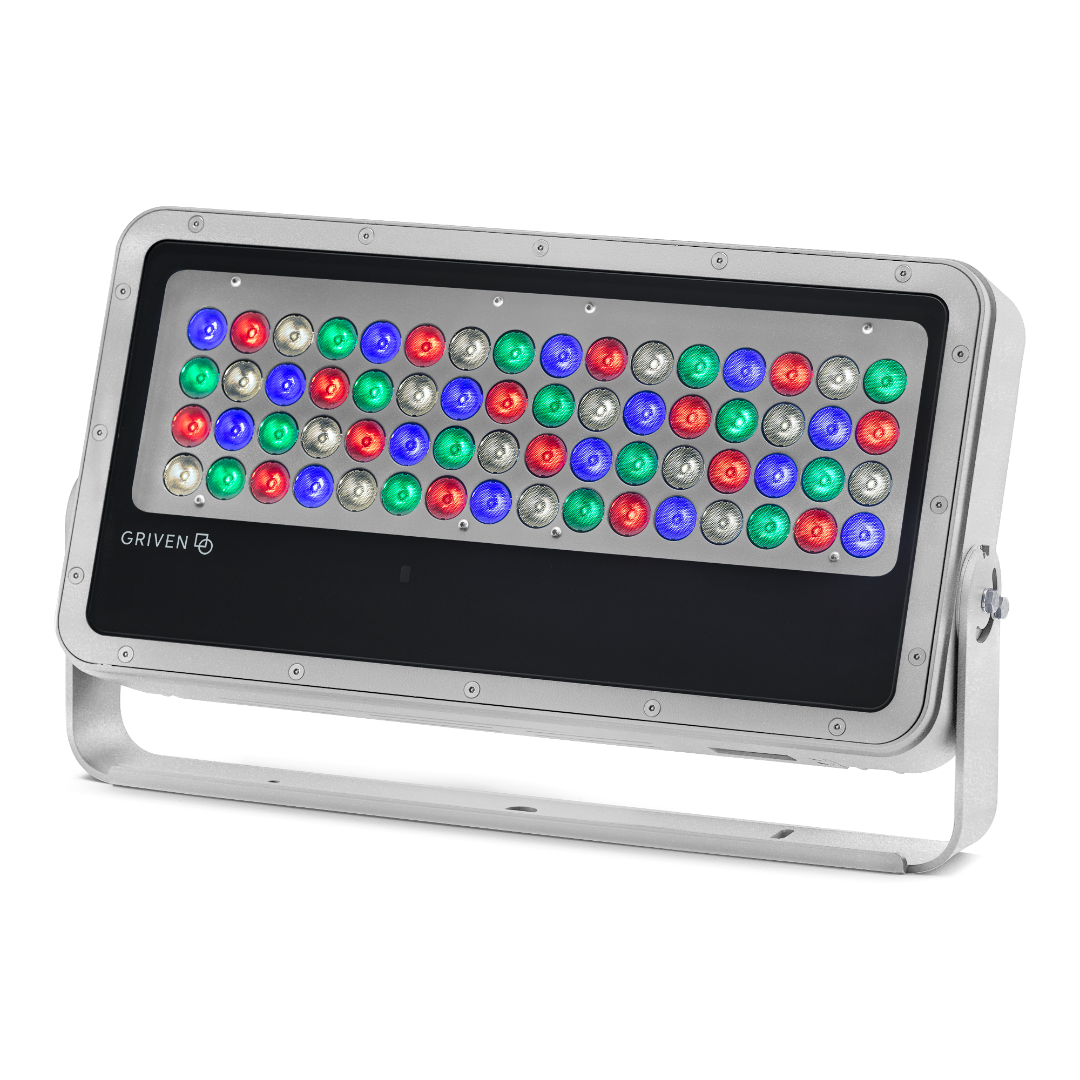

  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: RGBW40K
  • RGBW30K
  • RGBW40K
Contact us  Save product
COLOR CHANGING
print

General Features

CAPITAL 200 blends unobtrusively into every architectural background through modern design and an extremely sleek profile. The floodlight delivers high output from a compact body with outstanding performance. Available in eight light distributions, this versatile luminaire delivers balanced projection and photometric flexibility tailored to the selective demands of the most sophisticated architectural needs. Distinguished by high luminous efficacy, the IP67 rated luminaire features a choice of ten light distributions and four standard finishes.
Color configuration
High brightness RGB+W 3000K or 4000K LEDs
Optical configuration
8° SP (Spot)
12° NB (Narrow)
23° MB (Medium)
43° WB (Wide)
58° EW (Extra wide)
42°h x 10°v ELH (Elliptical Horizontal)
39°h x 20°v ELWH (Elliptical Wide Horizontal)
36°h x 15°v WW (Wall Wash)

*Contact factory for internal spreading diffusers
Max. Delivered lumen output
From 7651 lumens to 11094 lumens depending on distribution
Max. lumen/Watt
Up to 72 lumens per watt
Input voltage
120 - 277V
Amperage
1.29A @ 120V, 0.56A @ 277V
Power consumption
155 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility.

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal
  • Wall Wash


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • ETL Listed

Optional Features

  • Optional Polar
