Chiron 2 B Remote Static White

CHRN2-BR

  • Linear module specific for wall grazing effects
  • Comprehensive selection of optical configurations
  • High brightness Natural White, Warm White power LEDs
  • 24.5" L x 1.4" W x 1.2" H

View LED colour configuration: Warm White 2700K
  • Warm White 2700K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product
STATIC WHITE
print

General Features

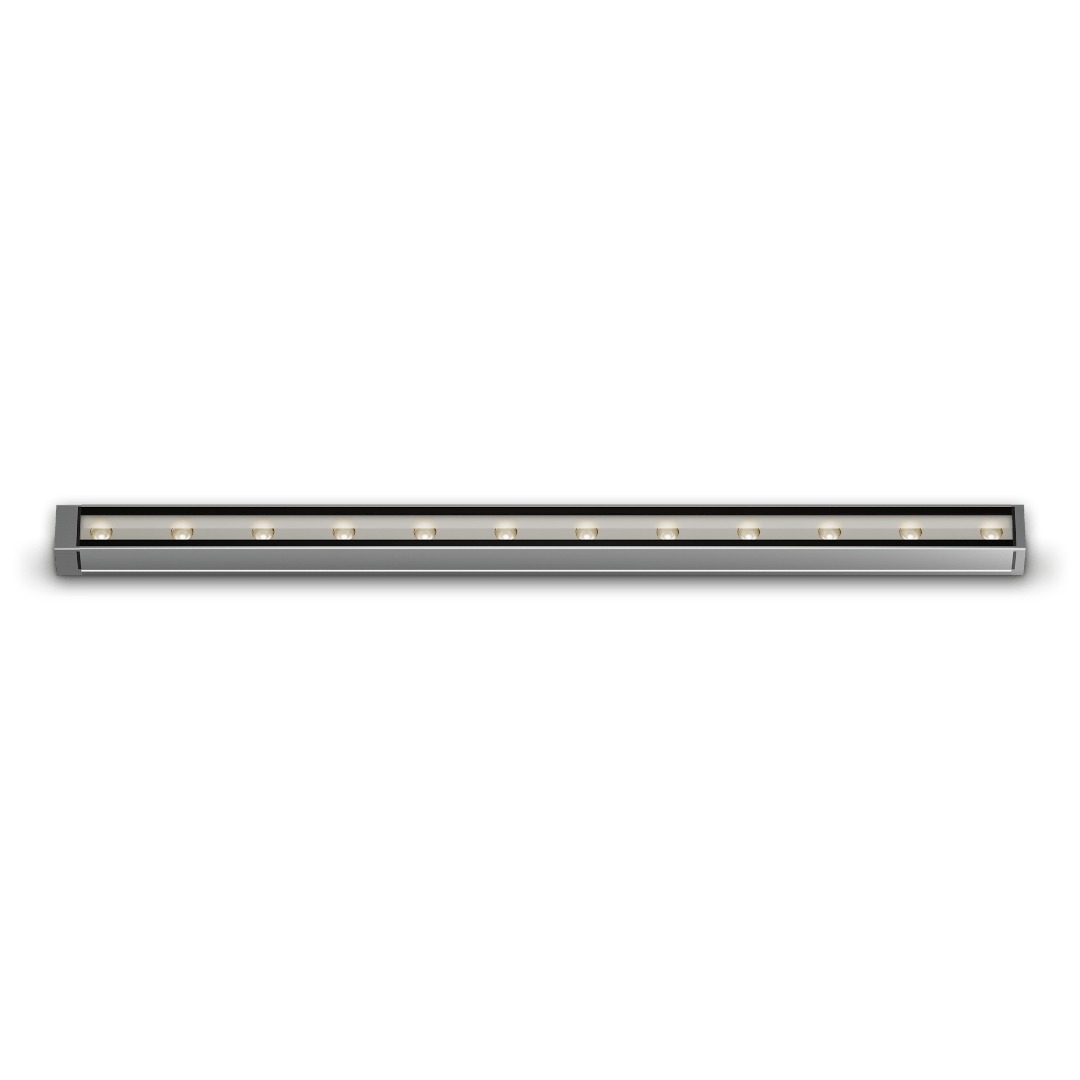

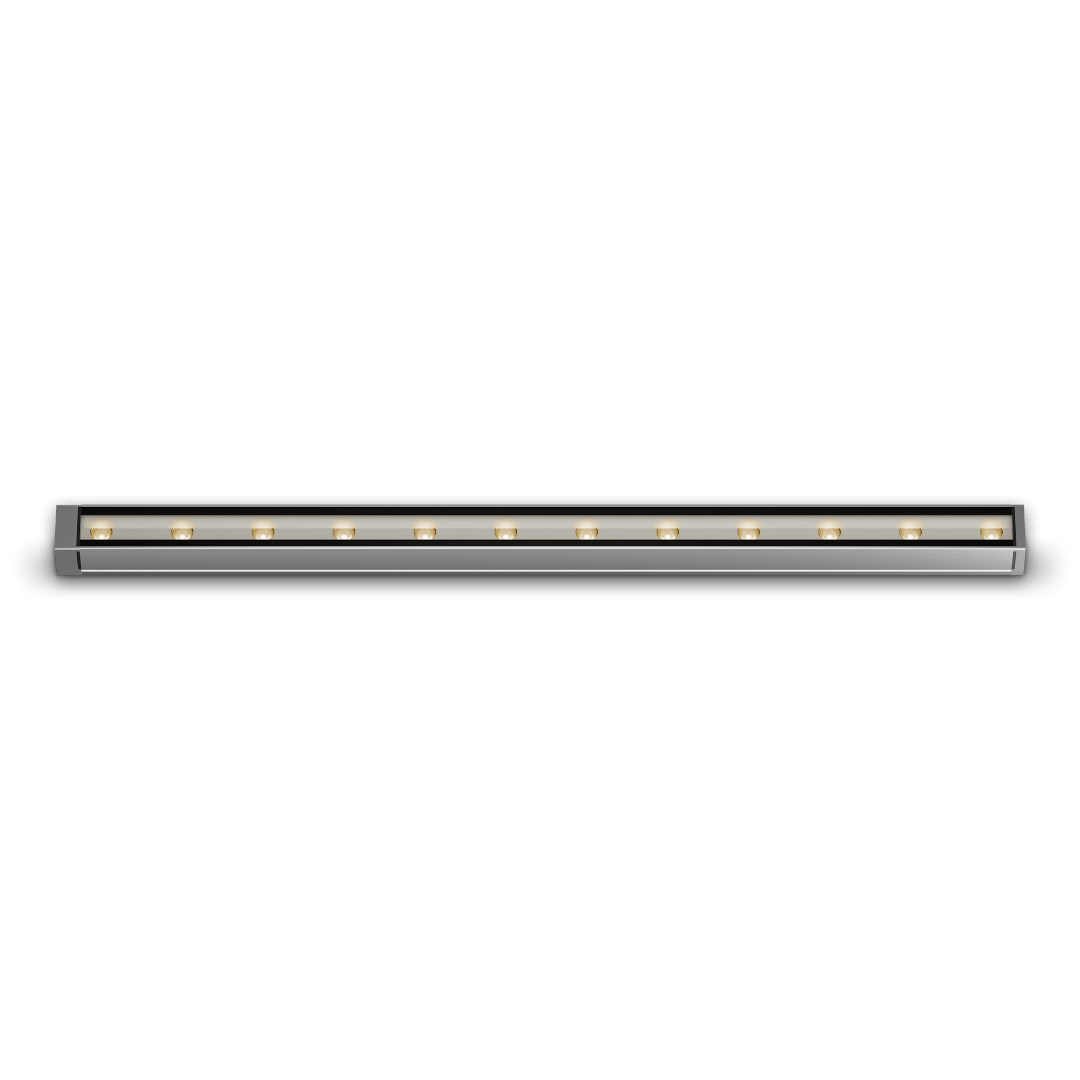

CHIRON is a high-efficiency, compact linear luminaire designed for wall washing, uplighting, and floodlighting effects. Its surface-mounted thin profile offers a neat solution for narrow spaces. With up to four unique lengths and several optical distributions, CHIRON can be used for a multitude of applications, ranging from recessed step and accent lighting to facade illumination. The anodized aluminum finish provides a distinct upscale appearance that discreetly complements its surroundings. CHIRON is available in three static white color temperatures: 2700K, 3000K, and 4000K, as well as in RGBW and dynamic white models.
Color configuration
High brightness Natural White, Warm White power LEDs
Optical configuration
18° SP (Spot)
22° NA (Narrow)
32° ME (Medium)
54° (8° incline) WI (Wide)
60° EW (Extra wide)
40°x22° EL (Elliptical)
32°x23° WW (Wall wash)
Max. Delivered lumen output
up to 2626 lumens for 4000K
Max. lumen/Watt
Up to 91 lumens per watt
Input voltage
48VDC
Power consumption
28.8 watts
Ingress protection rating
IP67
Impact resistance rating
IK07
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty

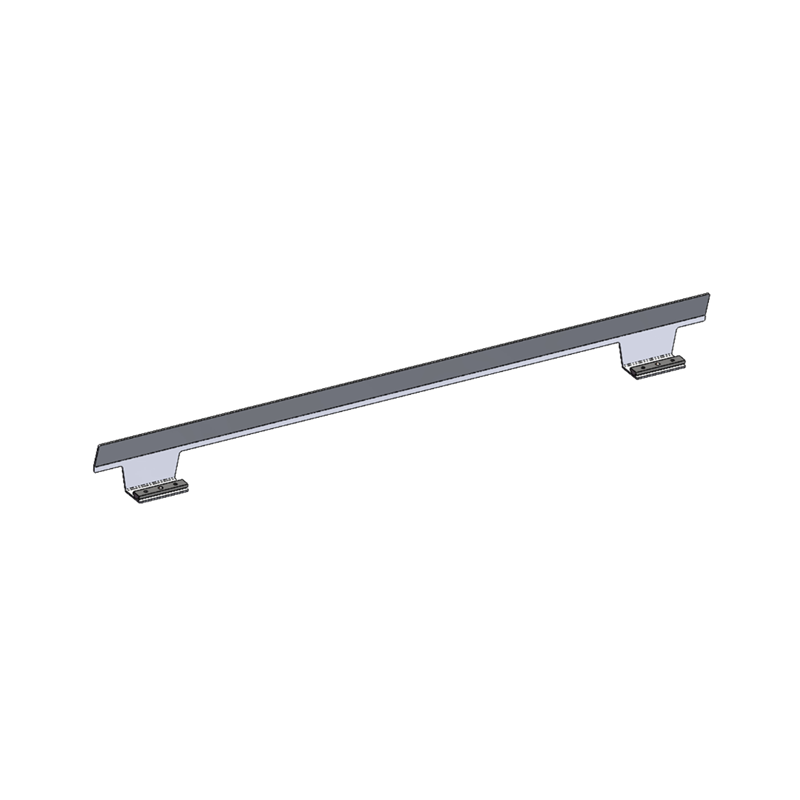

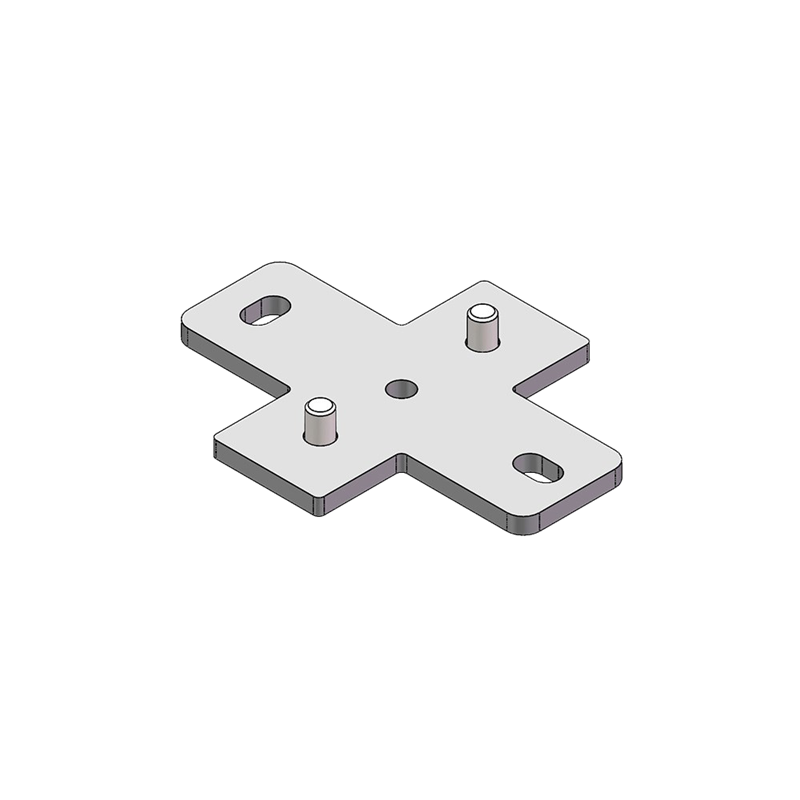

Accessories
Accessories are ordered and shipped separately from luminaire for field installation.

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Wall Wash


Overview

  • IP67
  • IK07
  • ETL Certified for Wet Locations

Optional Features

  • Anti-saline treatment
  • Internal Honeycomb Louver
