Chiron 4 Dynamic White

CHRN4

  • Linear module specific for wall grazing effects
  • Comprehensive selection of optical configurations
  • High brightness Dynamic White (2700K to 6500K) power LEDs
  • 45" L x 1.4" W x 2.1" H

Contact us  Save product
DYNAMIC WHITE
print

General Features

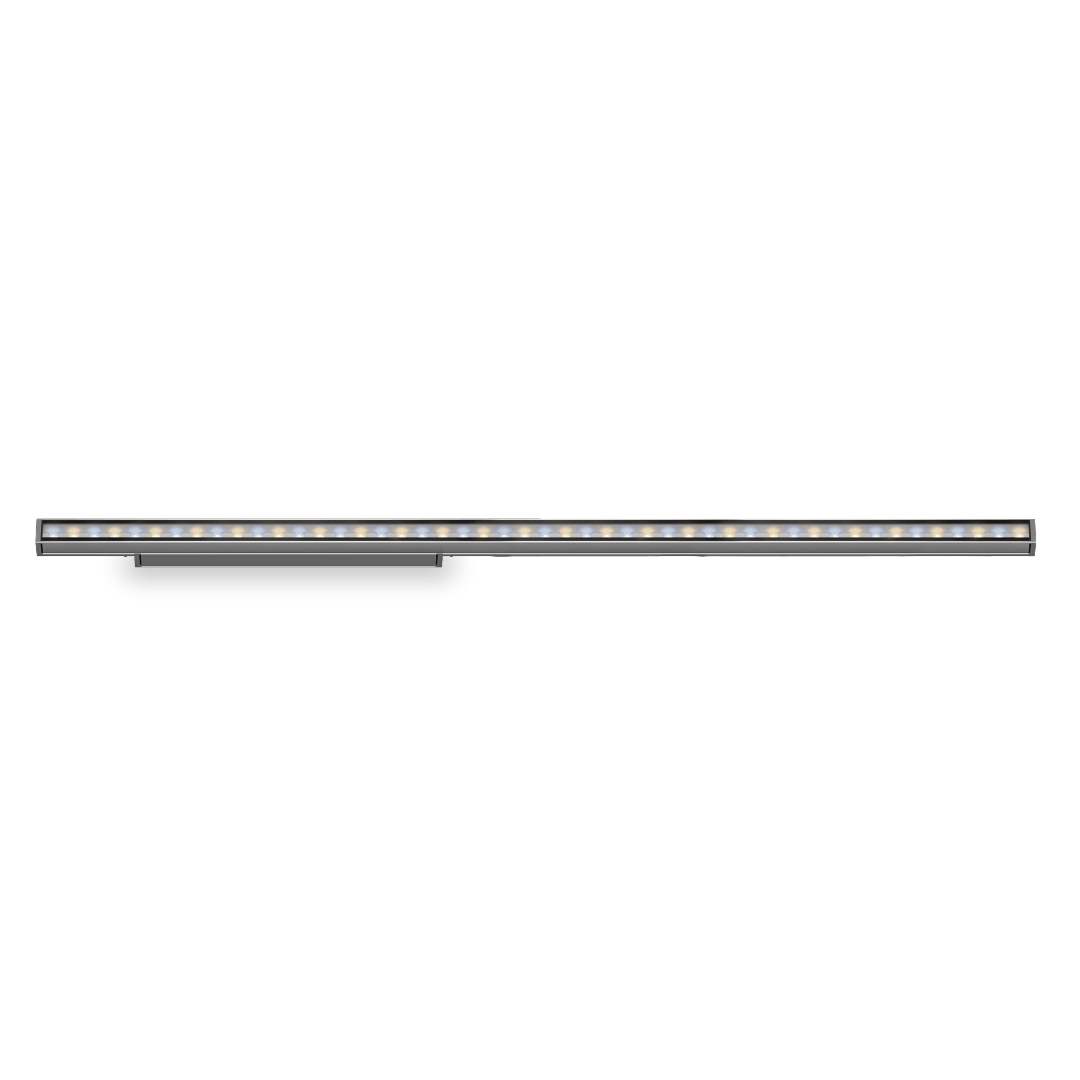

CHIRON is a high-efficiency, compact linear luminaire designed for wall washing, uplighting, and floodlighting effects. Its surface-mounted thin profile offers a neat solution for narrow spaces. With up to four unique lengths and several optical distributions, CHIRON can be used for a multitude of applications, ranging from recessed step and accent lighting to façade illumination. The anodized aluminum finish provides a distinct upscale appearance that discreetly complements its surroundings. CHIRON is available in three static white color temperatures: 2700K, 3000K, and 4000K, as well as in RGBW and dynamic white models.
Color configuration
High brightness Dynamic White LEDs with an adjustable color temperature range between 2700K and 6500K
Optical configuration
19° NA (Narrow)
30° ME (Medium)
63° EW (Extra wide)
53°x16° E1 (Elliptical)
62°x38° E2 (Elliptical)
67°x21° E3 (Elliptical)
30°x19° incline 2° WW (Wall wash)
Input voltage
48VDC
Power consumption
50 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK06
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
5-year warranty
Accessories
Internal Honeycomb Louvers Available

Light Beam Effects

  • Narrow
  • Medium
  • Extra Wide
  • Elliptical Horizontal-EL1
  • Elliptical Horizontal-EL2
  • Elliptical Horizontal-EL3
  • Wall Wash


Overview

  • IP67
  • IK06
  • DMX
  • RDM
  • ETL Listed

Optional Features

  • Anti-saline treatment
  • Internal Honeycomb Louver
