Dune MC MK3 Dynamic White

DUNEMC-R-PE Polar Edition

  • Max delivered lm output: 1730 lm /43 lm/W
  • Control system: DMX-RDM, remote wireless data
  • Drive-over multichip LED uplighter with a smart beam angle orientation adjustment of 9°
  • Size: 9 1/8" L x ø 12"

Contact us  Save product

General Features

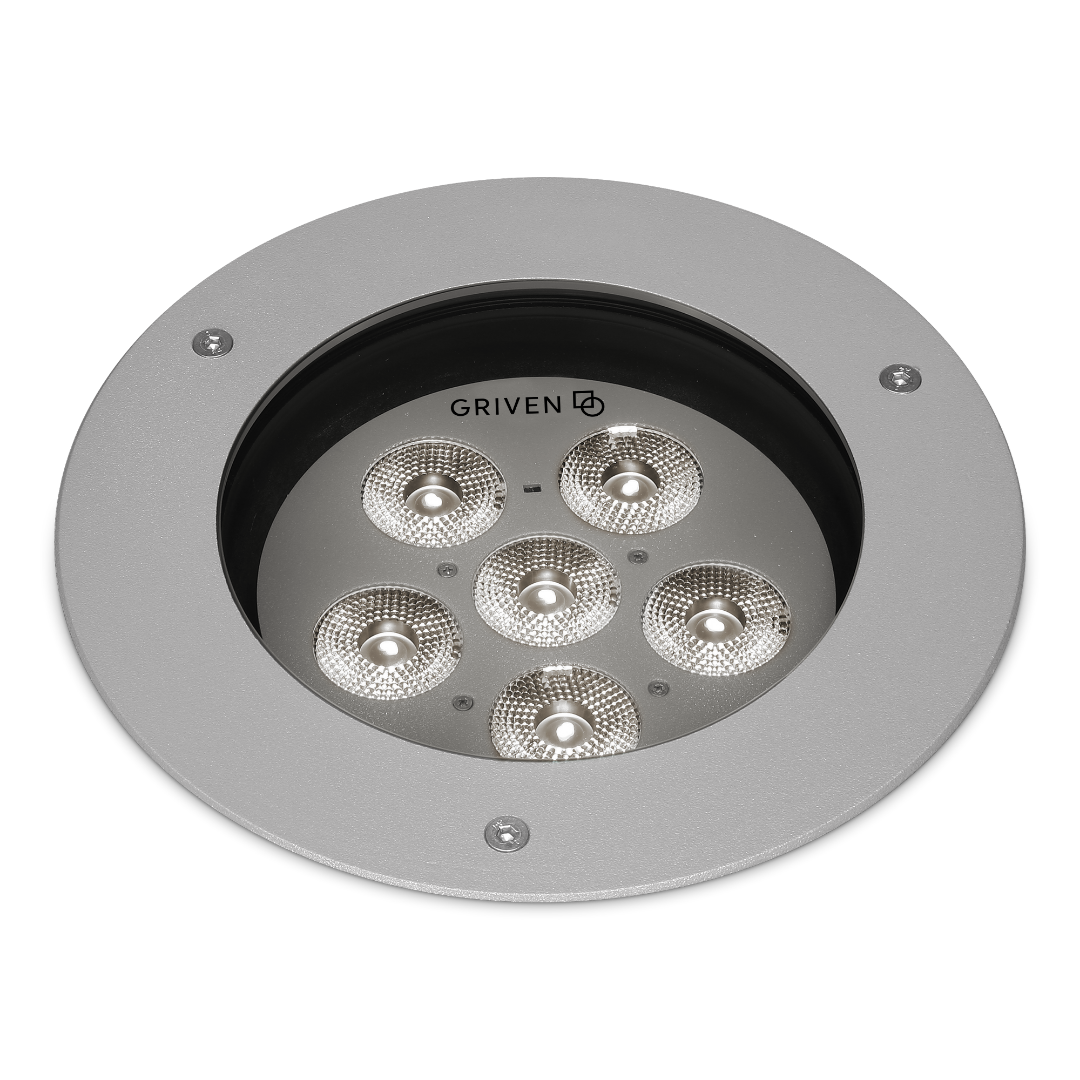

The DUNE MC MK3 is a high-performance IP68-rated LED up-lighter designed for outdoor recessed applications. This versatile fixture boasts a clever beam angle adjustment feature, making it perfect for spot lighting, wall grazing, and wall washing effects.
A range of color temperatures from 2700K to 6000K Dynamic White and RGBW30K or 40K are available with smooth and even light distribution. Crafted from AISI 316L stainless steel, the fixture can handle a deadweight load of over 4000 pounds, making it suitable for inground installations, including vehicular areas.
Color configuration
High brightness Dynamic White multichip LEDS with an adjustable colour temperature range between 3000K and 6500K
Optical configuration
8° SP (Spot)
10° NB (Narrow)
24° MB (Medium)
37° WB (Wide)
Max. Delivered lumen output
up to 2941 lumens
Max. lumen/Watt
up to 74 lumens per watt
Input voltage
100-240VAC / 50-60 Hz
0.4A @ 100VAC, 0.17A @ 240VAC
Power consumption
40 watts max.
Ingress protection rating
Impact resistance rating
External operating limits
-40°C to 50°C / (-40°F to 122°F)
5-year warranty

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide


  • IP68
  • IK10
  • DMX
  • RDM
  • ETL pending

Optional Features

  • Optional Polar
