Dune MK3 Dynamic White

DUNE-R
DUNE-R-PE Polar Edition

  • Max. delivered lm output: 2954 lm / 109 lm/W
  • Control system: DMX-RDM, remote wireless data
  • High performance drive-over uplighter with smart beam angle orientation adjustment of 9°
  • Size: 14.38" L x ø 12"

Contact us  Save product
DYNAMIC WHITE
print

General Features

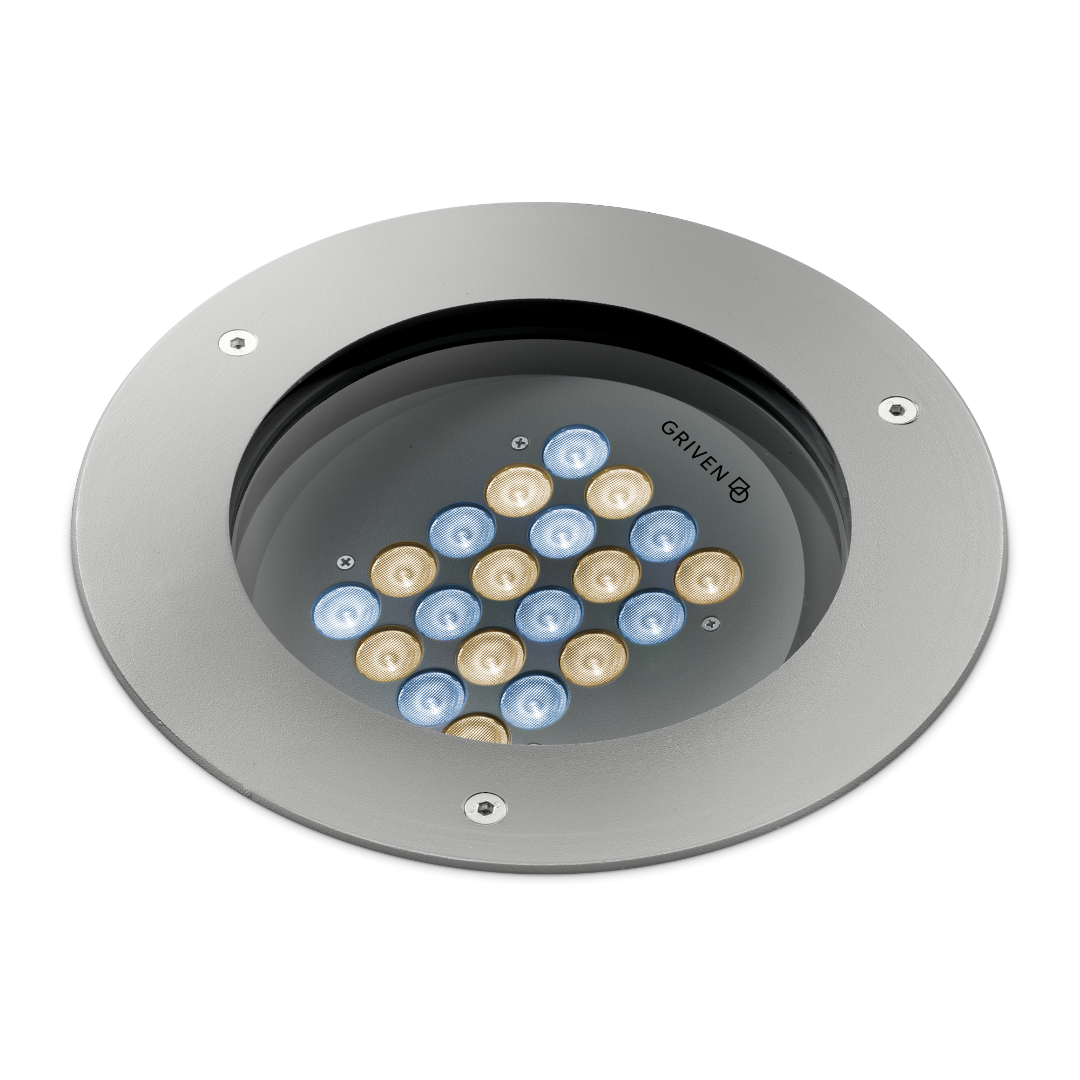

The DUNE MK3 is a high-performance IP68-rated LED up-lighter designed for outdoor recessed applications. This versatile fixture boasts a clever beam angle adjustment feature, making it perfect for spot lighting, wall grazing, and wall washing effects.

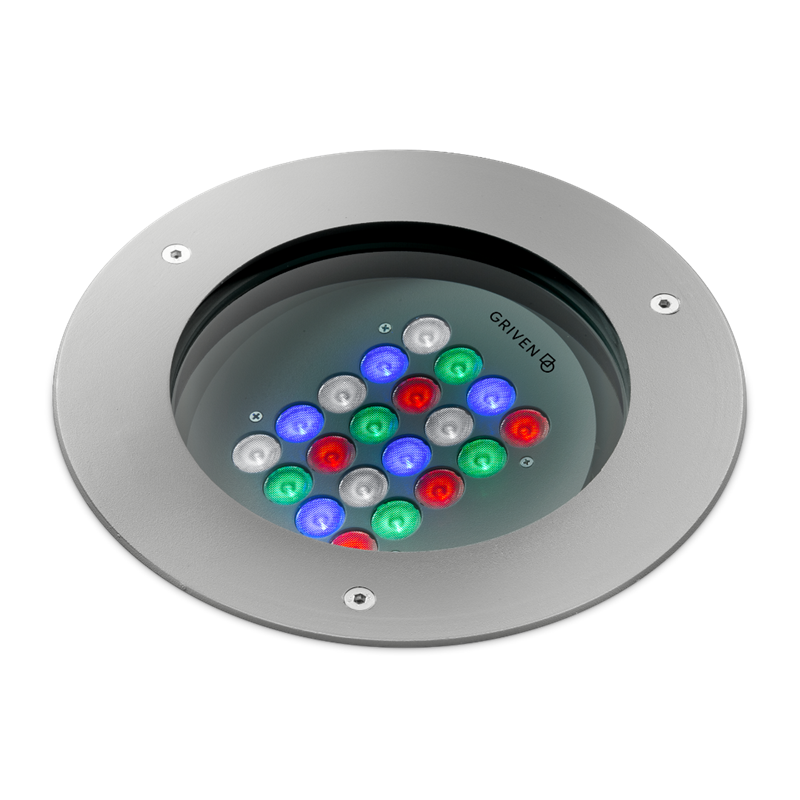

A range of color temperatures spanning RGBW30K or 40K, tunable white, or static white are available with smooth and even light distribution. Crafted from AISI 316L stainless steel, the fixture can handle a deadweight load of over 4000 pounds, making it suitable for inground installations, including vehicular areas.
Color configuration
High brightness Dynamic White LEDs with an adjustable colour temperature range between 2700K and 6500K
Optical configuration
12° SP (Spot)
15° NB (Narrow)
25° MB (Medium)
47° WB (Wide)
61° EW (Extra-Wide)
39° x 14° ELH (Elliptical)
37° x 23° ELWH (Elliptical Wide)
Max. Delivered lumen output
up to 2954 lumens
Max. lumen/Watt
up to 109 lumens per watt
Input voltage
100-240VAC / 50-60 Hz
Amperage
0.27A @ 100VAC, 0.11A @ 240VAC
Power consumption
27 watts max.
Ingress protection rating
IP68
Impact resistance rating
IK10
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
5-year warranty

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal


Overview

  • IP68
  • IK10
  • DMX
  • RDM
  • ETL pending

Optional Features

  • Anti-slip treatment, for a safe and comfortable use in pedestrian areas, available on request
  • Optional Polar
  • Internal Honeycomb Louver
