Griven

All products recessed/inground dune mk3Dune MK3 RGBW

Dune MK3 RGBW

DUNE-R
DUNE-R-PE Polar Edition

Max. delivered lm output: 2954 lm / 109 lm/W

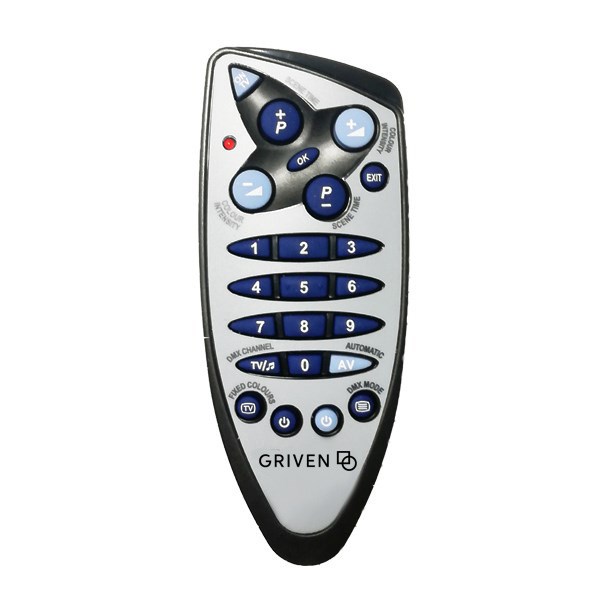

Control system: DMX-RDM, remote wireless data
High performance drive-over uplighter with smart beam angle orientation adjustment of 9°
Size: 14.38" L x ø 12"

$lbl_viewhousingmaterial$:

View LED colour configuration: RGBW40K

View Swivel:

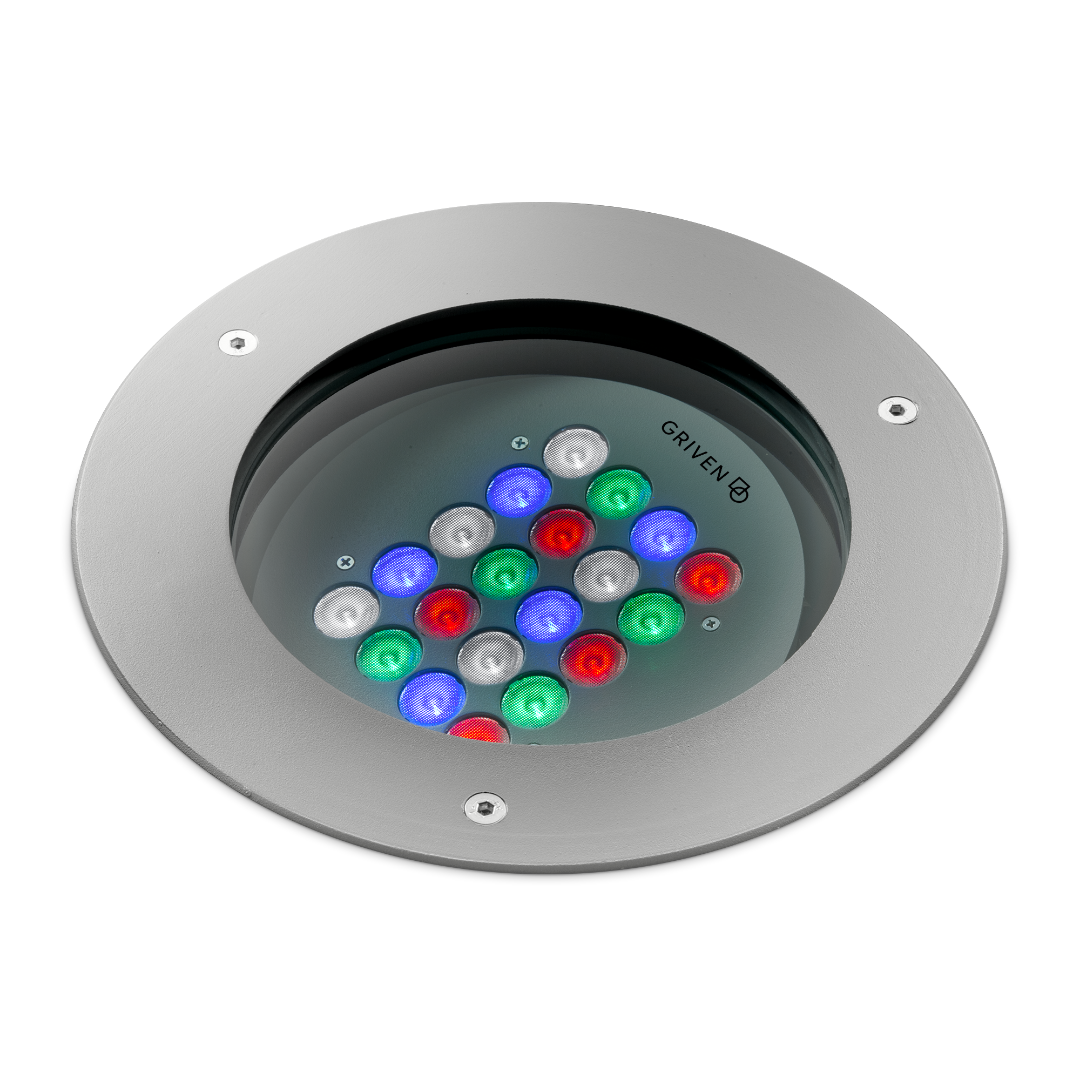

Dune MK3 RGBW

General Features

The DUNE MK3 is a high-performance IP68-rated LED up-lighter designed for outdoor recessed applications. This versatile fixture boasts a clever beam angle adjustment feature, making it perfect for spot lighting, wall grazing, and wall washing effects.
A range of color temperatures spanning RGBW30K or 40K, tunable white, or static white are available with smooth and even light distribution. Crafted from AISI 316L stainless steel, the fixture can handle a deadweight load of over 4000 pounds, making it suitable for inground installations, including vehicular areas.

Color configuration

High brightness RGB+W 3000K or 4000K LEDs

Optical configuration

7° SP (Spot)
12° NB (Narrow)
21° MB (Medium)
43° WB (Wide)
66° EW (Extra-Wide)
40° x 11° ELH (Elliptical)
40° x 20° ELWH (Elliptical Wide)

Input voltage

100-277VAC / 50-60 Hz

Amperage

0.23A @ 120V, 0.10A @ 277V

Power consumption

0.16A @ 230VAC / 27W max.

Ingress protection rating

IP68
