Dune MK3 Static White

DUNE-R-PE Polar Edition

  • Max. delivered lm output: 2863 lm / 106 lm/W
  • Control system: DMX-RDM, remote wireless data
  • High performance drive-over uplighter with smart beam angle orientation adjustment of 9°
  • Size: 14.38" L x ø 12"

View LED colour configuration: Neutral White 4000K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product

General Features

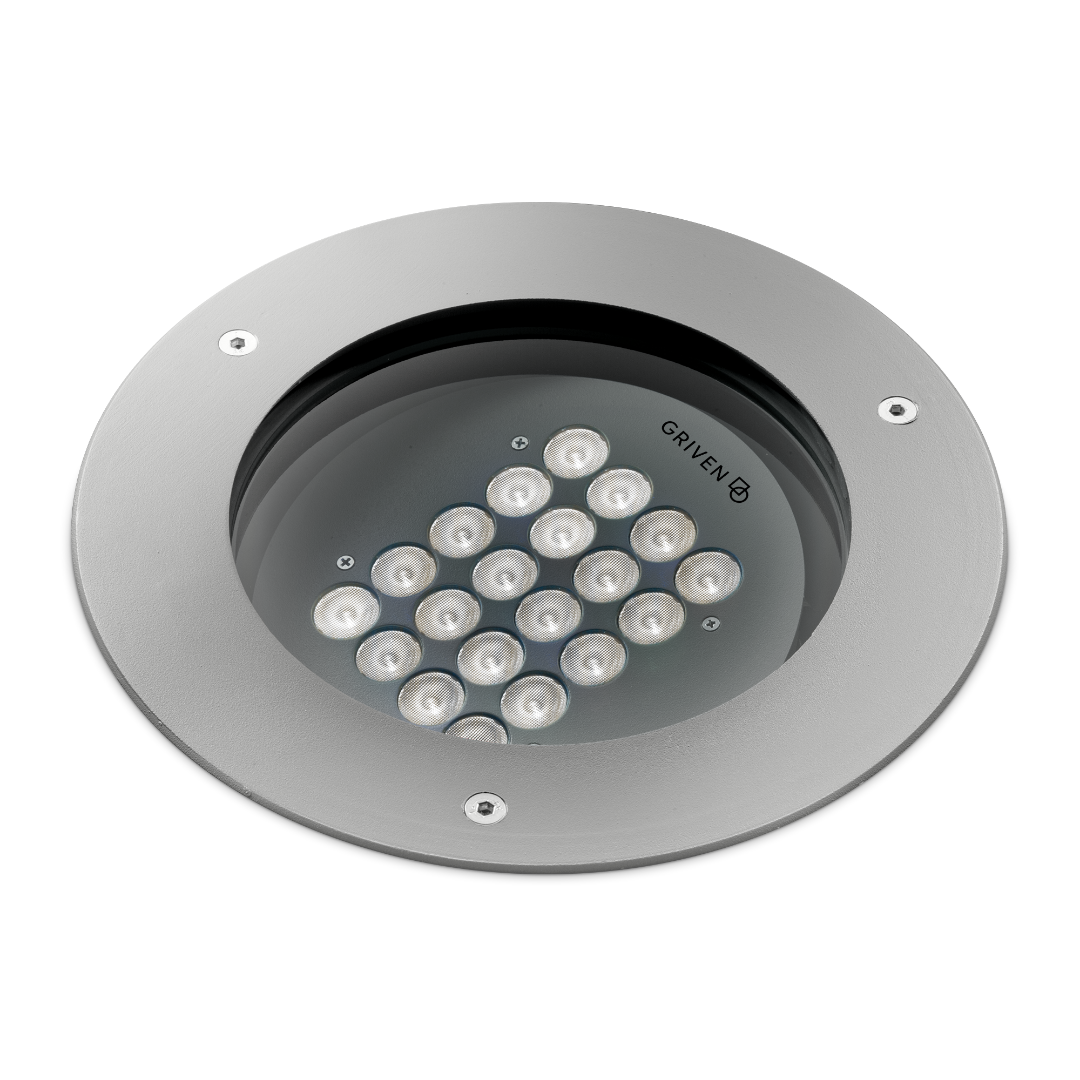

The DUNE MK3 is a high-performance IP68-rated LED up-lighter designed for outdoor recessed applications. This versatile fixture boasts a clever beam angle adjustment feature, making it perfect for spot lighting, wall grazing, and wall washing effects.
A range of color temperatures spanning RGBW30K or 40K, tunable white, or static white are available with smooth and even light distribution. Crafted from AISI 316L stainless steel, the fixture can handle a deadweight load of over 4000 pounds, making it suitable for inground installations, including vehicular areas.
Color configuration
High brightness 4000K Natural White, 3000K Warm White or, on request, monochrome power LEDs
Optical configuration
12° SP (Spot)
15° NB (Narrow)
25° MB (Medium)
47° WB (Wide)
61° EW (Extra-Wide)
39° x 14° ELH (Elliptical)
37° x 23° ELWH (Elliptical Wide)
Max. Delivered lumen output
up to 2863 lumens
Max. lumen/Watt
up to 106 lumens per watt
Input voltage
100-240VAC / 50-60 Hz
0.27A @ 100VAC, 0.11A @ 240VAC
Power consumption
27 watts max.
Ingress protection rating
Impact resistance rating
External operating limits
-40°C to 50°C / (-40°F to 122°F)
5-year warranty

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal


  • IP68
  • IK10
  • DMX
  • RDM
  • ETL pending

Optional Features

  • Optional Polar
