Graph-I-Cell RGB


  • High brightness single pixel fixture for the creation of multiple graphic patterns and low resolution video files
  • Dome shaped 180° opaline diffuser
  • Premium quality high brightness RGBW power LEDs
  • 5.1 x 5.12 x 3.6"

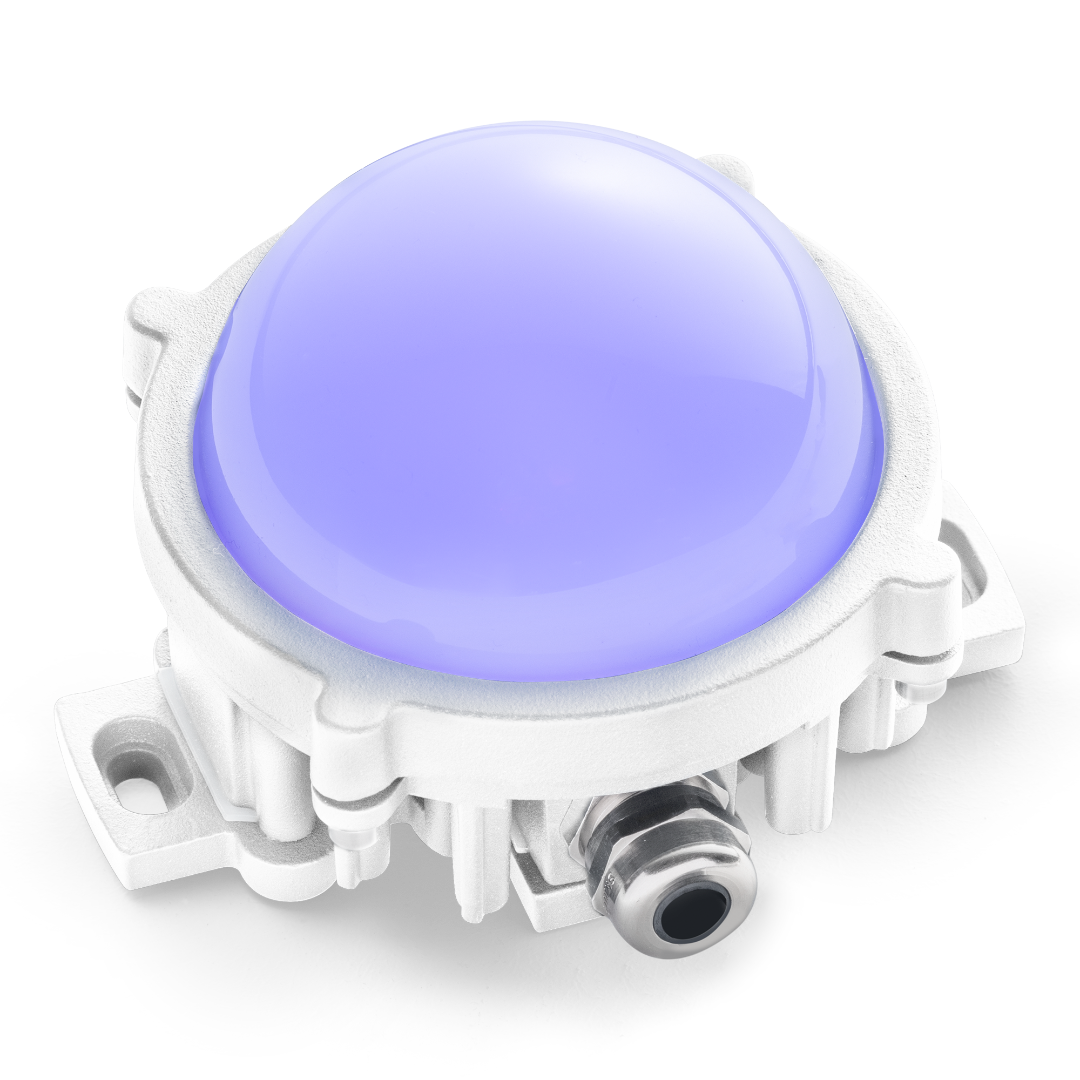

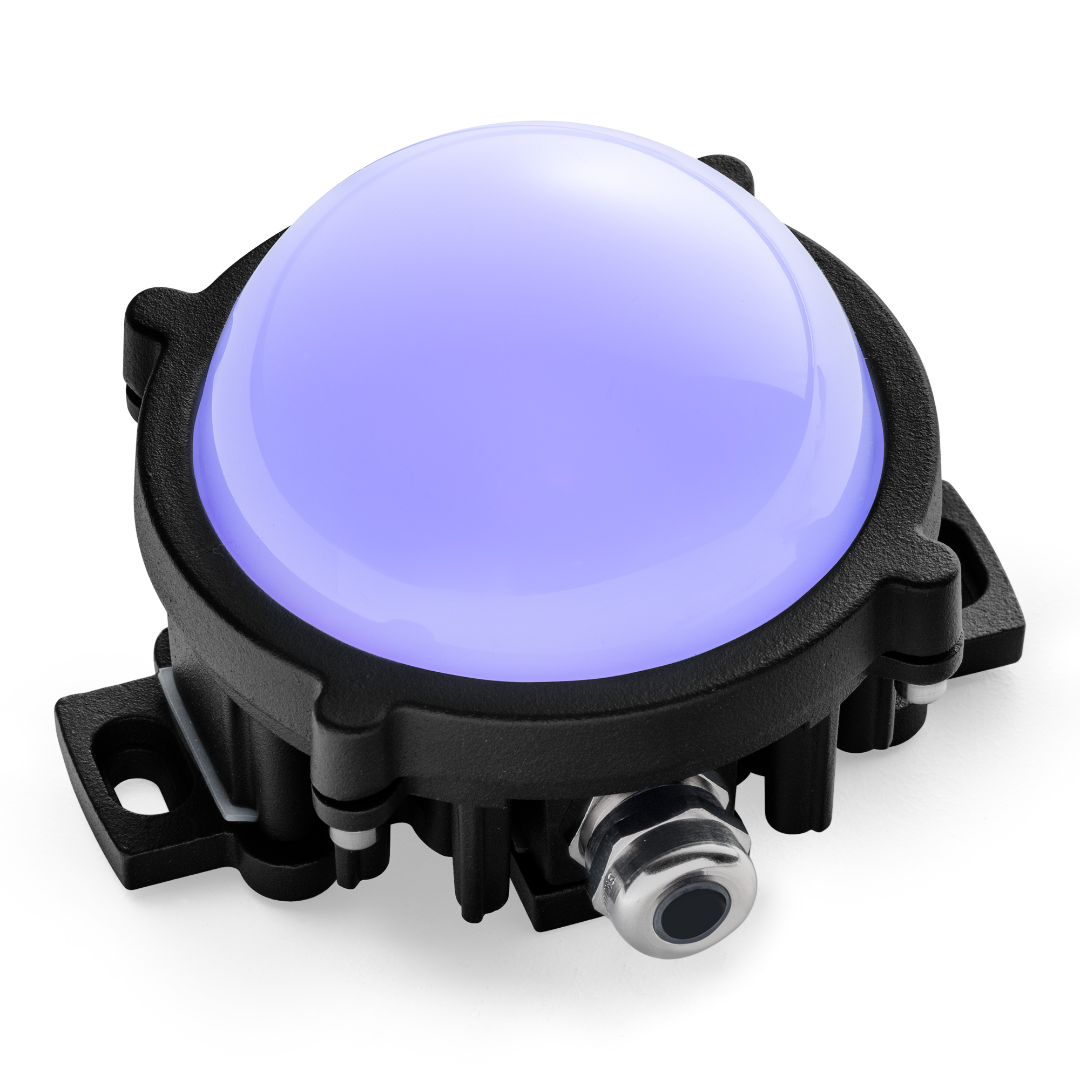

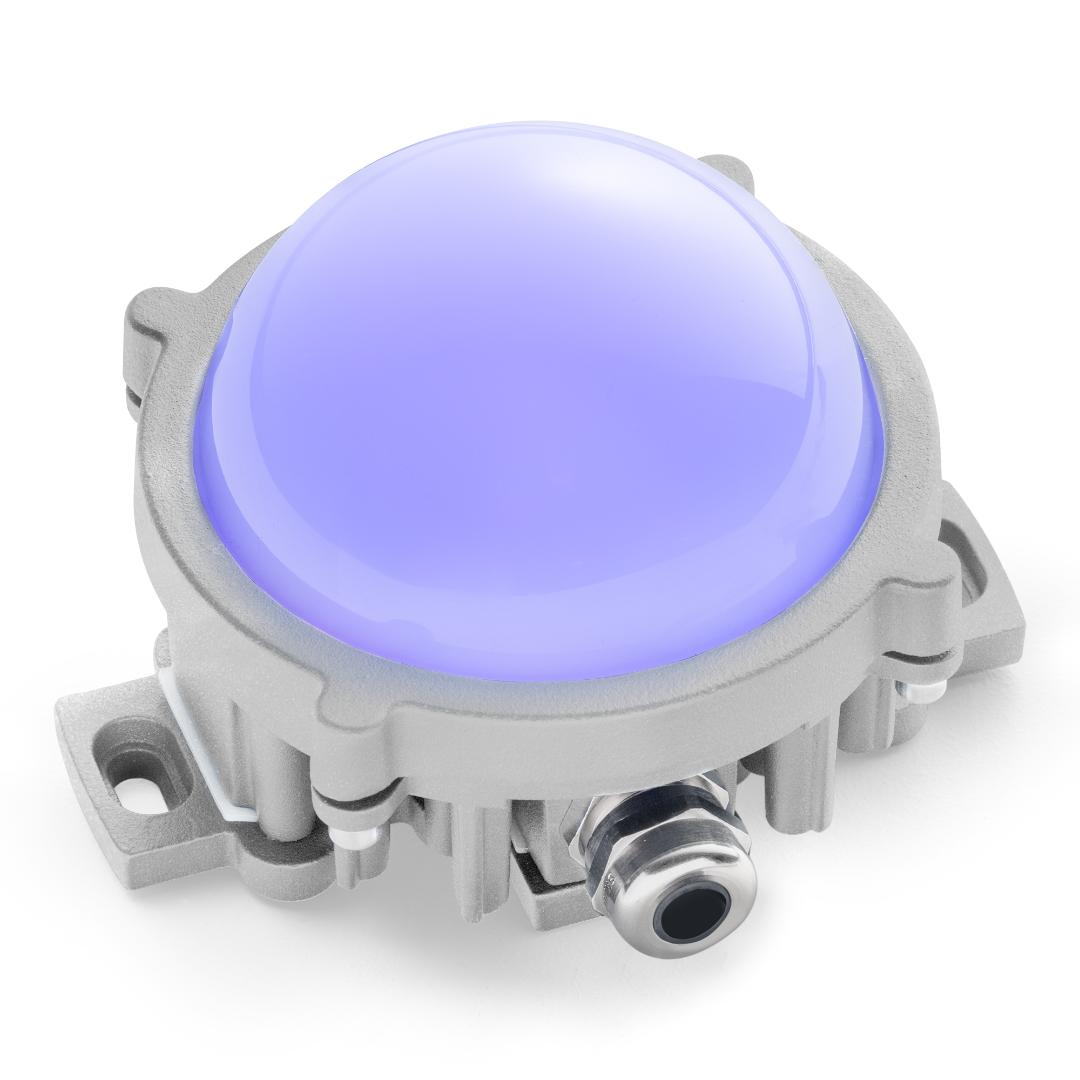

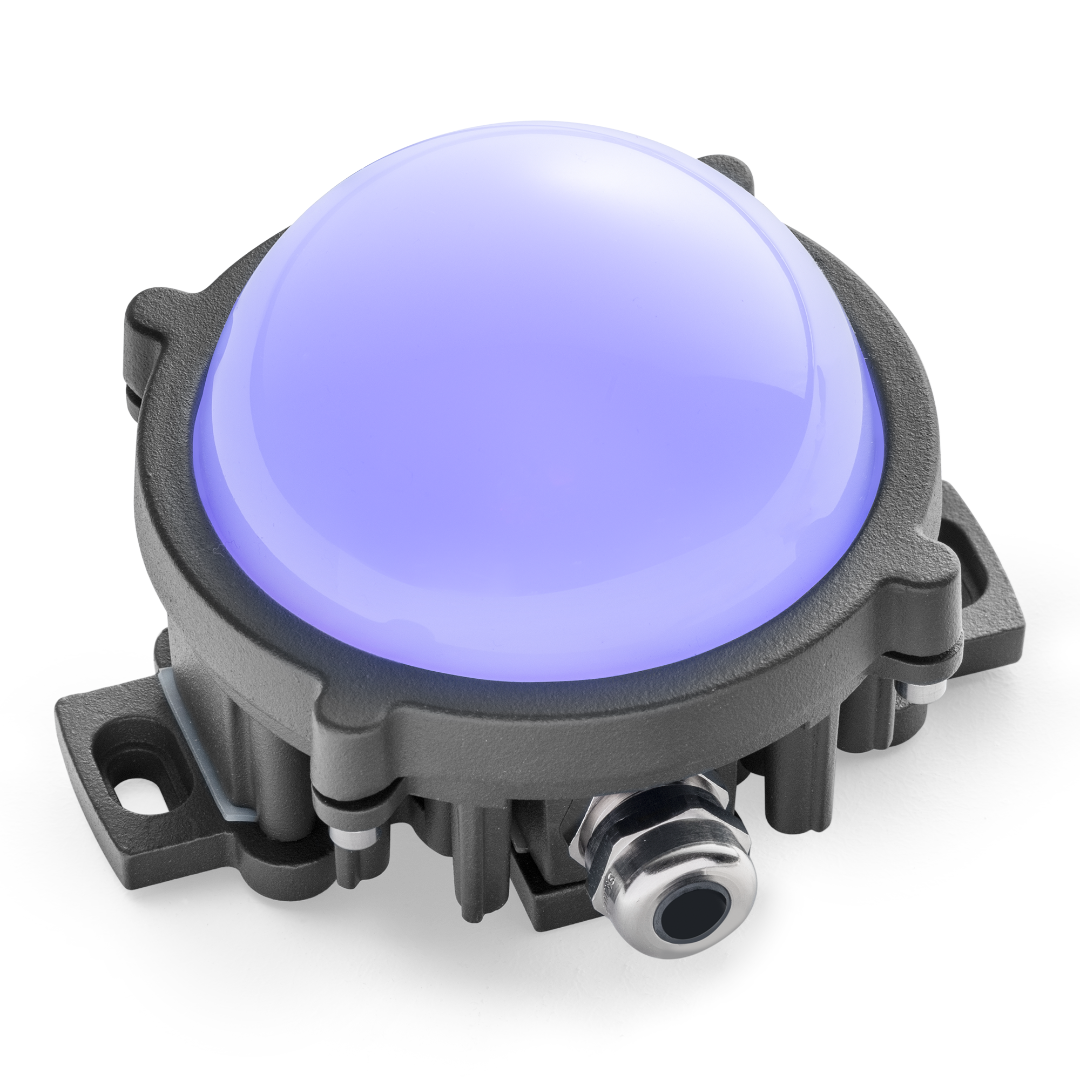

View finishes: Griven Silver Grey
  • Griven Silver Grey
  • Silver Grey Marine Grade
  • Custom Color Marine Grade
  • Custom Color
  • Contact factory for Custom RAL or Marine Grade Finishes
Contact us  Save product

General Features

GRAPH-I-CELL is a single pixel direct view luminaire that may be grouped in multiple units to display low resolution graphics, videos, or dynamic patterns. The low voltage, self-addressing fixture is die-cast aluminum and features six high brightness LEDs. The fully sealed luminaire operates as an individually controlled node via DMX and integrates into existing architecture with minimal effort and materials. Power and data are combined within a single cable for ease of wiring and interconnection of many units. The domed lens is available in two frosted variations for close or distant viewing. The IP65 rated luminaire is suitable for a wide range of exterior or interior applications. Monochrome versions are also available on request.
Color configuration
High brightness RGB power LEDs
Optical configuration
Max. Delivered lumen output
316 lumens RGB
13770 cd/m2 (nits)
5.2" minimum
Input voltage
120-277VAC / 50-60Hz
Power consumption
13W maximum (1 module full RGB); maximum 20 nodes per power supply
Ingress protection rating
Impact resistance rating
External operating limits
-30°C to 40°C / (-22°F to 104°F)

Light Beam Effects

  • Opaline Lens


  • IP65
  • IK10
  • DMX
  • Wireless

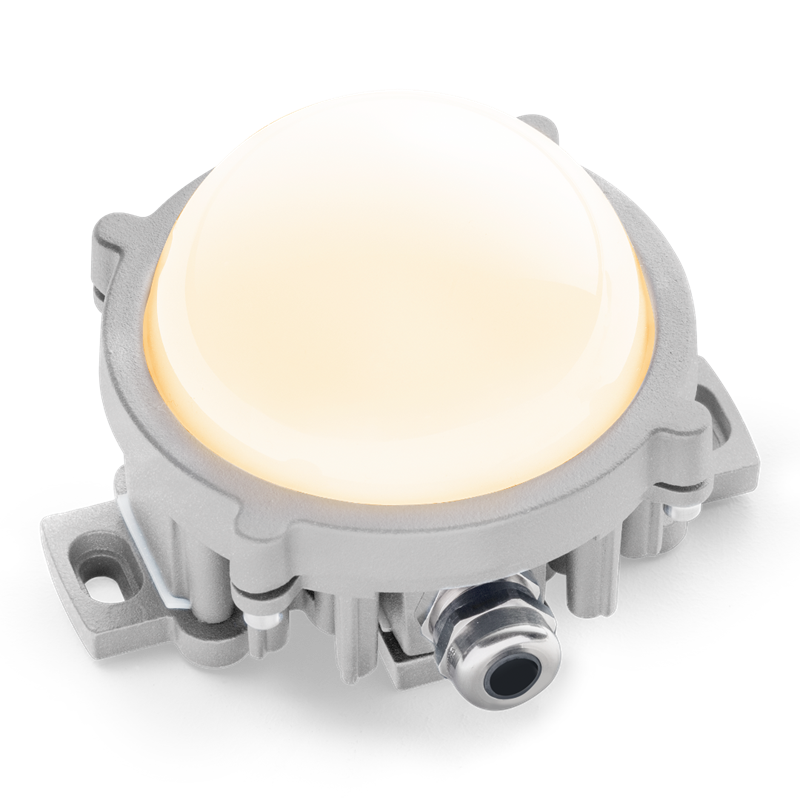

  • 0-10V
  • CSA certified version available on request
