Graph-i-Line RGB

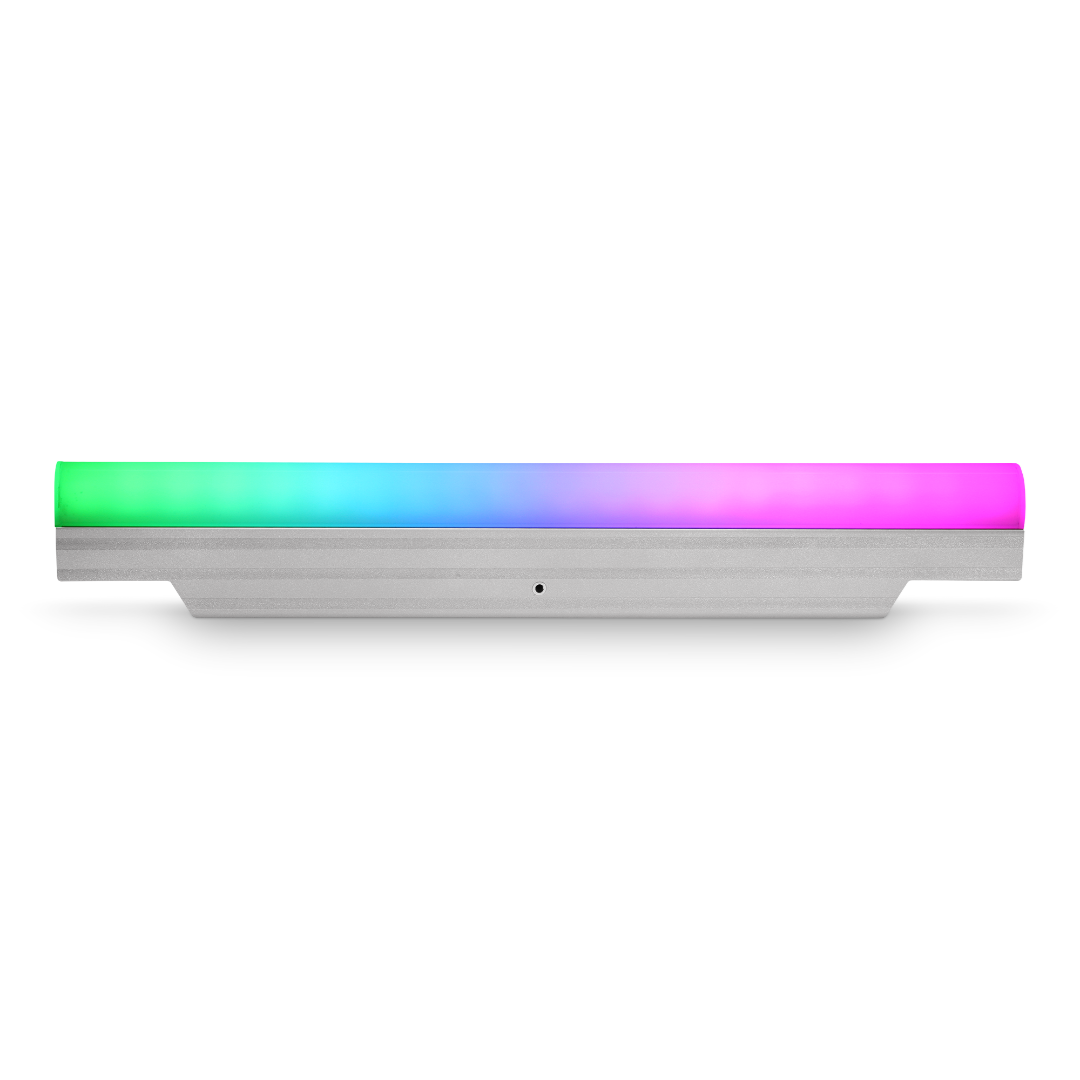

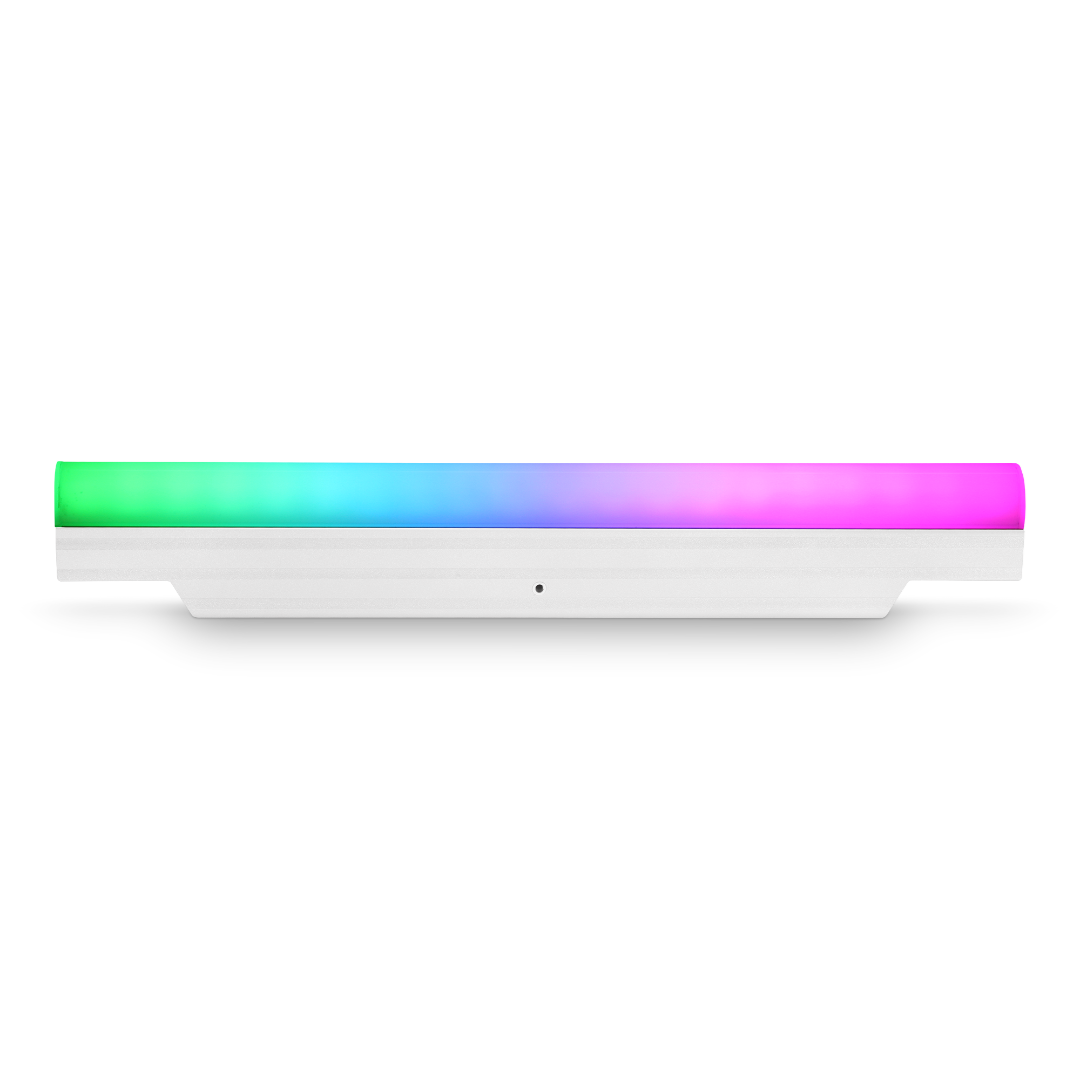

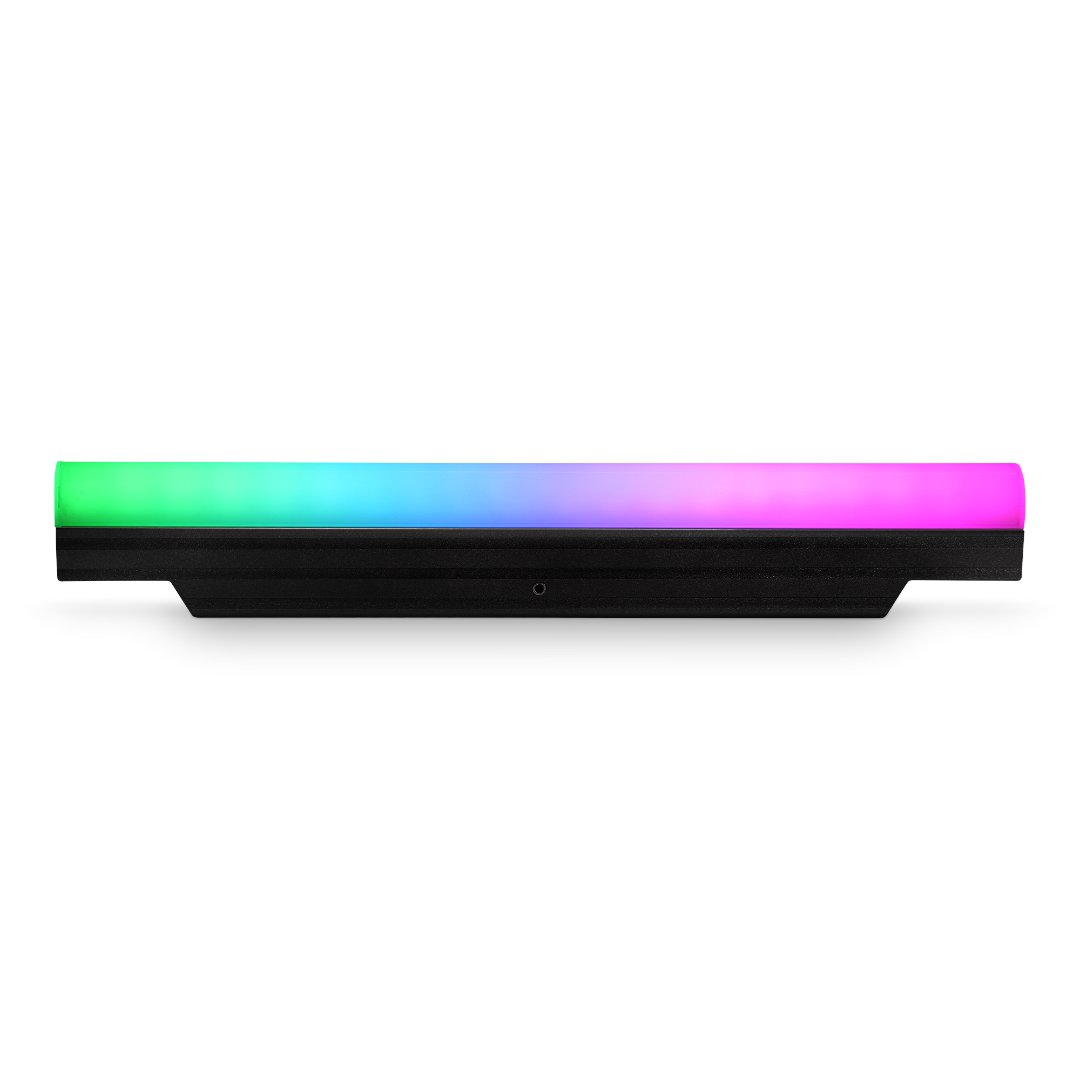

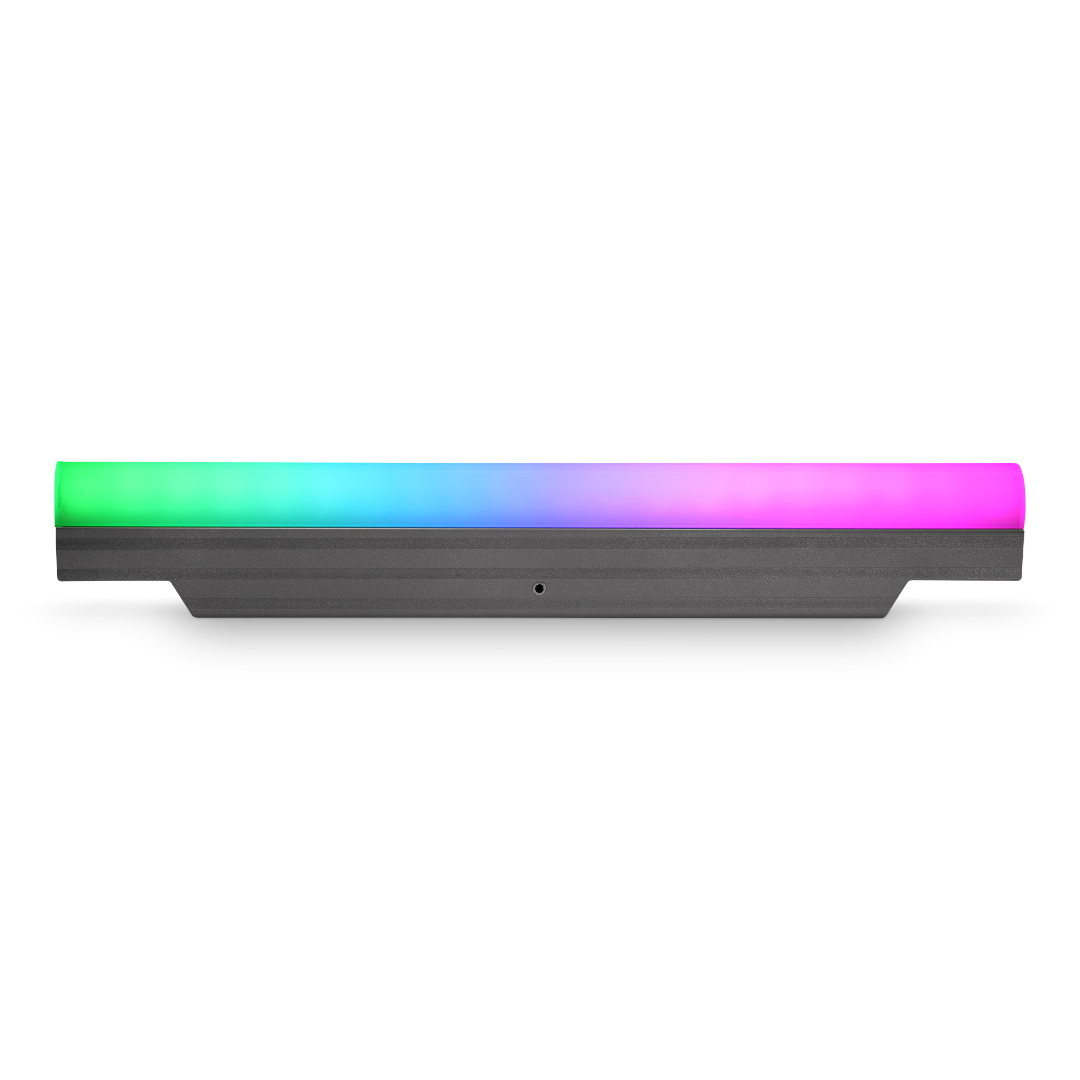

GRL520 - Graph-I-Line 20

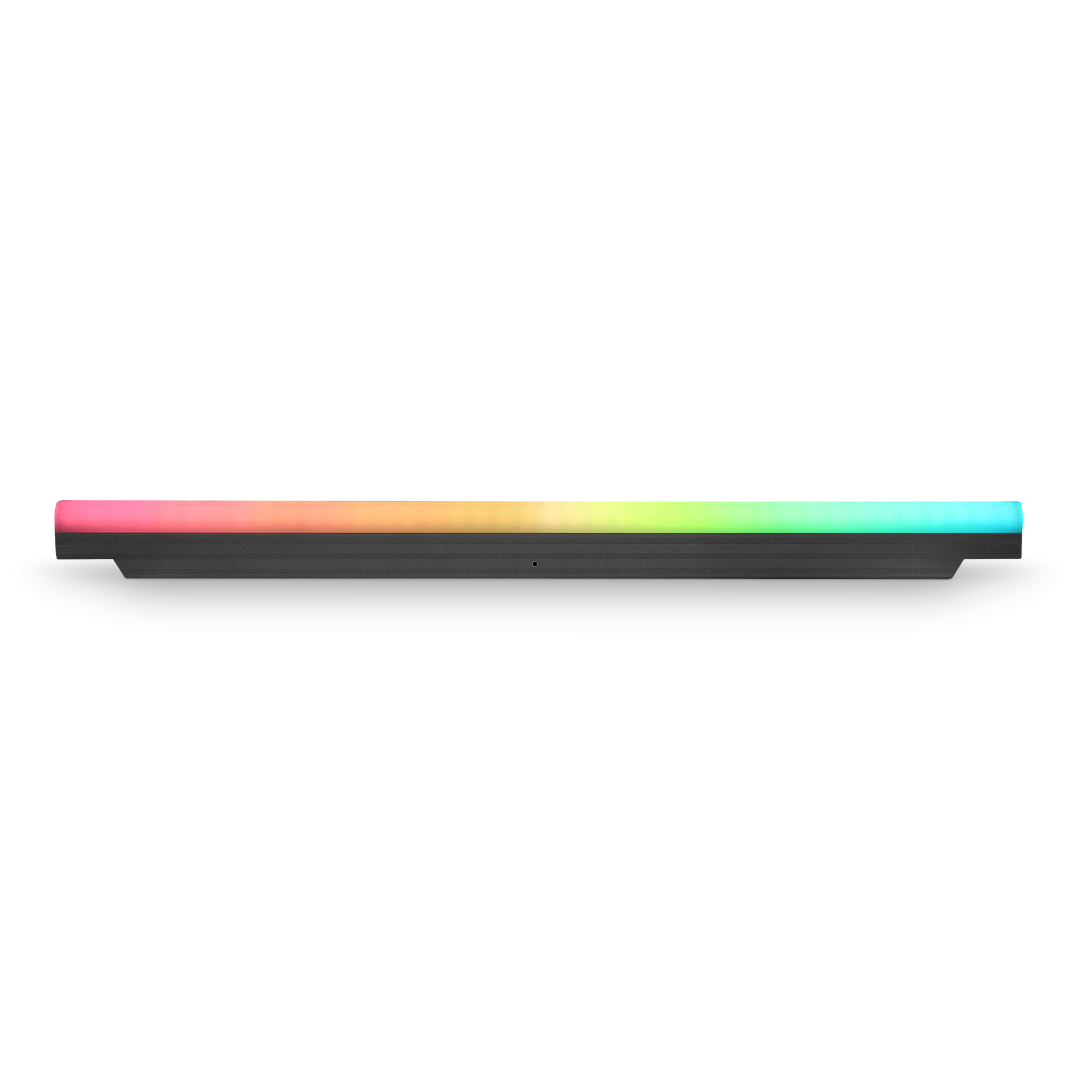

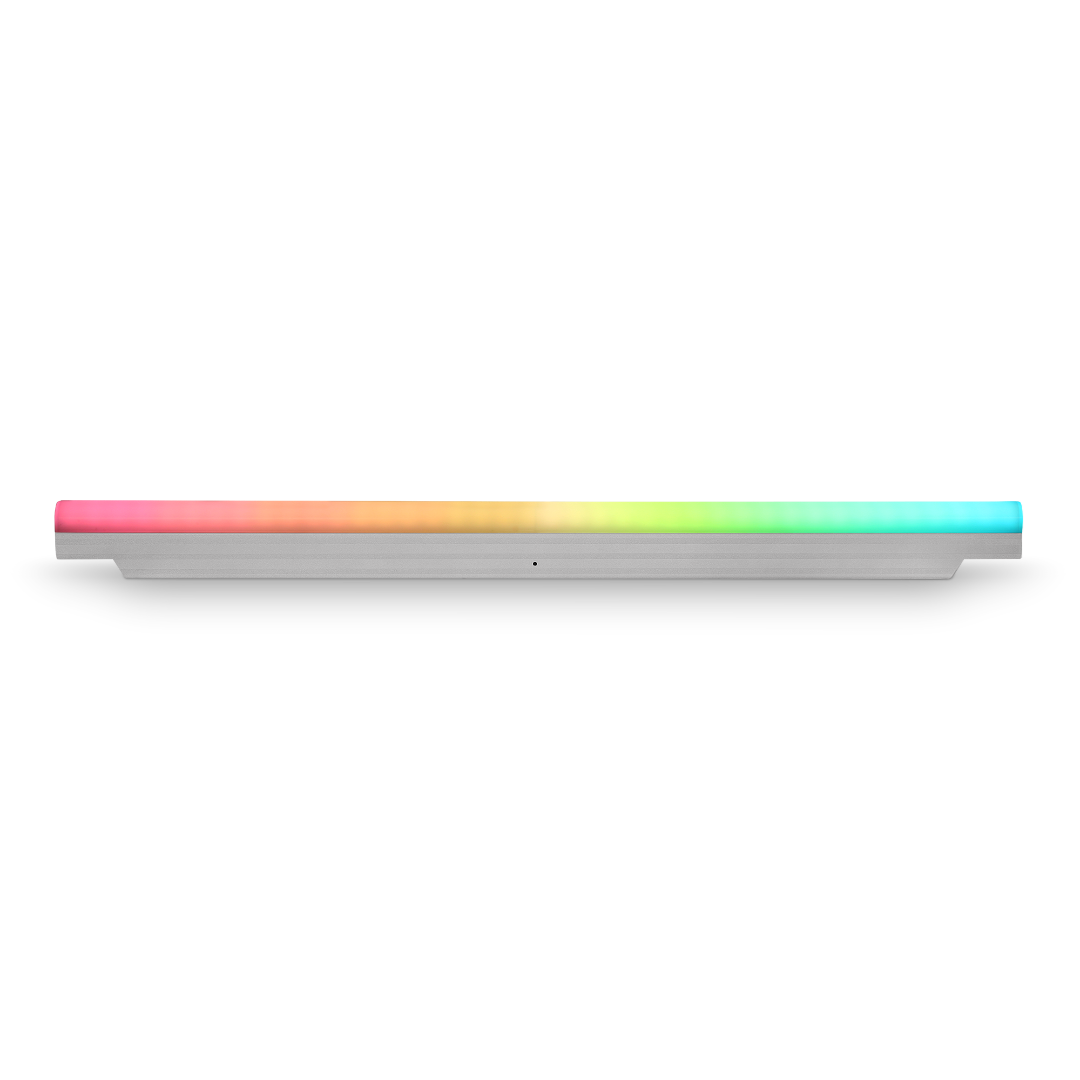

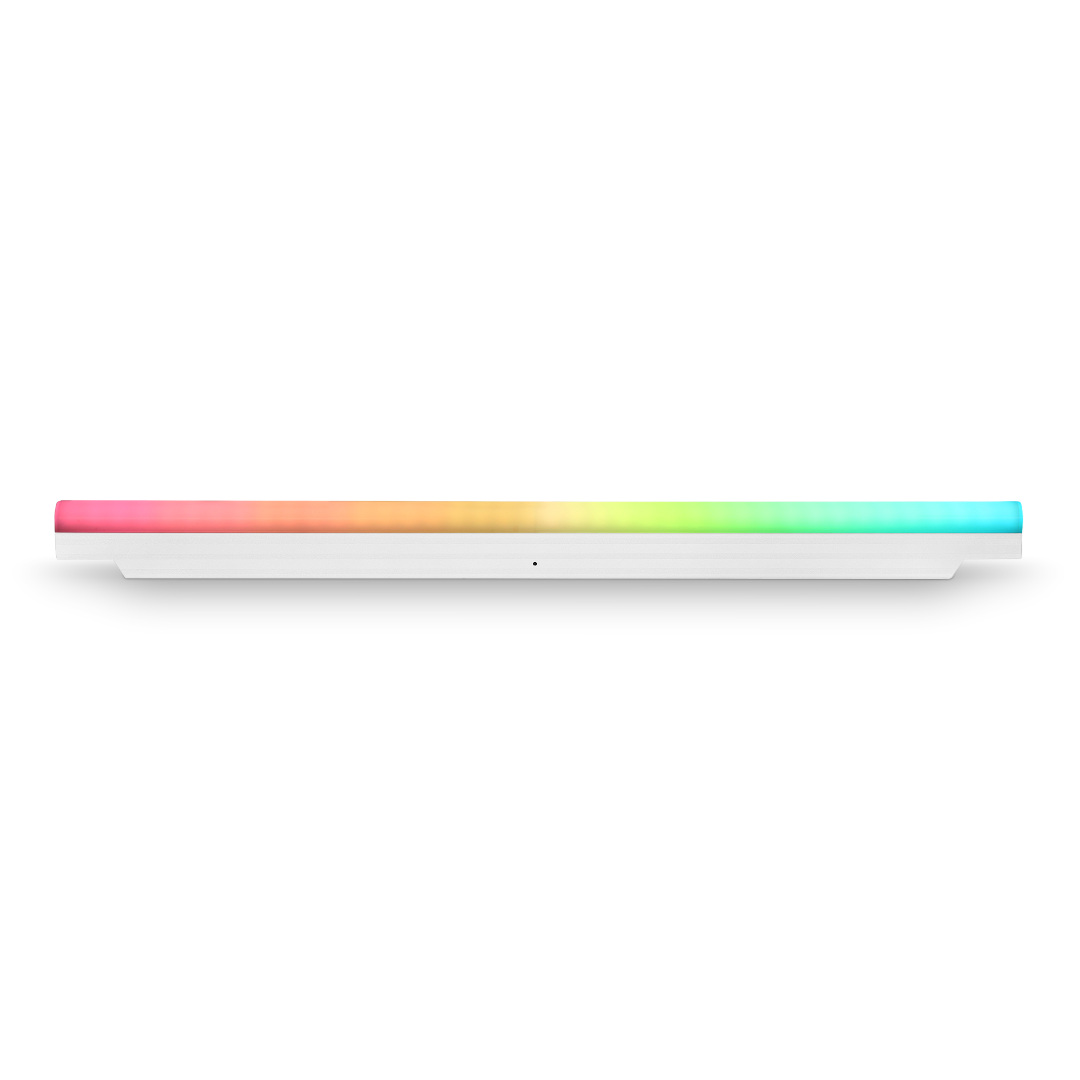

GRL540 - Graph-I-Line 40

  • Versatile and powerful RGBW LED module
  • Independent control of each multi-chip LED
  • Premium class RGBW LEDs, featuring 4000K natural white
  • 19.8 x 3.4 x 1.7" (Graph-i-line 20) / 39.4 x 3.4 x 1.7" (Graph-i-line 40)

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Silver Grey Marine Grade
  • Custom Color Marine Grade
  • Custom Color
  • Contact factory for Custom RAL or Marine Grade Finishes
Contact us  Save product

General Features

GRAPH-I-LINE is a versatile architectural RGB luminaire for direct view applications. The lightweight weatherproof LED bar is capable of reproducing almost any visual concept from screening of videos to displaying a wide array of graphic patterns when combined with multiple units. The plug and play unit is self-addressing and operates with standard DMX 512 channel protocol, or G-data protocol, which can manage up to 2048 channels. Adjustable control resolution ranges from one inch when the individual LEDs within the luminaire are independently controlled, to one meter when using the luminaire as a single pixel. Polycarbonate lens options include a clear lens for long distance viewing or an opaline diffuser for closer direct view. The luminaire is composed of a light fixture and mounting channel for simplified installation and positioning. Remote 320 watt power supply can operate up to 15 Graph-i-Line 40 luminaires in a single run.
Color configuration
High brightness RGB
Optical configuration
DO (Opaline Lens)
DC (Clear Lens)
Max. Delivered lumen output
195 lumens RGB Graph-I-Line 40
843 cd/m2 (nits)
0.98" x 1.75" minimum
Input voltage
120-277VAC / 50-60Hz
Power consumption
5.5W / ft (18W / meter)
Ingress protection rating
Impact resistance rating
External operating limits
-40°C to 50°C / (-40°F to 122°F)

Light Beam Effects

  • Opaline Lens
  • Clear Lens


  • IP66
  • IK10
  • DMX
  • Wireless
  • Self-addressing
  • 0-10V
  • CSA certified version available on request
