Jasper MK2 RGBW

JSPRMK2
JSPRMK2PE Polar Edition

  • Ideal for spot or flood lighting of building façades or large-scale architectural structures
  • Control system: DMX-RDM, remote wireless data
  • Max. delivered lm output: 9029 lm / 46 lm/W
  • 18.8" L x 5.6" W x ø 17.7"

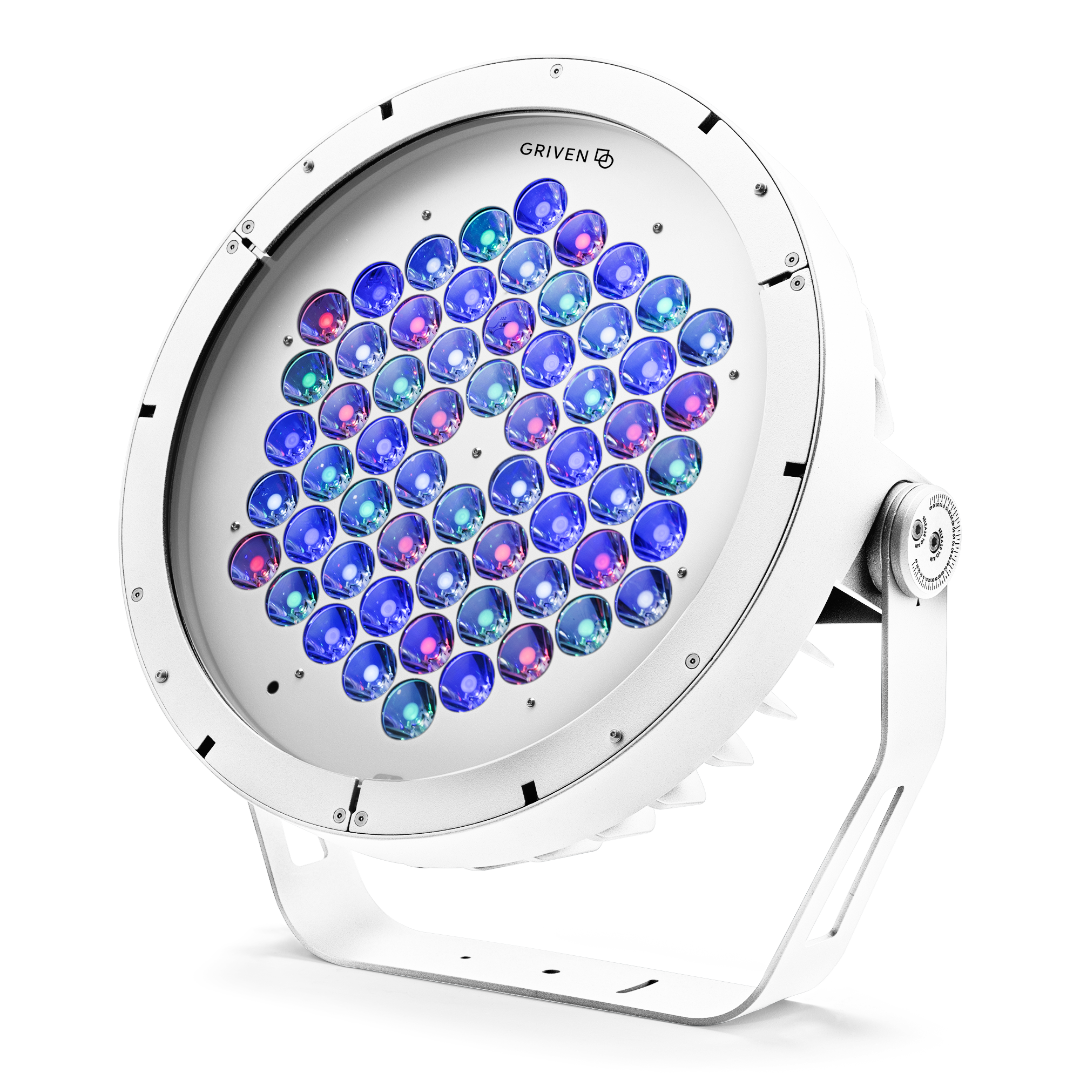

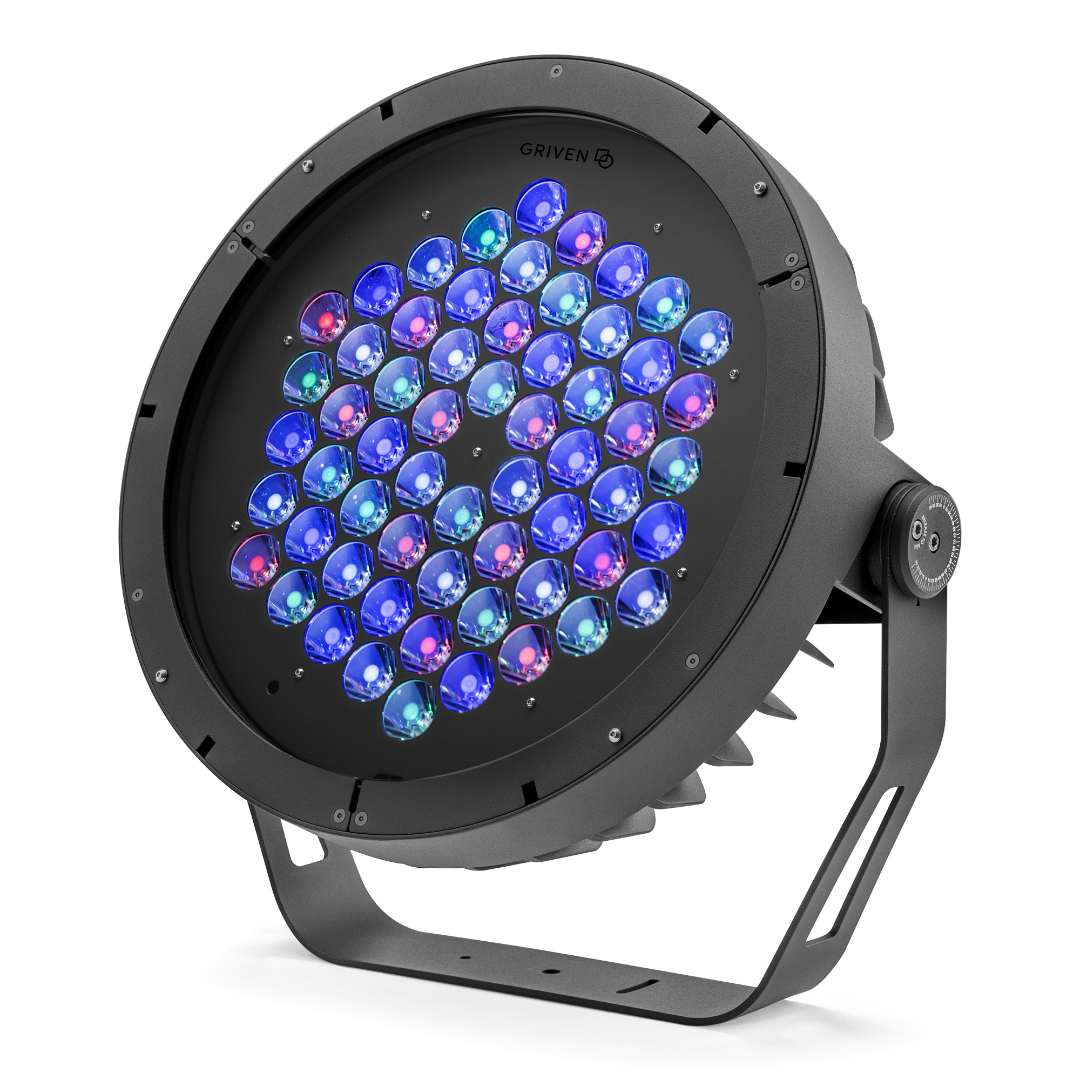

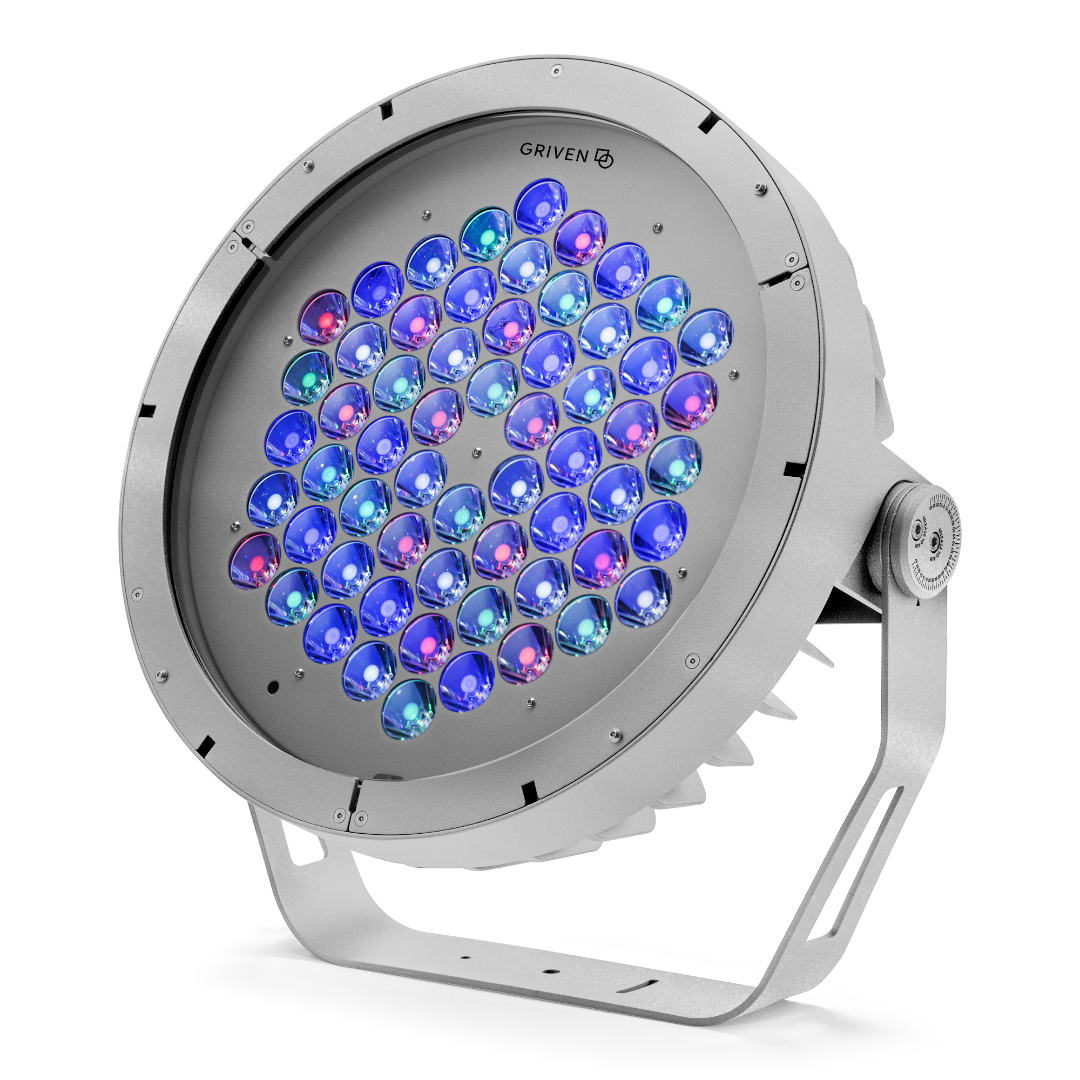

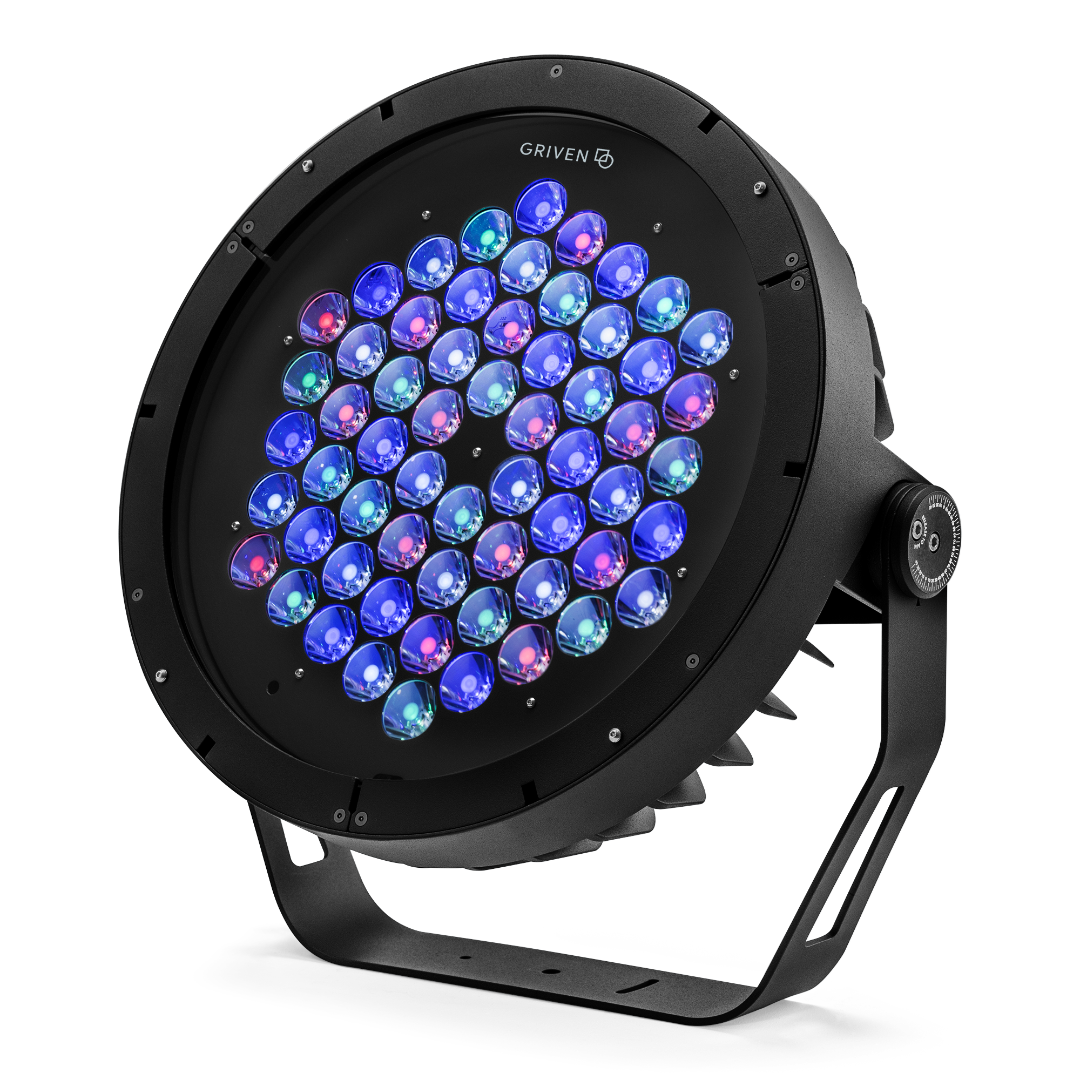

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: RGBW40K
  • RGBW30K
  • RGBW40K
Contact us  Save product
COLOR CHANGING
print

General Features

JASPER MK2 establishes new standards in high output lighting projectors for the illumination of large-scale or expansive architectural structures. The high-wattage luminaire offers a wide selection of nine standard distributions ranging from symmetric ultra-narrow 4° spot to ultra-wide 125°, as well as elliptical and elliptical wide beam patterns. JASPER incorporates 60 high power LEDs in a choice of RGBW or dynamic white; or static warm, neutral, or cool white to deliver an extensive palette of colors, tones, and hues. On-board controls allow users to program fixed colors or simple color sequencing for standalone operation or multiple unit synchronization in a master-satellite configuration without the need for external control systems. Luminaires may also be paired with external DMX control systems for dynamic color-changing scenes. Options include visors and snoots for added light control. Contact factory for custom tailored distributions with spreading diffusers. All hardware is stainless steel.
Color configuration
High brightness RGB+W 4000K LEDs
Optical configuration
4° US (Ultra Spot)
8° SP (Spot)
11° NB (Narrow)
23° MB (Medium)
43° WB (Wide)
58° EW (Extra wide)
116° UW (Ultra Wide)
42°h x 10°v ELH (Elliptical Horizontal)
39°h x 21°v ELWH (Elliptical Wide Horizontal)
Max. Delivered lumen output
Up to 9029 Lumens
Max. lumen/Watt
Up to 46 Lumens per Watt
Input voltage
120 - 277V
Amperage
1.63A @ 120V, 0.70A @ 277V
Power consumption
195 watts max.
Ingress protection rating
IP66
Impact resistance rating
IK10
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty

Light Beam Effects

  • Ultra Spot
  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Ultra Wide
  • Elliptical
  • Elliptical Wide


Overview

  • IP66
  • IK10
  • DMX
  • RDM
  • Rohs
  • ETL Listed

Optional Features

  • Optional Polar

Downloads
