Jasper MK2 Static White

JSPRMK2
JSPRMK2PE Polar Edition

  • Ideal for spot or flood lighting of building façades or large-scale architectural structures
  • Control system: DMX-RDM, remote wireless data
  • Max. delivered lm output: 19865 lm / 102 lm/W
  • 18.8" L x 5.6" W x ø 17.7"

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: Neutral White 4000K
  • Warm White 2700K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product
STATIC WHITE
print

General Features

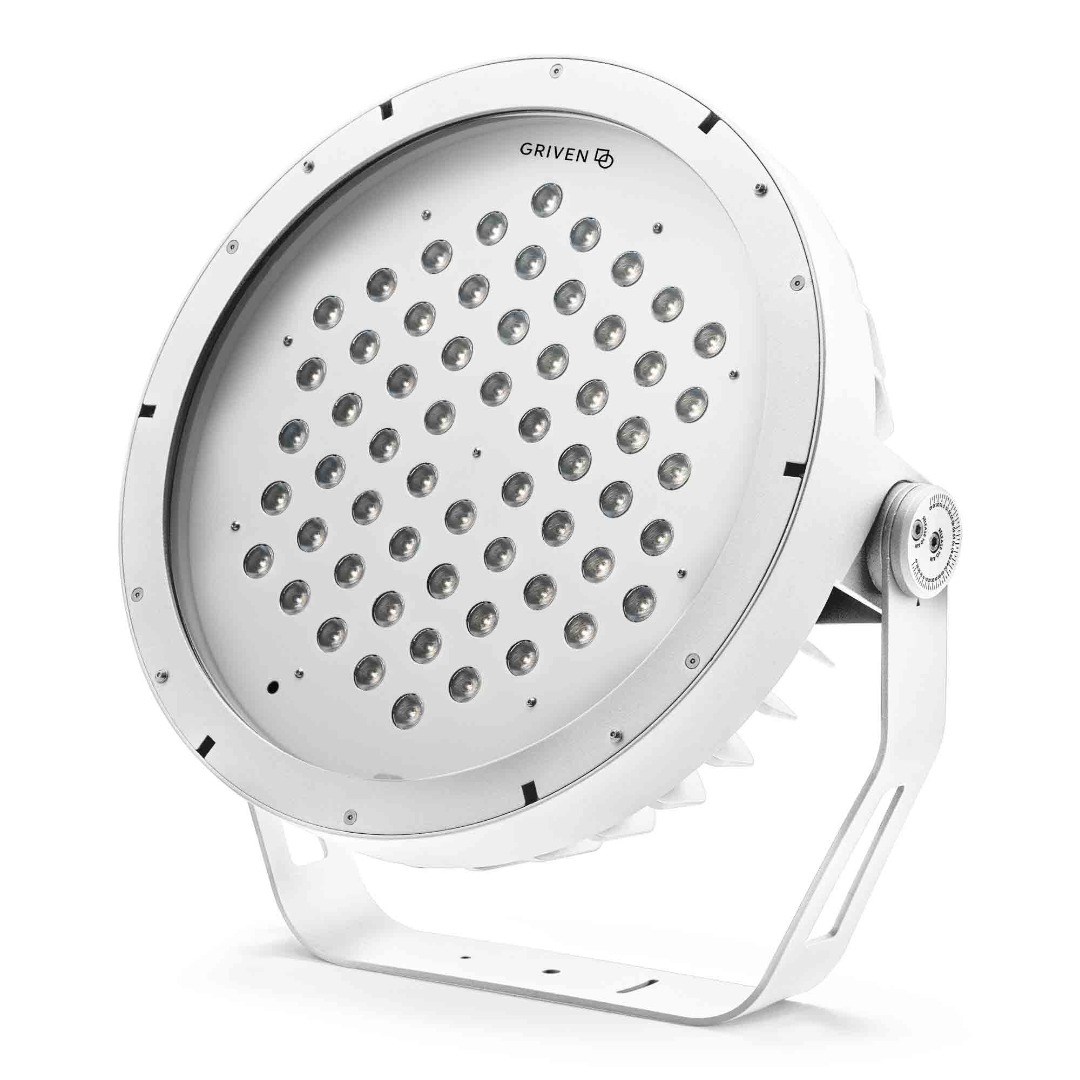

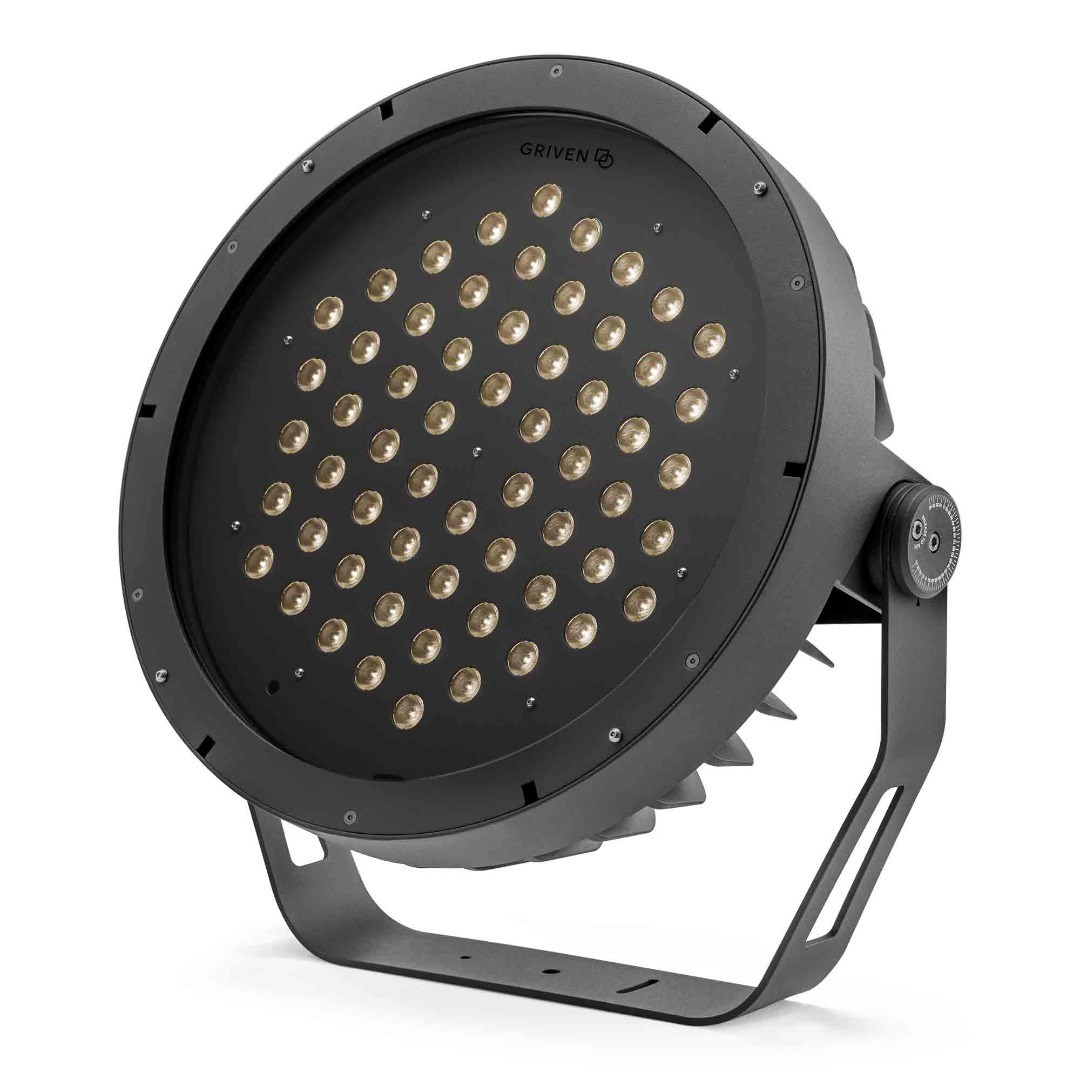

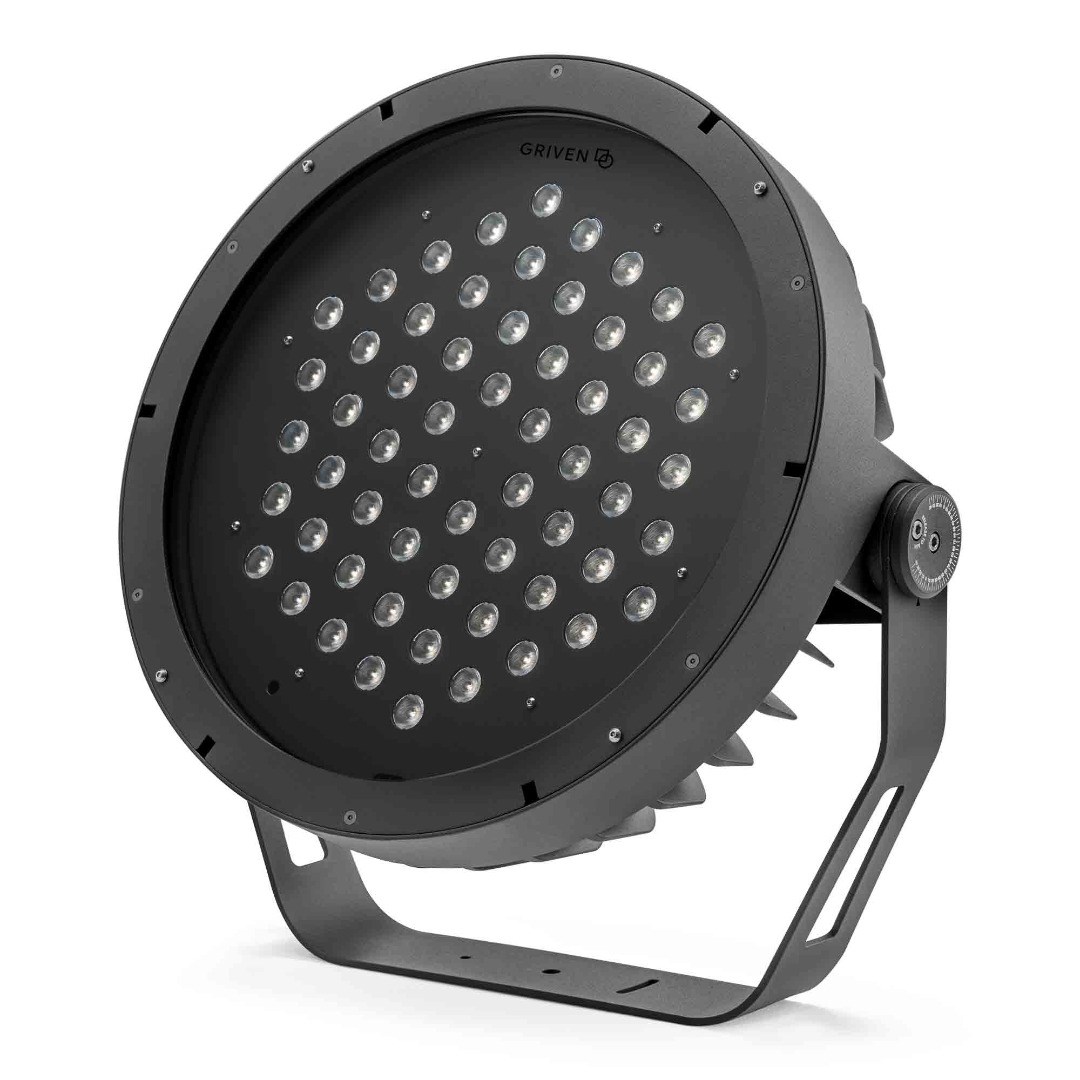

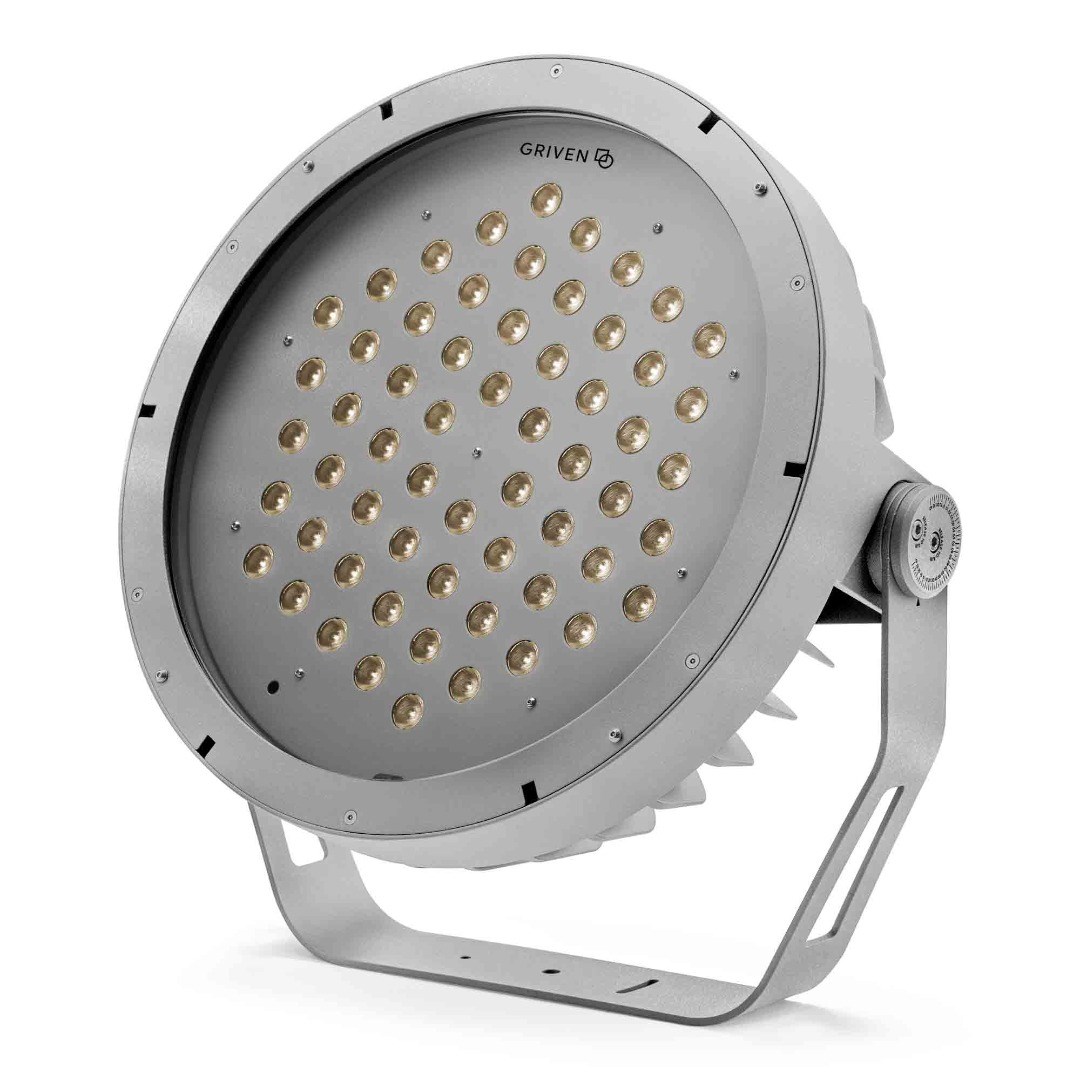

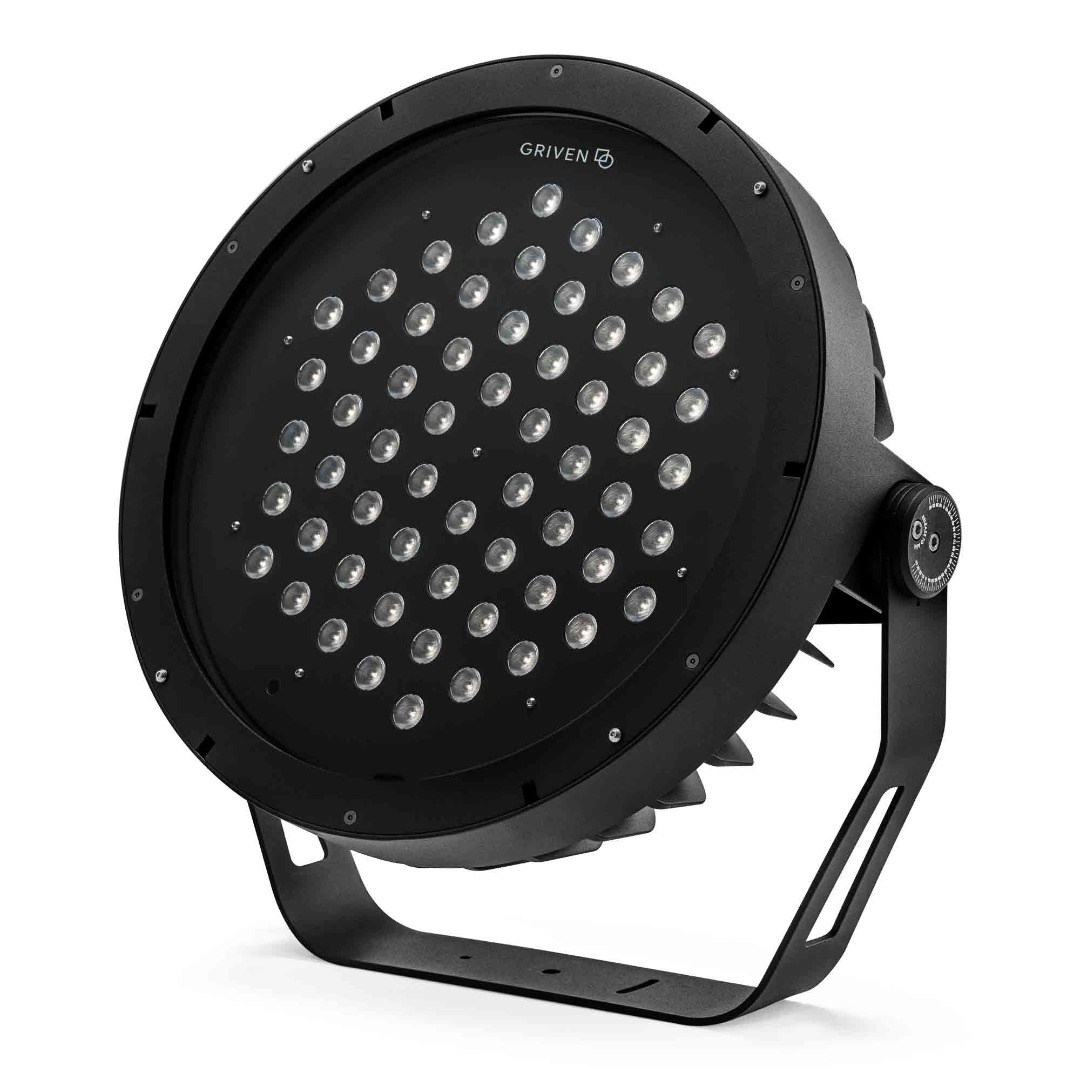

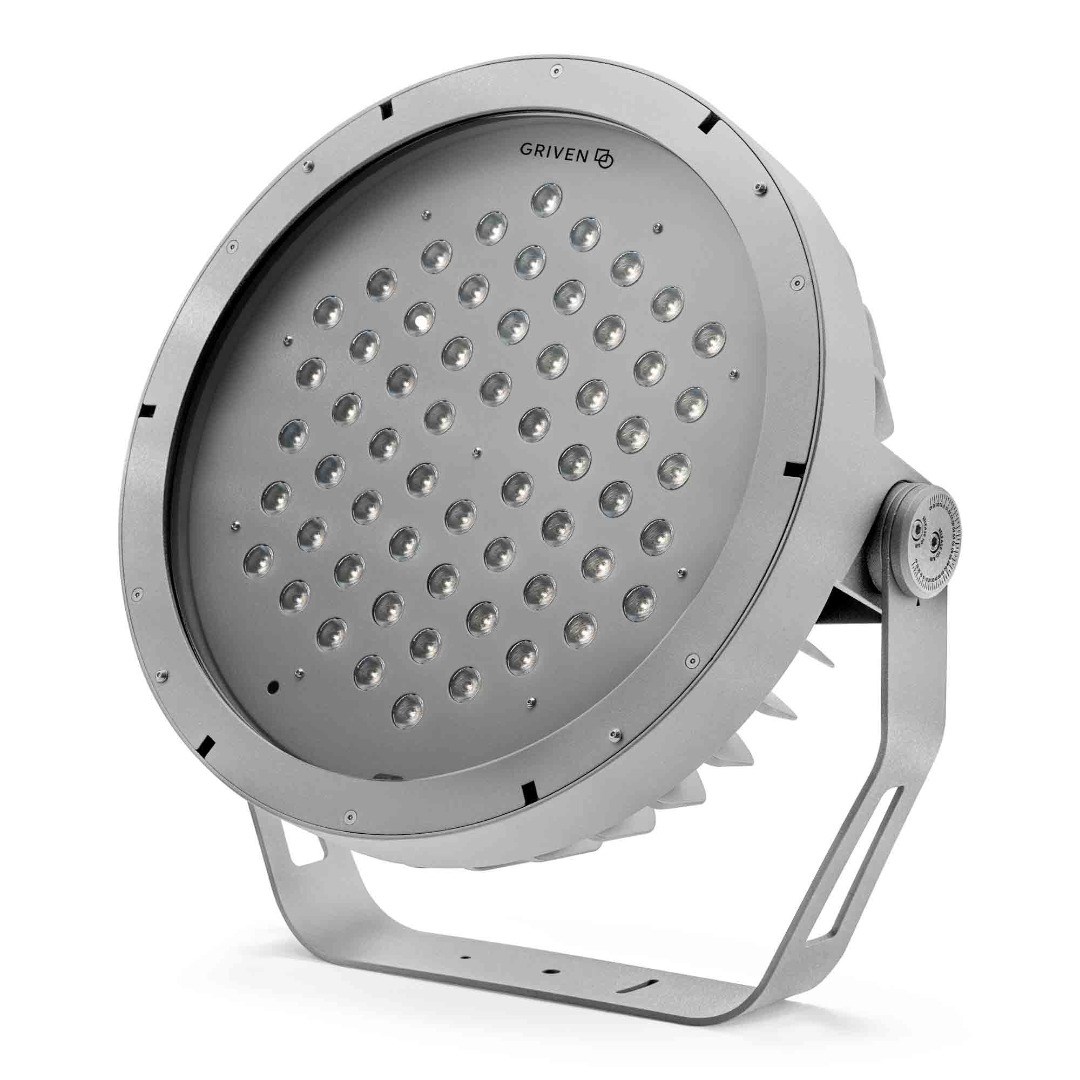

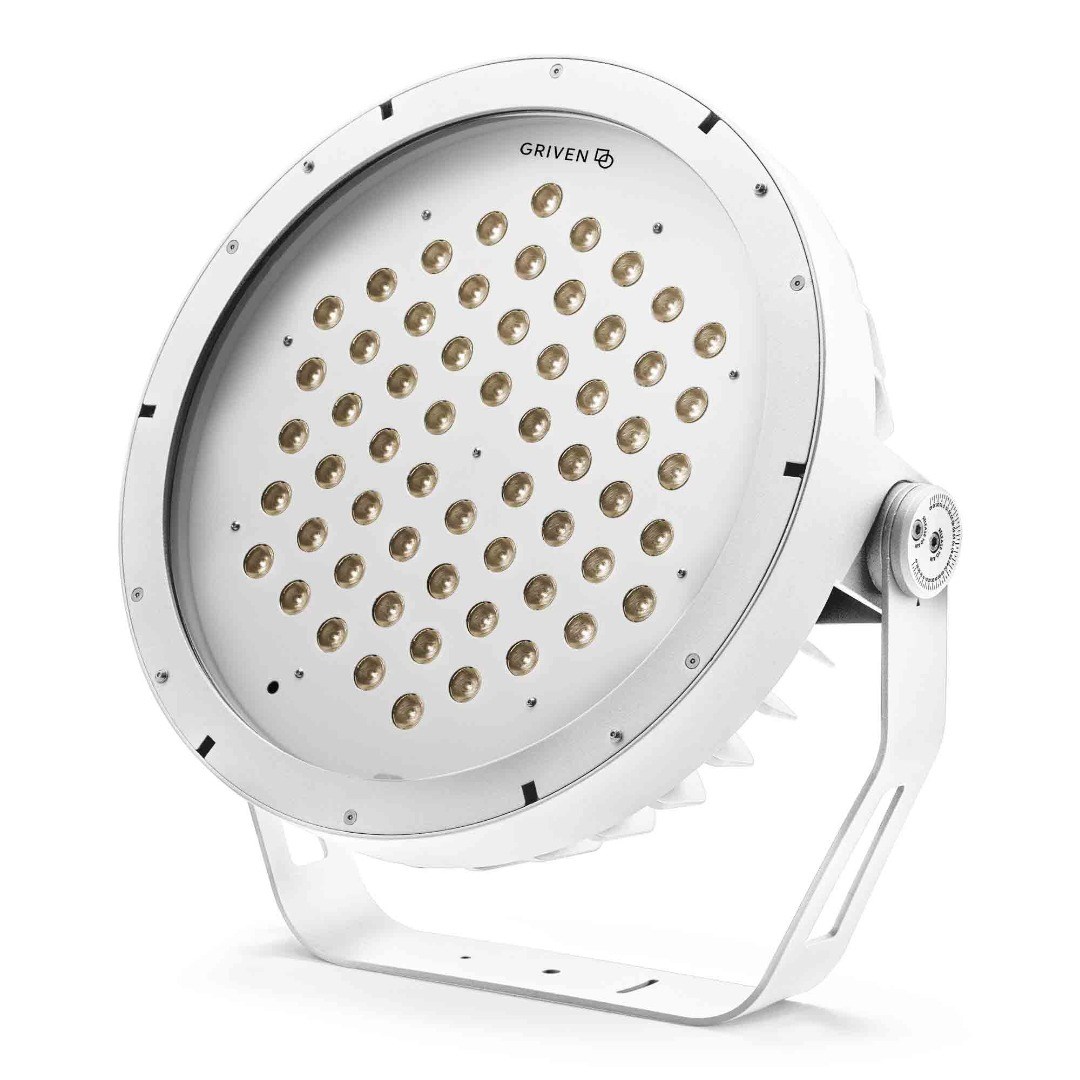

JASPER MK2 establishes new standards in high output lighting projectors for the illumination of large-scale or expansive architectural structures. The high-wattage luminaire oers a wide selection of nine standard distributions ranging from symmetric ultra-narrow 4° spot to ultra-wide 125°, as well as elliptical and elliptical wide beam patterns. JASPER incorporates 60 high power LEDs in a choice of RGBW or dynamic white; or static warm, neutral, or cool white to deliver an extensive palette of colors, tones, and hues. On-board controls allow users to program fixed colors or simple color sequencing for standalone operation or multiple unit synchronization in a master-satellite configuration without the need for external control systems. Luminaires may also be paired with external DMX control systems for dynamic color-changing scenes. Options include visors and snoots for added light control. Contact factory for custom tailored distributions with spreading diusers. All hardware is stainless steel.
Color configuration
High brightness 4000K Natural White, 3000K or 2700K Warm White or, on request, monochrome power LEDs
Optical configuration
4° US (Ultra Spot)
8° SP (Spot)
12° NB (Narrow)
24° MB (Medium)
44° WB (Wide)
58° EW (Extra wide)
116° UW (Ultra Wide)
42°h x 10°v ELH (Elliptical Horizontal)
39°h x 20°v ELWH (Elliptical Wide Horizontal)
Max. Delivered lumen output
Up to 19865 Lumens
Max. lumen/Watt
Up to 102 Lumens per Watt
Input voltage
120 - 277V
Amperage
1.63A @ 120V, 0.70A @ 277V
Power consumption
195 watts max.
Ingress protection rating
IP66
Impact resistance rating
IK10
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty

Light Beam Effects

  • Ultra Spot
  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Ultra Wide
  • Elliptical
  • Elliptical Wide


Overview

  • IP66
  • IK10
  • DMX
  • RDM
  • Rohs
  • ETL Listed

Optional Features

  • Optional Polar
