Micro-dune MC Dynamic White

MC150

  • Super compact in-ground uplighter
  • Ultra spot optical configuration for an extremely narrow light beam
  • Premium class cold, natural or warm white LEDs
  • 5.9/5.4 x 4.1/3.9"

Contact us  Save product
DYNAMIC WHITE
print

Micro-dune MC Dynamic White

General Features

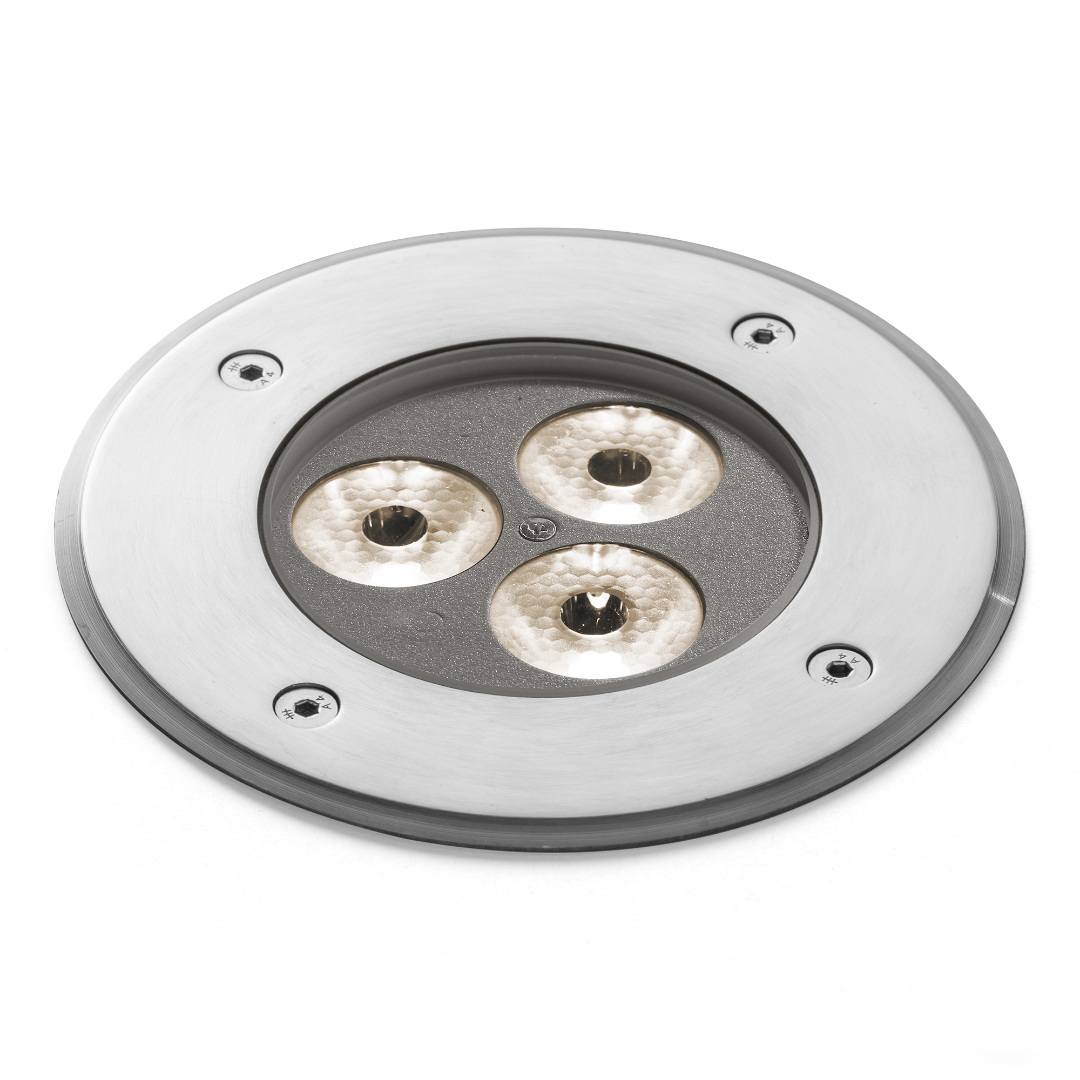

MICRO-DUNE MC accentuates finer exterior or interior architectural details and landscapes from a compact recessed ingrade luminaire. The 5.9" diameter luminaire features three quad-color LEDs for optimum color blending of RGBW, RGBA, or dynamic white in narrow, medium, or wide distributions. The luminaire is suitable for accenting or providing an additional layer of light to scenes for added visual interest.
Remote power supply allows multiple fixtures per supply and keeps housing as compact as possible for maximum design flexibility. The IP67 rated luminaire is suitable for wet locations. Maximum power consumption is 13.5 watts. All hardware is stainless steel.
Color configuration
High brightness Dynamic White multichip LEDs  with an adjustable colour temperature range between 3000K and 6500K
Optical configuration
16° NB (Narrow)
29° MB (Medium)
36° WB (Wide)
Max. Delivered lumen output
585 lms @ 16° / 558 lms @ 29° / 404 lms @ 36°
Max. lumen/Watt
Up to 43 lm/W
Input voltage
90-305 Vac @ 50/60Hz
Power consumption
13.5W
Ingress protection rating
IP67
Impact resistance rating
IK07
External operating limits
-40°C to 50°C / (-40°F to 122°F)

Light Beam Effects

  • Narrow
  • Medium
  • Wide


Overview

  • IP67
  • IK07
  • DMX
  • RDM
  • CSA certified version available on request
