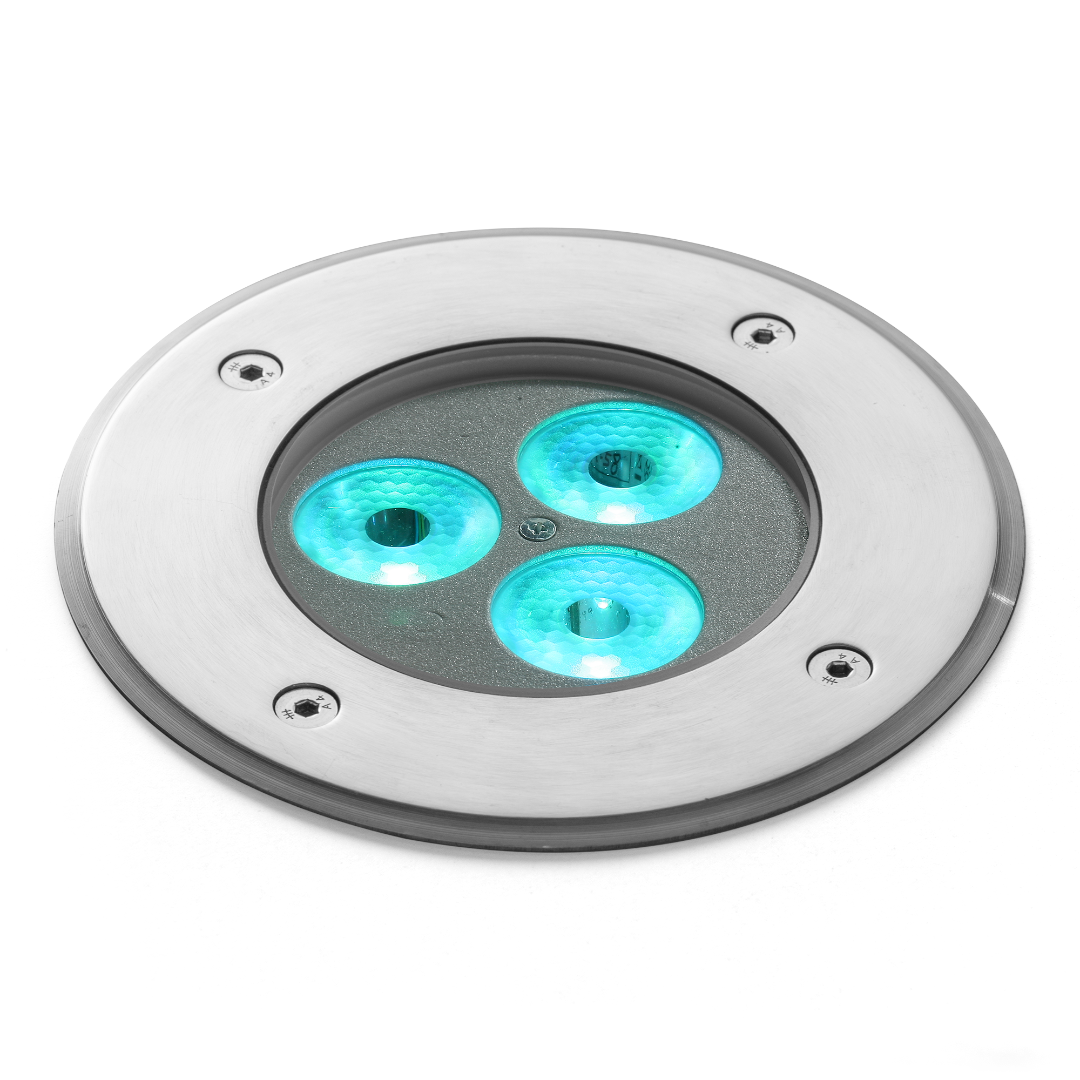

Micro-dune MC RGB

MC150

  • Super compact in-ground uplighter
  • Premium quality high brightness RGB+W 4000K multichip power LEDs
  • Ultra spot optical configuration for an extremely narrow light beam
  • 5.9/5.4 x 4.1/3.9"

View LED colour configuration: RGBW (4000K White)
  • RGB with Amber
  • RGBW (4000K White)
Contact us  Save product
COLOR CHANGING
print

General Features

MICRO-DUNE MC accentuates finer exterior or interior architectural details and landscapes from a compact recessed ingrade luminaire. The 5.9" diameter luminaire features three quad-color LEDs for optimum color blending of RGBW, RGBA, or dynamic white in narrow, medium, or wide distributions. The luminaire is suitable for accenting or providing an additional layer of light to scenes for added visual interest.
Remote power supply allows multiple fixtures per supply and keeps housing as compact as possible for maximum design flexibility. The IP67 rated luminaire is suitable for wet locations. Maximum power consumption is 13.5 watts. All hardware is stainless steel.
Color configuration
High brightness RGB multichip LEDs
Optical configuration
16° NB (Narrow)
29° MB (Medium)
36° WB (Wide)
Max. Delivered lumen output
357 lms @ 16° / 339 lms @ 29° / 245 lms @ 36°
Max. lumen/Watt
Up to 26.4 lm/W RGBW
Input voltage
90-305 Vac @ 50/60Hz
Power consumption
13.5 watts
Ingress protection rating
IP67
Impact resistance rating
IK07
External operating limits
-40°C to 50°C / (-40°F to 122°F)

Light Beam Effects

  • Narrow
  • Medium
  • Wide


Overview

  • IP67
  • IK07
  • DMX
  • RDM
  • CSA certified version available on request
