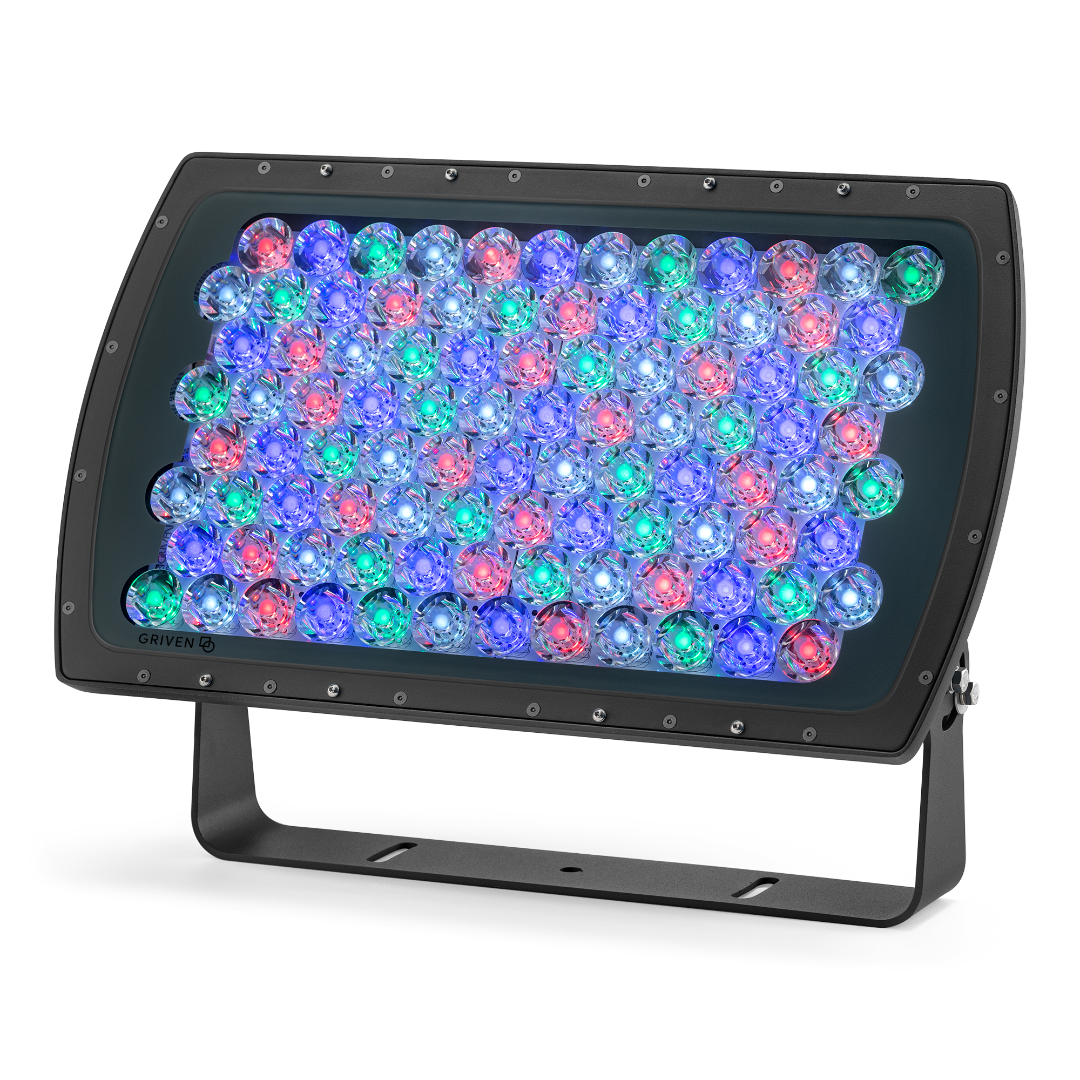

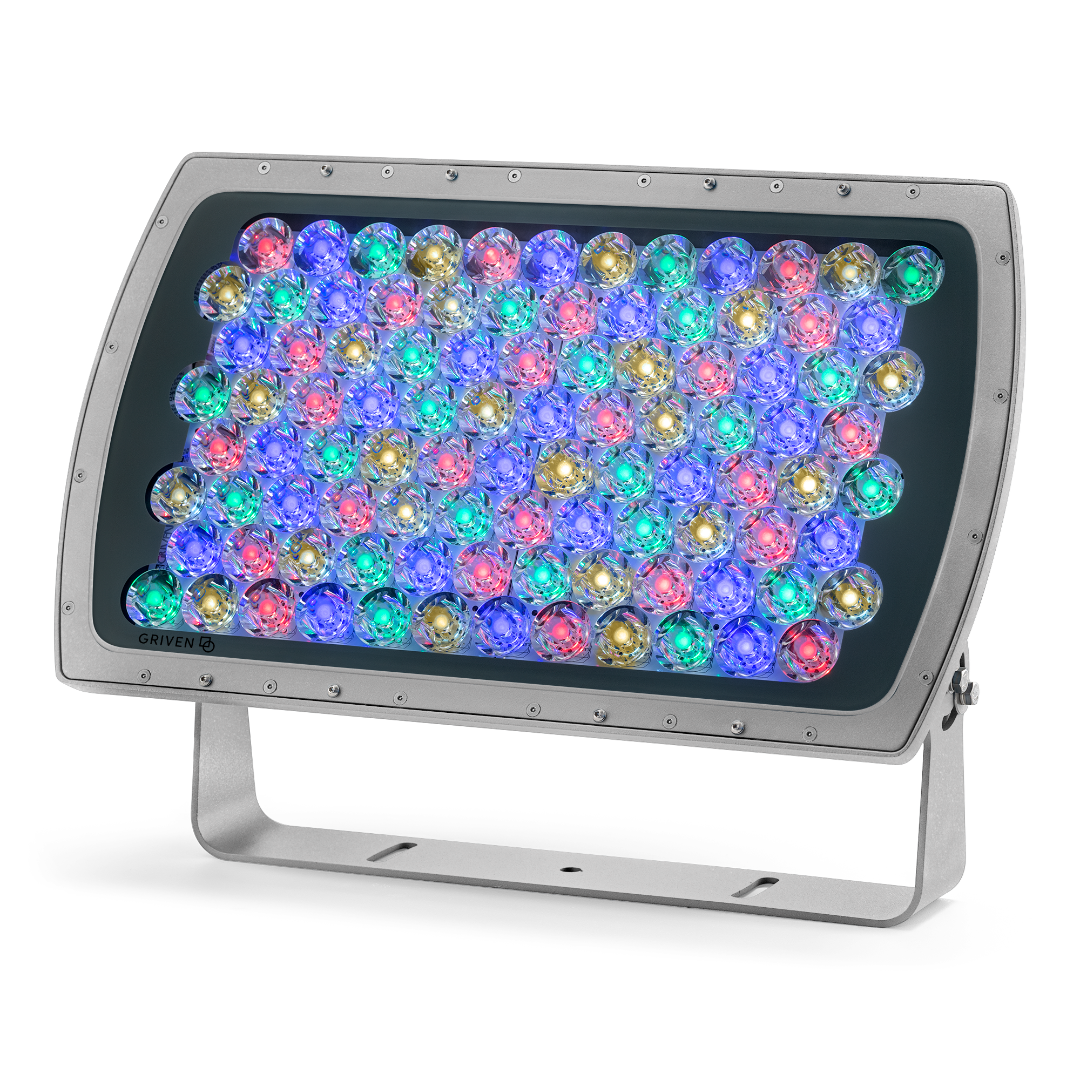

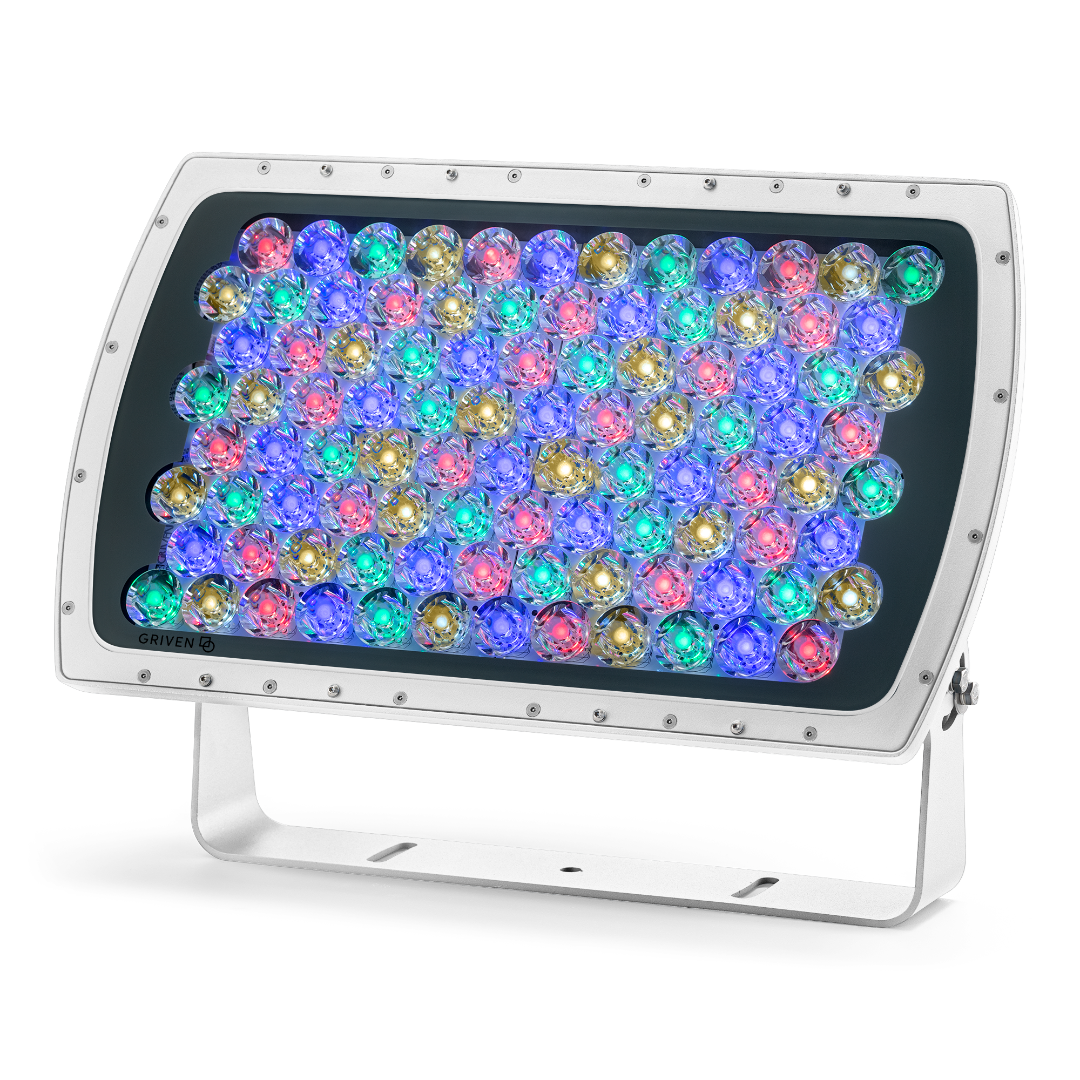

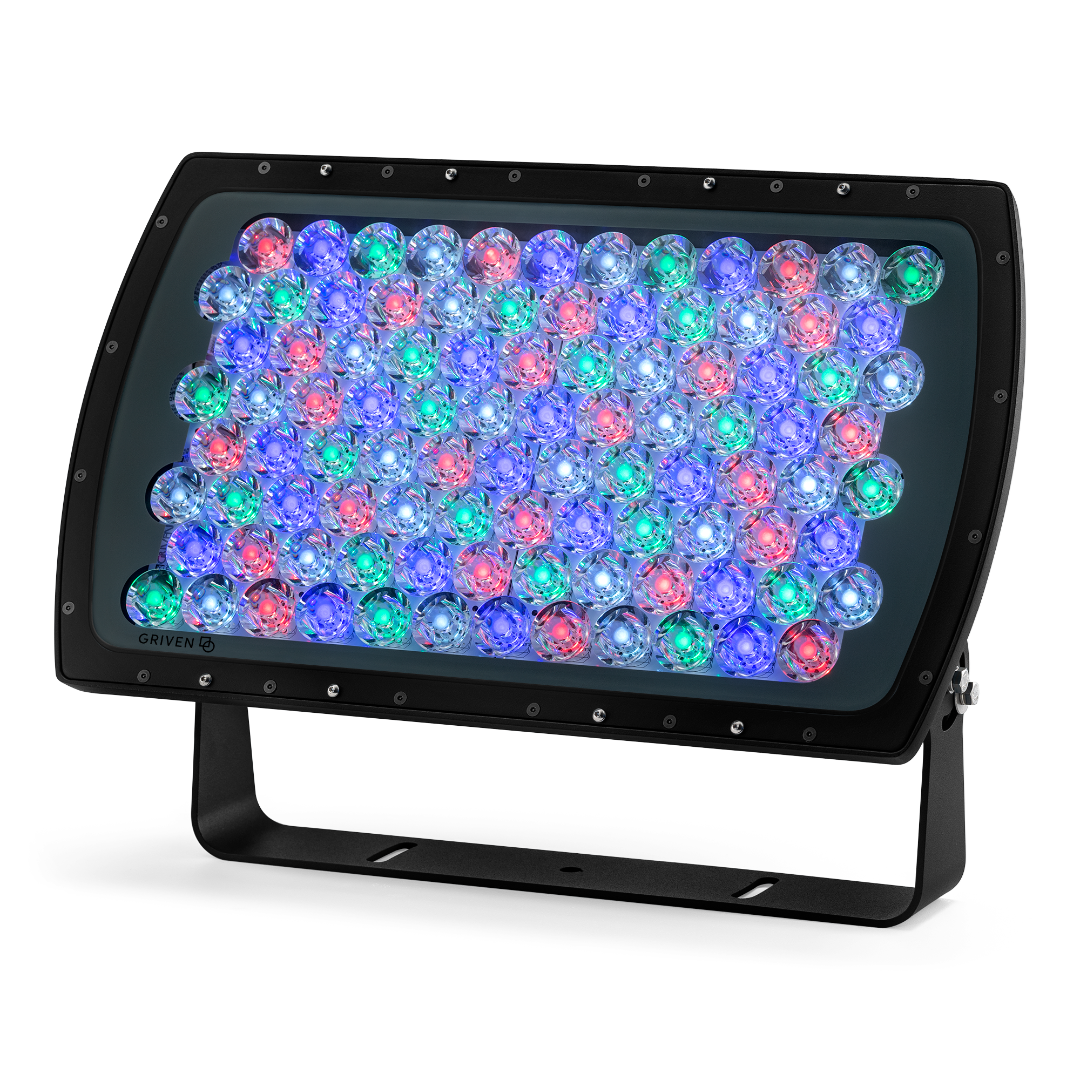

Onyx XQ Ultra Spot RGBW

OXXQ

  • Powerful surface mount floodlight
  • Ultra-spot, sharp, long-shot beam
  • High brightness RGB+W 3000K or 4000K power LEDs
  • 22.09" L x 5.98" W x 15.08" H

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: RGBW40K
  • RGBW30K
  • RGBW40K
Contact us  Save product
COLOR CHANGING
print

General Features

ONYX XQ sets the standard for ultra-narrow beam floodlights where precise and uniform illumination at long distances is required. The award-winning luminaire combines 96 high power LEDs in RGBW with precision optics to produce a very narrow 3.2° beam. The LED driver is thermally isolated in a separate compartment for enhanced longevity. On-board control panel allows for stand-alone or master-satellite operation, as well as interface to external DMX controllers. Accessories for light control are available. All hardware is stainless steel.
Color configuration
High brightness RGB+W 3000K or 4000K LEDs
Optical configuration
3.2° US (Ultra Spot)
Max. Delivered lumen output
Up to 13781 lumens
Max. lumen/Watt
Up to 48 lumens per watt
Input voltage
120 - 277V
Amperage
1.03A @ 277V, 2.38A @ 120V
Power consumption
286 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK10
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty

Light Beam Effects

  • Ultra Spot


Overview

  • IP67
  • IK10
  • DMX
  • RDM
  • ETL Listed
