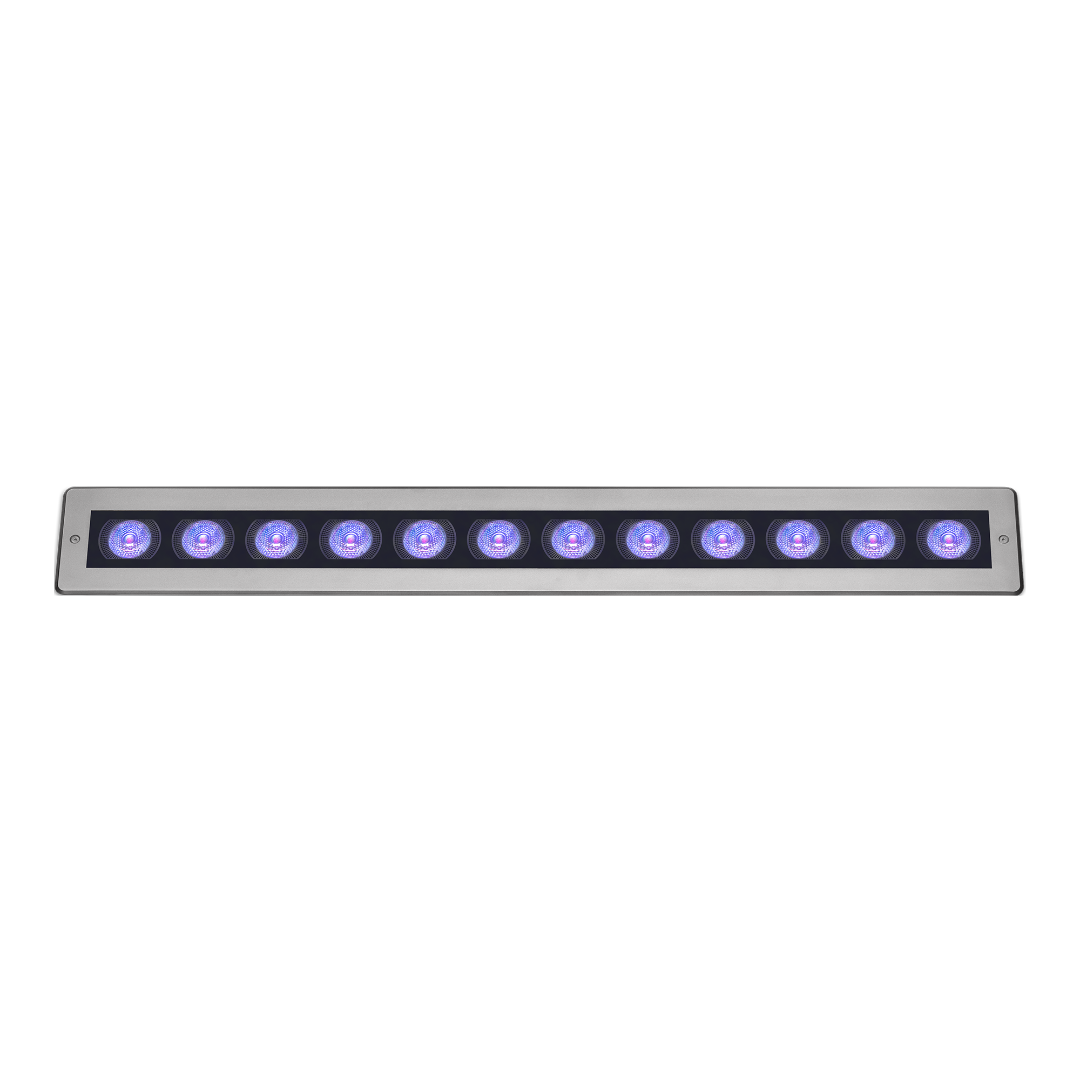

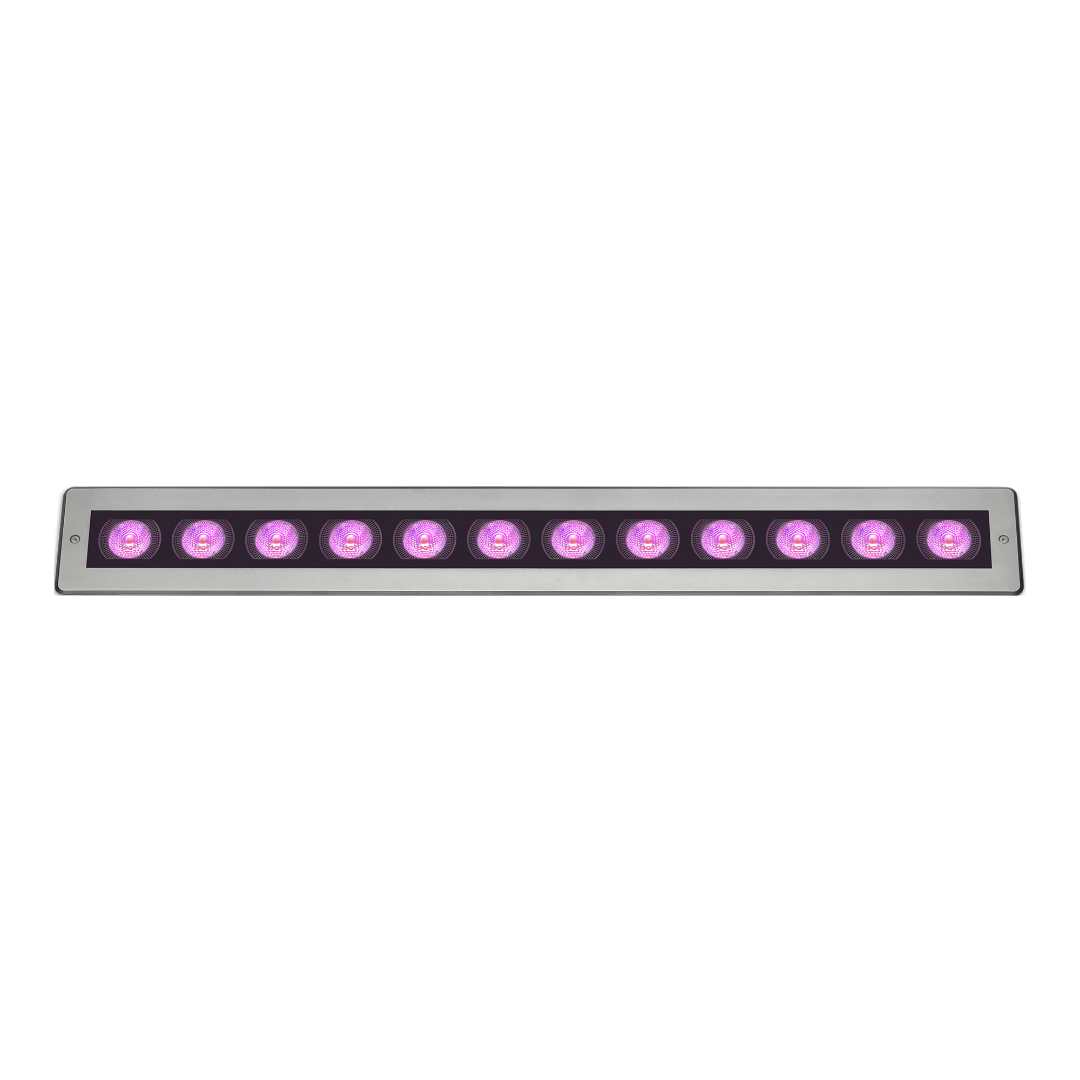

Parade L-3 MC Recessed RGBW

PDL3MCRPE Polar Edition

  • Walk-over recessed linear modules fitted with multichip LEDs
  • Control system: DMX-RDM, remote wireless data
  • Max. delivered lm output: 2695 lm / 49 lm/W
  • 38.8" L x 5.6" W x 4.6" H

View LED colour configuration: RGBW40K
  • RGBW30K
  • RGBW40K
Contact us  Save product

General Features

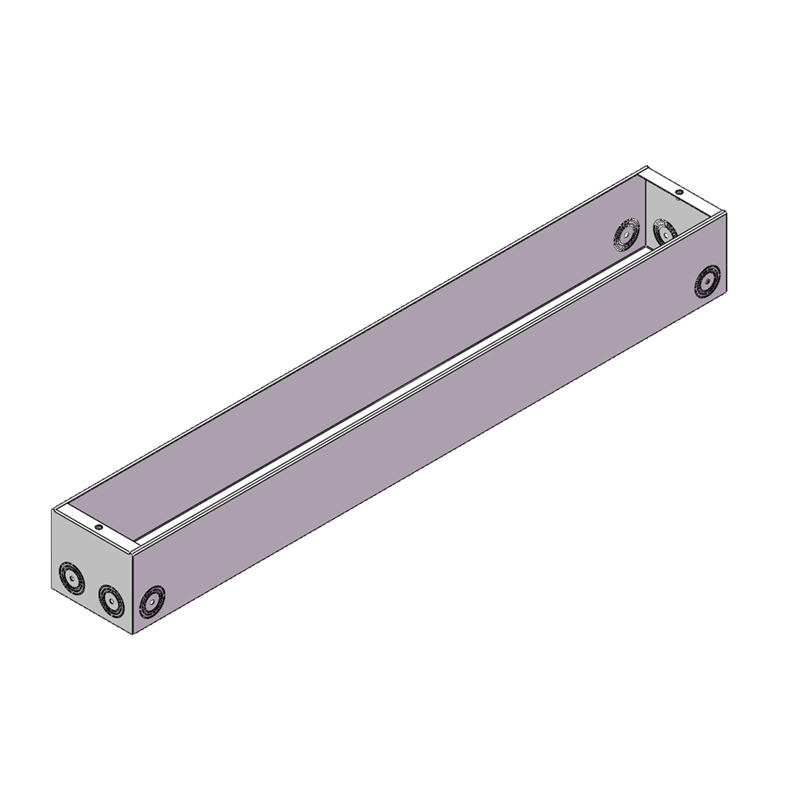

PARADE L MC recessed linear luminaires are available in two or three foot lengths. Each model features premium quality high-brightness multi-chip LEDs and a comprehensive selection of six light distributions. Standard built-in programming capabilities include standalone or master-satellite configurations without the use of external control systems, or operation by remote DMX512 control systems. Recessed housing, trim, and hardware are stainless steel.
Color configuration
High brightness RGB+W 4000K or 3000K multichip LEDs
Optical configuration
9° SP (Spot)
14° NB (Narrow)
25° MB (Medium)
37° WB (Wide)
50°h x 9°v ELH (Elliptical Horizontal)
60°h x 33°v ELWH (Elliptical Wide Horizontal)
Max. Delivered lumen output
Up to 2695 Lumens
Max. lumen/Watt
Up to 49 Lumens per Watt
Input voltage
120-277VAC / 50-60Hz
0.46A @ 120V, 0.20A @ 277V
Power consumption
55 watts max.
Ingress protection rating
Impact resistance rating
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Internal Honeycomb Louver, Consult factory for optional spreading diffusers

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal


  • IP67
  • IK10
  • DMX
  • RDM
  • Rohs
  • ETL Listed

Optional Features

  • Optional Polar
