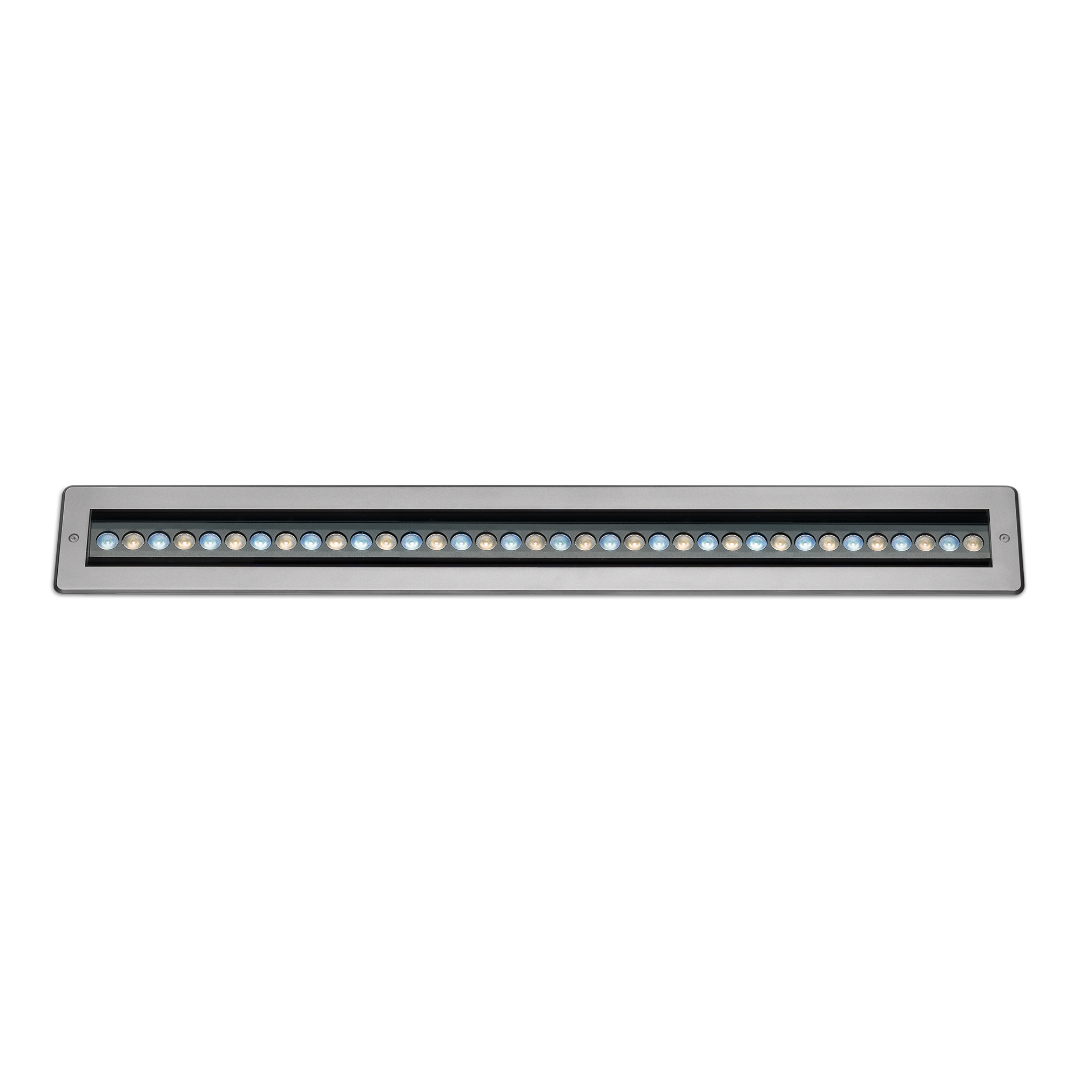

Parade L-3 Recessed Dynamic White

PDL3RPE Polar Edition

  • Recessed linear module specific for wall grazing effects
  • Comprehensive selection of optical configurations
  • Alternative independent pixel version available
  • 38 3/4" L x 5 5/8" W x 4 5/8" H

Contact us  Save product

Parade L-3 Recessed Dynamic White

General Features

PARADE L recessed linear luminaires are available in two or three foot lengths. Each model features premium quality high-brightness LEDs and a comprehensive selections of ten light distributions. Standard built-in programming capabilities include standalone or master-satellite configurations without the use of external control systems, or operation by remote DMX512 control systems. Recessed housing, trim, and hardware are stainless steel.
Color configuration
High brightness Dynamic White LEDs  with an adjustable colour temperature range between 2700K and 6500K
Optical configuration
8° SP (Spot)
12° NB (Narrow)
26° MB (Medium)
40° WB (Wide)
58° EW (Extra wide)
42°h x 11°v ELH (Elliptical Horizontal)
40°h x 42°v ELWH (Elliptical Wide Horizontal)
36°h x 15°v WW (Wall Wash)
Max. Delivered lumen output
4400 to 4800 lumens
Max. lumen/Watt
Up to 80 lumens per watt
Input voltage
120-277VAC / 50-60Hz
0.50A @ 120VAC, 0.22A @ 277VAC
Power consumption
56 watts max.
Ingress protection rating
Impact resistance rating
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Internal Honeycomb Louver, Consult factory for optional spreading diffusers

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal
  • Wall Wash


  • IP67
  • IK10
  • DMX
  • RDM
  • Rohs
  • ETL Listed

Optional Features

  • Optional Polar
