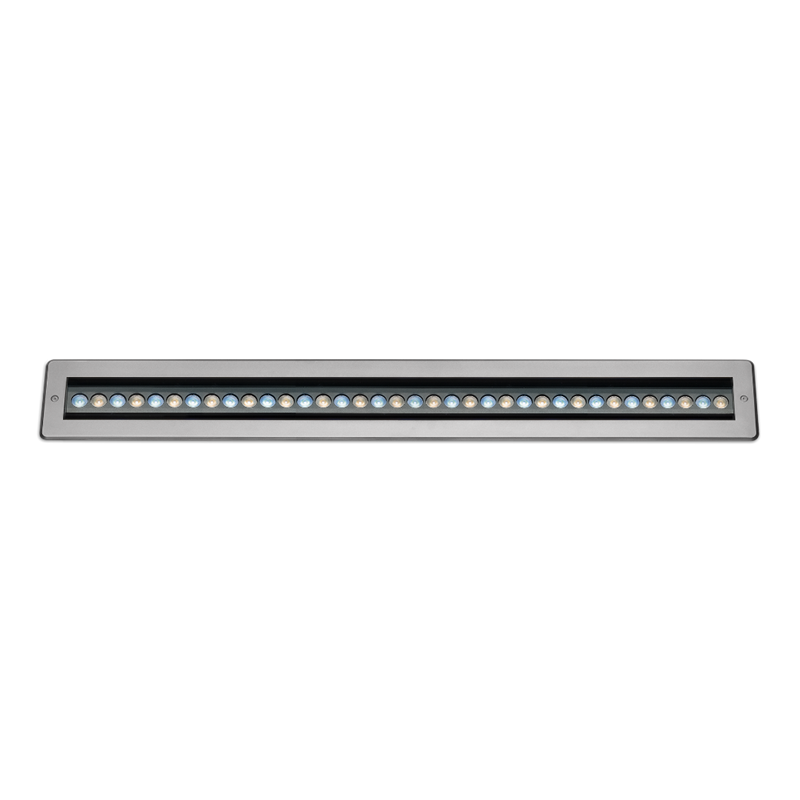

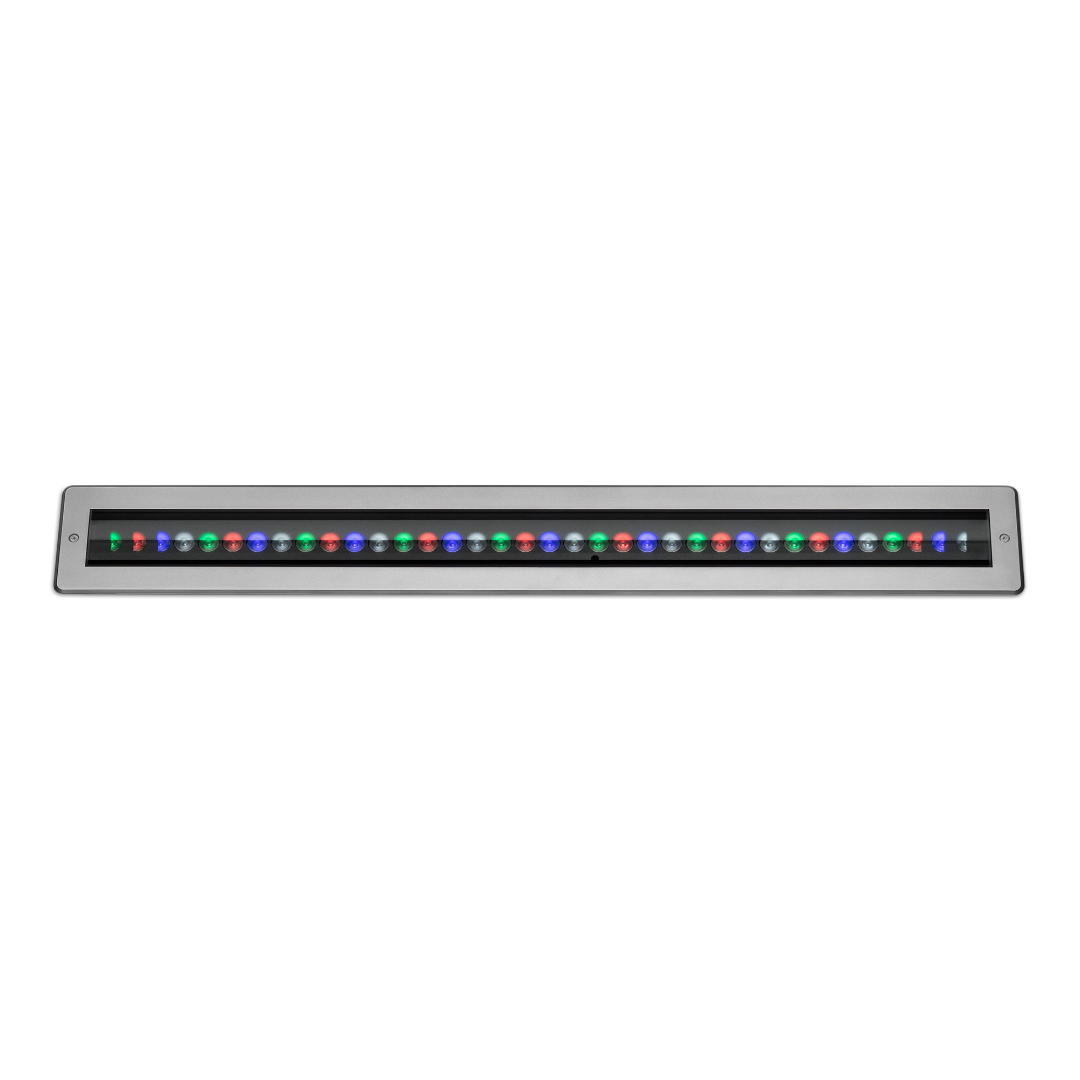

Parade L-3 Recessed RGBW

PDL3RPE Polar Edition

  • Recessed linear module specific for wall grazing effects
  • Comprehensive selection of optical configurations
  • 38 3/4" L x 5 5/8" W x 4 5/8" H

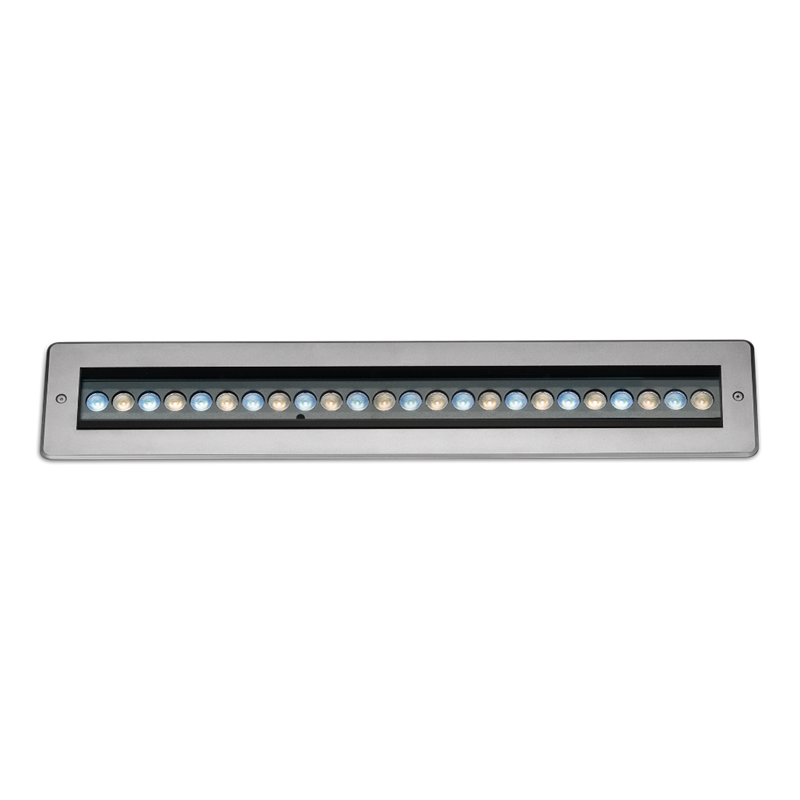

  • High brightness RGB+W 3000K/4000K power LEDs available in 2' & 3' lengths

View LED colour configuration: RGBW40K
  • RGBW30K
  • RGBW40K
Contact us  Save product

General Features

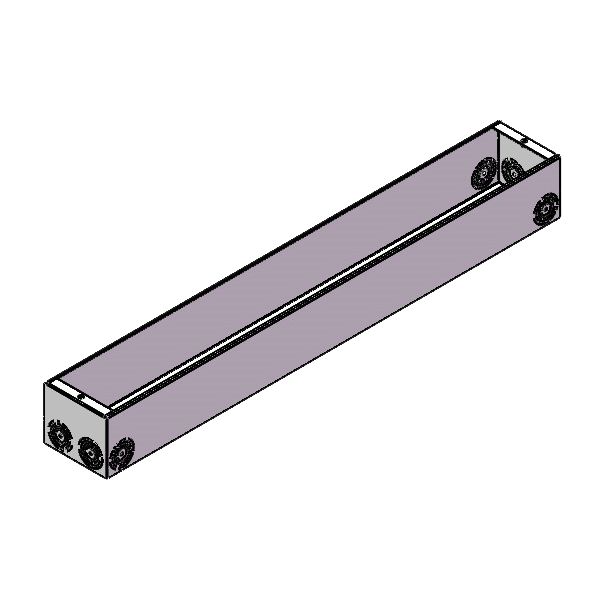

PARADE L recessed linear luminaires are available in two or three foot lengths. Each model features premium quality high-brightness LEDs and a comprehensive selections of ten light distributions. Standard built-in programming capabilities include standalone or master-satellite configurations without the use of external control systems, or operation by remote DMX512 control systems. Recessed housing, trim, and hardware are stainless steel.
Color configuration
High brightness RGB+W 3000K/4000K LEDs
Optical configuration
8° SP (Spot)
12° NB (Narrow)
26° MB (Medium)
40° WB (Wide)
58° EW (Extra wide)
42°h x 11°v ELH (Elliptical Horizontal)
40°h x 42°v ELWH (Elliptical Wide Horizontal)
36°h x 15°v WW (Wall Wash)
Max. Delivered lumen output
1722 to 2538 lumens
Max. lumen/Watt
Up to 40.2 lumens per watt
Input voltage
120-277VAC / 50-60Hz
0.50A @ 120VAC, 0.22A @ 277VAC
Power consumption
59 watts max.
Ingress protection rating
Impact resistance rating
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Internal Honeycomb Louver, Consult factory for optional spreading diffusers

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal
  • Wall Wash


  • IP67
  • IK10
  • DMX
  • RDM
  • Rohs
  • ETL Listed

Optional Features

  • Optional Polar
