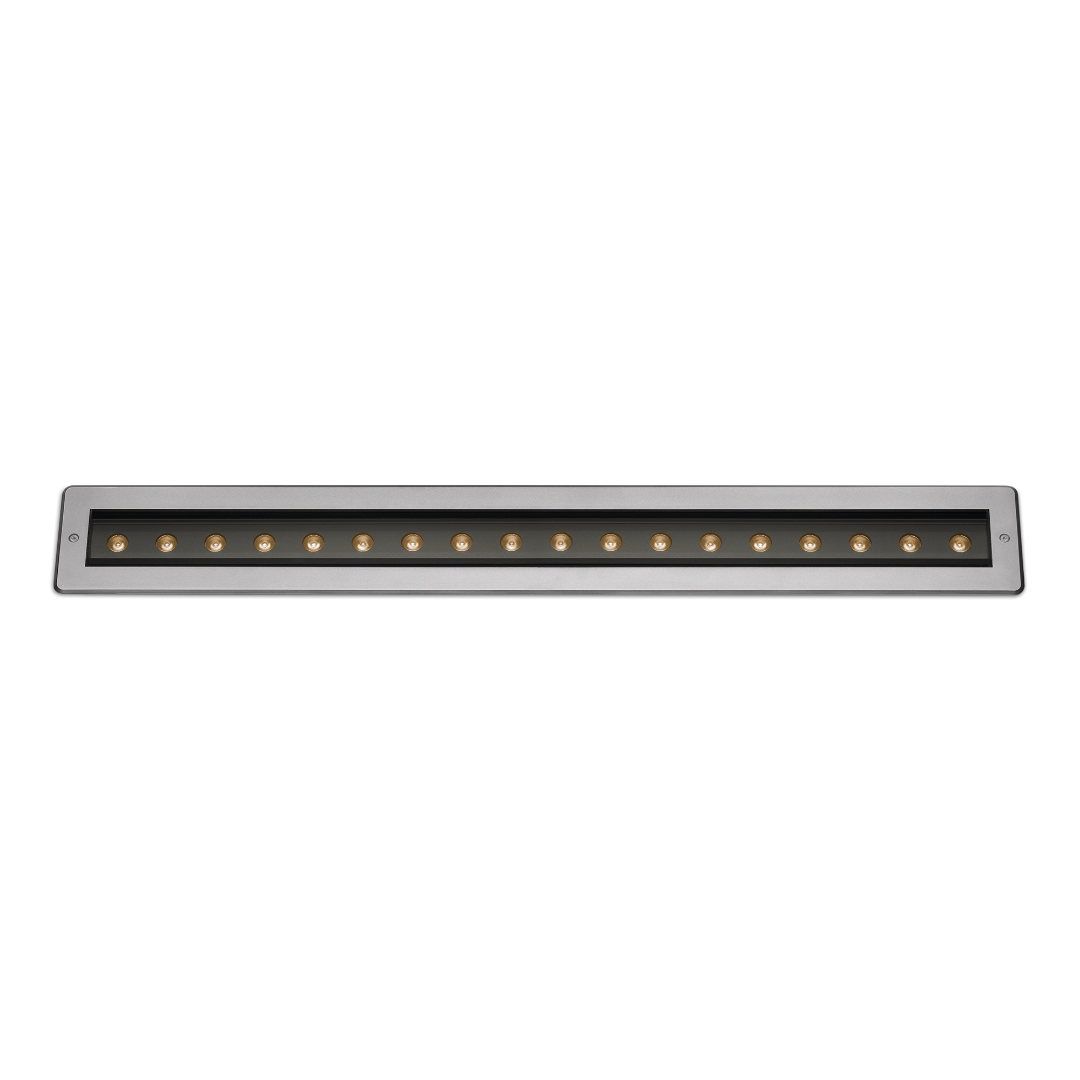

Parade L-3 Recessed Static White

PDL3RPE Polar Edition

  • Recessed linear module specific for wall grazing effects
  • Comprehensive selection of optical configurations
  • High brightness Natural White, Warm White power LEDs
  • 38 3/4" L x 5 5/8" W x 4 5/8" H

View LED colour configuration: Warm White 3000K
  • Warm White 2700K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product

Parade L-3 Recessed Static White

General Features

PARADE L recessed linear luminaires are available in two or three foot lengths. Each model features premium quality high-brightness LEDs and a comprehensive selection of eight light distributions. Standard built-in programming capabilities include standalone or master-satellite configurations without the use of external control systems, or operation by remote DMX512 control systems. Recessed housing, trim, and hardware are stainless steel.
Color configuration
High brightness Natural White, Warm White or, on request, monochrome power LEDs
Optical configuration
8° SP (Spot)
12° NB (Narrow)
26° MB (Medium)
40° WB (Wide)
58° EW (Extra wide)
42°h x 11°v ELH (Elliptical Horizontal)
40°h x 42°v ELWH (Elliptical Wide Horizontal)
36°h x 15°v WW (Wall Wash)
Max. Delivered lumen output
4400 to 4800 lumens
Max. lumen/Watt
Up to 80 lumens per watt
Input voltage
120-277VAC / 50-60Hz
0.50A @ 120VAC, 0.22A @ 277VAC
Power consumption
56 watts max.
Ingress protection rating
Impact resistance rating
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Internal Honeycomb Louver, Consult factory for optional spreading diffusers

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal
  • Wall Wash


  • IP67
  • IK10
  • DMX
  • RDM
  • Rohs
  • ETL Listed

Optional Features

  • Anti-slip treatment, for a safe and comfortable use in pedestrian areas, available on request
  • Optional Polar
