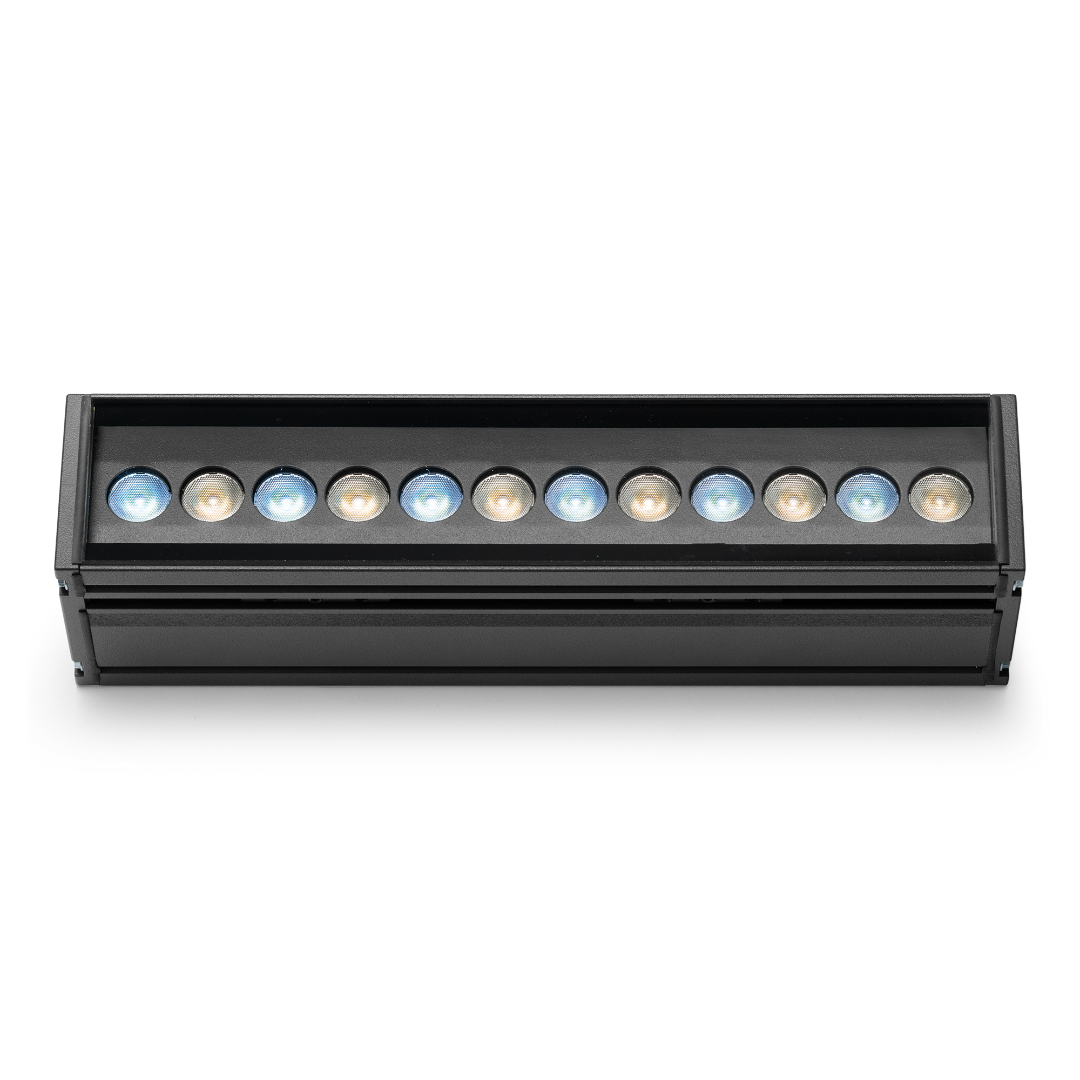

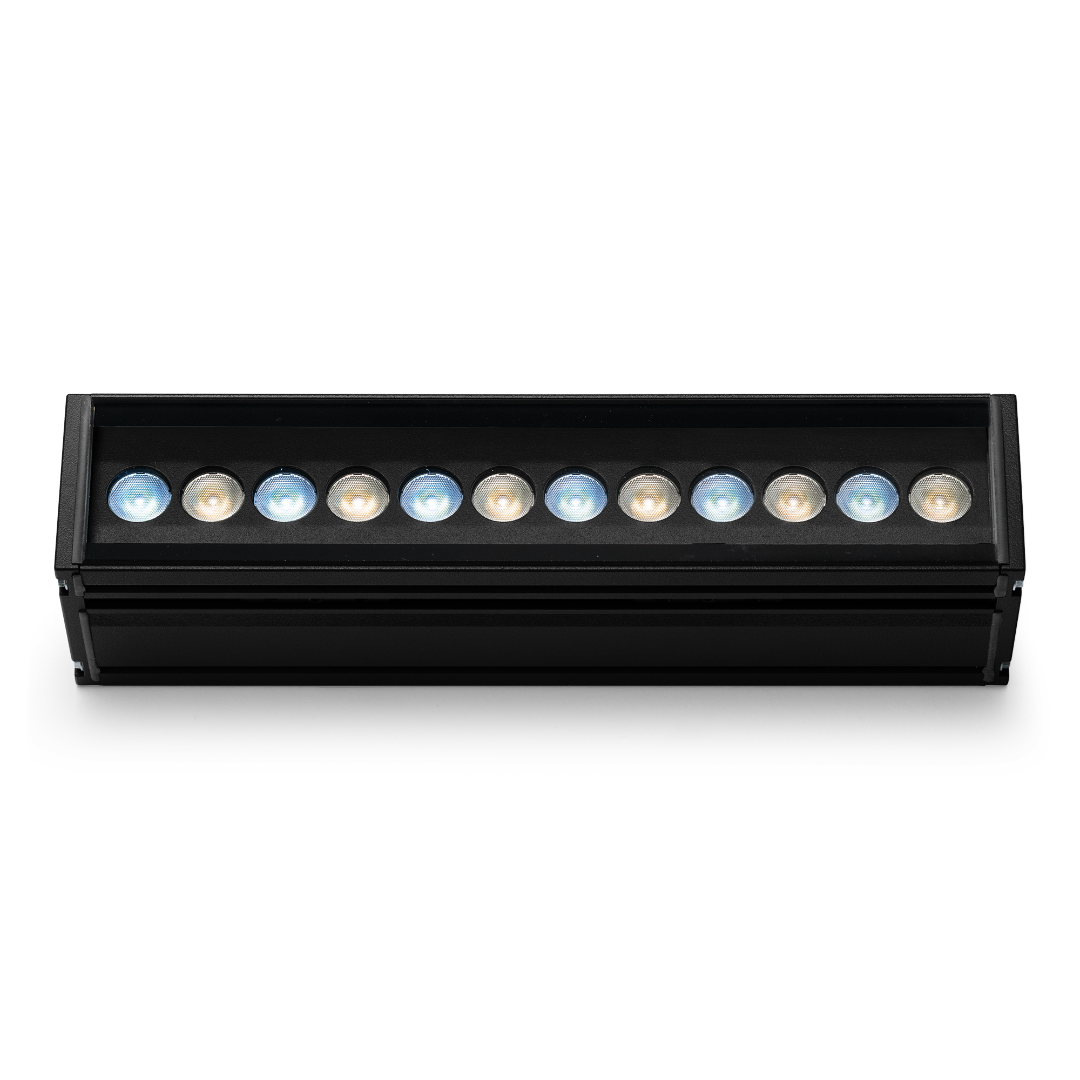

All products linear wall washing/grazing parade lParade L1 Dynamic White

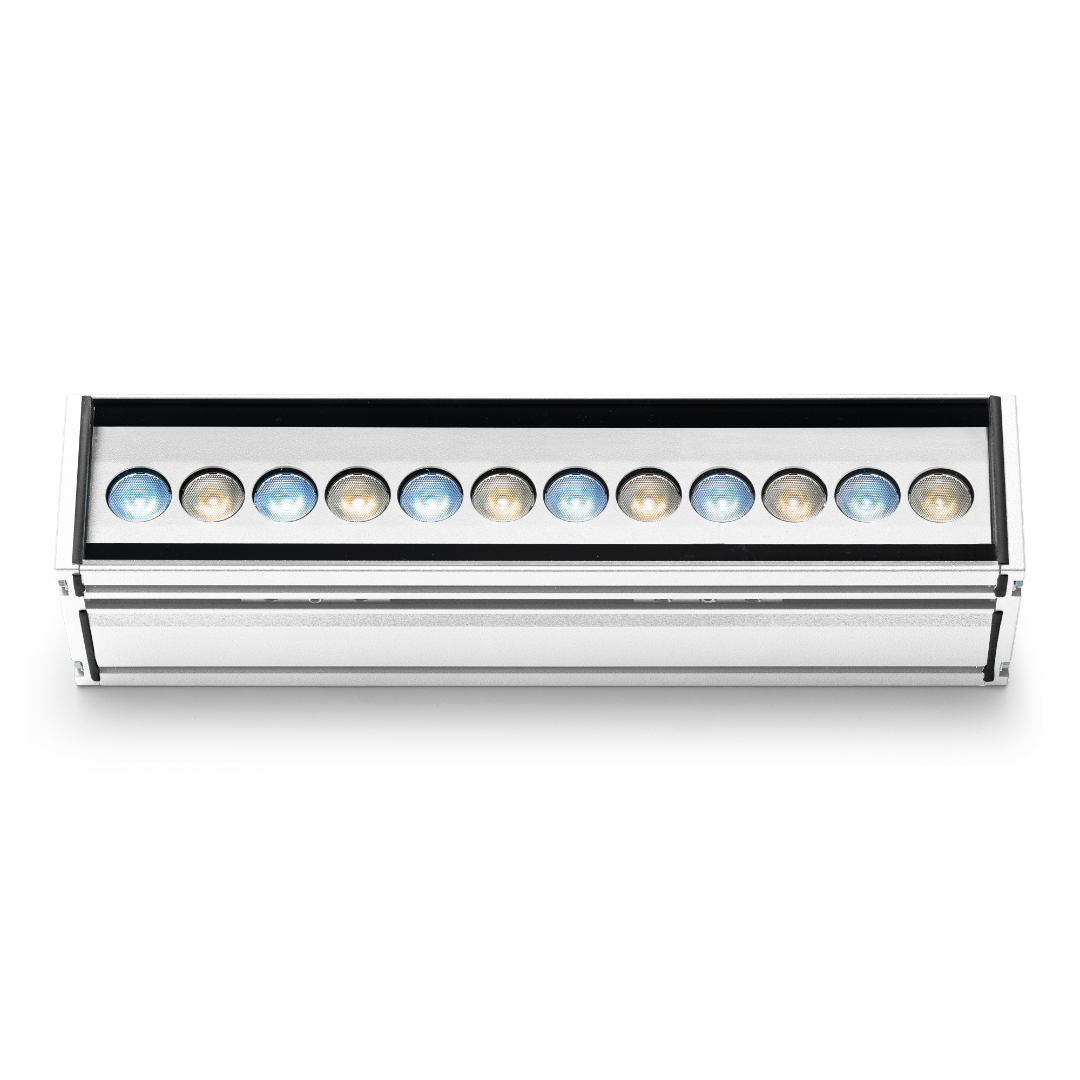

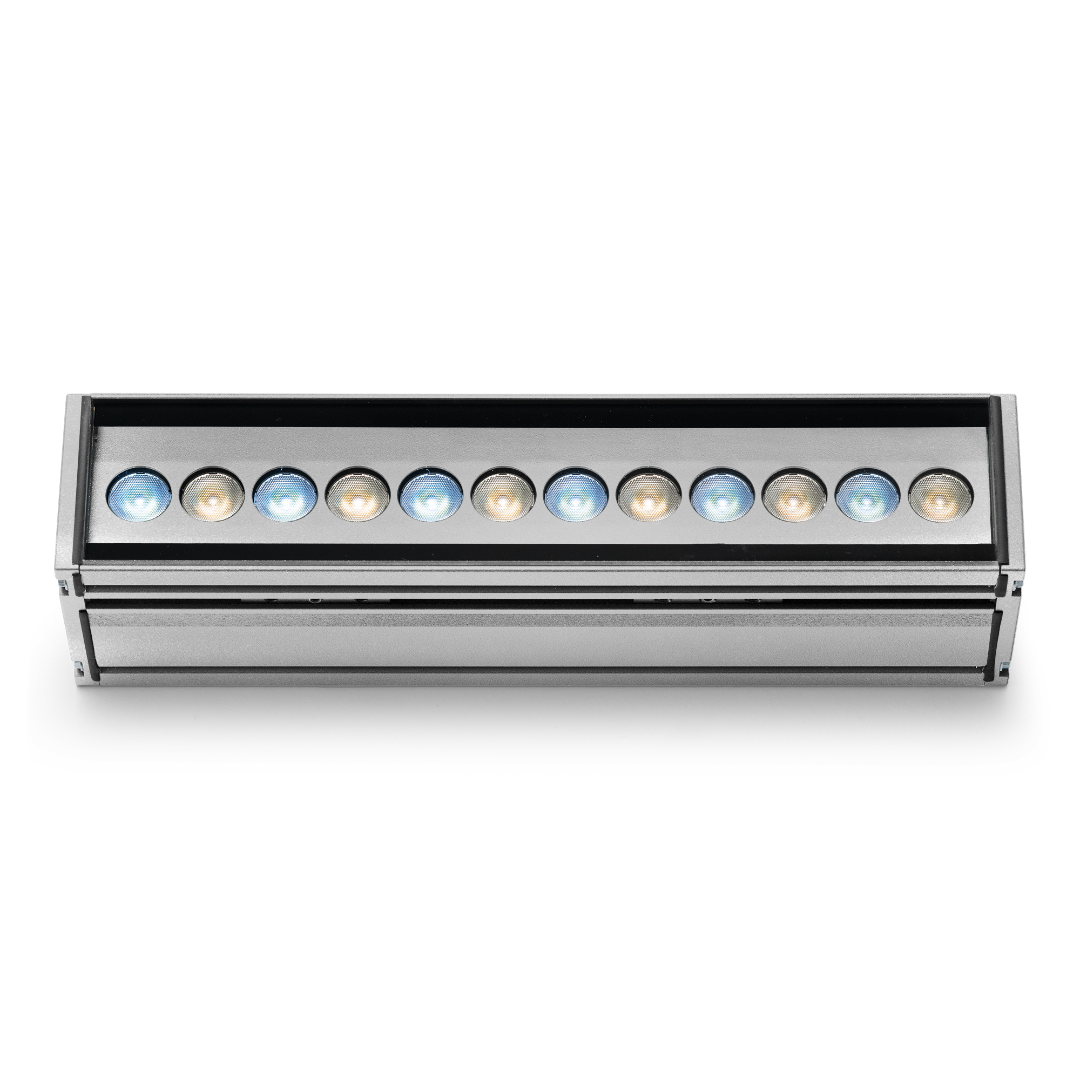

Parade L1 Dynamic White

PDL1
PDL1PE Polar Edition

Linear module specific for wall grazing effects
Comprehensive selection of optical configurations
High brightness dynamic white power LEDs
12 5/8" L x 3 3/4 W x 3" H

View finishes: Anthracite Grey

View Swivel:

View Housing Material:

View LED colour configuration: From 2700K to 6500K

Parade L1 Dynamic White

General Features

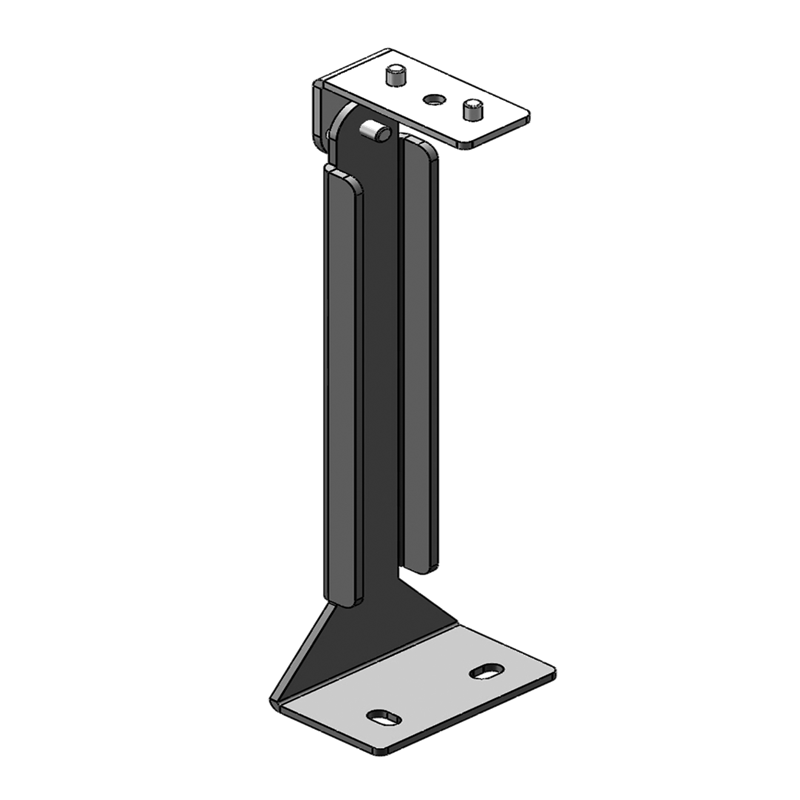

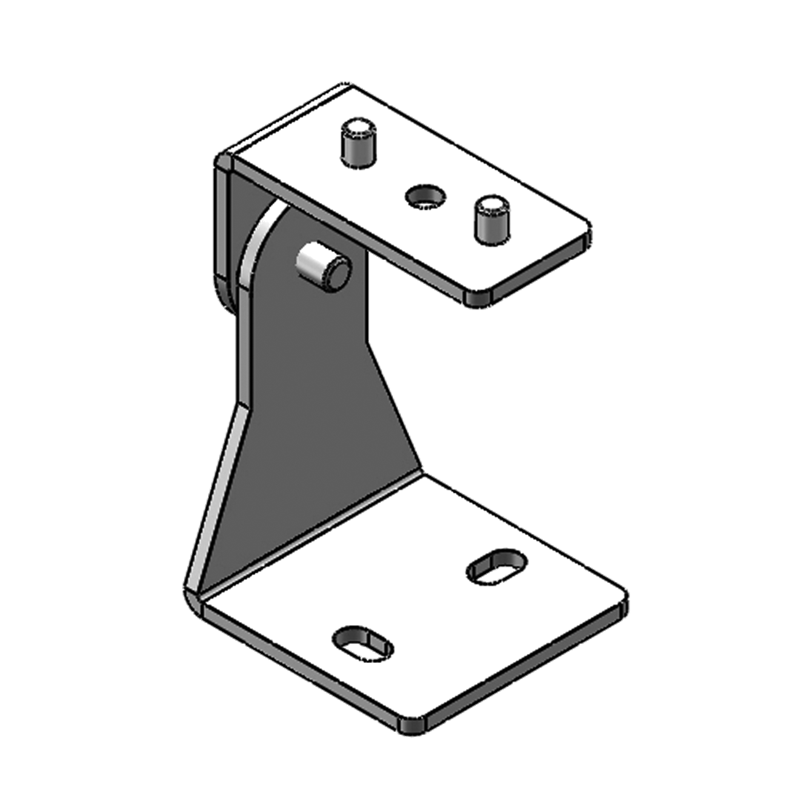

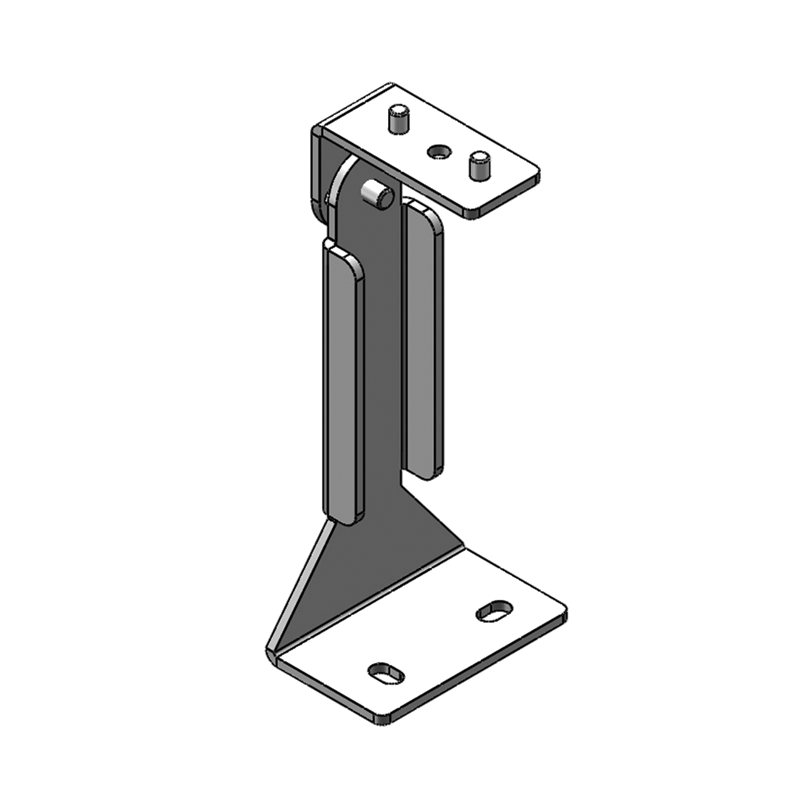

PARADE L linear luminaires are available in one-foot increments up to four feet overall length. Each model features premium quality high brightness LEDs and a comprehensive selection of ten light distributions. Adjustable brackets are available in three standard lengths. Standard built-in programming capabilities include economical stand-alone operation or master-satellite configurations without the use of external control systems, or operation by remote DMX512 control systems. Four standard finishes are available with options for marine-grade or custom RAL finishes on request. All hardware is stainless steel.

Color configuration

High brightness Dynamic White LEDs with an adjustable color temperature range between 2700K and 6500K

Optical configuration

8° SP (Spot)
12° NB (Narrow)
26° MB (Medium)
40° WB (Wide)
58° EW (Extra wide)
42°h x 11°v ELH (Elliptical Horizontal)
40°h x 24°v ELWH (Elliptical Wide Horizontal)
36°h x 15°v - 5° incline WW (Wall Wash)

Max. Delivered lumen output

From 1625 to 2221 lumens

Max. lumen/Watt

Up to 117 lumens per watt

Input voltage

120 - 277V

Amperage

0.07A @ 277V, 0.16A @ 120V

Power consumption

19 watts max.

Ingress protection rating

IP67
