Parade L1 RGBW

PDL1
PDL1PE Polar Edition

  • Linear module specific for wall grazing effects
  • Comprehensive selection of optical configurations
  • High brightness RGB+W 3000K/4000K power LEDs
  • 12 5/8" L x 3 3/4 W x 3" H

View finishes: Anthracite Grey

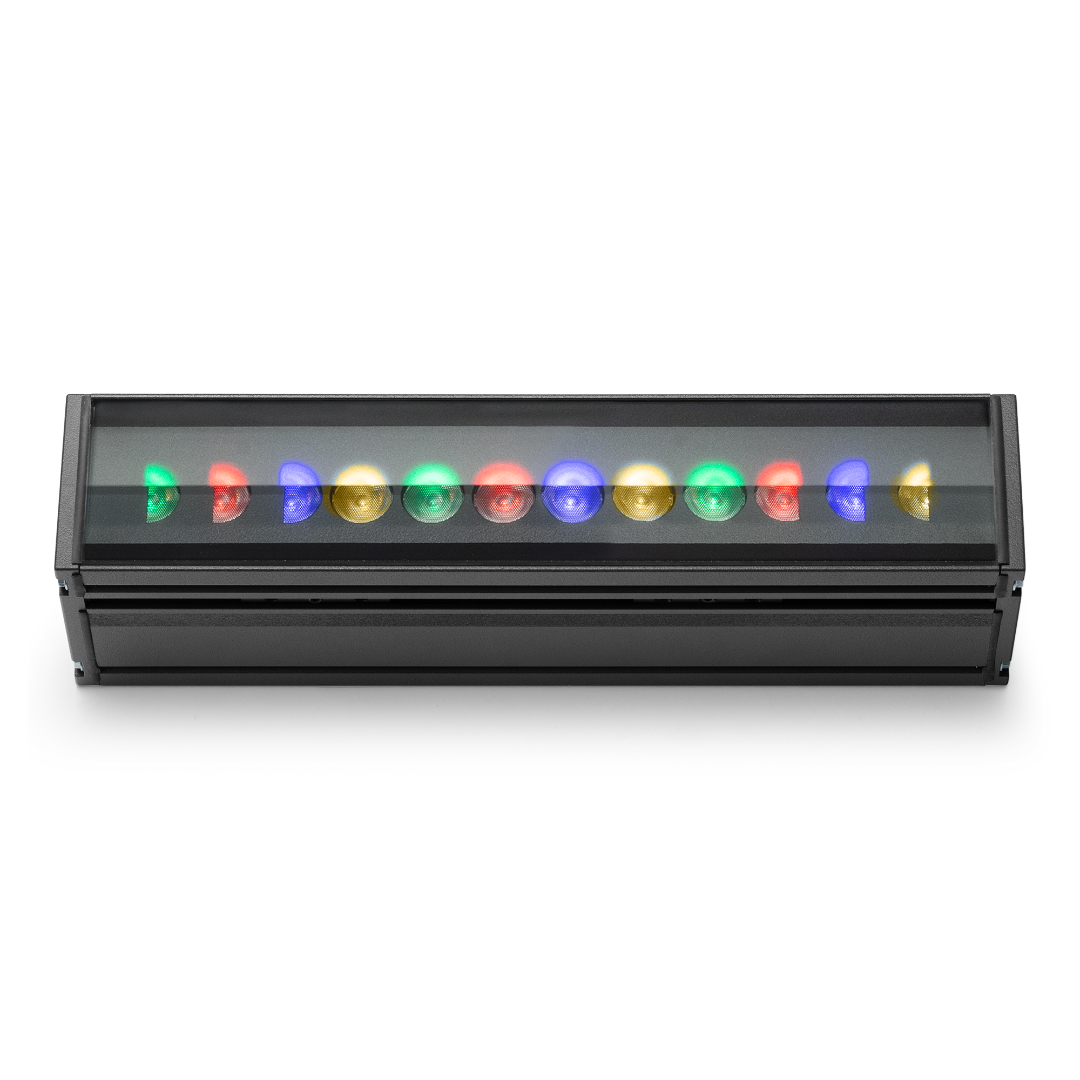

  • Anthracite Grey

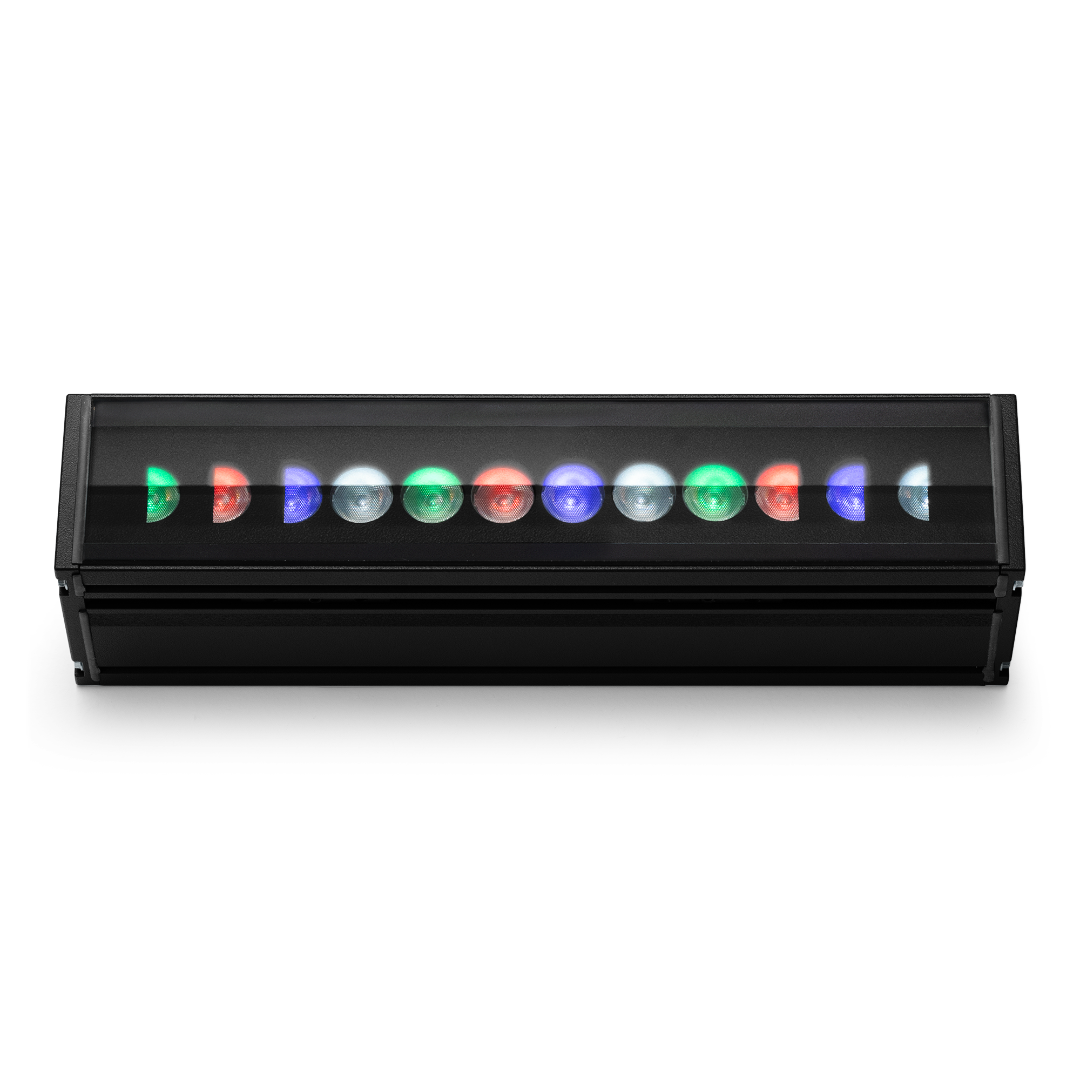

  • Black

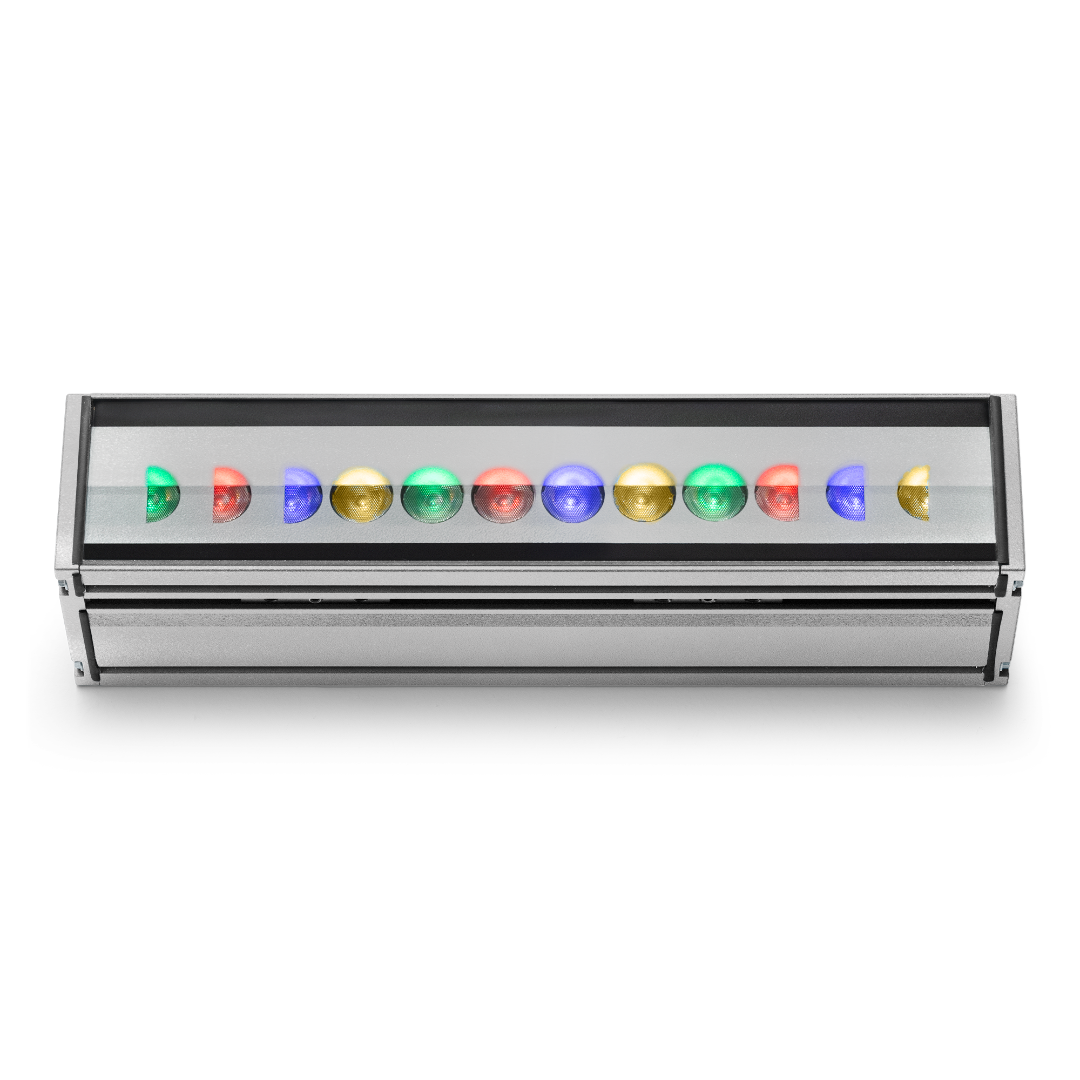

  • Griven Silver Grey

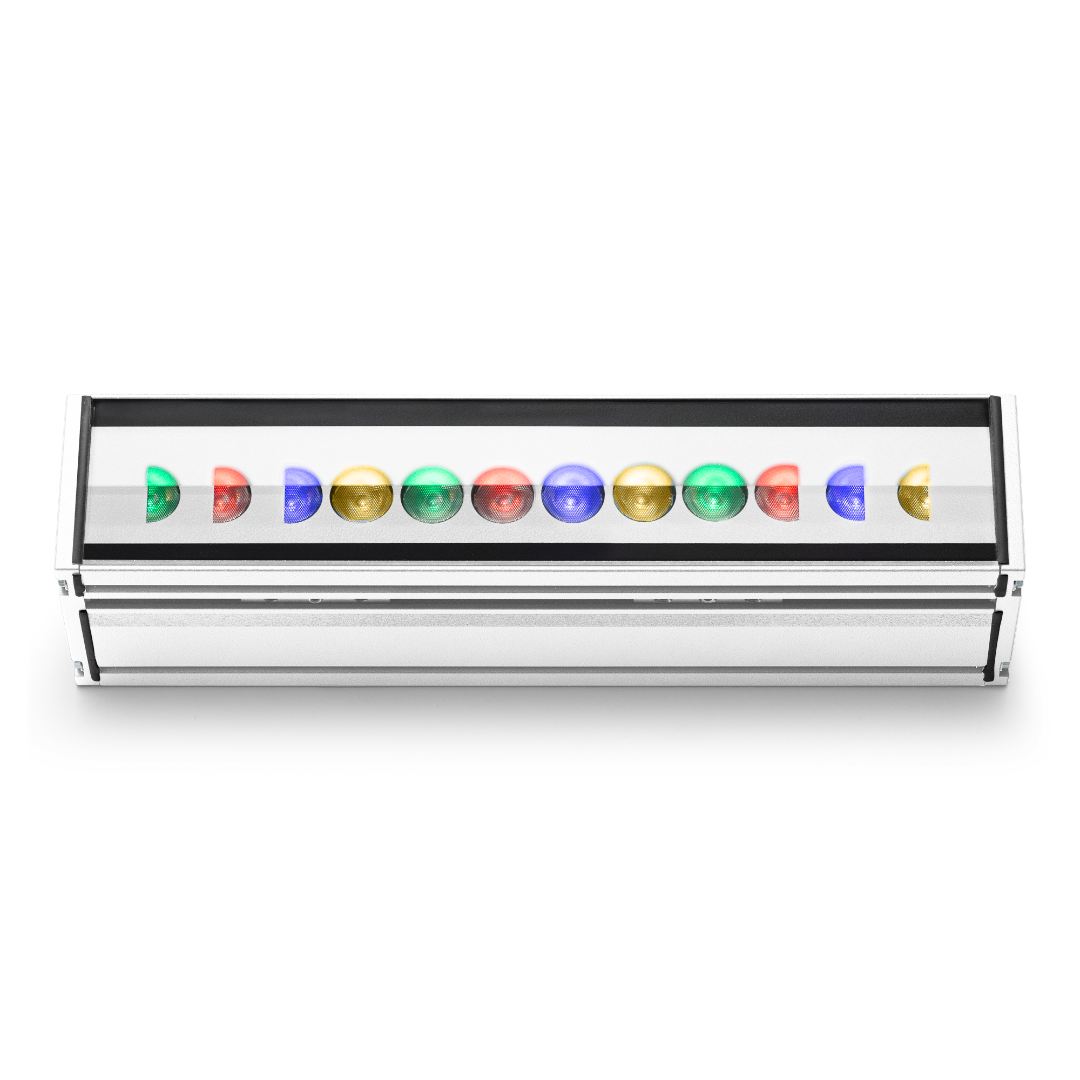

  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: RGBW40K
  • RGBW30K
  • RGBW40K
Contact us  Save product
COLOR CHANGING
print

General Features

PARADE L linear luminaires are available in one-foot increments up to four feet overall length. Each model features premium quality high brightness LEDs and a comprehensive selection of ten light distributions. Adjustable brackets are available in three standard lengths. Standard built-in programming capabilities include economical stand-alone operation or master-satellite configurations without the use of external control systems, or operation by remote DMX512 control systems. Four standard finishes are available with options for marine-grade or custom RAL finishes on request. All hardware is stainless steel.
Color configuration
High brightness RGB+W 3000K/4000K LEDs
Optical configuration
8° SP (Spot)
12° NB (Narrow)
26° MB (Medium)
40° WB (Wide)
58° EW (Extra wide)
42°h x 11°v ELH (Elliptical Horizontal)
40°h x 24°v ELWH (Elliptical Wide Horizontal)
36°h x 15°v - 5° incline WW (Wall Wash)
Max. Delivered lumen output
From 624 to 912 lumens (4000K)
Max. lumen/Watt
Up to 46 lumens per watt
Input voltage
120 - 277V
Amperage
0.17A @ 120V, 0.07A @ 277V
Power consumption
20 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Accessories are ordered and shipped separately from luminaire for field installation.

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal
  • Wall Wash


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • ETL Certified for Wet Locations

Optional Features

  • Anti-saline treatment
  • Optional Polar
  • Internal Honeycomb Louver
