Parade L2 MC RGBW

PDL2MC
PDL2MCPE Polar Edition

  • Linear module specific for wall grazing effects
  • Comprehensive selection of optical configurations
  • High brightness RGB+W 3000K/4000K power LEDs
  • 2.99" x 24.07" x 2.75"

View finishes: Anthracite Grey

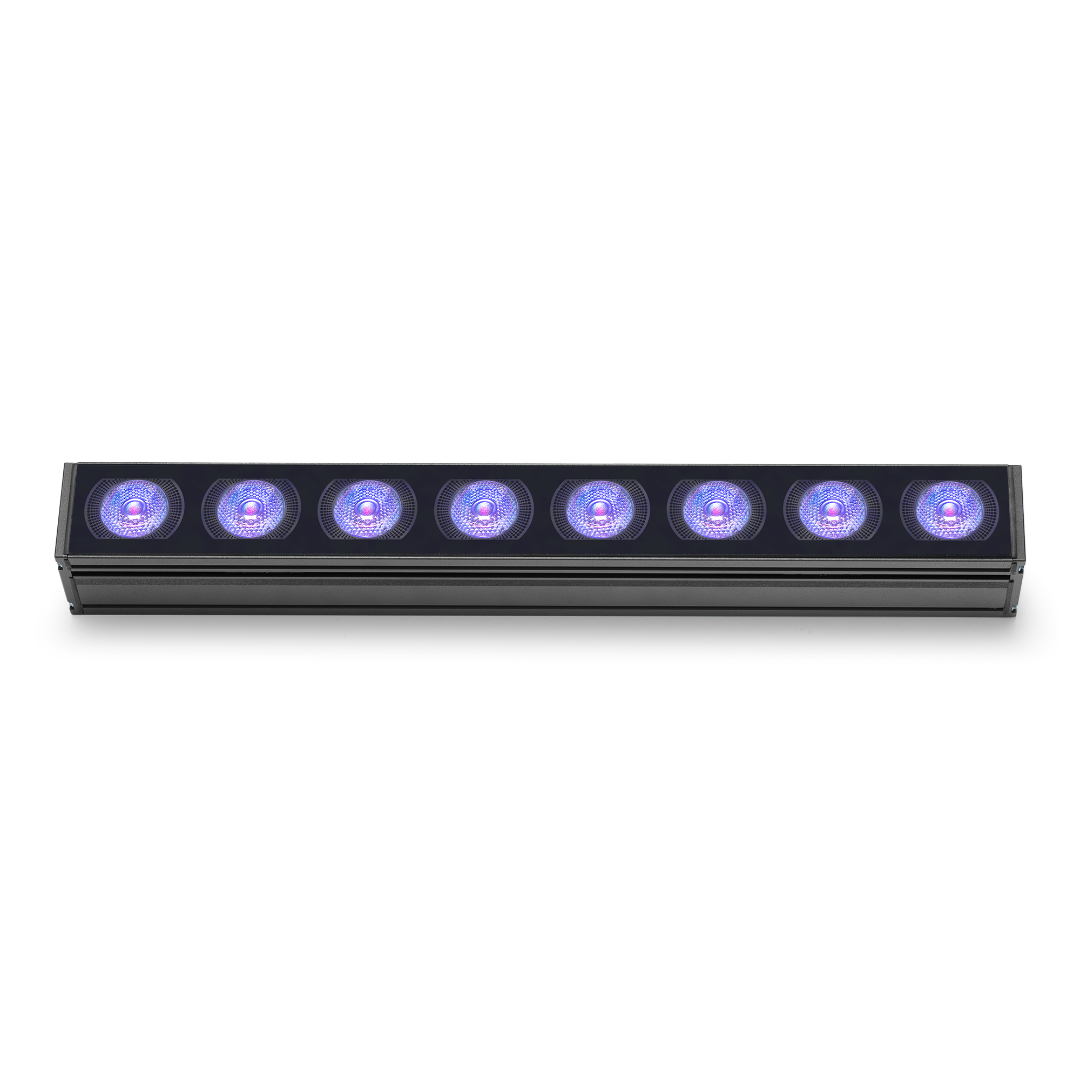

  • Anthracite Grey
  • Black

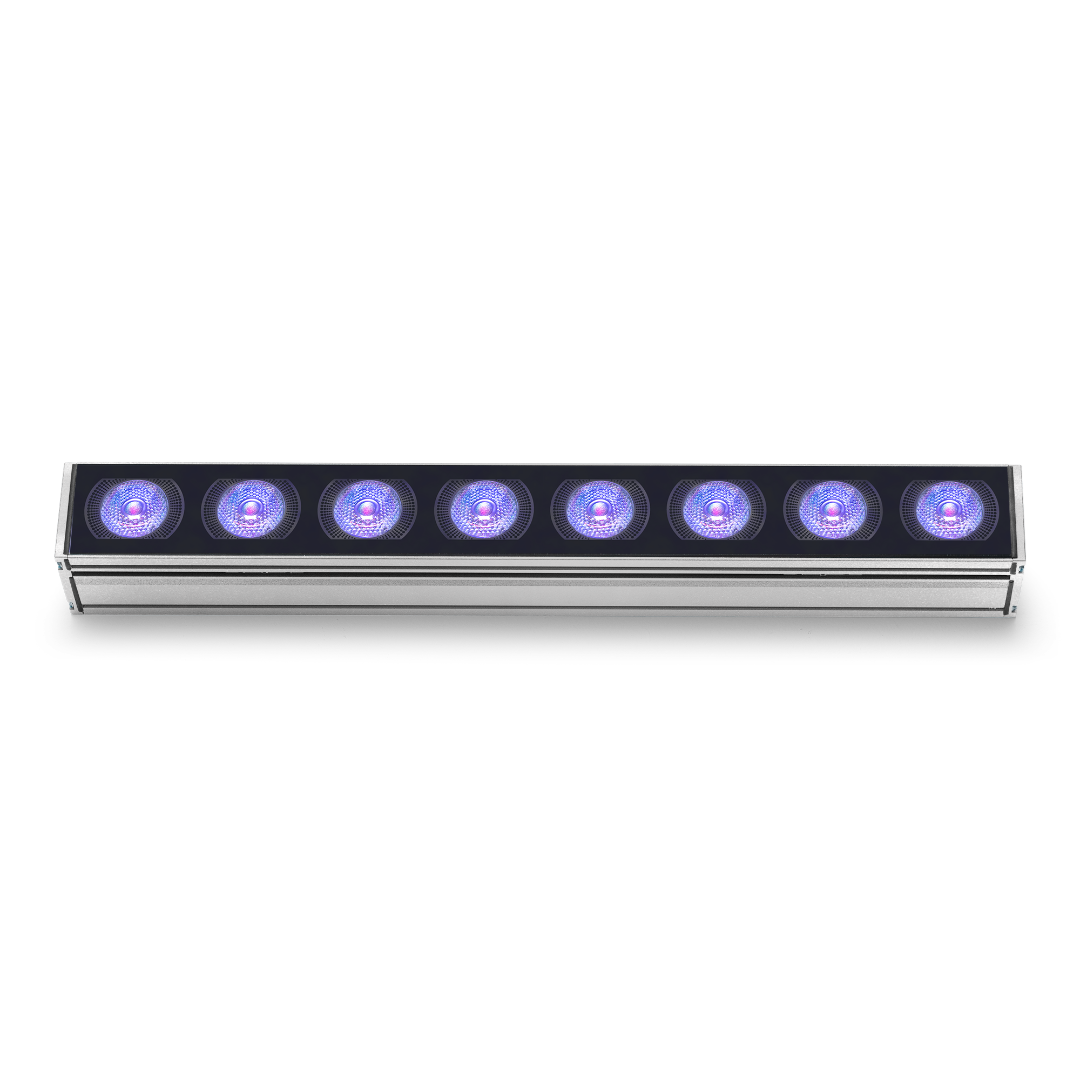

  • Griven Silver Grey

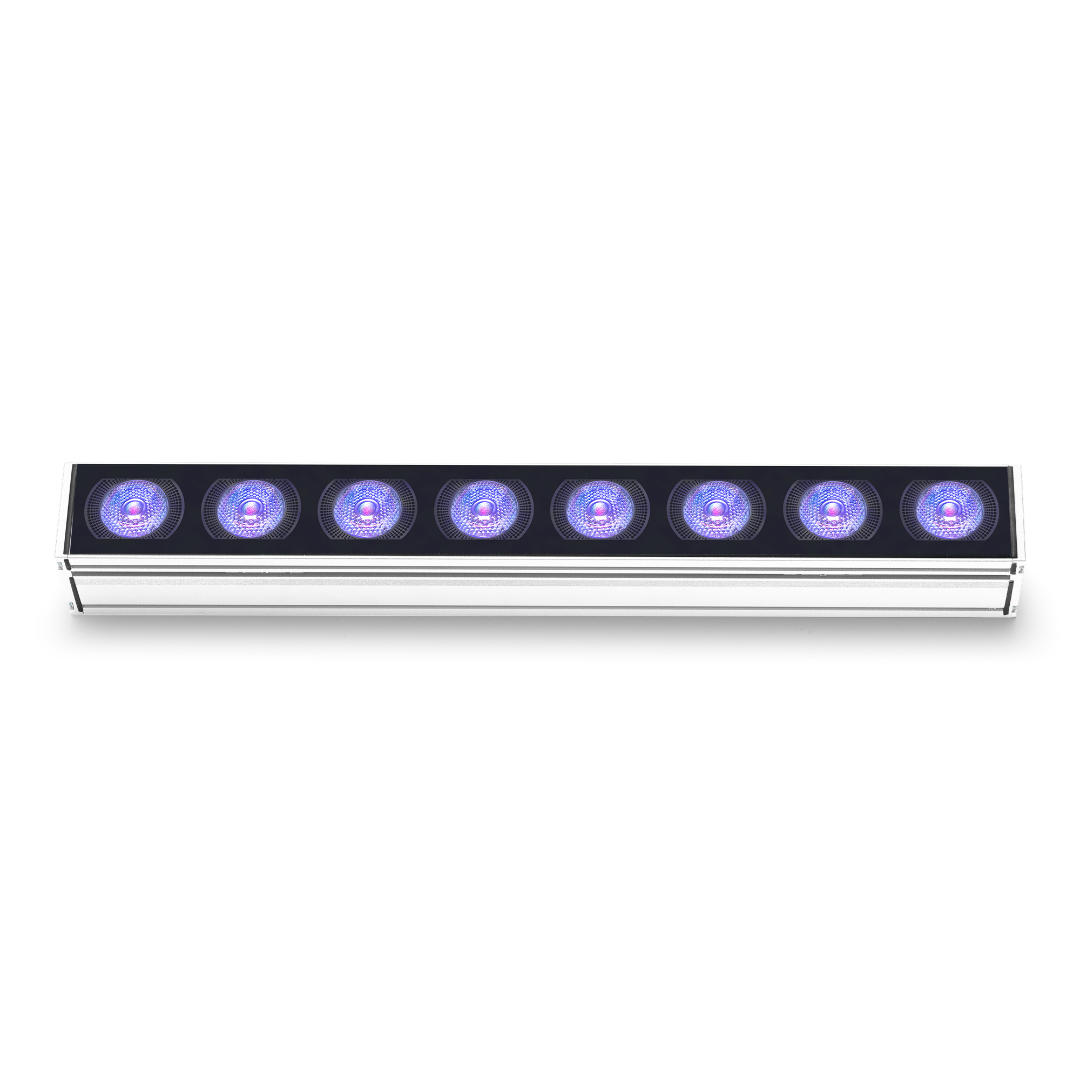

  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: RGBW (4000K White)
  • RGBW (3000K White)
  • RGBW (4000K White)
Contact us  Save product
COLOR CHANGING
print

General Features

PARADE L MC is an alternative multichip LED configuration that uses quad-color LEDs for illuminating large-scale facades or buildings. It offers unparalleled optical lenses and delivers seamless light distribution and smooth color transitioning. Parade L MC offers a comprehensive selection of optical configurations and four finish choices.
Color configuration
High brightness RGB+W 3000K/4000K LEDs
Optical configuration
9° SP (Spot)
14° NB (Narrow)
25° MB (Medium)
37° WB (Wide)
51°h x 9°v ELH (Elliptical Horizontal)
60°h x 33°v ELWH (Elliptical Wide Horizontal)
Max. Delivered lumen output
980 lumens
Max. lumen/Watt
Up to 49 lumens per watt
Input voltage
120 - 277V
Amperage
0.1A @ 277VAC, 0.2A @ 120V
Power consumption
20 watts max
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
5-year warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility.

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • Rohs
  • ETL Listed

Optional Features

  • Optional Polar

Downloads
