Parade L4 Dynamic White

PDL4
PDL4PE Polar Edition

  • Linear module specific for wall grazing effects
  • Comprehensive selection of optical configurations
  • High brightness dynamic white power LEDs
  • 48 1/8" L x 3 3/4 W x 3" H

View finishes: Anthracite Grey

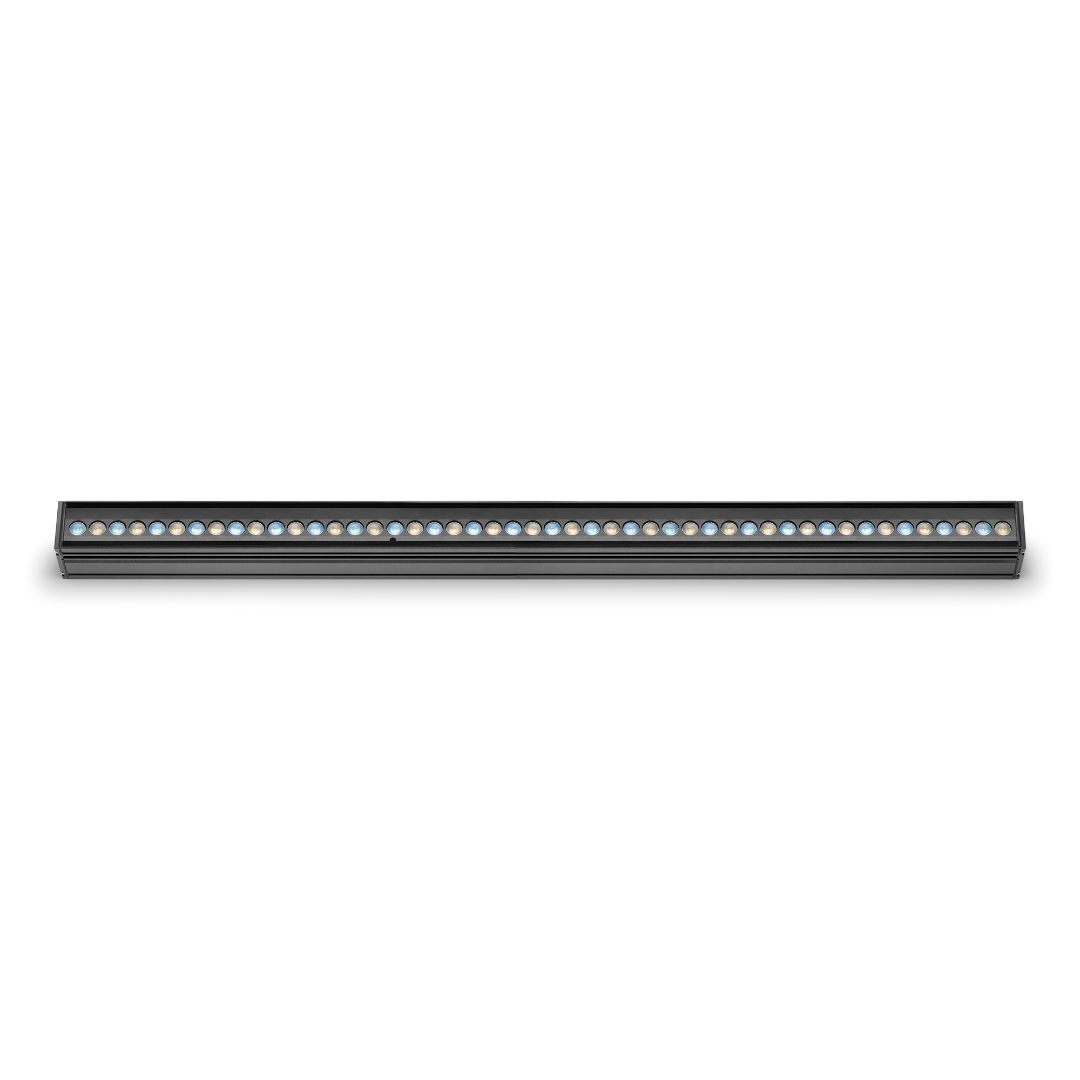

  • Anthracite Grey

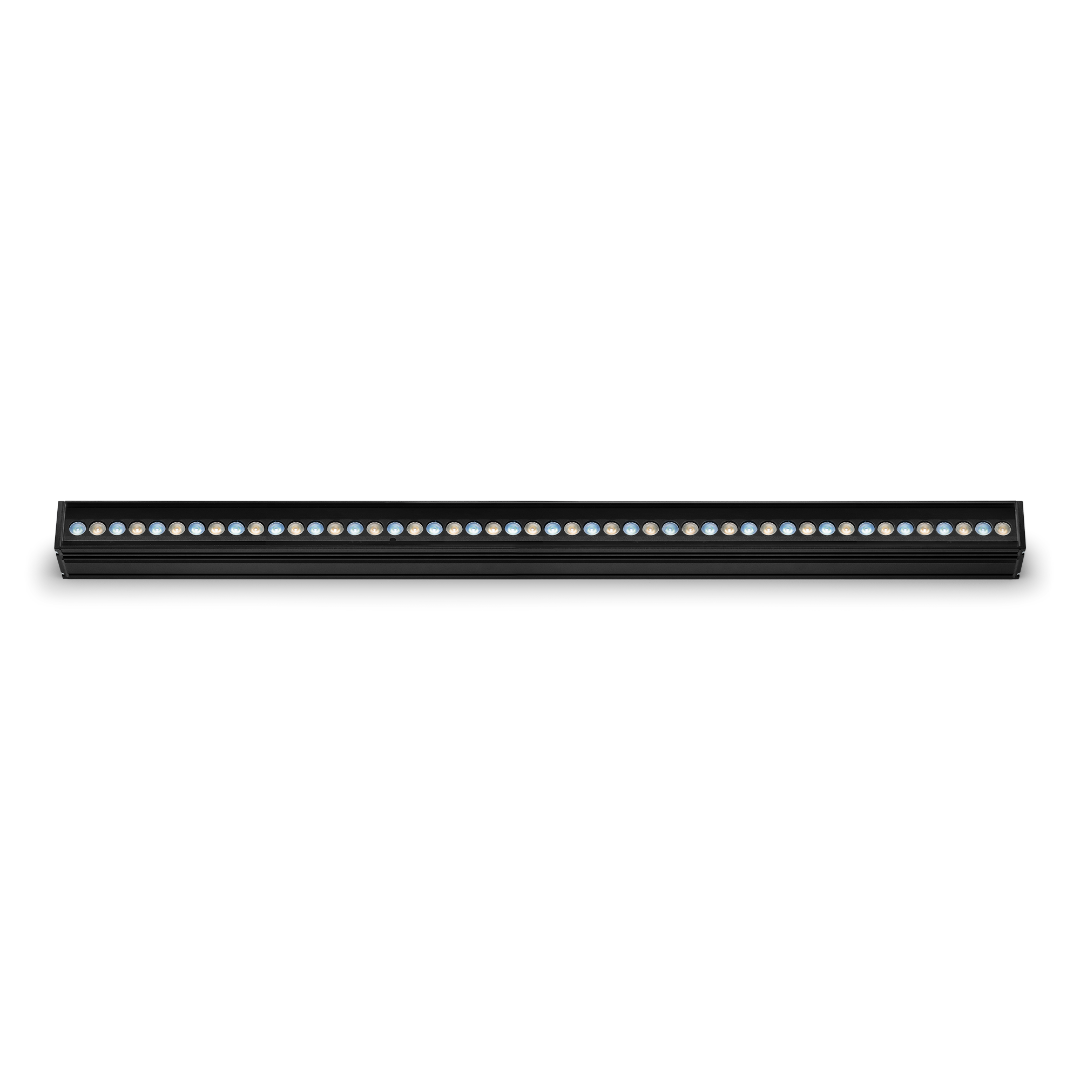

  • Black

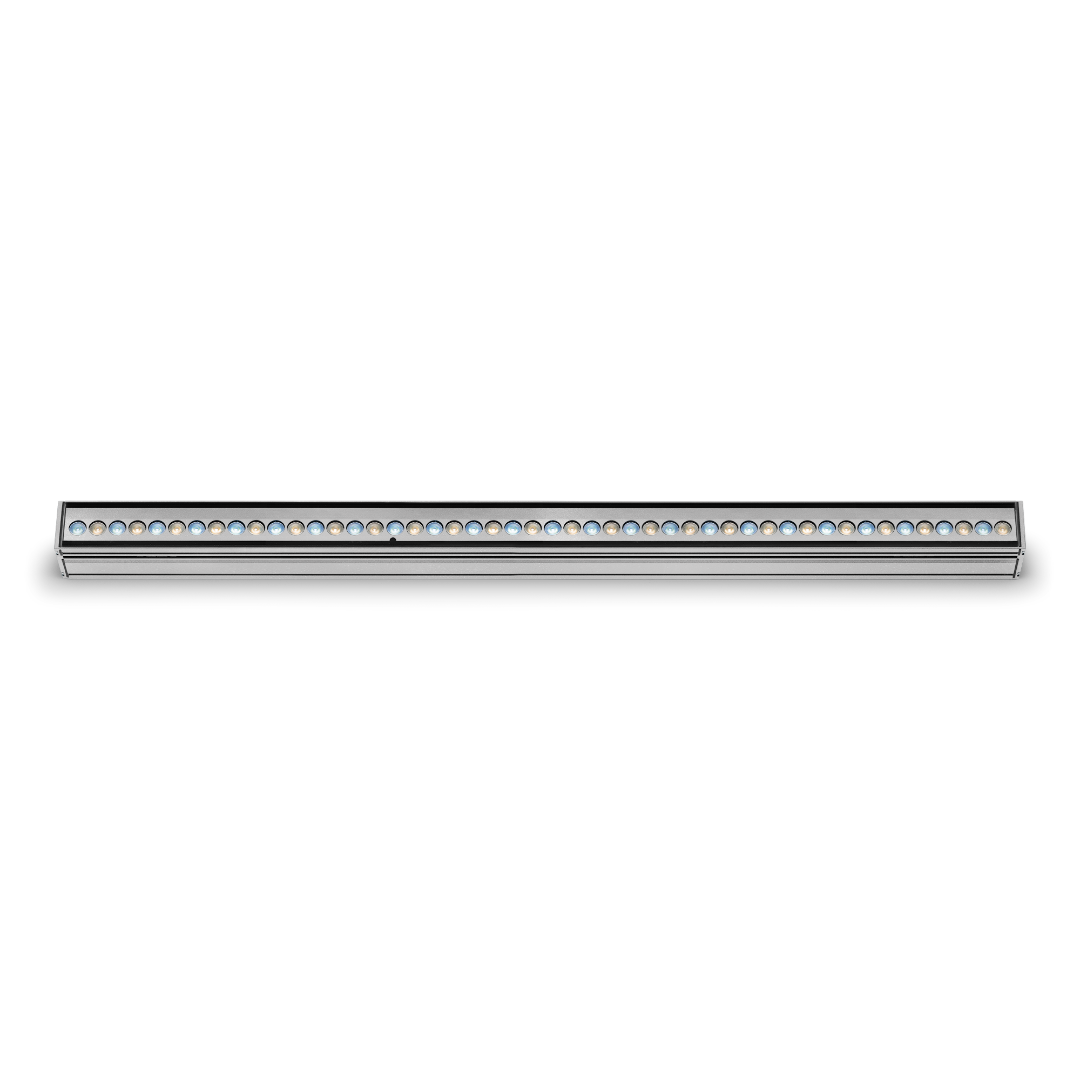

  • Griven Silver Grey

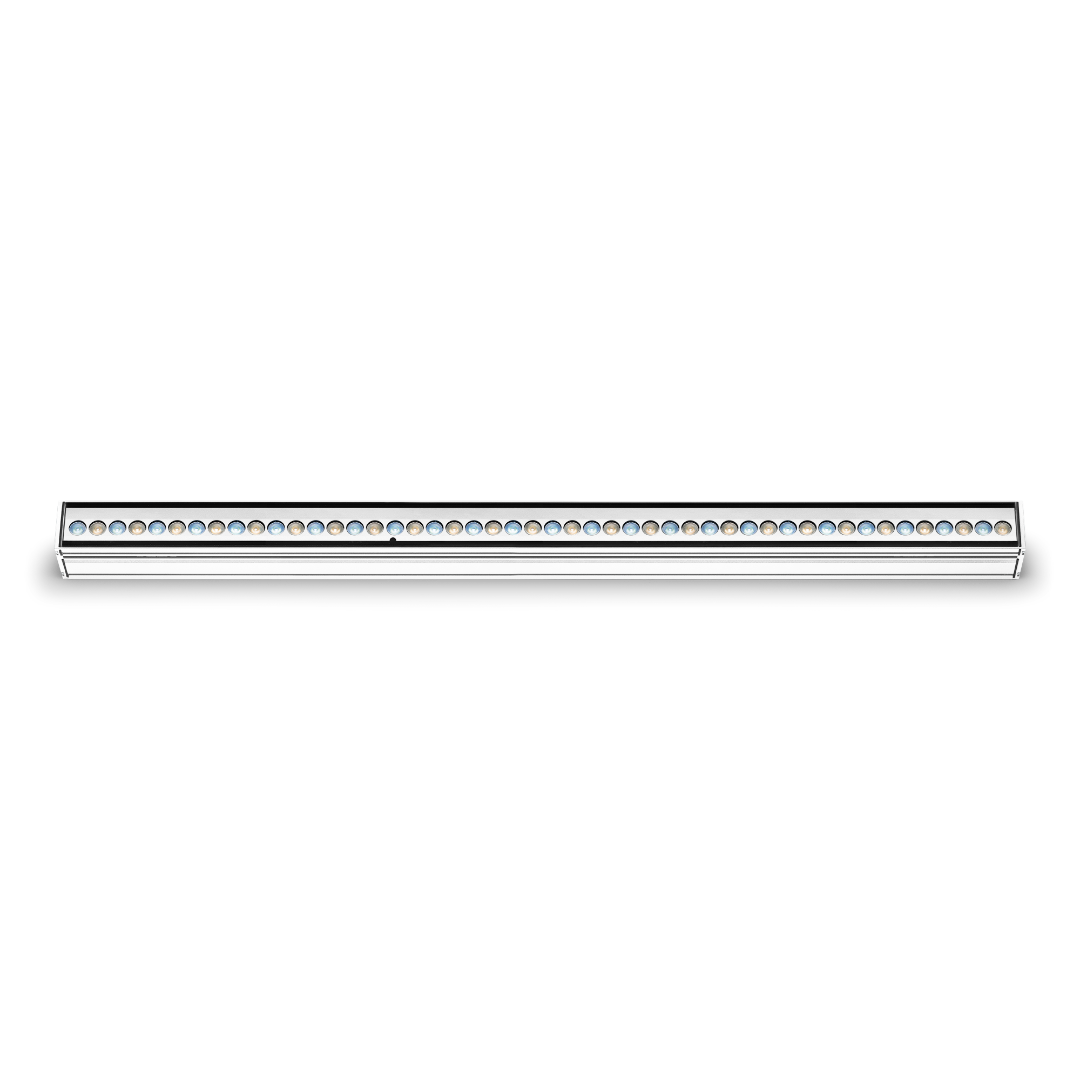

  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
Contact us  Save product
DYNAMIC WHITE
print

General Features

PARADE L linear luminaires are available in one-foot increments up to four feet overall length. Each model features premium quality high brightness LEDs and a comprehensive selection of ten light distributions. Adjustable brackets are available in three standard lengths. Standard built-in programming capabilities include economical stand-alone operation or master-satellite configurations without the use of external control systems, or operation by remote DMX512 control systems. Four standard finishes are available with options for marine-grade or custom RAL finishes on request. All hardware is stainless steel.
Color configuration
High brightness Dynamic White LEDs with an adjustable color temperature range between 2700K and 6500K
Optical configuration
8° SP (Spot)
12° NB (Narrow)
26° MB (Medium)
40° WB (Wide)
58° EW (Extra wide)
42°h x 11°v ELH (Elliptical Horizontal)
40°h x 24°v ELWH (Elliptical Wide Horizontal)
36°h x 15°v - 5° incline WW (Wall Wash)
Max. Delivered lumen output
From 6218 to 8663 lumens
Max. lumen/Watt
Up to 114 lumens per watt
Input voltage
120 - 277V
Amperage
0.63A @ 120V, 0.27A @ 277VAC
Power consumption
76 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK10
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Accessories are ordered and shipped separately from luminaire for field installation.

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal
  • Wall Wash


Overview

  • IP67
  • IK10
  • DMX
  • RDM
  • ETL Certified for Wet Locations

Optional Features

  • Anti-saline treatment
  • Optional Polar
  • Internal Honeycomb Louver

Downloads
