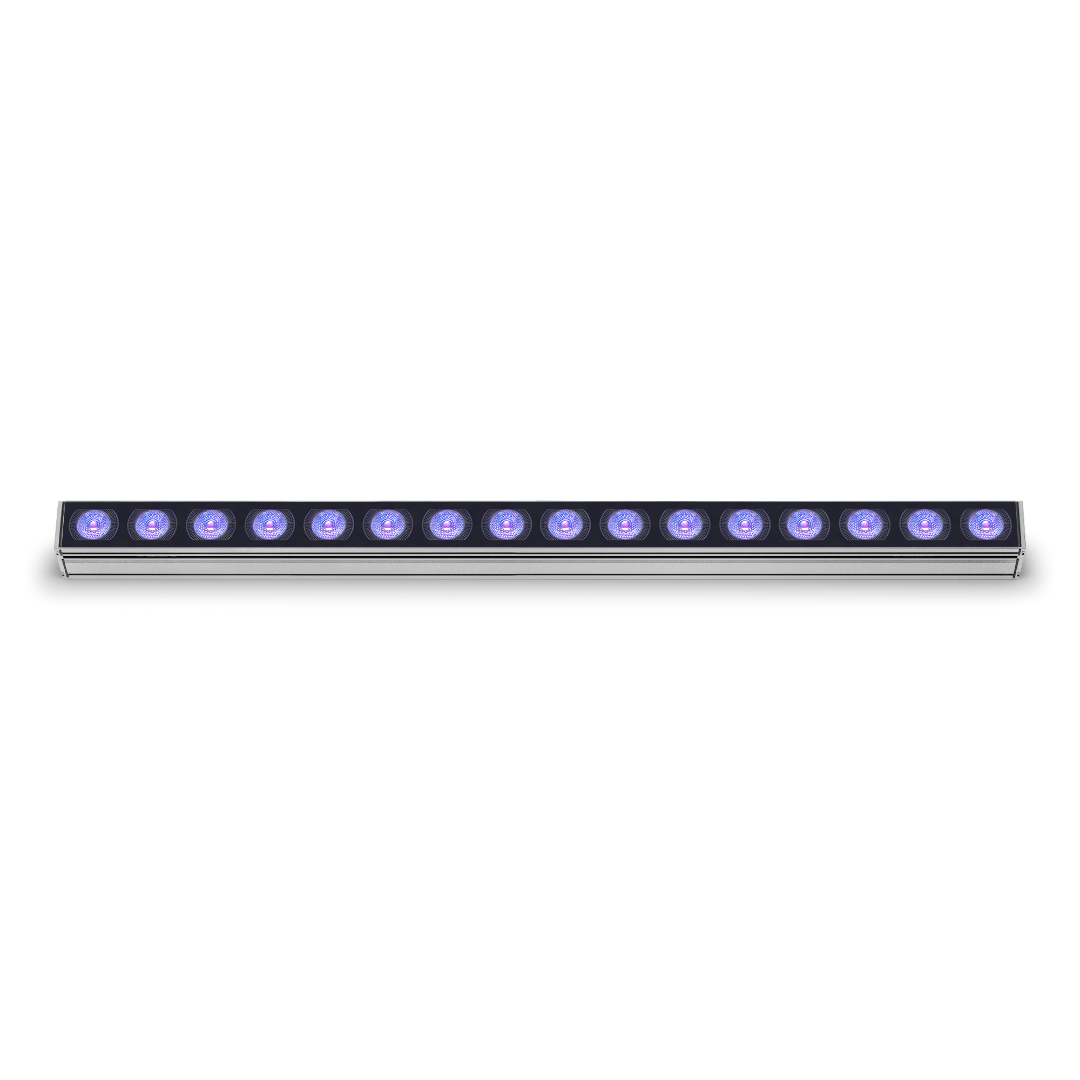

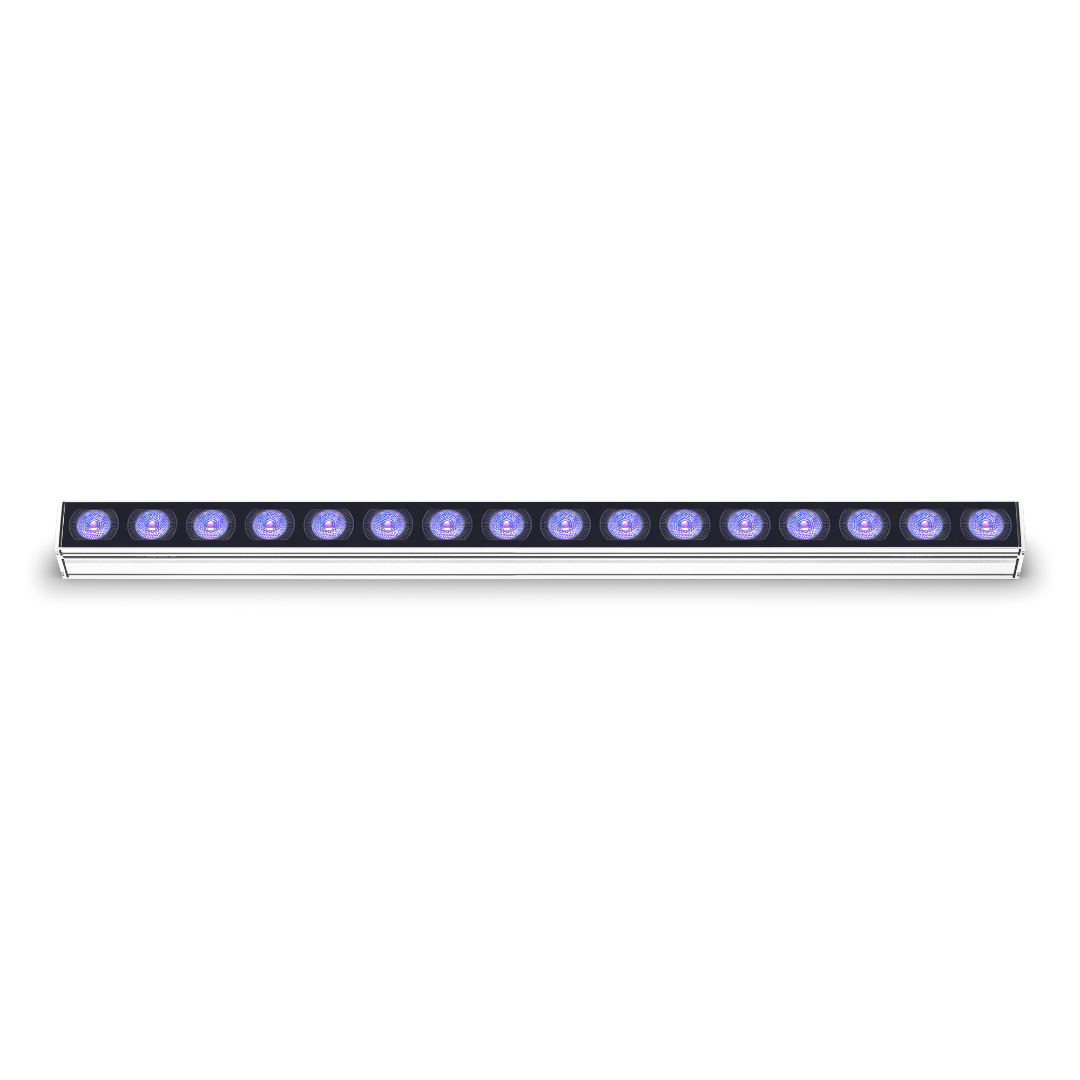

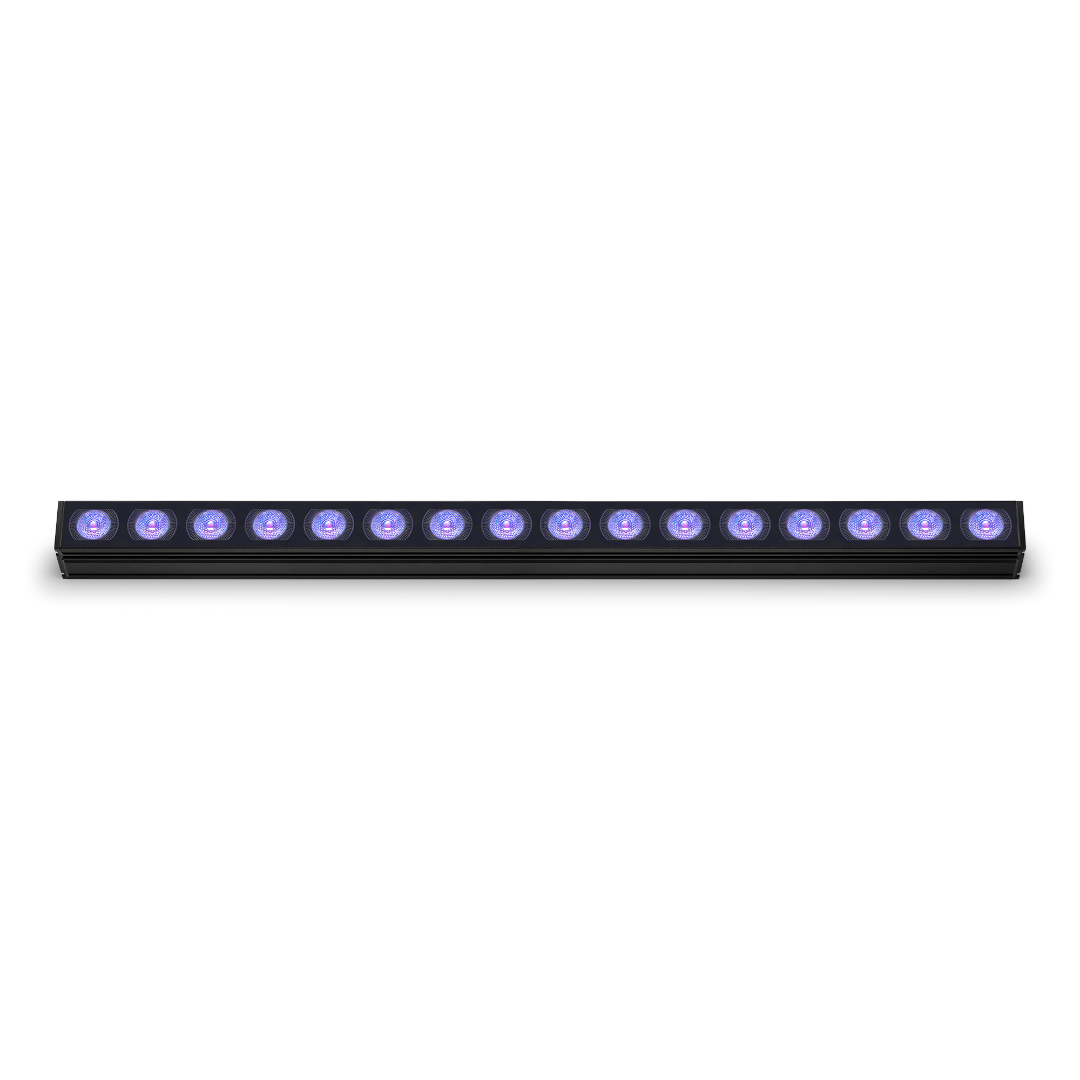

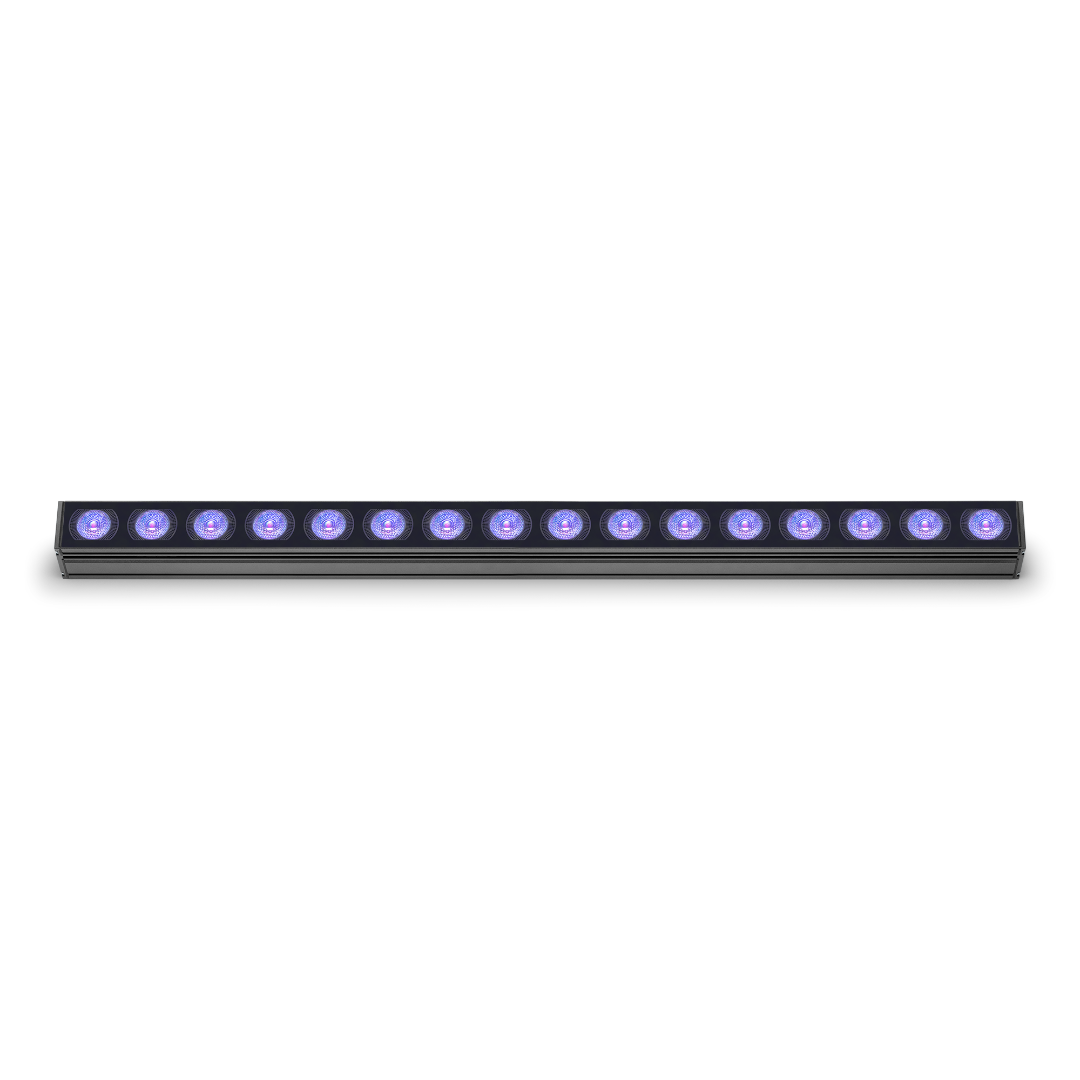

Parade L4 MC RGBW

PDL4MC
PDL4MCPE Polar Edition

  • Linear module fitted with multichip LEDs, specific for powerful wall grazing enhancement of large-scale façades or architectural elements
  • Control system: DMX-RDM, remote wireless data
  • Max. delivered lm output: 3626 lm / 49 lm/W
  • 48.1" L x 2.8" W x 3" H

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: RGBW40K
  • RGBW30K
  • RGBW40K
Contact us  Save product
COLOR CHANGING
print

General Features

PARADE L MC linear luminaires are available in one, two, three, or four foot lengths. Each model features premium quality high-brightness multi-chip LEDs and a comprehensive selection of six light distributions. Standard built-in programming capabilities include standalone or master-satellite configurations without the use of external control systems, or operation by remote DMX512 control systems. All hardware is stainless steel.
Color configuration
High brightness RGB+W 4000K or 3000K multichip LEDs
Optical configuration
9° SP (Spot)
14° NB (Narrow)
25° MB (Medium)
37° WB (Wide)
50°h x 9°v ELH (Elliptical Horizontal)
60°h x 33°v ELWH (Elliptical Wide Horizontal)
Max. Delivered lumen output
Up to 3626 lumens
Max. lumen/Watt
Up to 49 lumens per watt
Input voltage
120 - 277V
Amperage
0.26A @ 277V, 0.61A @ 120V
Power consumption
74 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • Self-addressing
  • Meets CE safety standards, Rohs compliant
  • ETL Listed

Optional Features

  • Optional Polar
