Ruby R RGBW

RUBYR

  • Comprehensive optical configurations selection
  • Shallow recessed depth
  • 4409 lbs deadweight load capacity
  • Formwork Ordered Separately
  • ø11" x 4 3/4" Depth

Contact us  Save product
COLOR CHANGING
print

General Features

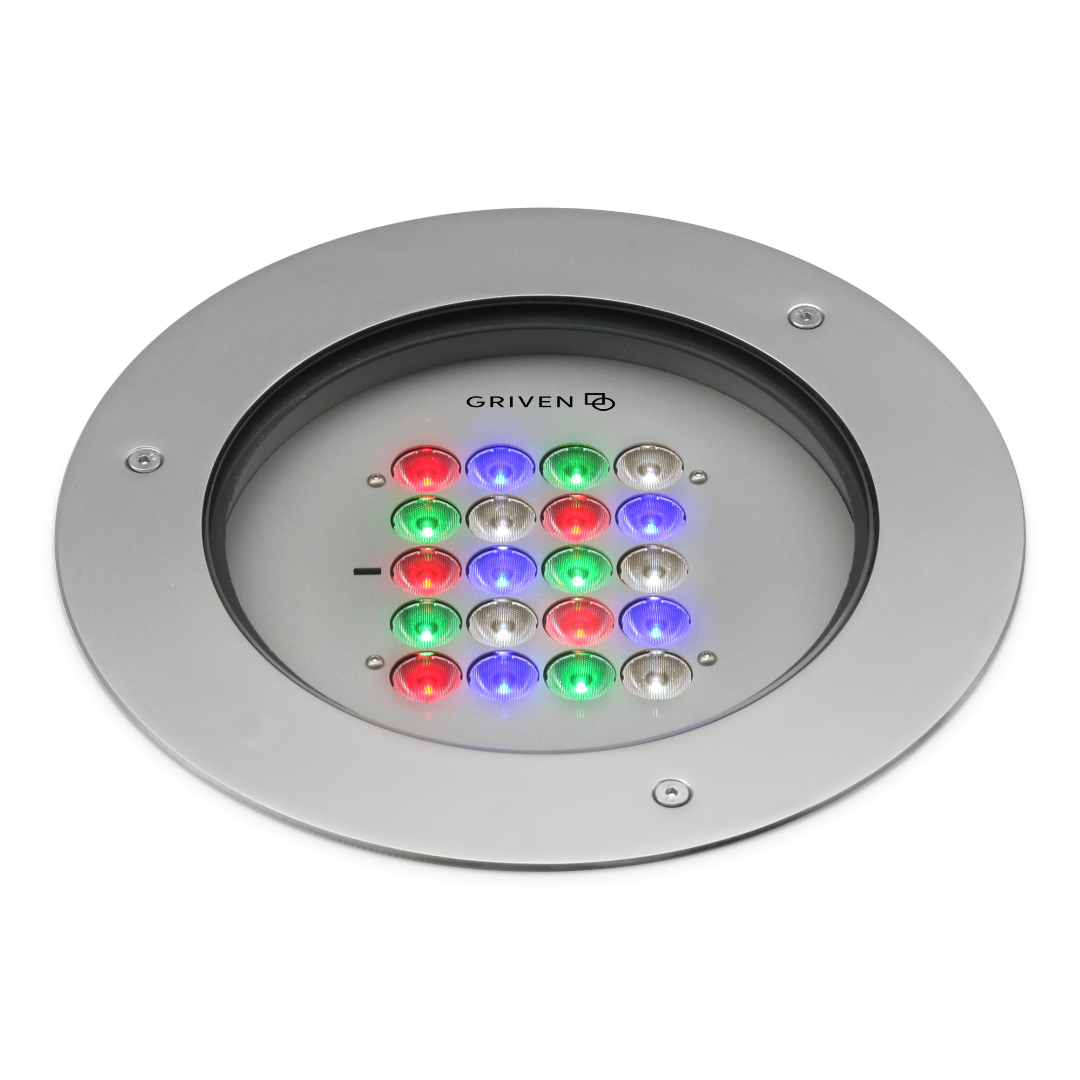

RUBY R recessed in grade luminaire offers diverse options for spotlighting or wall grazing through an extensive collection of symmetric, elliptical, and wall washing optics. Programming is easily accomplished via a remote infrared controller and will operate in DMX, automatic, or master-satellite modes for expanded versatility. The 11" diameter luminaire has an overall depth of less than six inches, making it suitable for a wide variety of installation conditions for interior or exterior applications. All hardware is stainless steel.
Color configuration
High brightness RGB+W 4000K LEDs
Optical configuration
7° SP (Spot)
11° NA (Narrow)
21° ME (Medium)
43° WI (Wide)
69° EW (Extra wide)
40° X 11° ELH (Elliptical Horizontal)
40° x 20° ELWH (Elliptical Wide Horizontal)
WW (Wall Wash/Asymmetric)
Max. Delivered lumen output
up to 1581 lumens
Max. lumen/Watt
up to 44 lumens per watt
Input voltage
120-277VAC / 50-60Hz
Amperage
0.3A @ 120VAC, 0.13A @ 277V
Power consumption
36 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal
  • Wall Wash


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • CSA certified version available on request
  • ETL Certified for Wet Locations
