Capital 100 MC Dynamic White

All products spot/flood/wash capital 100Capital 100 MC Dynamic White

Capital 100 MC Dynamic White

CP100MC
CP100MCPE Polar Edition

Ideal for spot lighting and wall washing effects
Premium quality high brightness dynamic white multichip power LEDs
Seamless light distribution and smooth colour transition
11.1" L x 3.2" W x 11.1" H

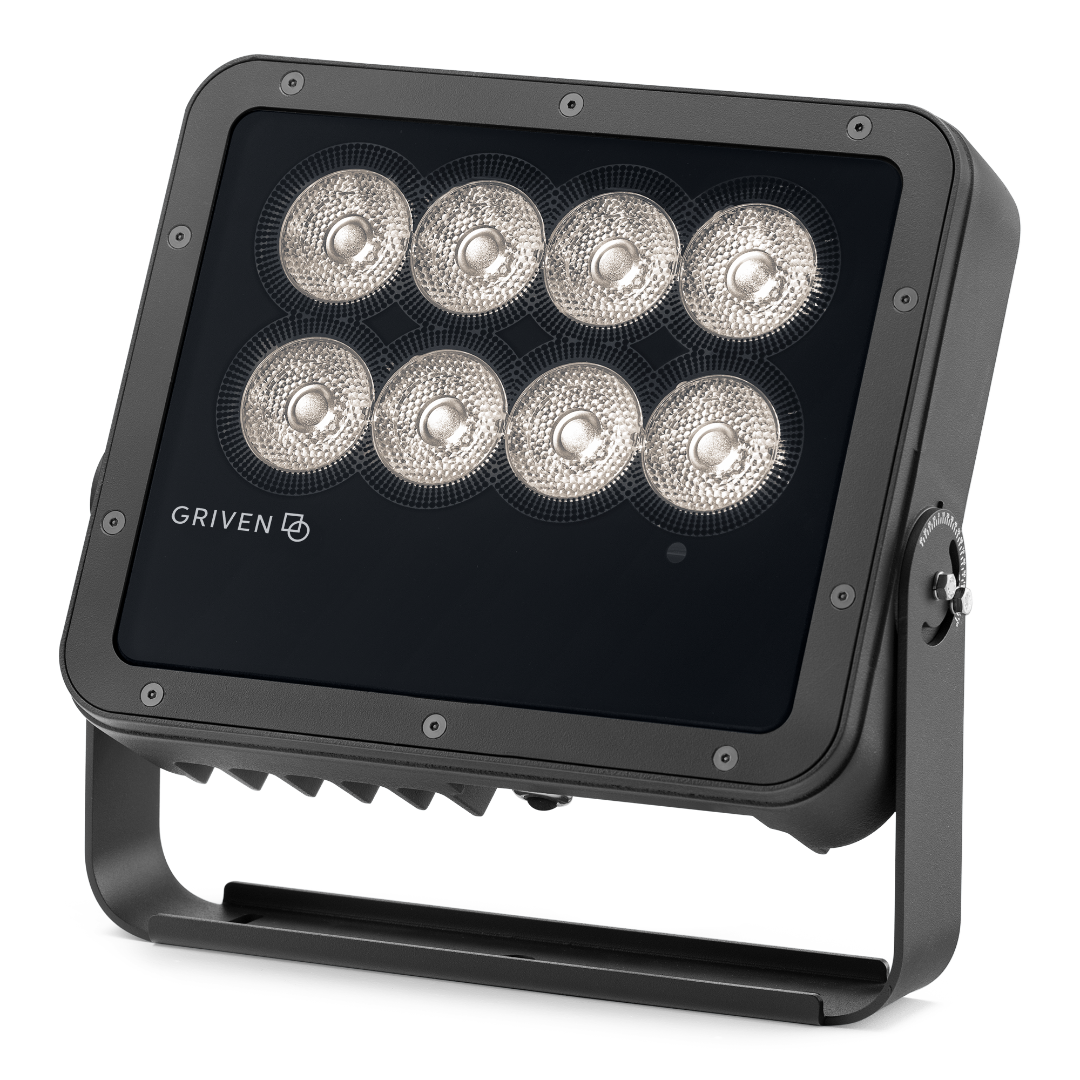

View finishes: Anthracite Grey

Contact us Save product

DYNAMIC WHITE

Capital 100 MC Dynamic White17995

print

Capital 100 MC Dynamic White

General Features

CAPITAL 100MC delivers superior color-mixing through quad-chip LEDs and precision lens technology within a strikingly compact body. Tailored to meet the needs of demanding architectural lighting specifications, this flexible and highly versatile floodlight is suitable for a variety of installations where a reduced mounting footprint is desired.

Color configuration

Premium quality high brightness dynamic white (3000K to 6500K) multichip power LEDs

Optical configuration

7° SP (Spot)
10° NB (Narrow)
23° MB (Medium)
35° WB (Wide)

*Contact factory for internal spreading diffusers

Max. Delivered lumen output

4908 to 5440 lumens

Max. lumen/Watt

Up to 78 lumens per watt

Input voltage

120 - 277V

Amperage

0.58A @ 120V, 0.26A @ 277V

Power consumption

70 watts max.

Ingress protection rating

IP67

Impact resistance rating

IK09

External operating limits

-40°C to 50°C / (-40°F to 122°F)

Warranty

5-year warranty

Accessories

Optional optical distribution and mounting accessories available for the utmost design flexibility

Light Beam Effects

Overview

Optional Features

Downloads

Specification Sheet

Specification Sheet

Configuration

User Manual

Pictures

IES

Configuration

Capital 100 MC Dynamic White

Model

CP100MC Capital 100 MC
CP100MCPE Capital 100 MC Polar Edition

Color

From 3000K to 6500K

Control

DMX/RDM

Cable

Power in, DMX in, DMX out
Monocable with connectors
Monocable without connectors

Voltage

120-277V

Optic

Spot 7°
Narrow 10°
Medium 23°
Wide 35°

Finish

Anthracite Grey

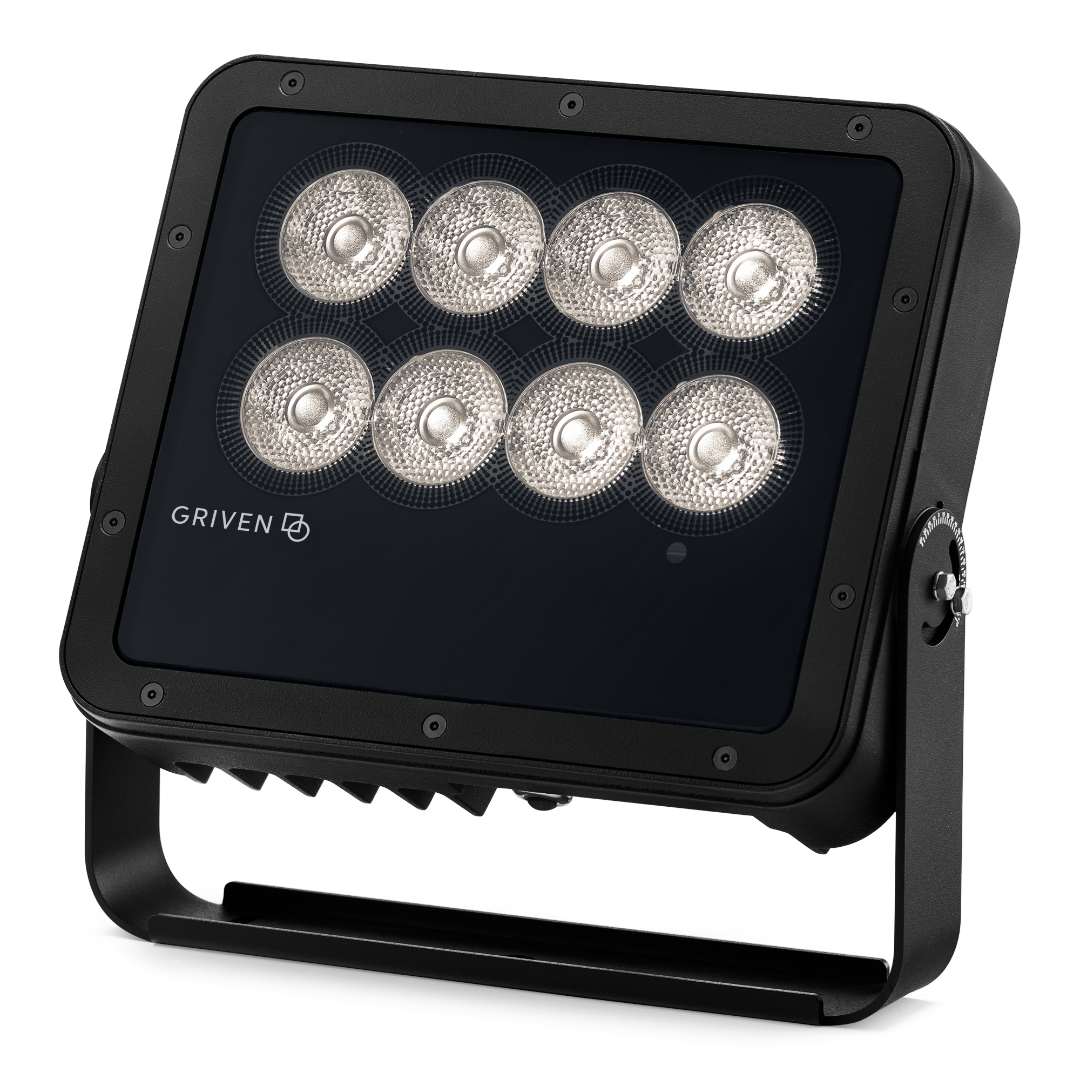

Black

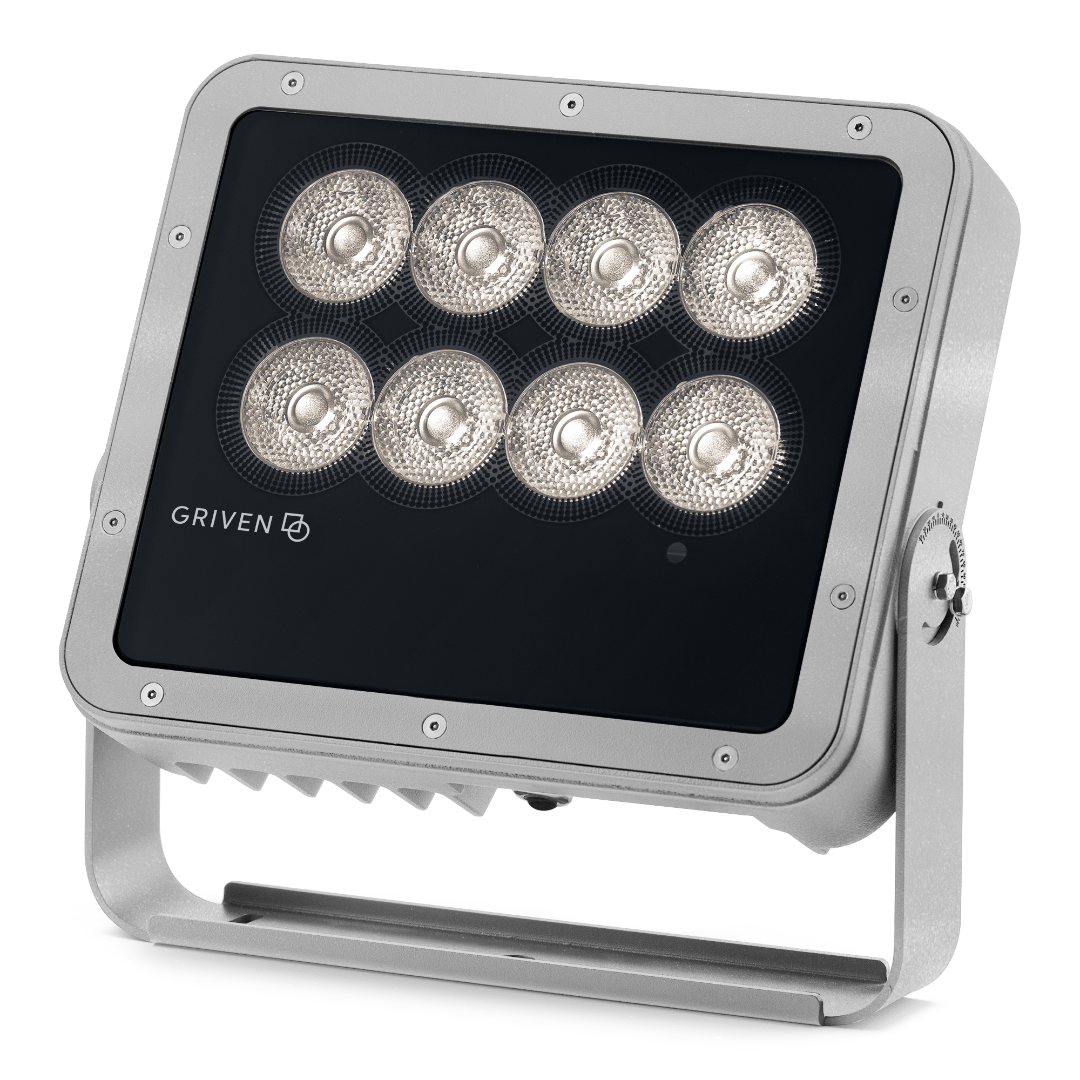

Griven Silver Grey

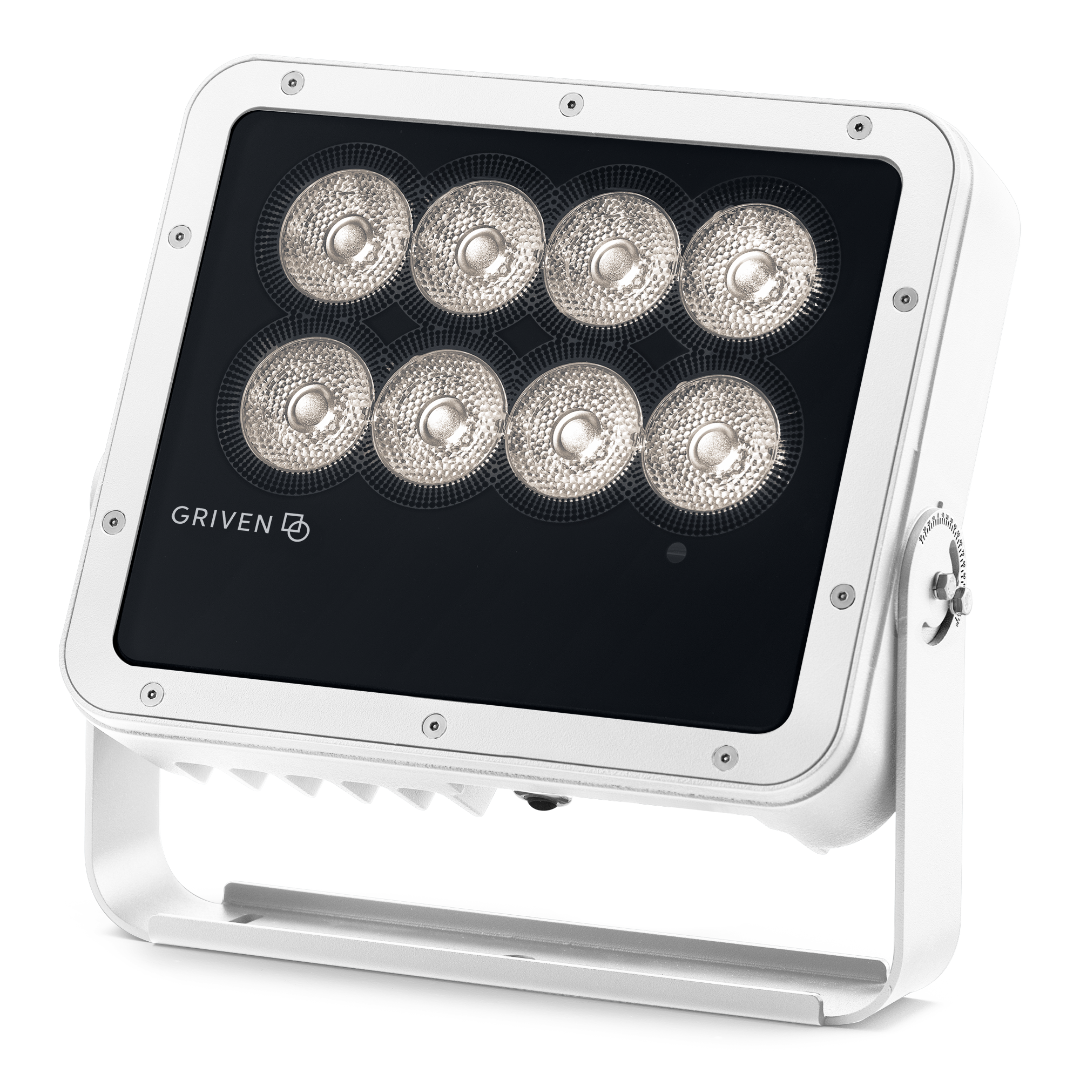

White

Option

Anti-Saline Treatment
3G Mounting Yoke

Optional Accessories

Infrared Configuration Remote

Infrared Configuration Remote

IR-CONFIG-REMOTE

Control & Installation Solutions

11.8

11.8" Extended Mounting Yoke

CP100-EXTYOKE300-XX

Control & Installation Solutions

16.1

16.1" Extended Mounting Yoke

CP100-EXTYOKE410-XX

Control & Installation Solutions

Snoot

Snoot

CP100-SNOOT-XX

Control & Installation Solutions

Visor

Visor

CP100-VISOR-XX

Control & Installation Solutions

Wire guard

Wire guard

CP100-WIREGUARD-XX

Control & Installation Solutions

Projects

City Hall, Kuopio

Historical Sites, Public, White Light

City Hall, Kuopio

Finland, 2017

Church of Santa Maria del Bando, Atrani

Places of Worship

Church of Santa Maria del Bando, Atrani

Italy, 2017
