Capital 100 Ultra Spot Dynamic White

All products spot/flood/wash capital 100Capital 100 Ultra Spot Dynamic White

Capital 100 Ultra Spot Dynamic White

CP100US
CP100USPE Polar Edition

Compact surface-mount floodlight
Comprehensive selection of optical configurations
High brightness dynamic white power LEDs
11.1" L x 3.2" W x 11.1" H

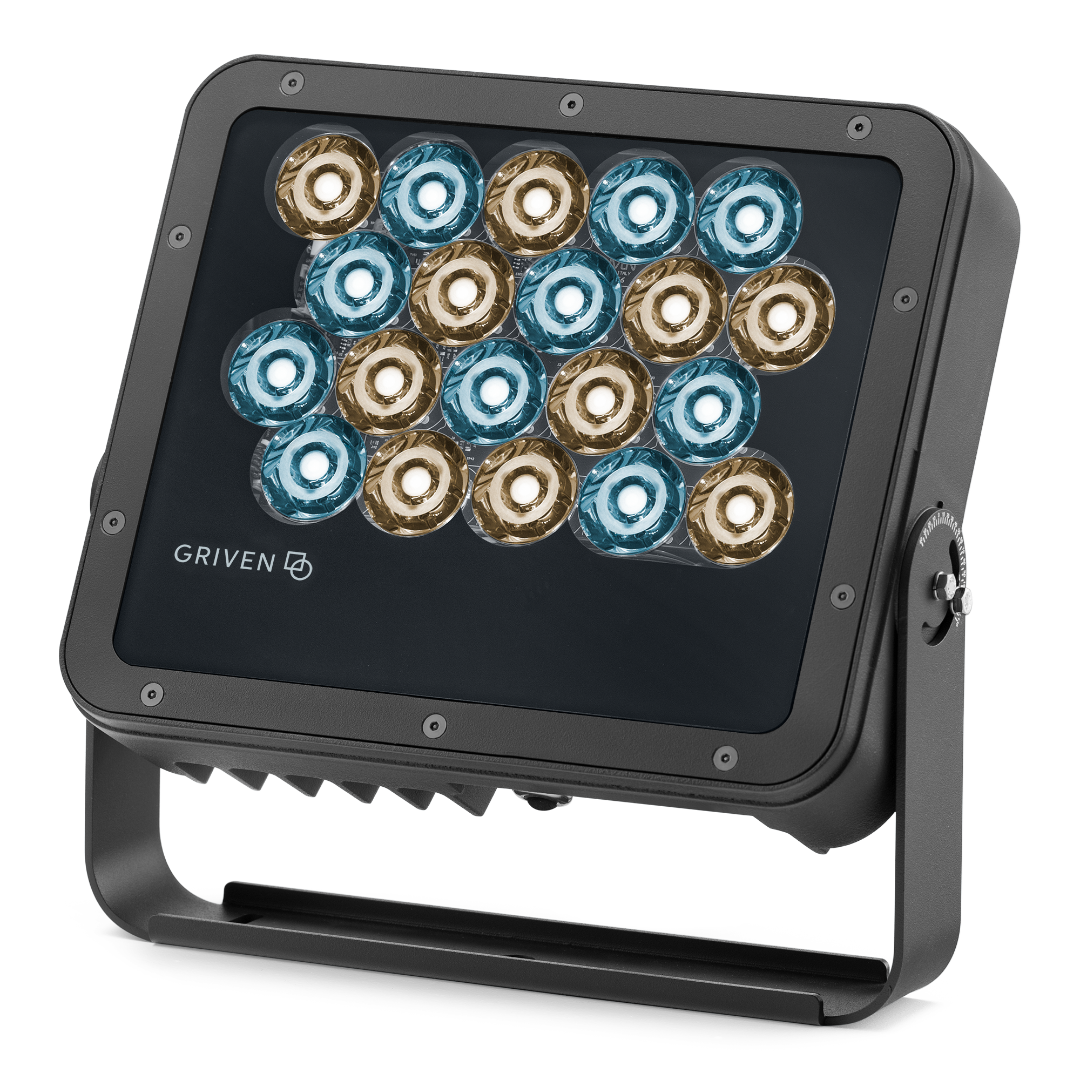

View finishes: Anthracite Grey

Contact us Save product

DYNAMIC WHITE

Capital 100 Ultra Spot Dynamic White18241

print

Capital 100 Ultra Spot Dynamic White

General Features

CAPITAL 100 US accentuates the designer’s palette with an ultra-narrow 3.2° beam using 20 high-power LEDs fitted with precision optics. Grazing of vertical columnar features or illumination of objects at distance both benefit from the high-performance of this luminaire.

Color configuration

High brightness Dynamic White LEDs with an adjustable colour temperature range between 2700K and 6500K

Optical configuration

3.2° US (Ultra Spot)

Max. Delivered lumen output

Up to 3387 lumens

Max. lumen/Watt

Up to 64 lumens per watt

Input voltage

120 - 277V

Amperage

0.44A @ 120V, 0.19A @ 277V

Power consumption

53 watts max.

Ingress protection rating

IP67

Impact resistance rating

IK09

External operating limits

-40°C to 50°C / (-40°F to 122°F)

Warranty

5-year warranty

Accessories

Optional optical distribution and mounting accessories available for the utmost design flexibility

Light Beam Effects

Overview

Optional Features

Downloads

Specification Sheet

Specification Sheet

Configuration

User Manual

Pictures

IES

REVIT

Configuration

Capital 100 Ultra Spot Dynamic White

Model

CP100US Capital 100 US
CP100USPE Capital 100 US Polar Edition

Color

From 2700K to 6500K

Control

DMX/RDM

Cable

Power in, DMX in, DMX out
Monocable with connectors
Monocable without connectors

Voltage

120-277V

Optic

Ultra Spot 3.2°

Finish

Anthracite Grey

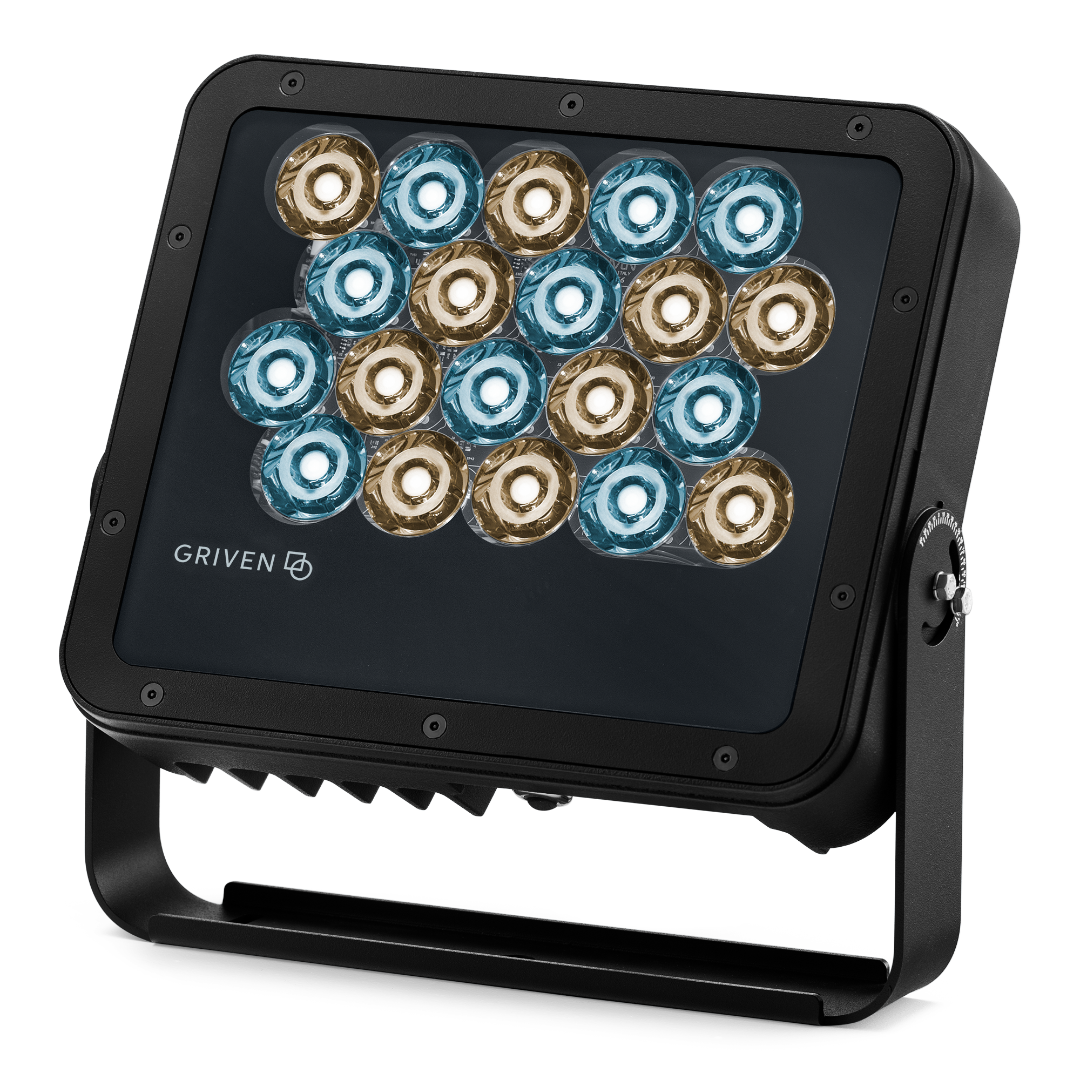

Black

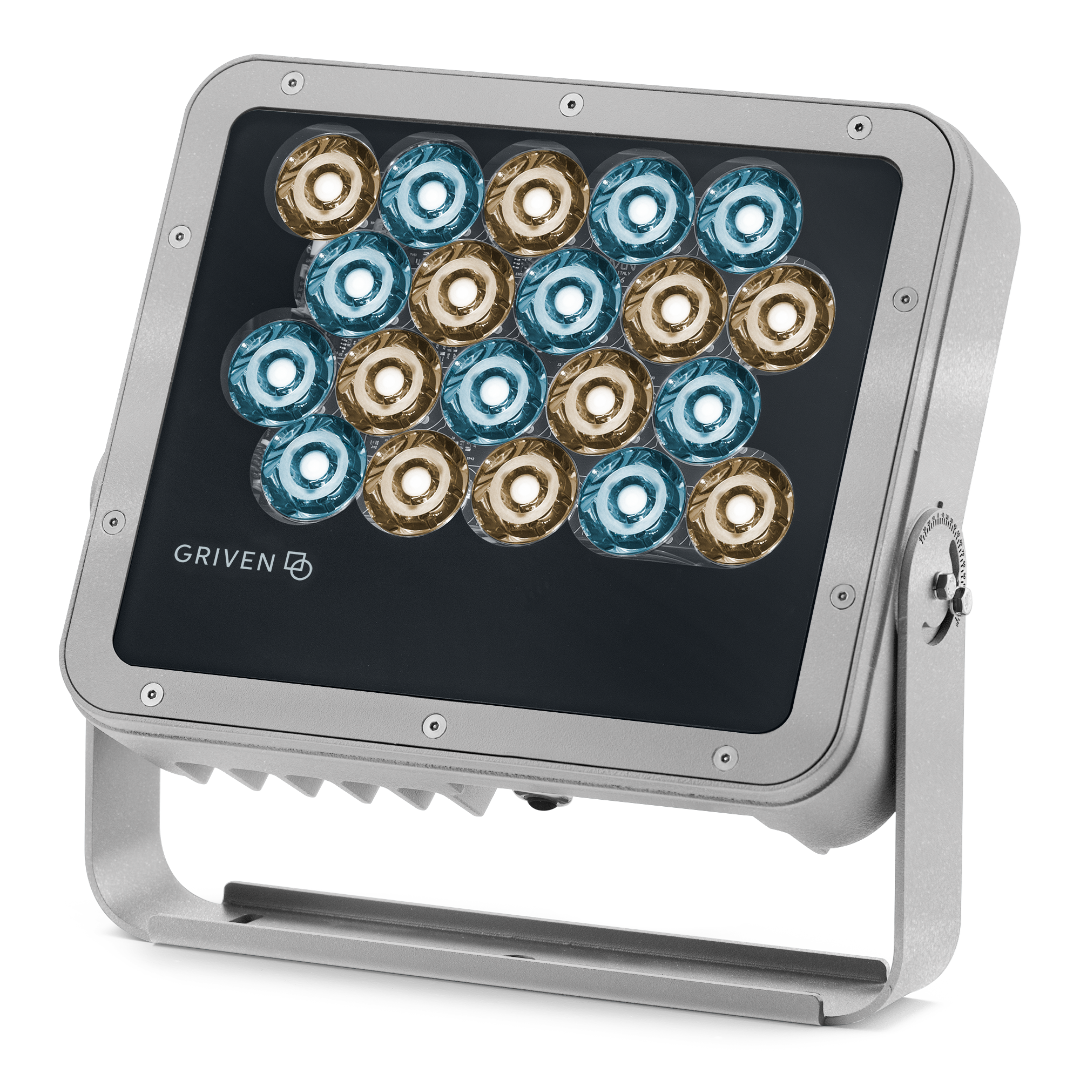

Griven Silver Grey

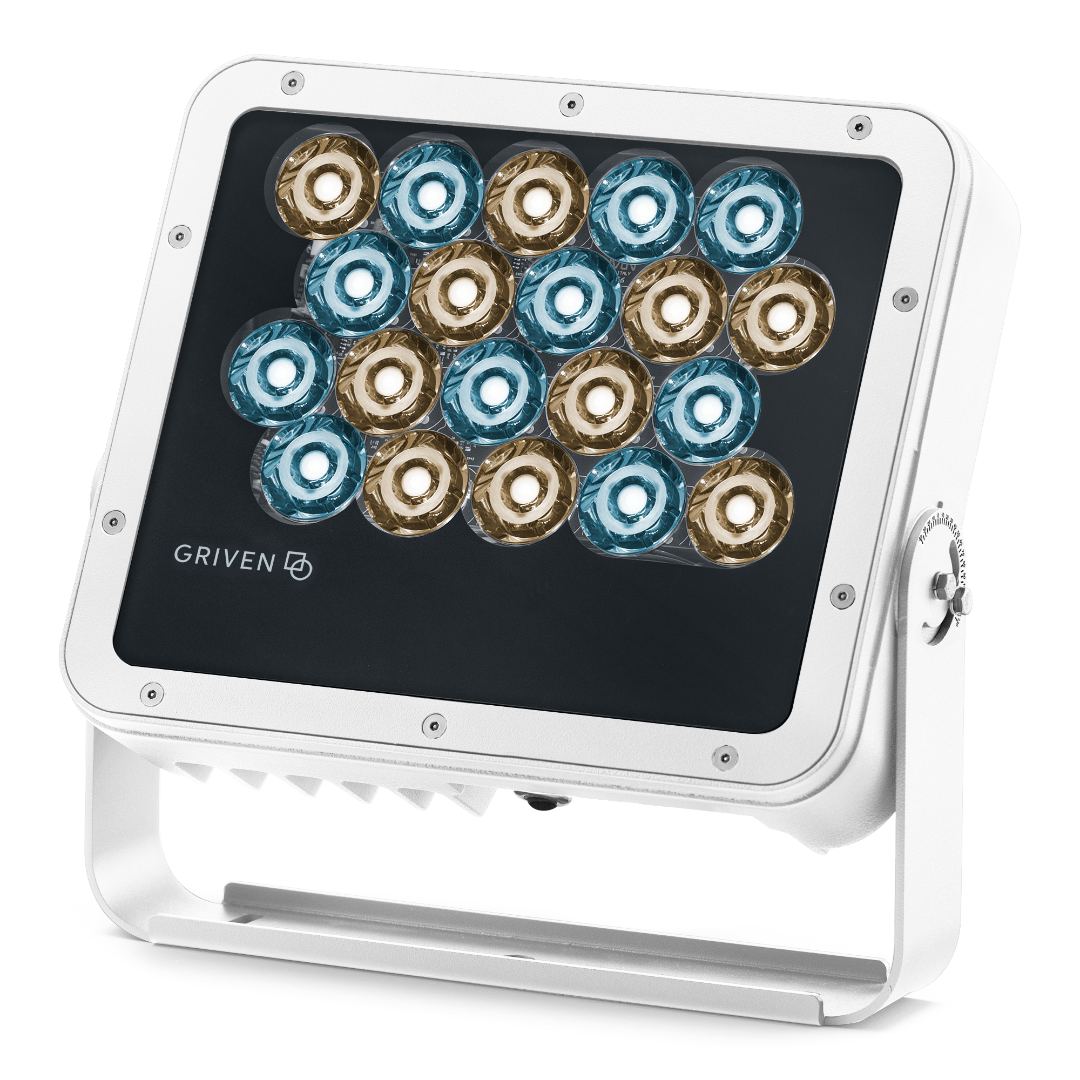

White

Option

Anti-Saline Treatment
3G Mounting Yoke

Optional Accessories

Infrared Configuration Remote

Infrared Configuration Remote

IR-CONFIG-REMOTE

Control & Installation Solutions

11.8

11.8" Extended Mounting Yoke

CP100-EXTYOKE300-XX

Control & Installation Solutions

16.1

16.1" Extended Mounting Yoke

CP100-EXTYOKE410-XX

Control & Installation Solutions

Snoot

Snoot

CP100-SNOOT-XX

Control & Installation Solutions

Visor

Visor

CP100-VISOR-XX

Control & Installation Solutions

Wire guard

Wire guard

CP100-WIREGUARD-XX

Control & Installation Solutions
