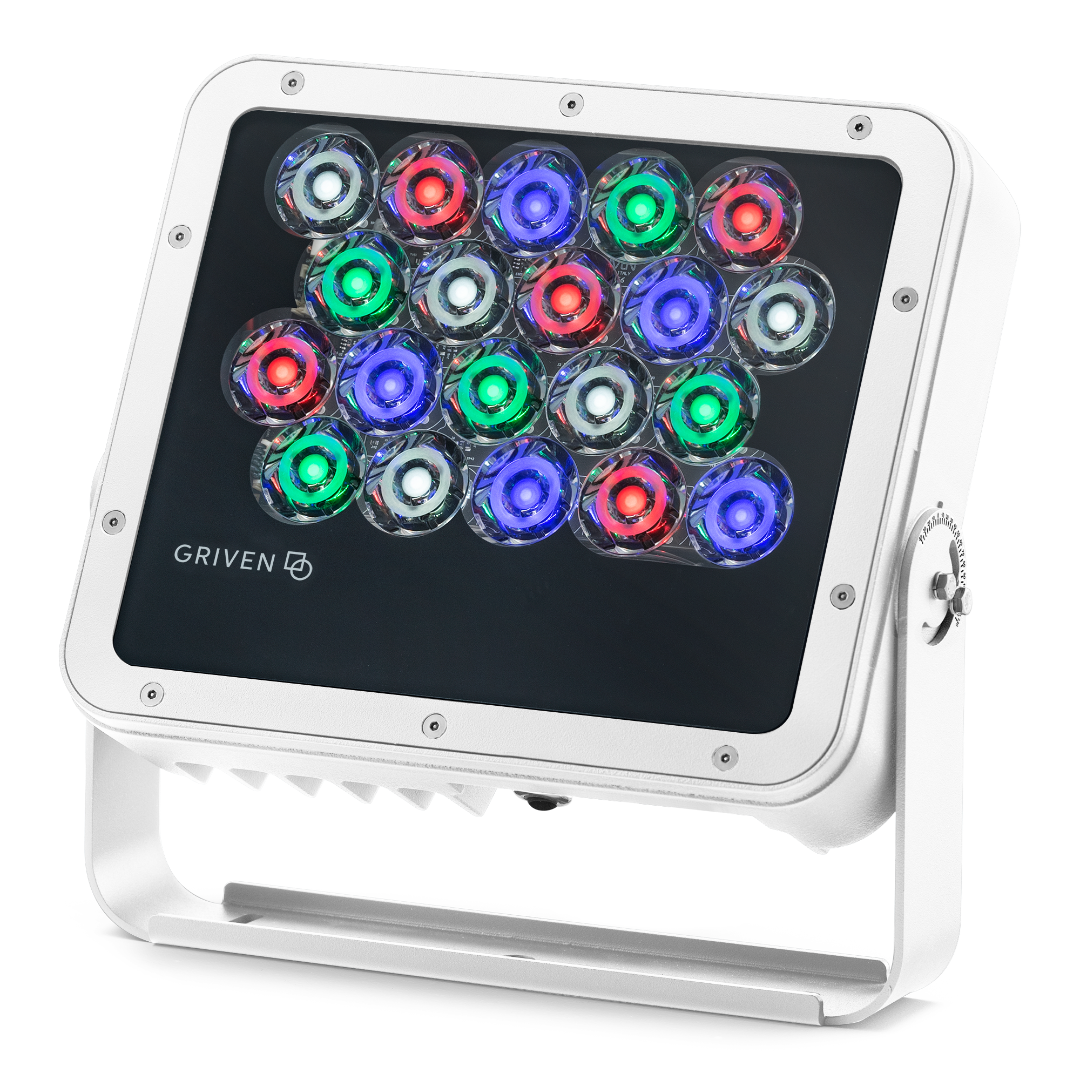

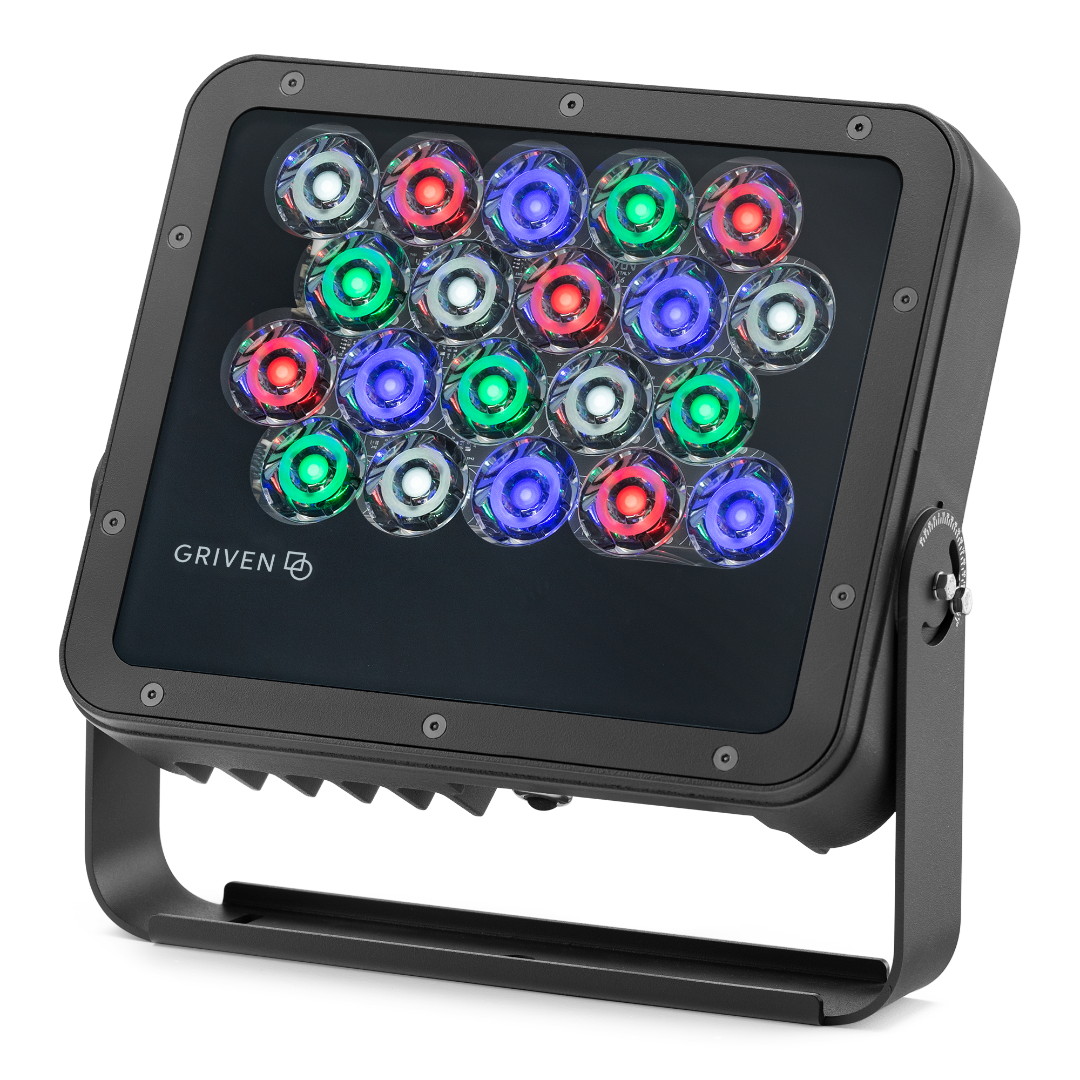

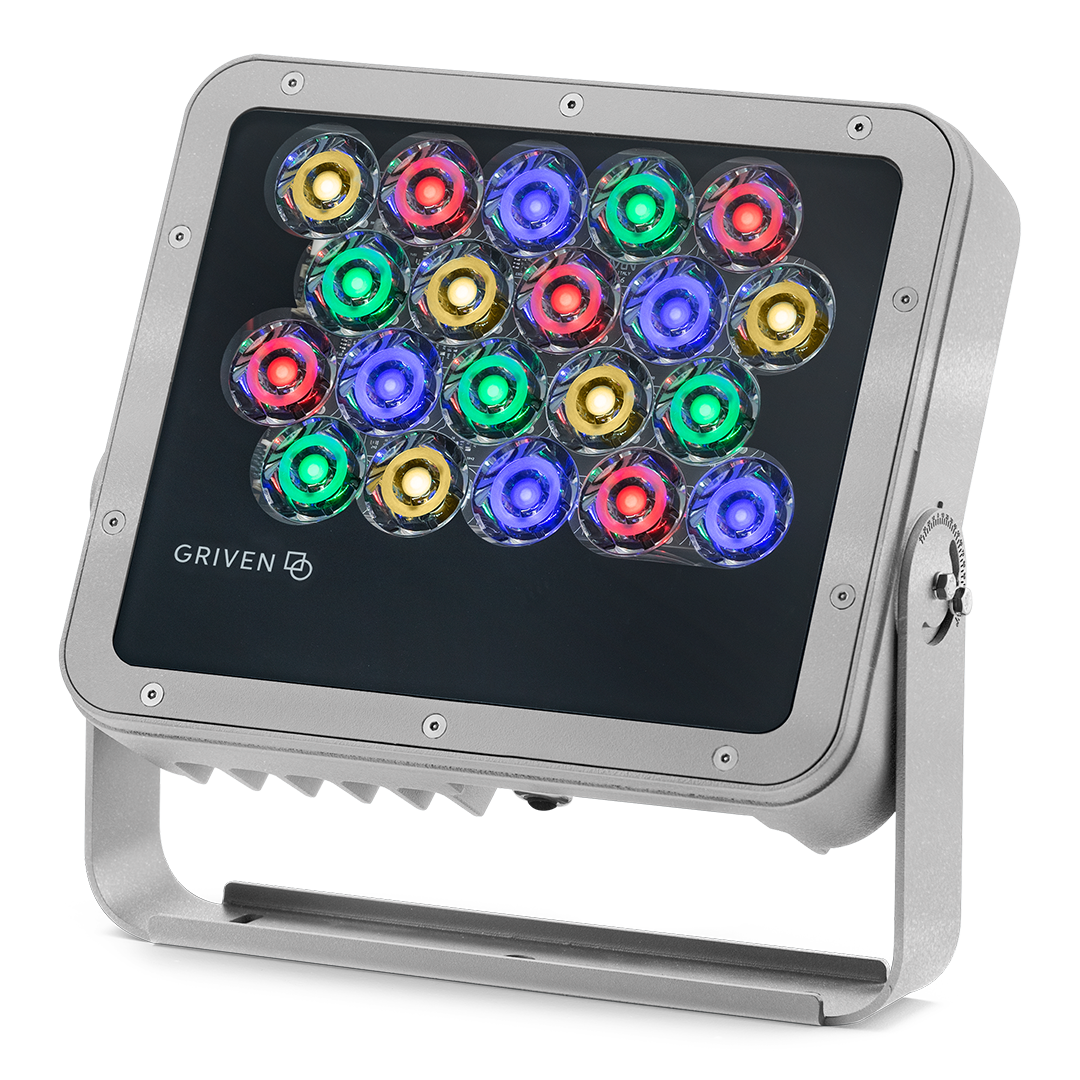

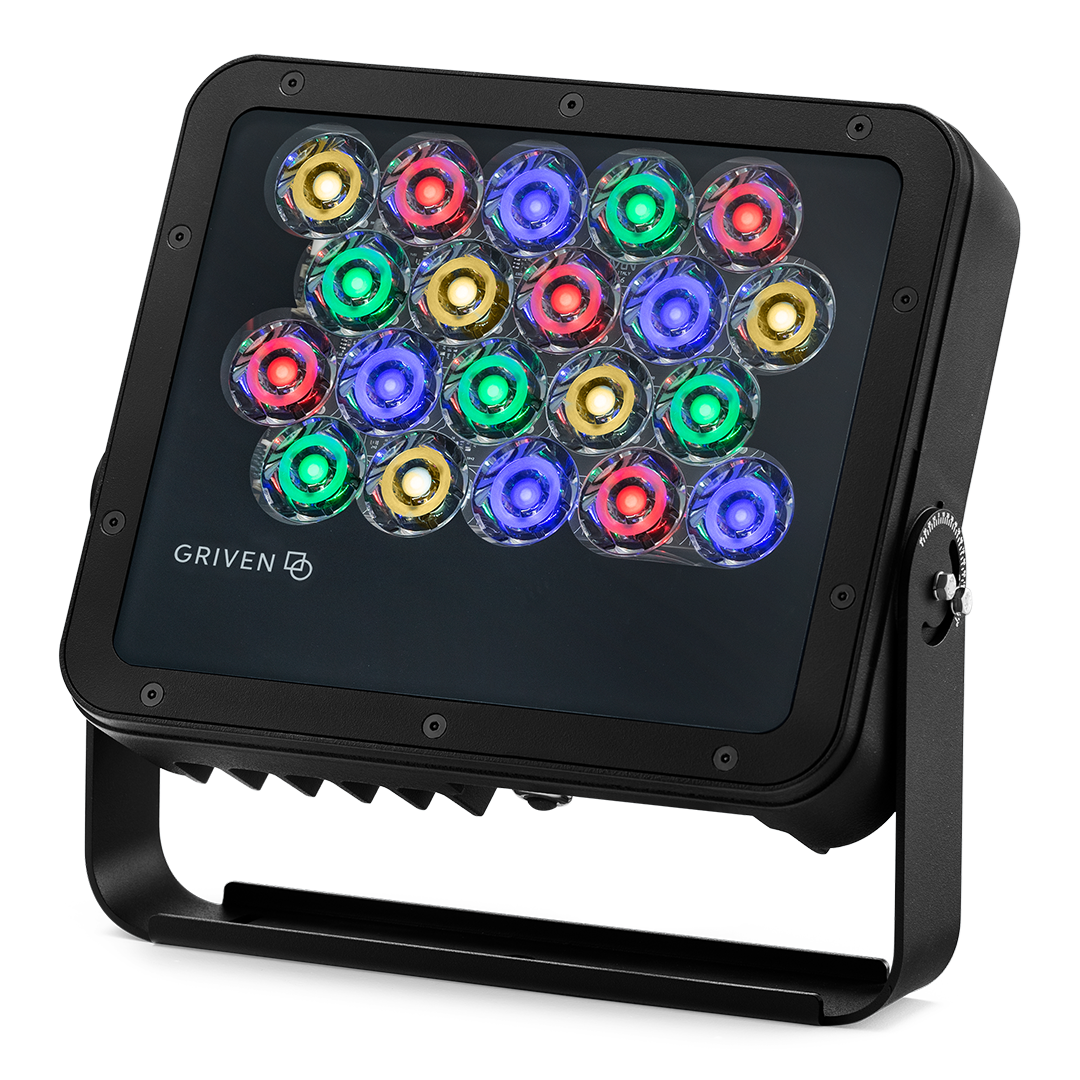

Capital 100 Ultra Spot RGBW

CP100US
CP100USPE Polar Edition
  • Compact surface-mount floodlight
  • Comprehensive selection of optical configurations
  • High brightness RGB+W 3000K/4000K power LEDs
  • 11.1 x 3.2 x 11.1"
View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: RGBW (4000K White)
  • RGBW (3000K White)
  • RGBW (4000K White)
Contact us  Save product
COLOR CHANGING
print

Capital 100 Ultra Spot RGBW

General Features

CAPITAL 100 US accentuates the designer's palette with an ultra-narrow 4° beam using 20 high-power LEDs fitted with precision optics. Grazing of vertical columnar features or illumination of objects at distance both benefit from the high-performance of this luminaire.
Color configuration
High brightness RGB+W 3000K/4000K LEDs
Optical configuration
3.2° US (Ultra Spot)
Max. Delivered lumen output
2106 lumens
Max. lumen/Watt
Up to 43 lumens per watt
Input voltage
120 - 277V
Amperage
0.4A @ 120VAC, 0.2A @ 277VAC
Power consumption
49W max.
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
5-year warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility

Light Beam Effects

  • Ultra Spot


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • Rohs
  • ETL Listed

Optional Features

  • Optional Polar
