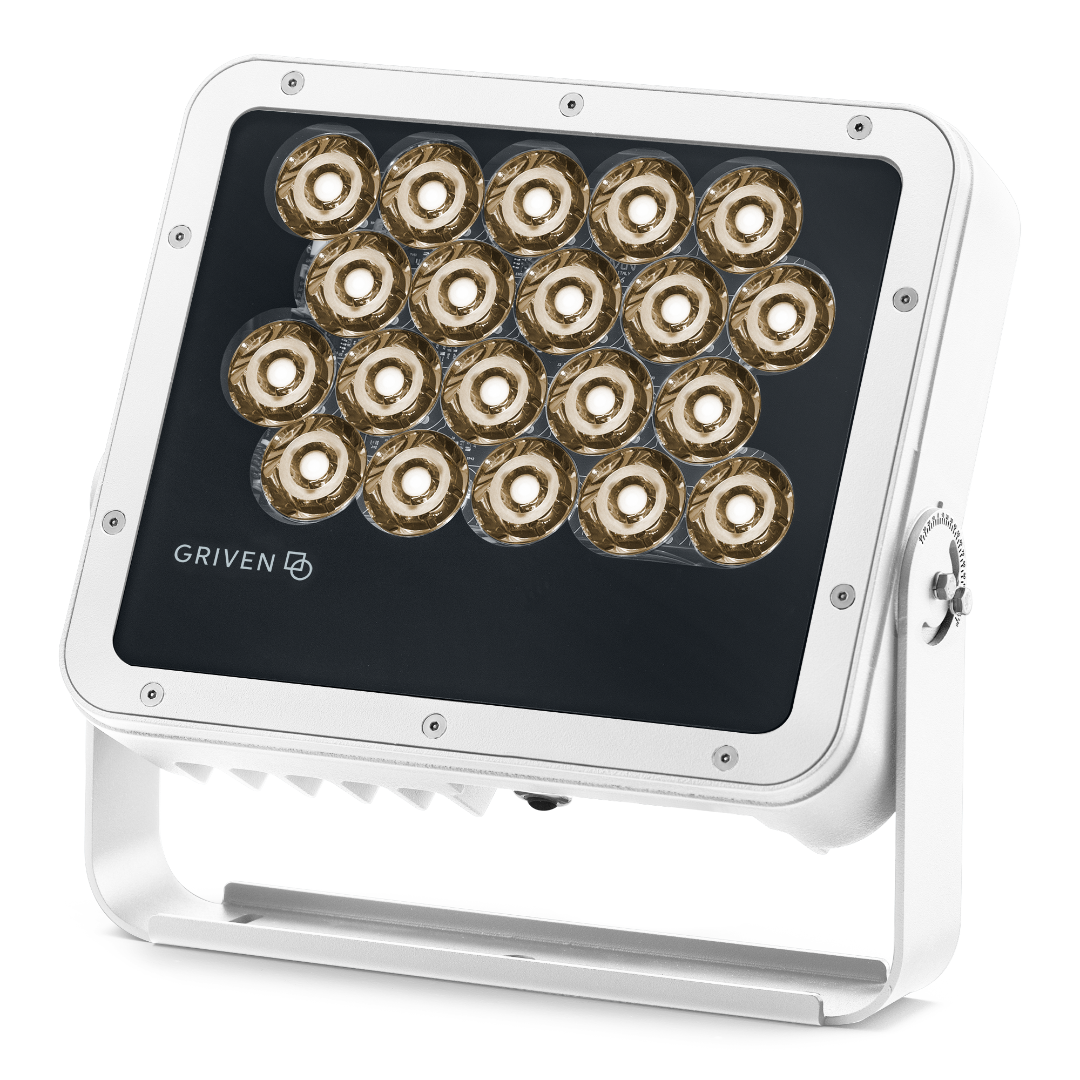

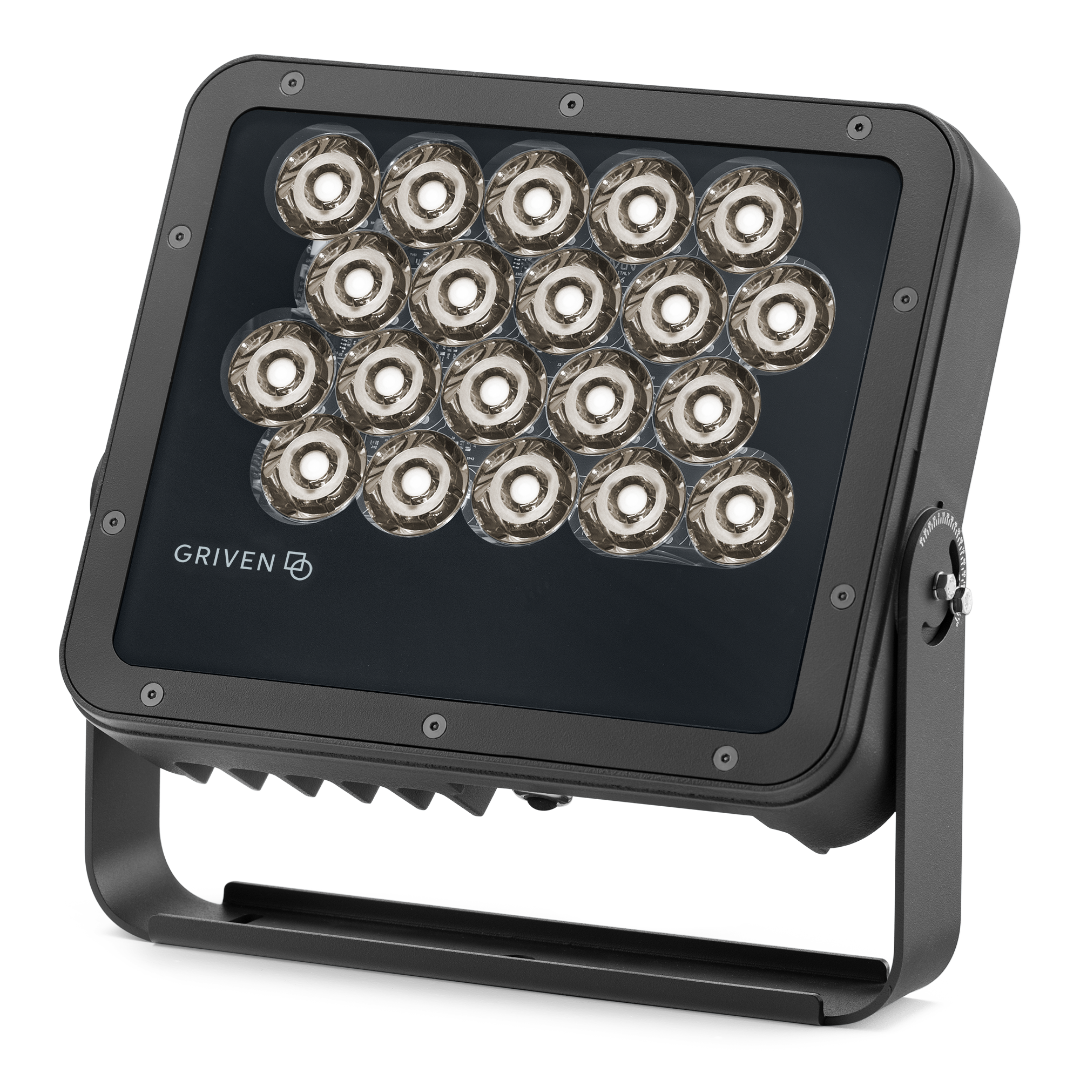

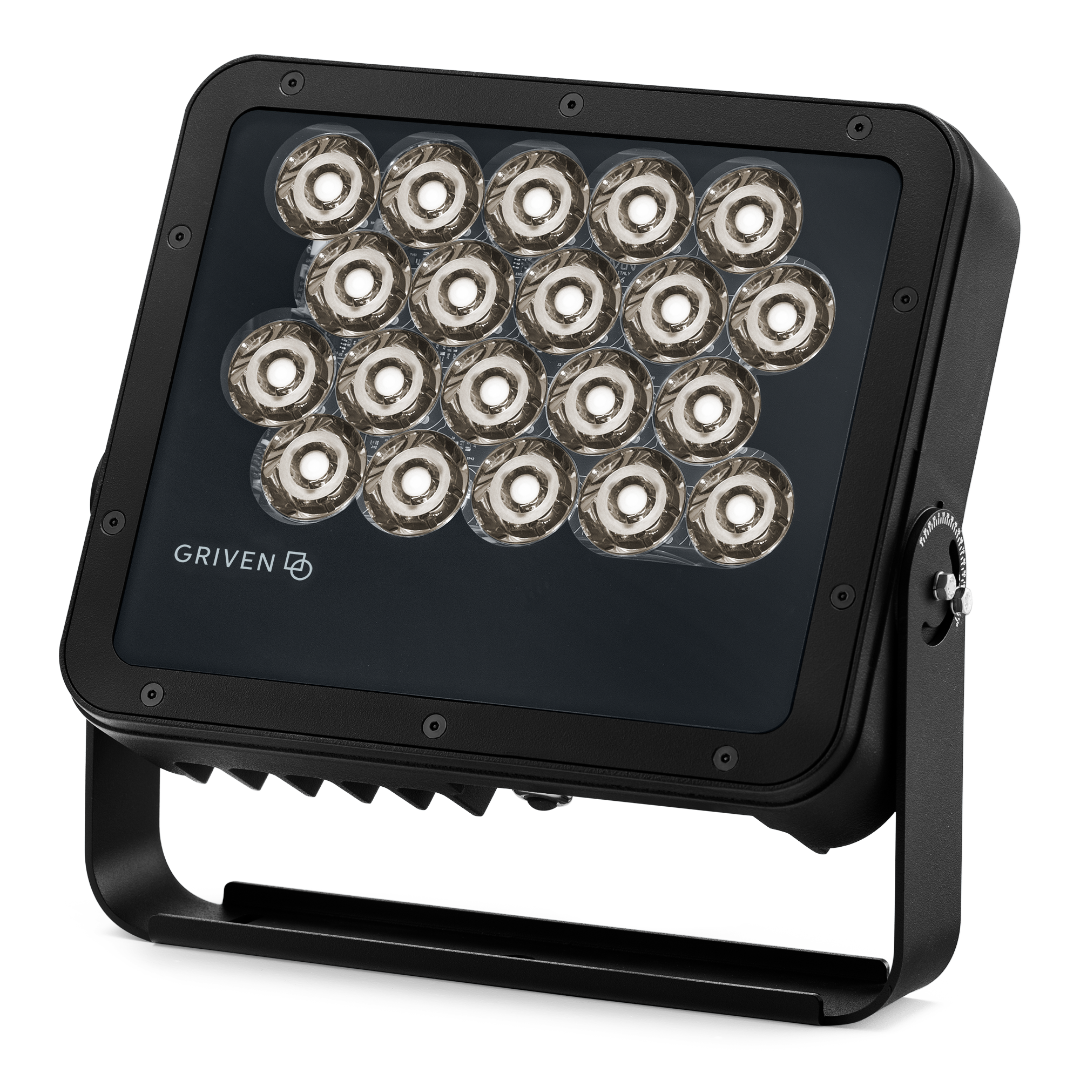

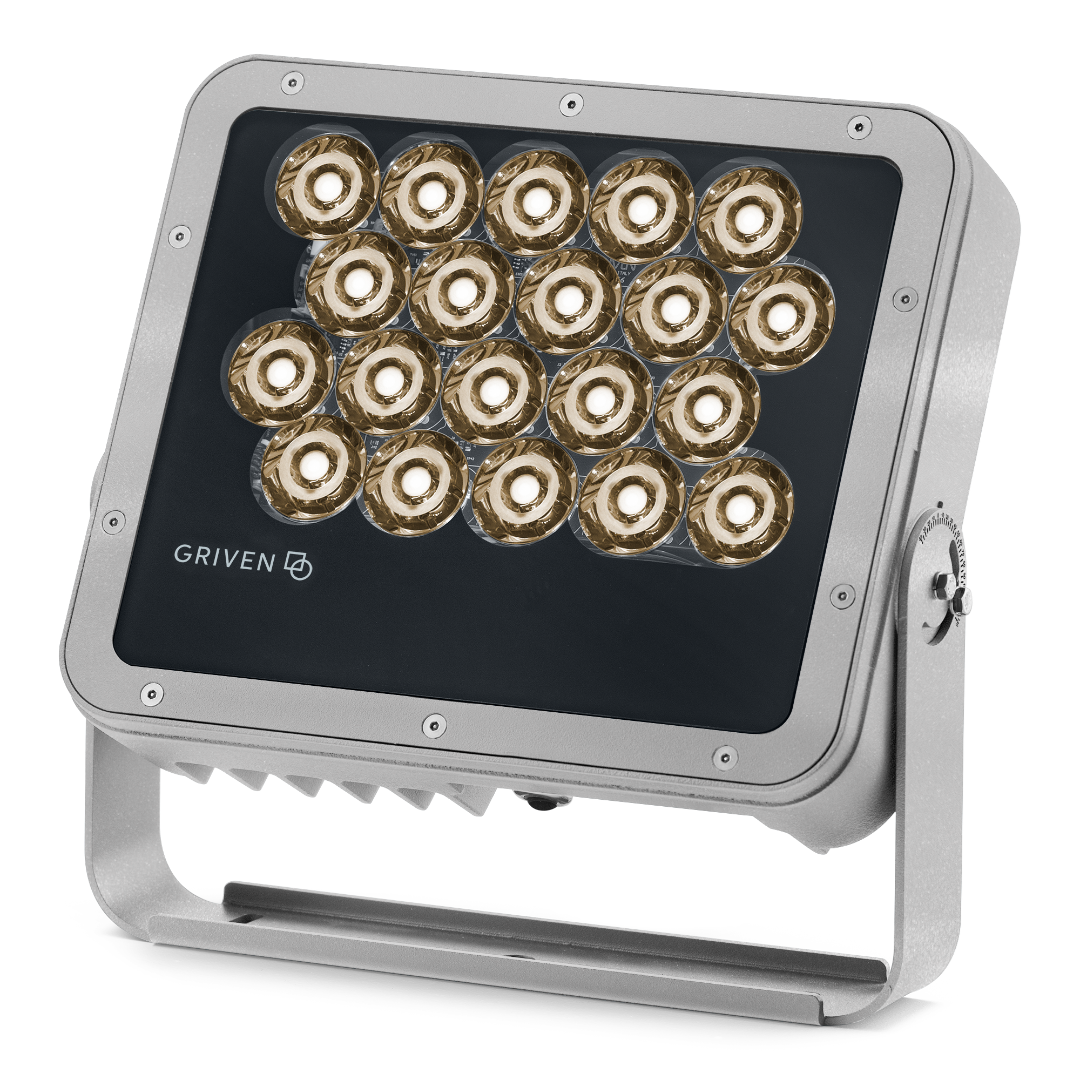

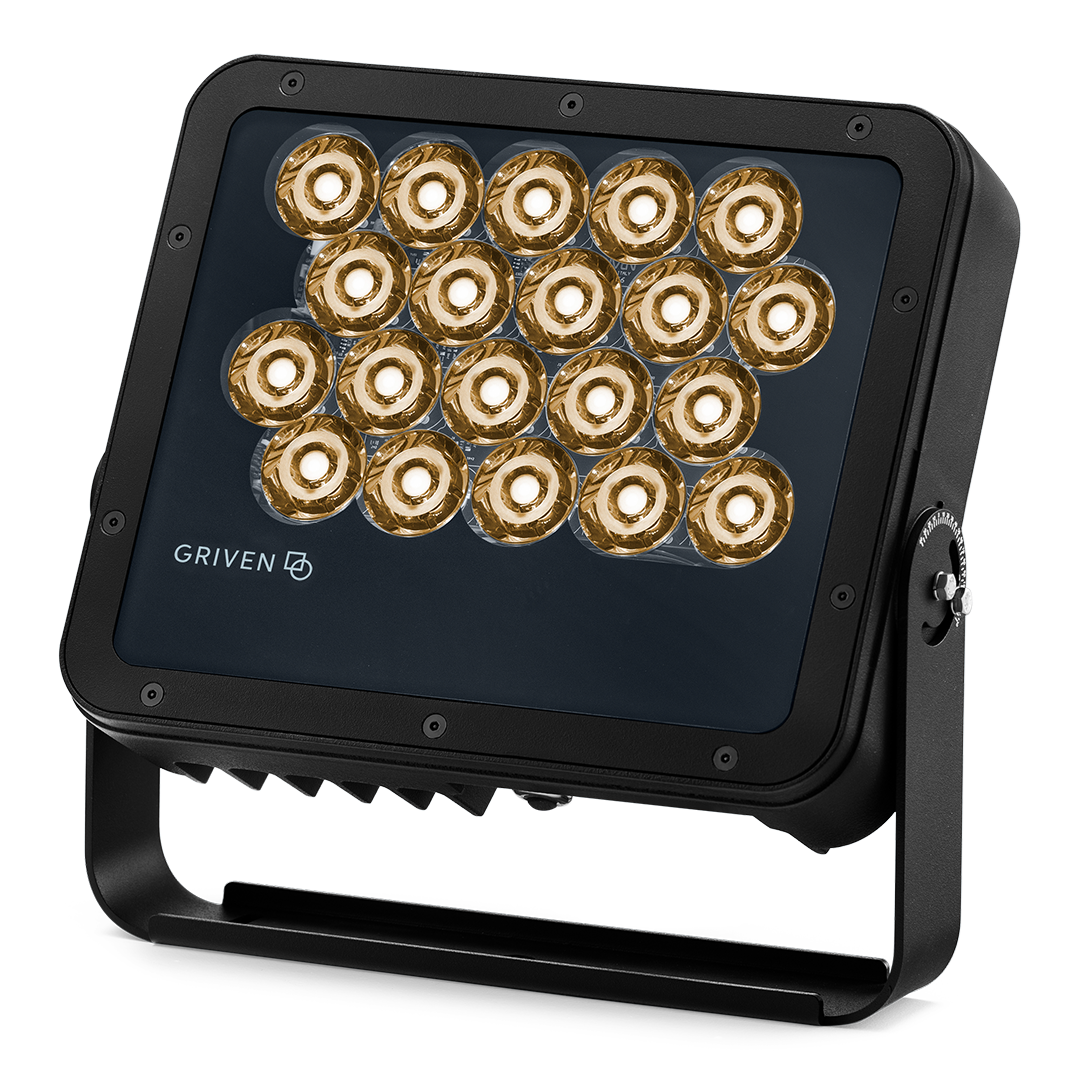

Capital 100 Ultra Spot Static White

CP100US
CP100USPE Polar Edition

  • Compact floodlight featuring efficient ultra-spot optics for long-shot effects with accurate beam angle definition
  • Control system: DMX-RDM
  • Max. delivered lm output: 3373 lm / 64 lm/W
  • 11.1" L x 3.2" W x 11.1" H

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: Warm White 3000K
  • Warm White 2700K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product
STATIC WHITE
print

Capital 100 Ultra Spot Static White

General Features

CAPITAL 100 US accentuates the designer’s palette with an ultra-narrow 3.2° beam using 20 high-power LEDs fitted with precision optics. Grazing of vertical columnar features or illumination of objects at distance both benefit from the high-performance of this luminaire.
Color configuration
High brightness 4000K Natural White, 3000K ot 2700K Warm White or, on request, monochrome power LEDs
Optical configuration
3.2° US (Ultra Spot)
Max. Delivered lumen output
3373 lumens
Max. lumen/Watt
Up to 64 lumens per watt
Input voltage
120 - 277V
Amperage
0.44A @ 120V, 0.19A @ 277V
Power consumption
53 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility

Light Beam Effects

  • Ultra Spot


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • Rohs
  • ETL Listed

Optional Features

  • Optional Polar

Downloads
