Capital 100 B Static White

CP100B

  • Compact floodlight specific for for wall wash effects on diverse architectural elements
  • Control system: ON-OFF, 0-10V, DALI
  • Max. delivered lm output: 8168 lm / 106 lm/W
  • 11.5" L x 3.2" W x 11.1" H

View finishes: Anthracite Grey

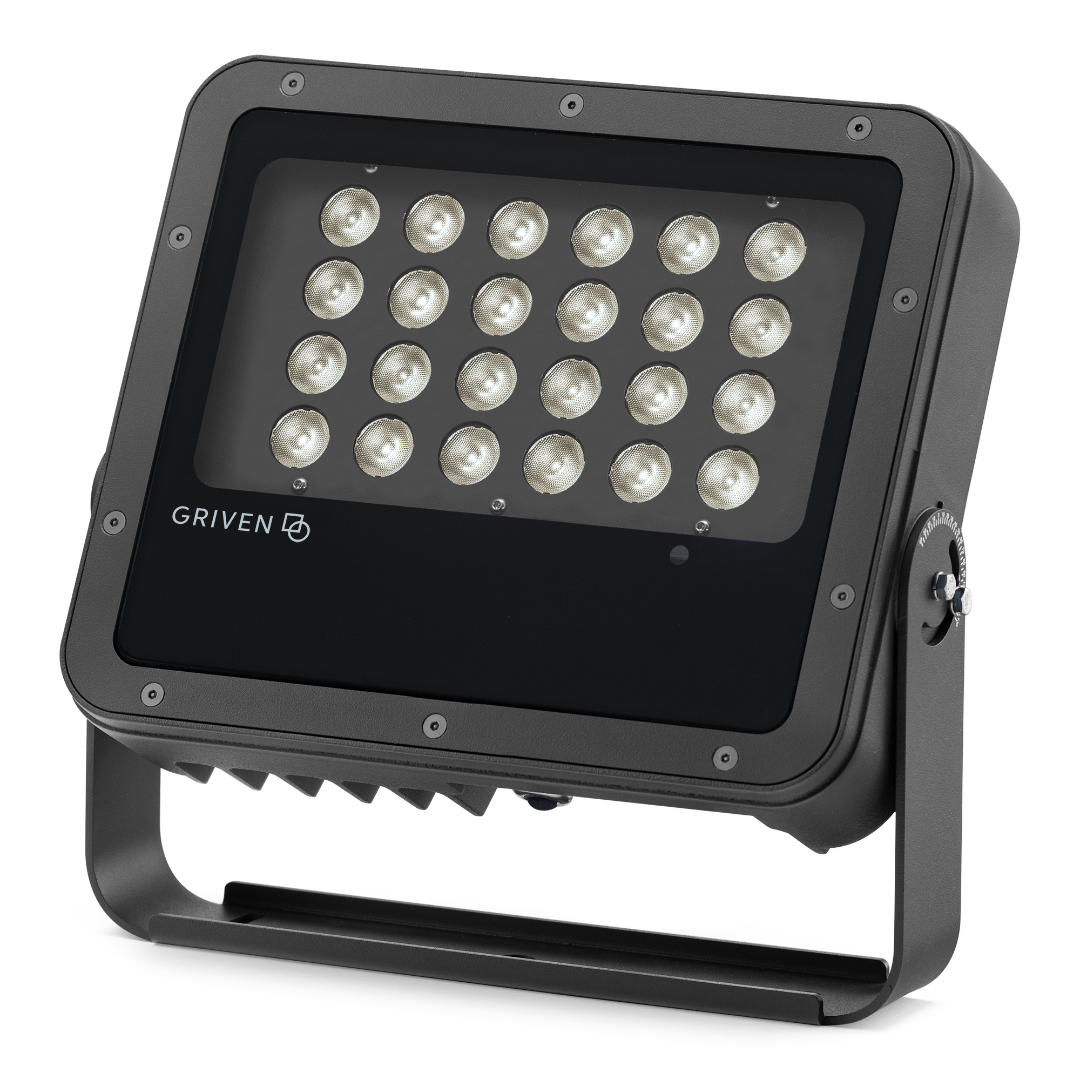

  • Anthracite Grey

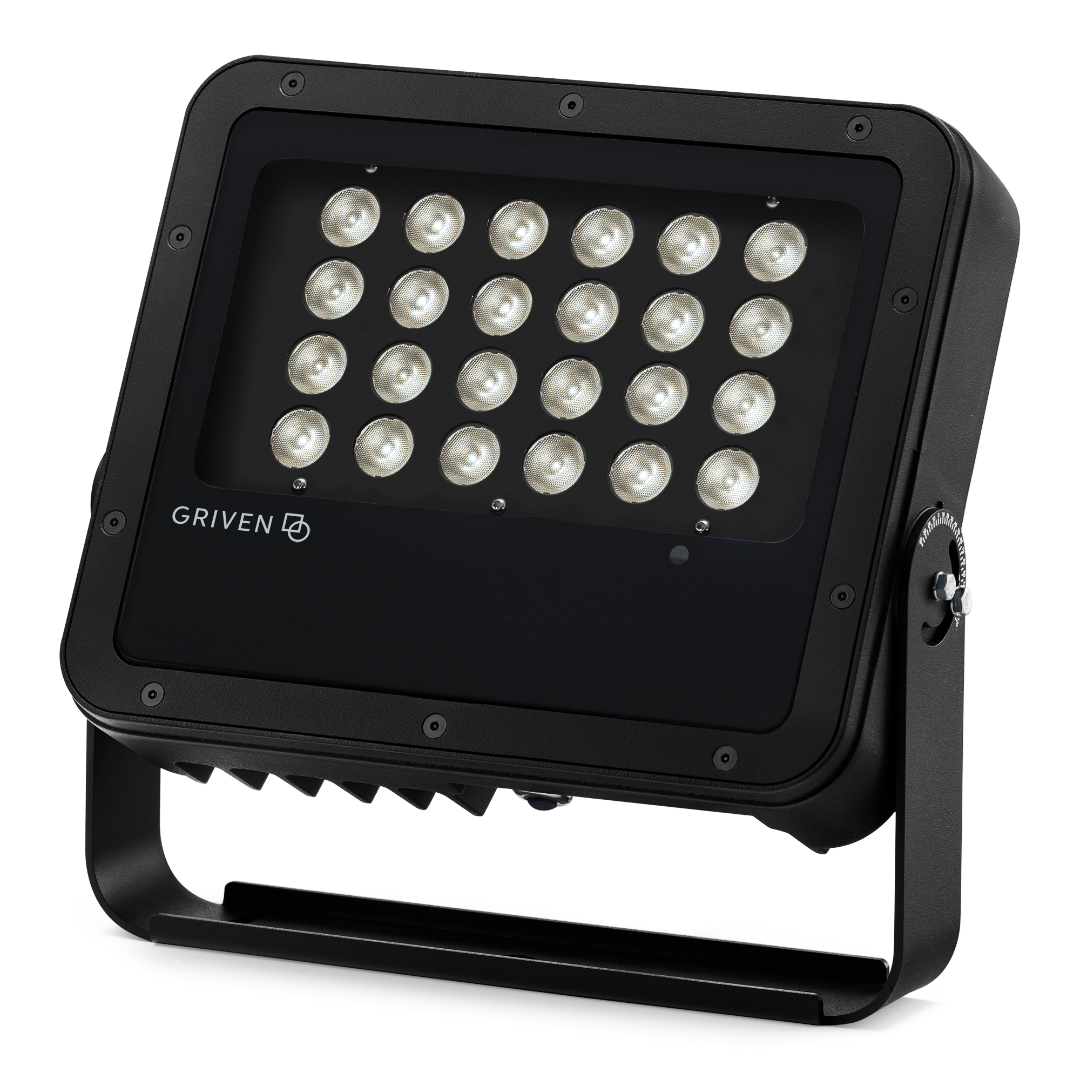

  • Black

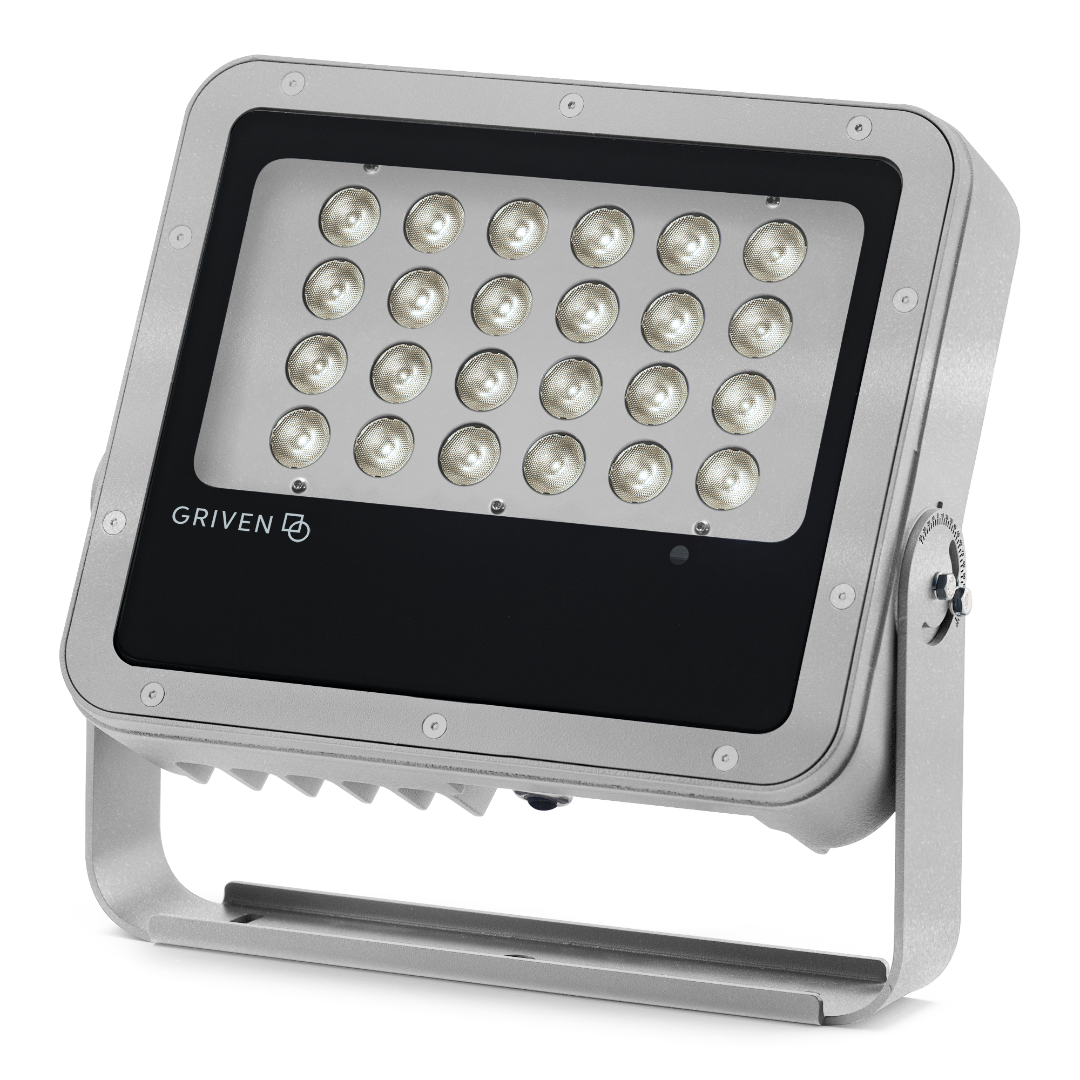

  • Griven Silver Grey

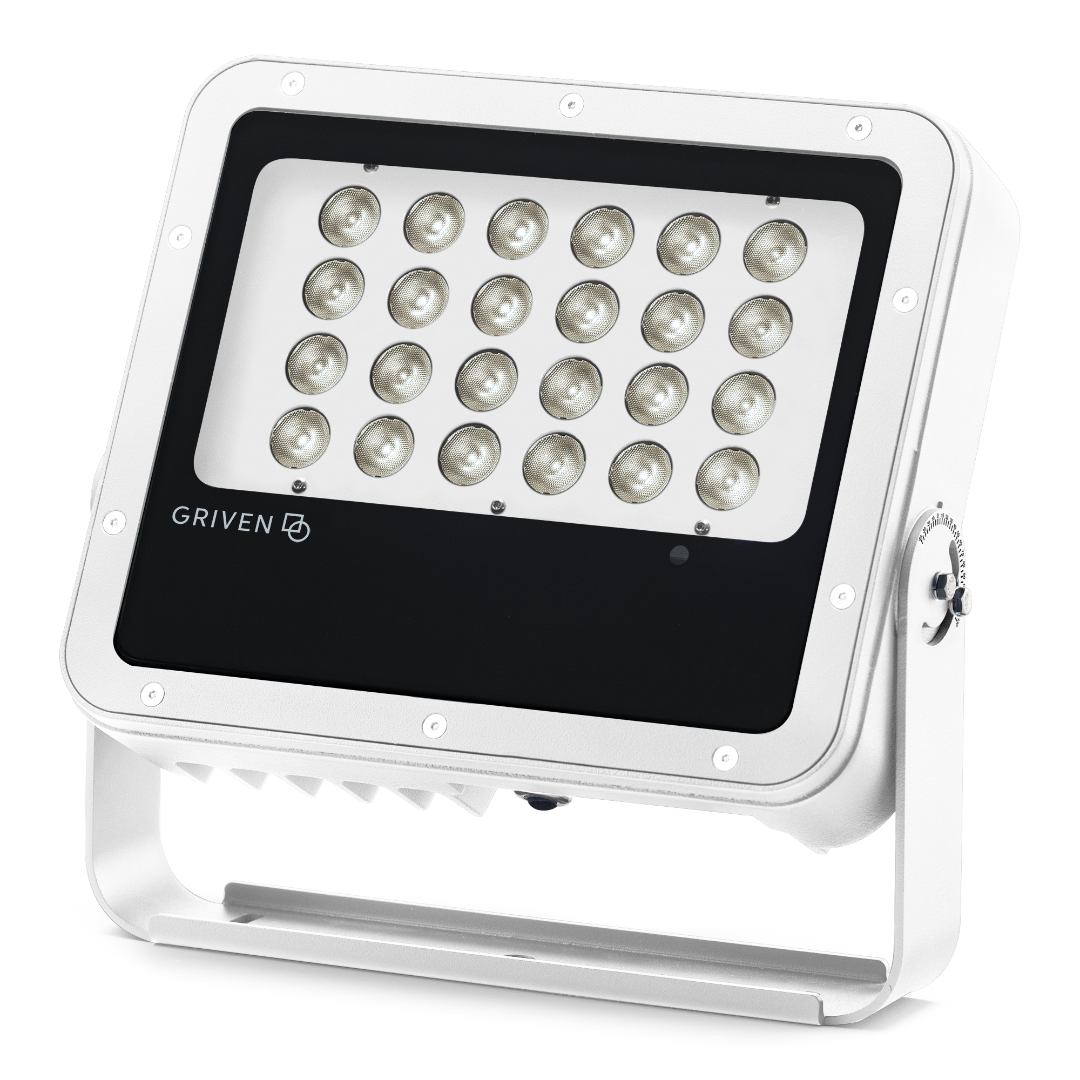

  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: Neutral White 4000K
  • Warm White 2700K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product
STATIC WHITE
print

General Features

CAPITAL 100 B delivers remarkable performance from a strikingly compact body.
Tailored to the demanding needs of the most imaginative architectural lighting specifications, this flexible and highly versatile floodlight is suitable for a variety of installations where a reduced mounting footprint is desired.
Color configuration
High brightness 4000K Natural White, 3000K ot 2700K Warm White or, on request, monochrome power LEDs
Optical configuration
13° SP (Spot)
16° NB (Narrow)
25° MB (Medium)
46° WB (Wide)
64° EW (Extra wide)
40°h x 14°v ELH (Elliptical Horizontal)
38°h x 23°v ELWH (Elliptical Wide Horizontal)
36°h x 19°v WW (Wall Wash)

*Contact factory for internal spreading diffusers
Max. Delivered lumen output
Up to 8167 lumens depending on distribution
Max. lumen/Watt
Up to 106 lumens per watt
Input voltage
120 - 277V
Amperage
0.58A @ 120V, 0.25A @ 277V
Power consumption
77 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories

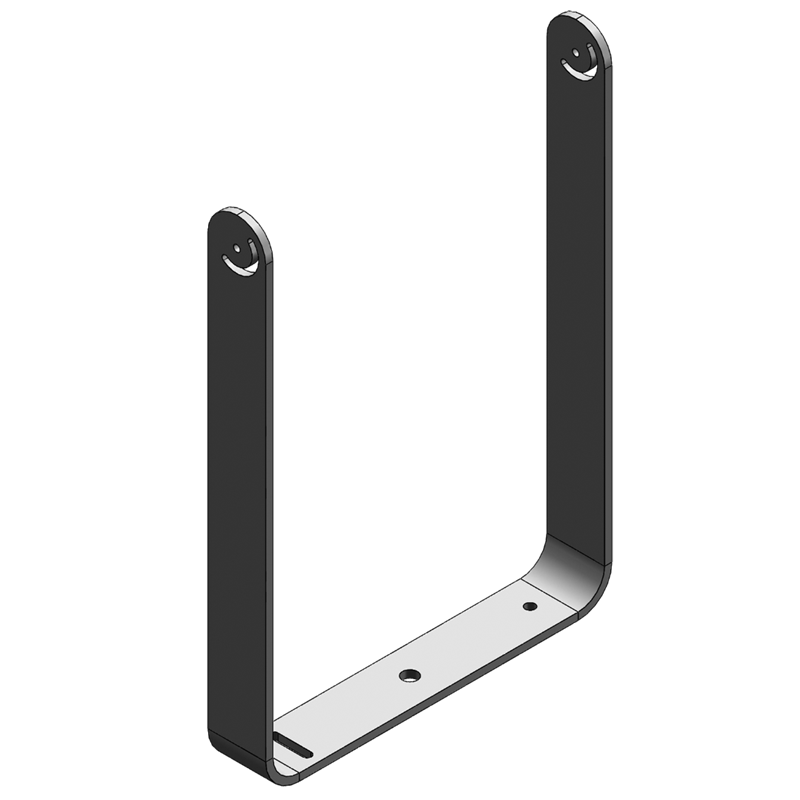

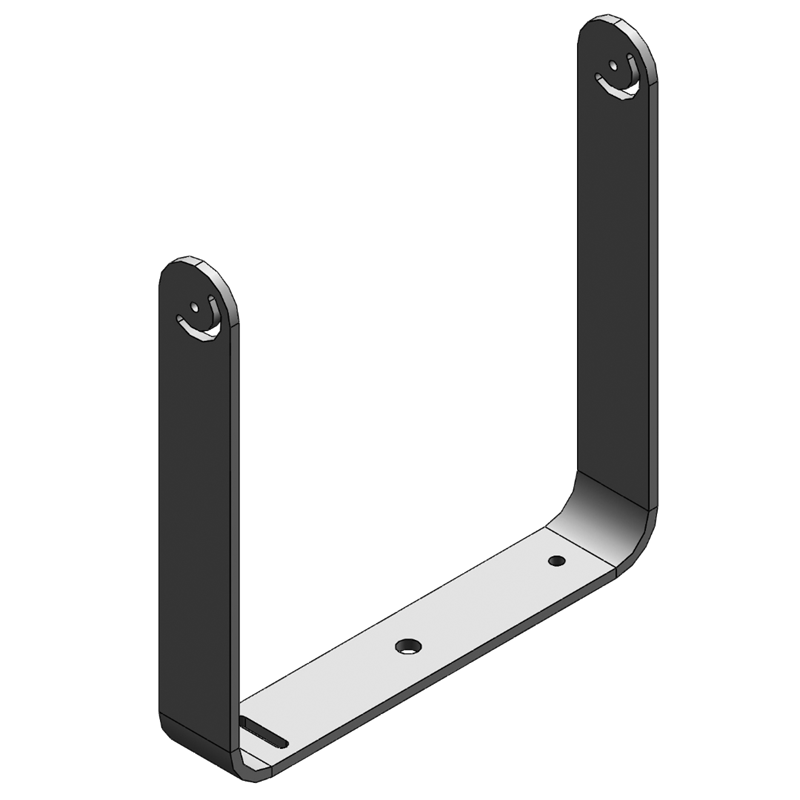

Optional optical distribution and mounting accessories available for the utmost design flexibility

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal
  • Wall Wash


Overview

  • IP67
  • IK09
  • DALI
  • 0-10V
  • ON-OFF
  • ETL pending
