Capital 200 MC Dynamic White

CP200MC
CP200MCPE Polar Edition

  • Ideal for spot lighting and wall washing effects
  • Premium quality high brightness dynamic white multichip power LEDs
  • Seamless light distribution and smooth color temperature transition
  • 18.7" L x 3.5" W x 10.9" H

View finishes: Anthracite Grey

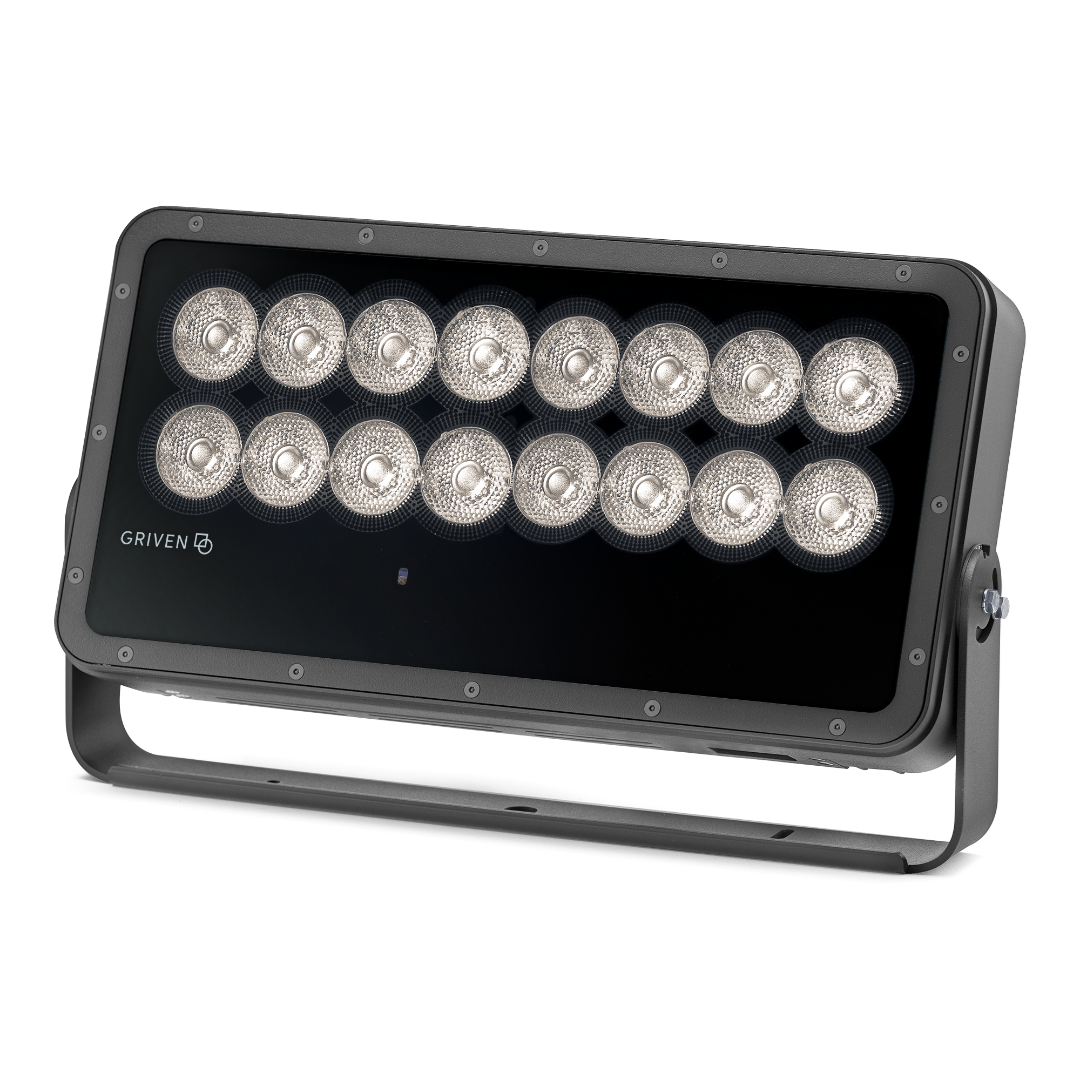

  • Anthracite Grey

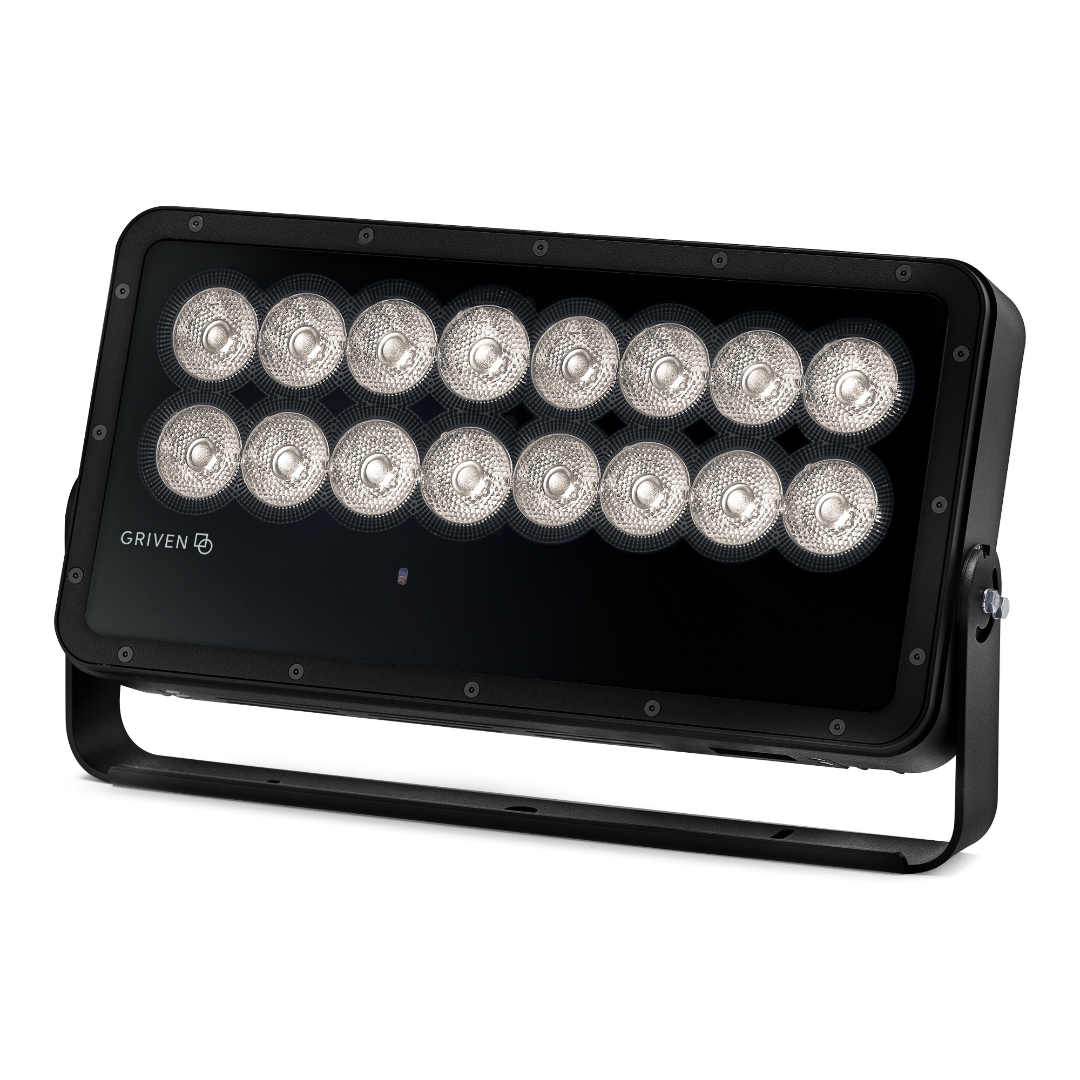

  • Black

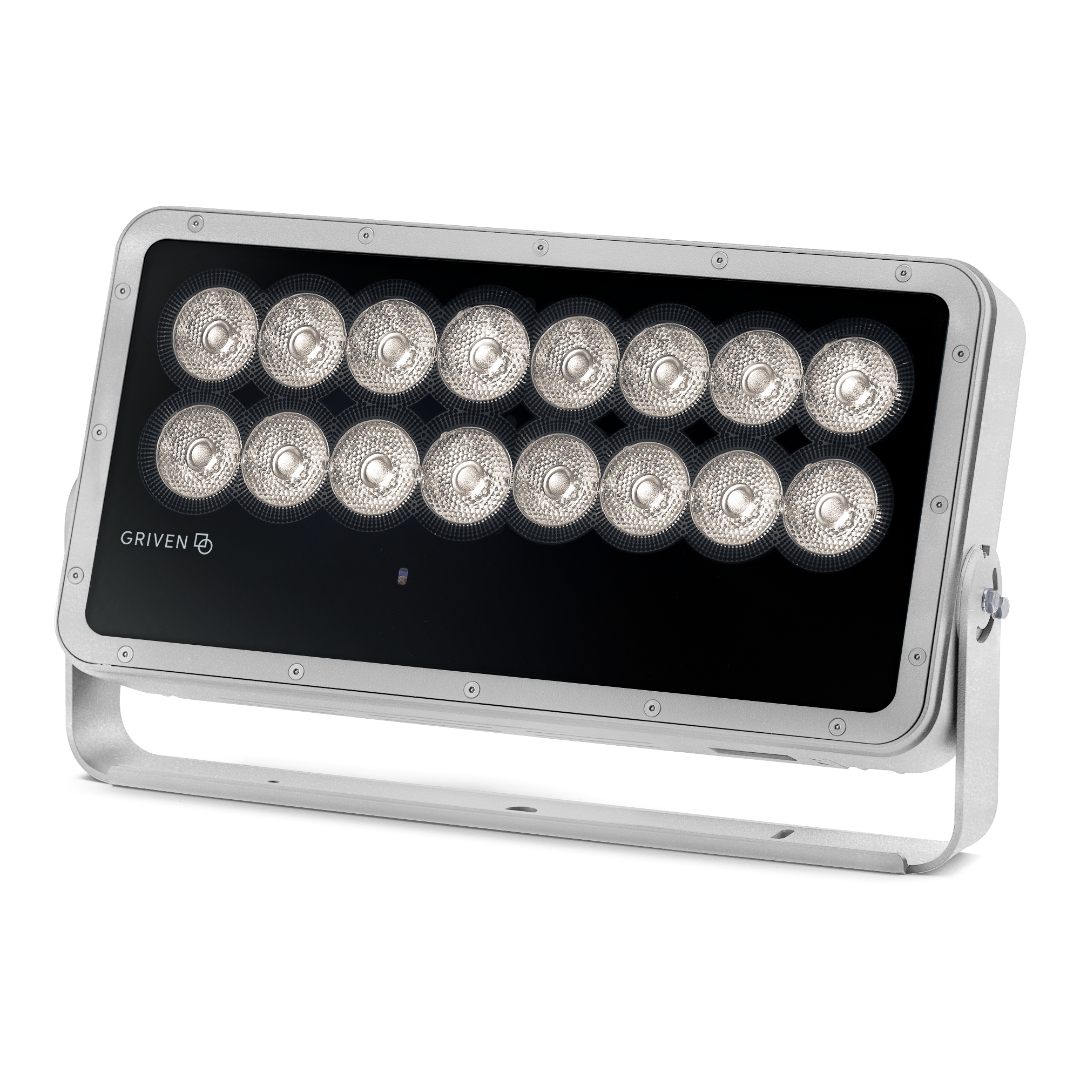

  • Griven Silver Grey

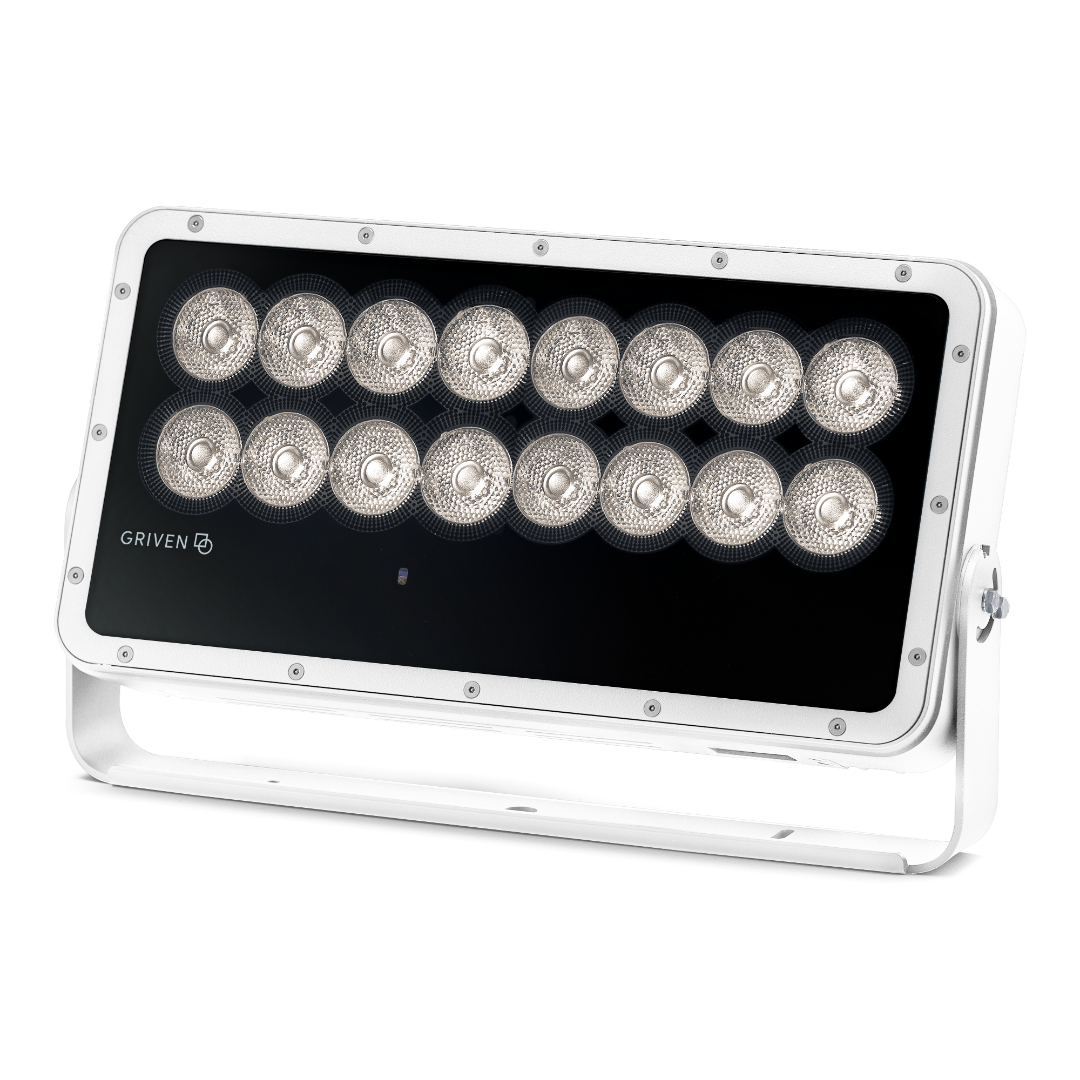

  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
Contact us  Save product
DYNAMIC WHITE
print

General Features

CAPITAL 200 MC delivers an outstanding performance within a strikingly compact body. Tailored to meet the needs of demanding architectural lighting specifications, this flexible and highly versatile floodlight is suitable for a variety of installations where a reduced mounting footprint is desired.
Color configuration
High brightness Dynamic White multichip LEDs with an adjustable color temperature range between 3000K and 6500K
Optical configuration
7° SP (Spot)
10° NB (Narrow)
23° MB (Medium)
35° WB (Wide)

*Contact factory for internal spreading diffusers
Max. Delivered lumen output
10546 to 11869 lumens
Max. lumen/Watt
Up to 74 lumens per watt
Input voltage
120 - 277V
Amperage
1.21A @ 120V, 0.52A @ 277V
Power consumption
145 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • ETL Listed

Optional Features

  • Optional Polar

Downloads
