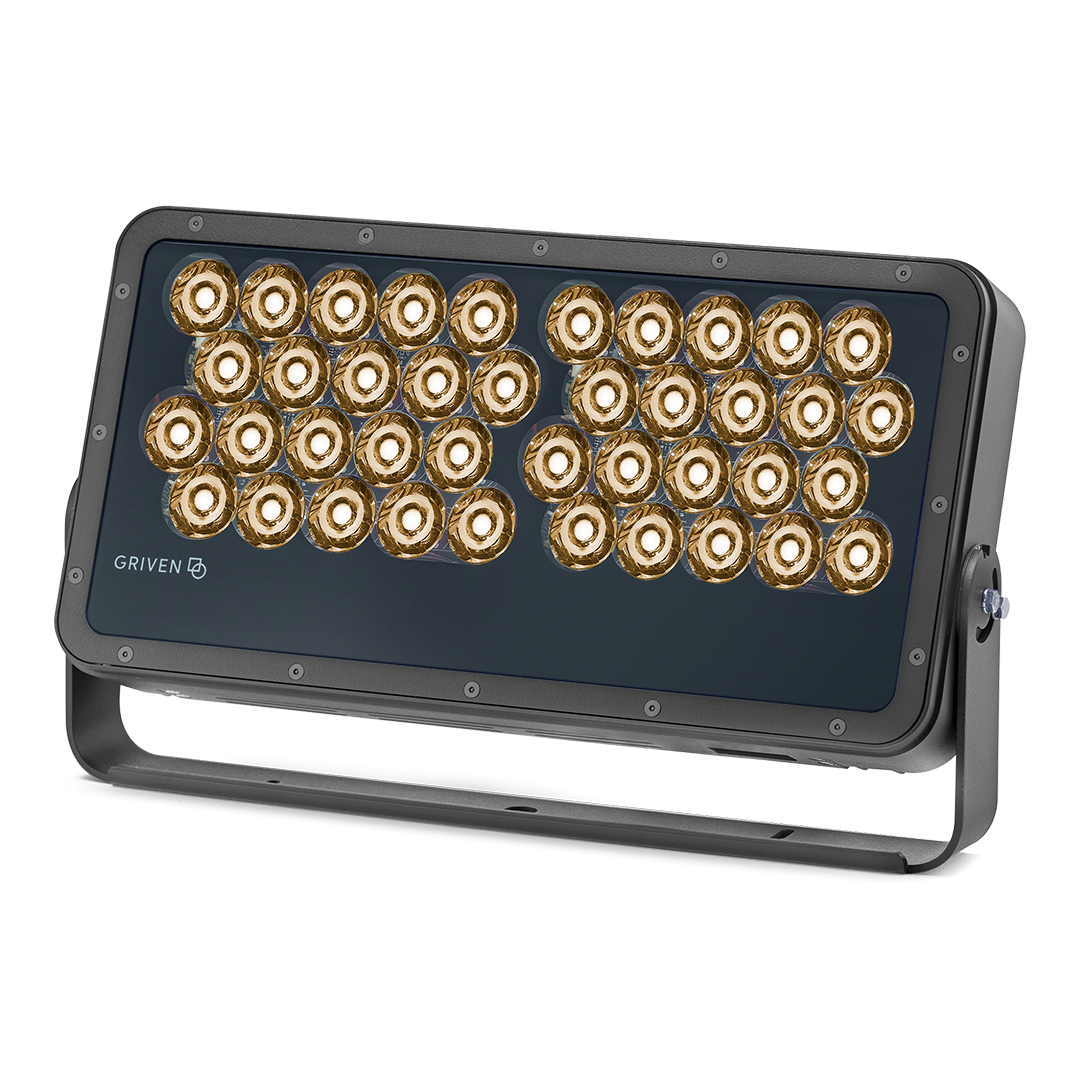

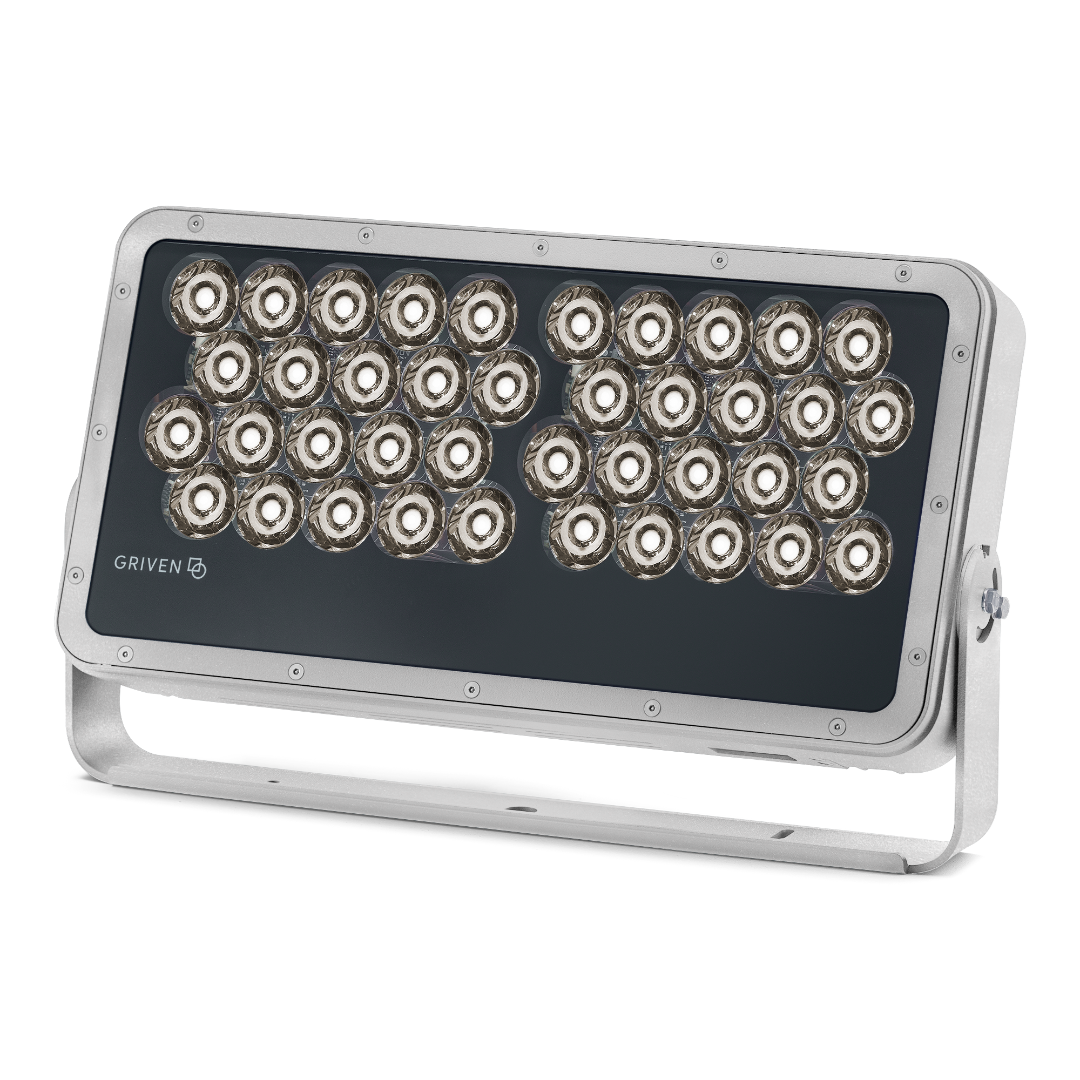

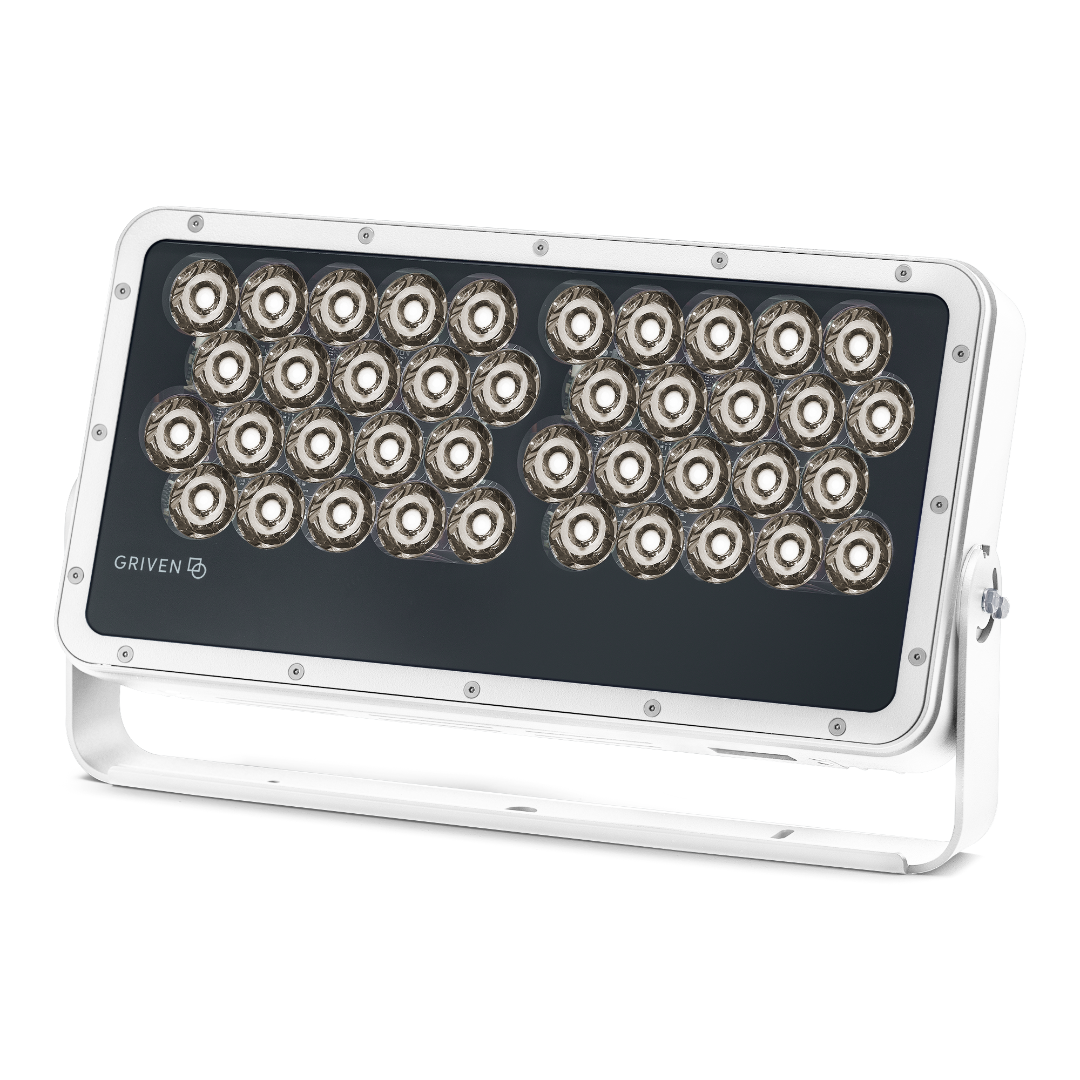

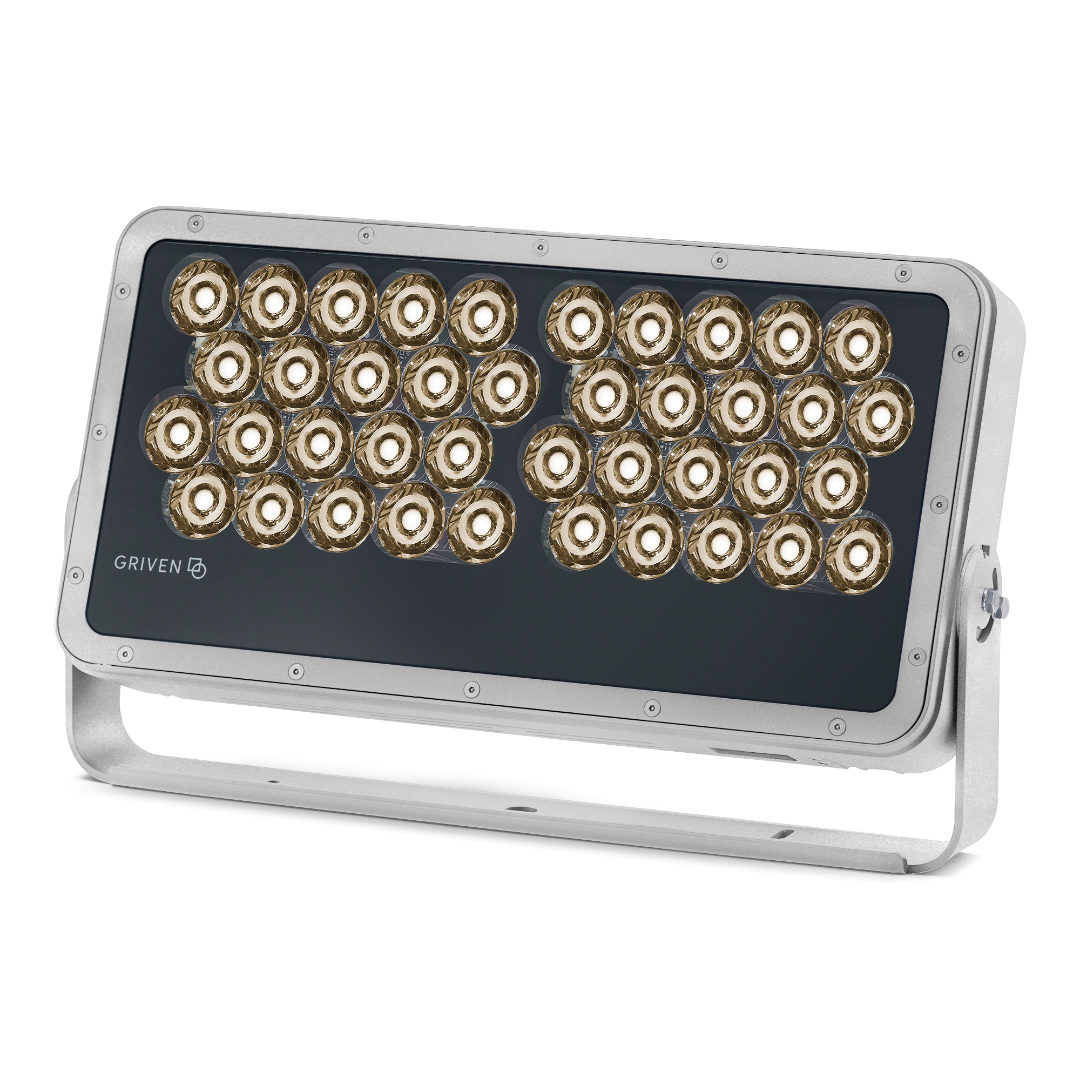

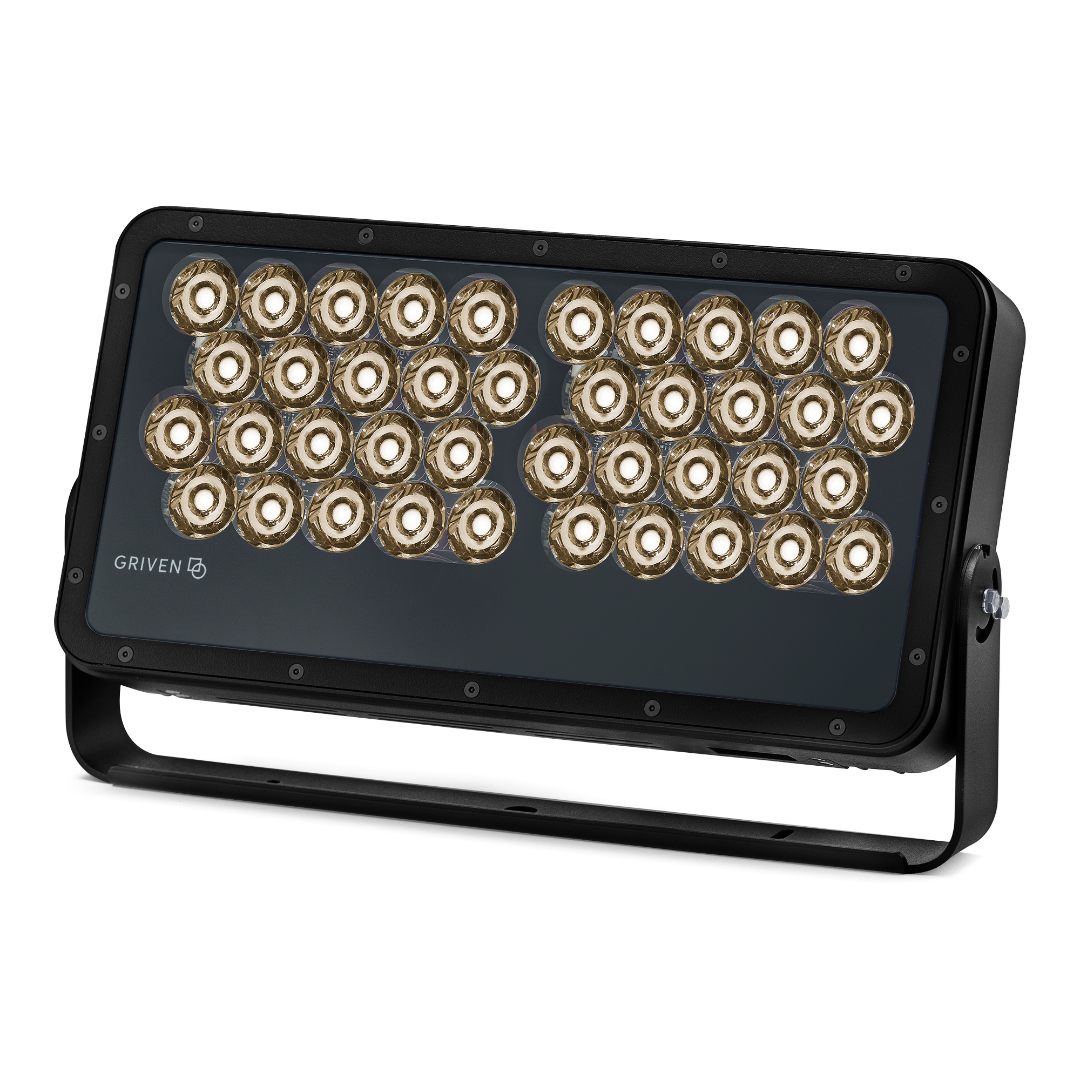

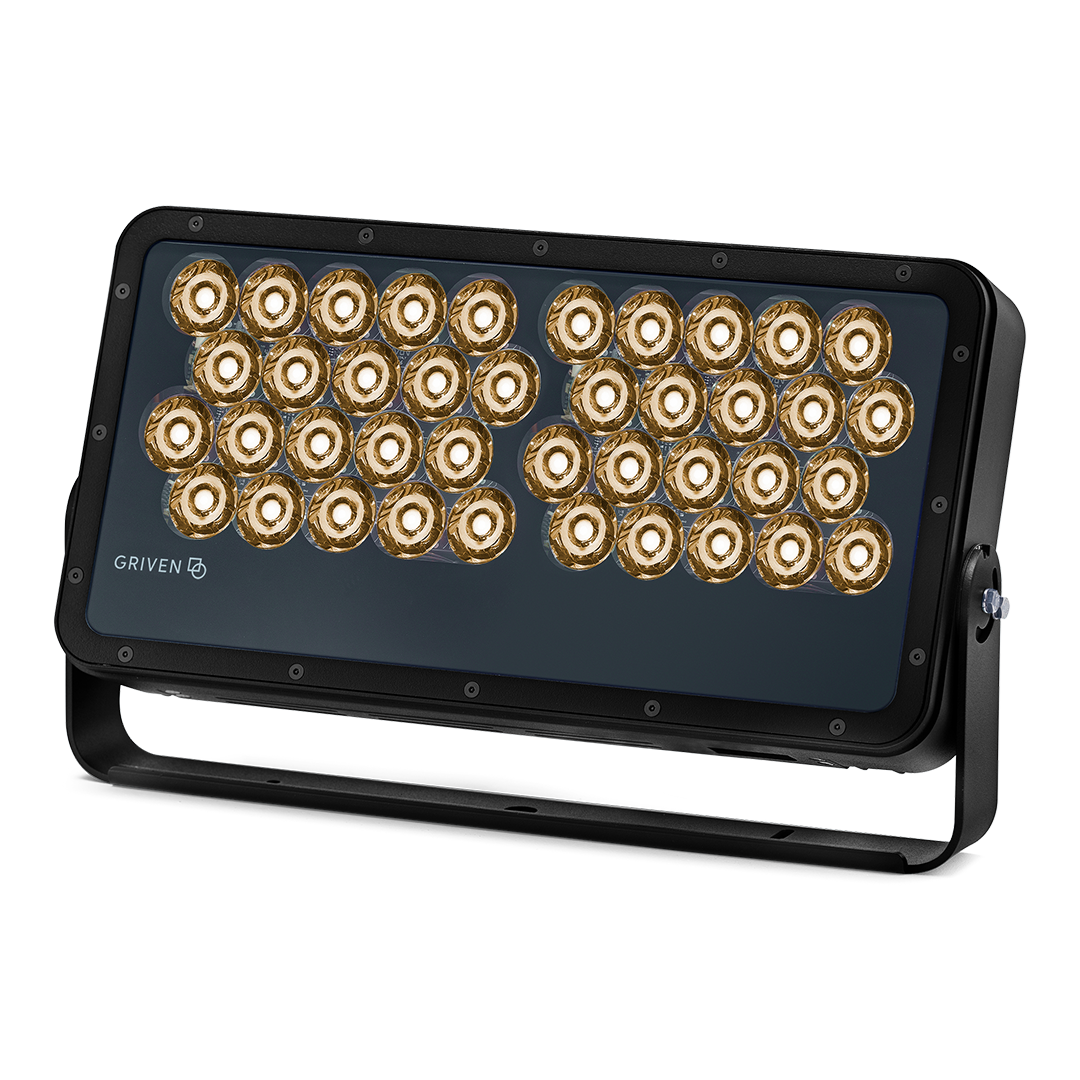

Capital 200 Ultra Spot Static White

All products spot/flood/wash capital 200Capital 200 Ultra Spot Static White

Capital 200 Ultra Spot Static White

CP200US
CP200USPE Polar Edition

Medium-sized ﬂoodlight featuring eﬃcient ultra-spot optics for long-shot eﬀects with accurate beam angle deﬁnition
Control system: DMX-RDM
Max. delivered lm output: 6746 lm / 64 lm/W
18.7" L x 3.5" W x 10.9" H

View finishes: Anthracite Grey

View Swivel:

View Housing Material:

View LED colour configuration: Warm White 3000K

Contact us Save product

STATIC WHITE

Capital 200 Ultra Spot Static White18307

print

Capital 200 Ultra Spot Static White

General Features

CAPITAL 200 US accentuates the designer’s palette with an ultra-narrow 3.2° beam using 40 high-power LEDs fitted with precision optics. Grazing of vertical columnar features or illumination of objects at distance both benefit from the high-performance of this luminaire.

Color configuration

High brightness Natural White, Warm White power LEDs

Optical configuration

3.2° US (Ultra Spot)

Max. Delivered lumen output

Up to 6746 lumens

Max. lumen/Watt

Up to 64 lumens per watt

Input voltage

120 - 277V

Amperage

0.88A @ 120V, 0.38A @ 277V

Power consumption

106 watts max.

Ingress protection rating

IP67

Impact resistance rating

IK09

External operating limits

-40°C to 50°C / (-40°F to 122°F)

Warranty

Five Year Limited Warranty

Accessories

Optional optical distribution and mounting accessories available for the utmost design flexibility

Light Beam Effects

Overview

Optional Features

Downloads

Specification Sheet

Specification Sheet

Overview Presentation

Overview Presentation

Configuration

User Manual

Pictures

REVIT

Configuration

Capital 200 Ultra Spot Static White

Model

Capital 200 US
Capital 200 US Polar Edition

Color

Warm White 2700K
Warm White 3000K
Neutral White 4000K

Control

DMX/RDM

Cable

Power In, DMX In, DMX Out
Monocable With Connectors
Monocable Without Connectors

Voltage

120-277V

Optic

Ultra Spot 3.2°

Finish

Anthracite Grey
Black
Griven Silver Grey
White

Option

Anti-Saline Treatment
3G Mounting Yoke

Optional Accessories

Infrared Configuration Remote

Infrared Configuration Remote

IR-CONFIG-REMOTE

Control & Installation Solutions

Snoot

Snoot

CP200-SNOOT-XX

Control & Installation Solutions

Visor

Visor

CP200-VISOR-XX

Control & Installation Solutions

Wire guard

Wire guard

CP200-WIREGUARD-XX

Control & Installation Solutions

Connection Kit for 1 Power Supply In and 2 DMX Cables:

Connection Kit for 1 Power Supply In and 2 DMX Cables: "S" Cable Type

GRIVEN-CON-KIT-8284

Control & Installation Solutions

Connection Kit for Power In + Dali In/Out:

Connection Kit for Power In + Dali In/Out: "D" Cable Type

GRIVEN-CON-KIT-8285

Control & Installation Solutions

Connection Kit for 2 DMX Monocable:

Connection Kit for 2 DMX Monocable: "M" Cable Type

GRIVEN-CON-KIT-8287

Control & Installation Solutions

Connection Kit for 2 DALI Monocables:

Connection Kit for 2 DALI Monocables: "M" Cable Type

GRIVEN-CON-KIT-8317

Control & Installation Solutions
