Capital 300 MC Dynamic White

CP300MC
CP300MCPE Polar Edition

  • Ideal for spot lighting and wall washing effects
  • Premium quality high brightness dynamic white multichip power LEDs
  • Seamless light distribution and smooth color temperature transition
  • 19.4" L x 4.1" W x 15.1" H

View finishes: Anthracite Grey

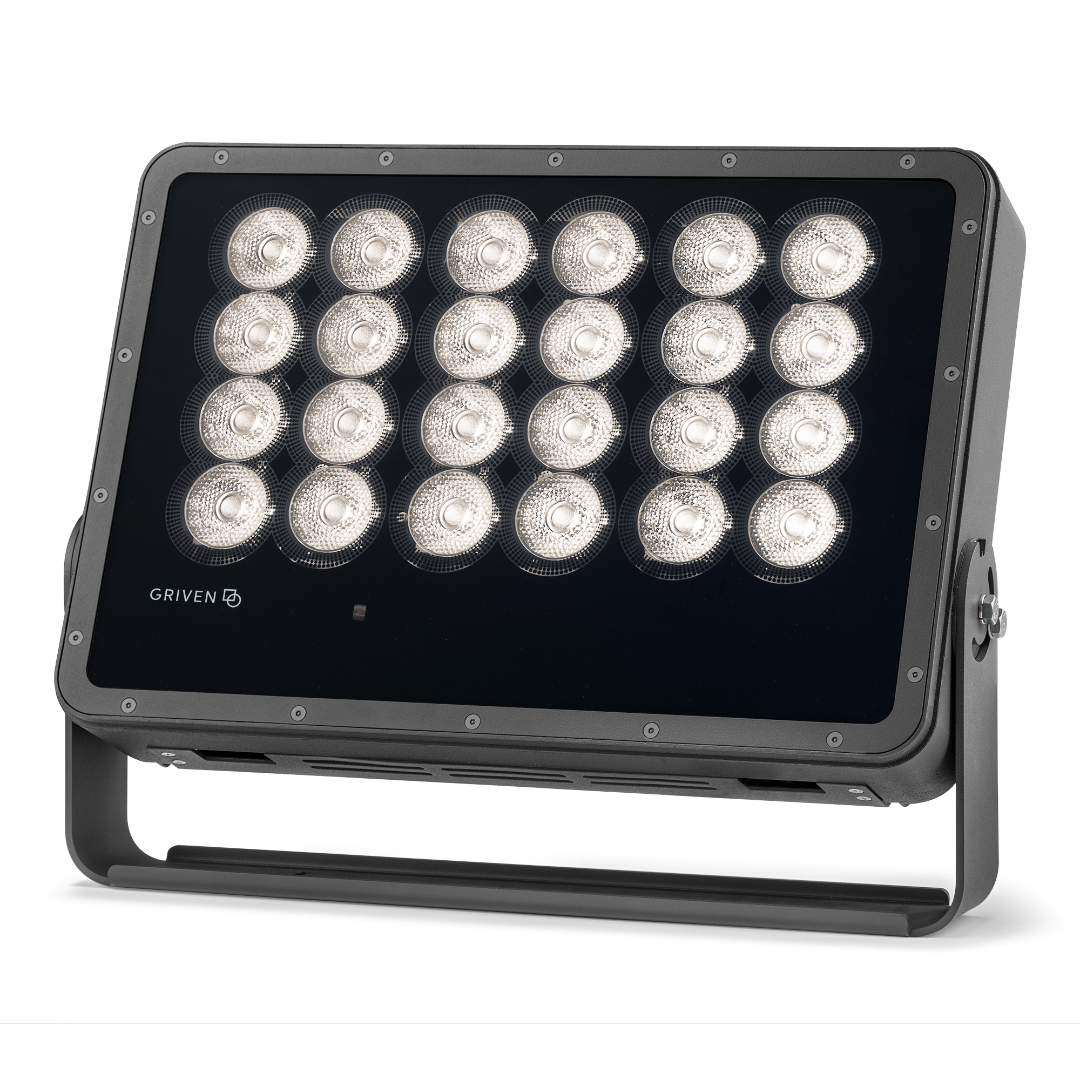

  • Anthracite Grey

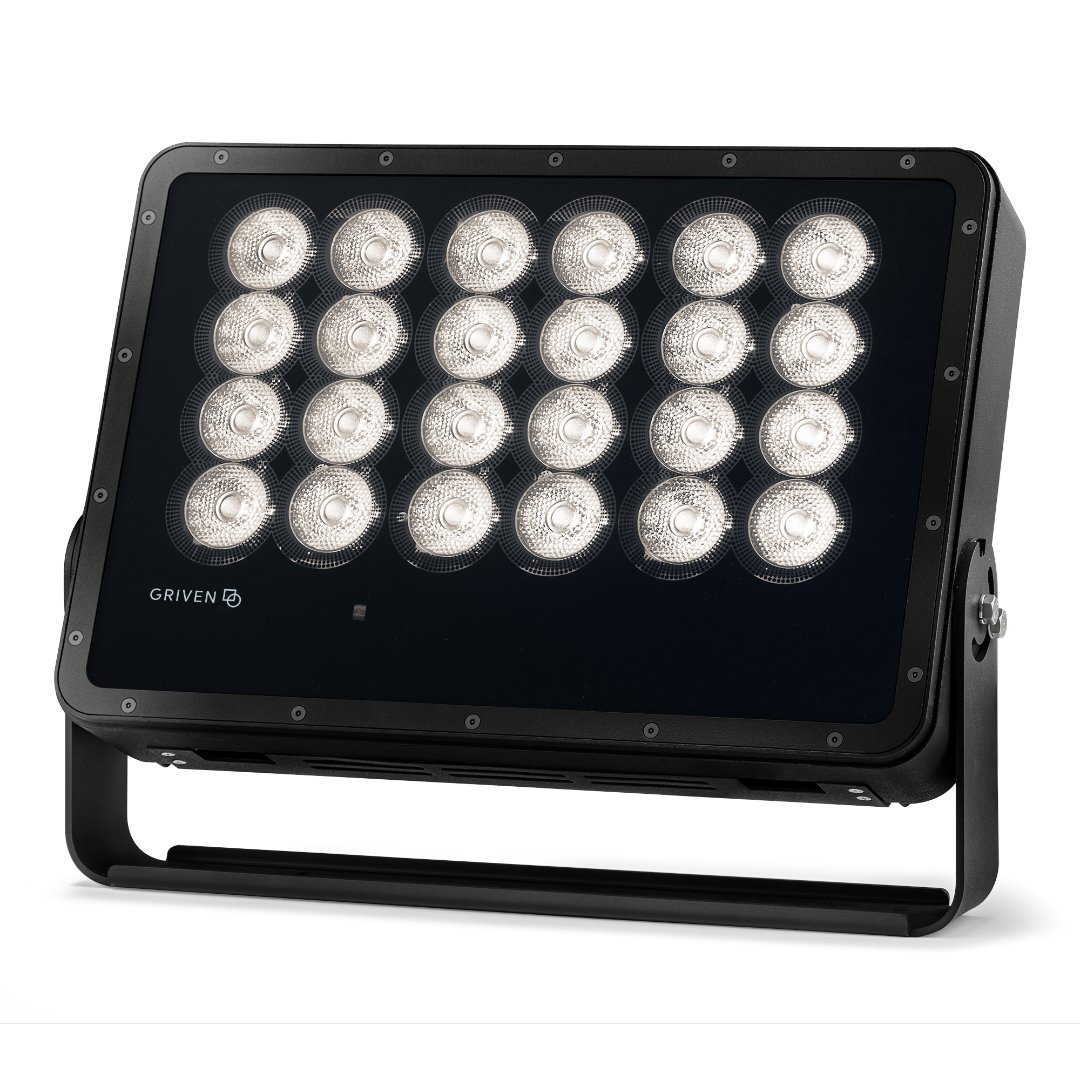

  • Black

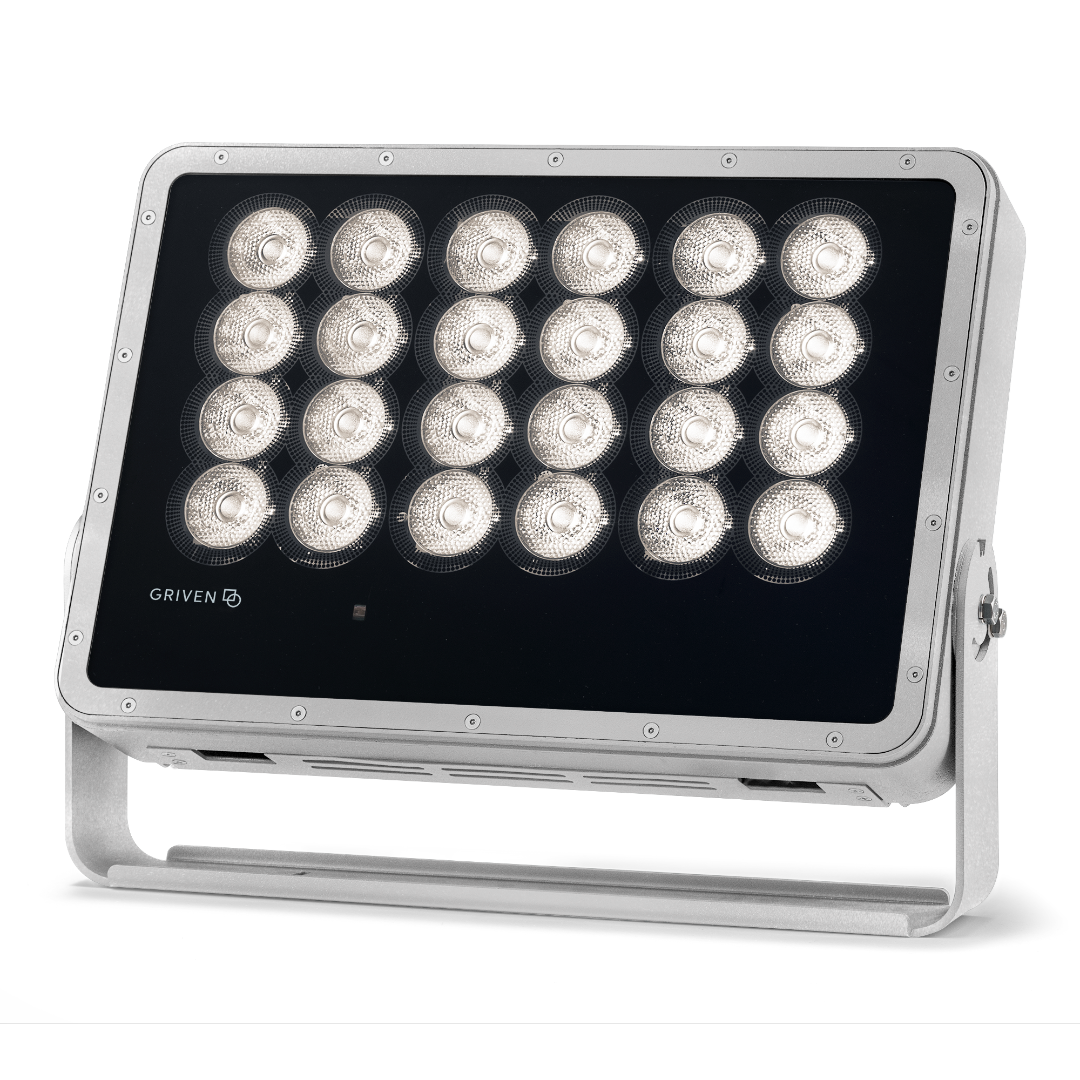

  • Griven Silver Grey

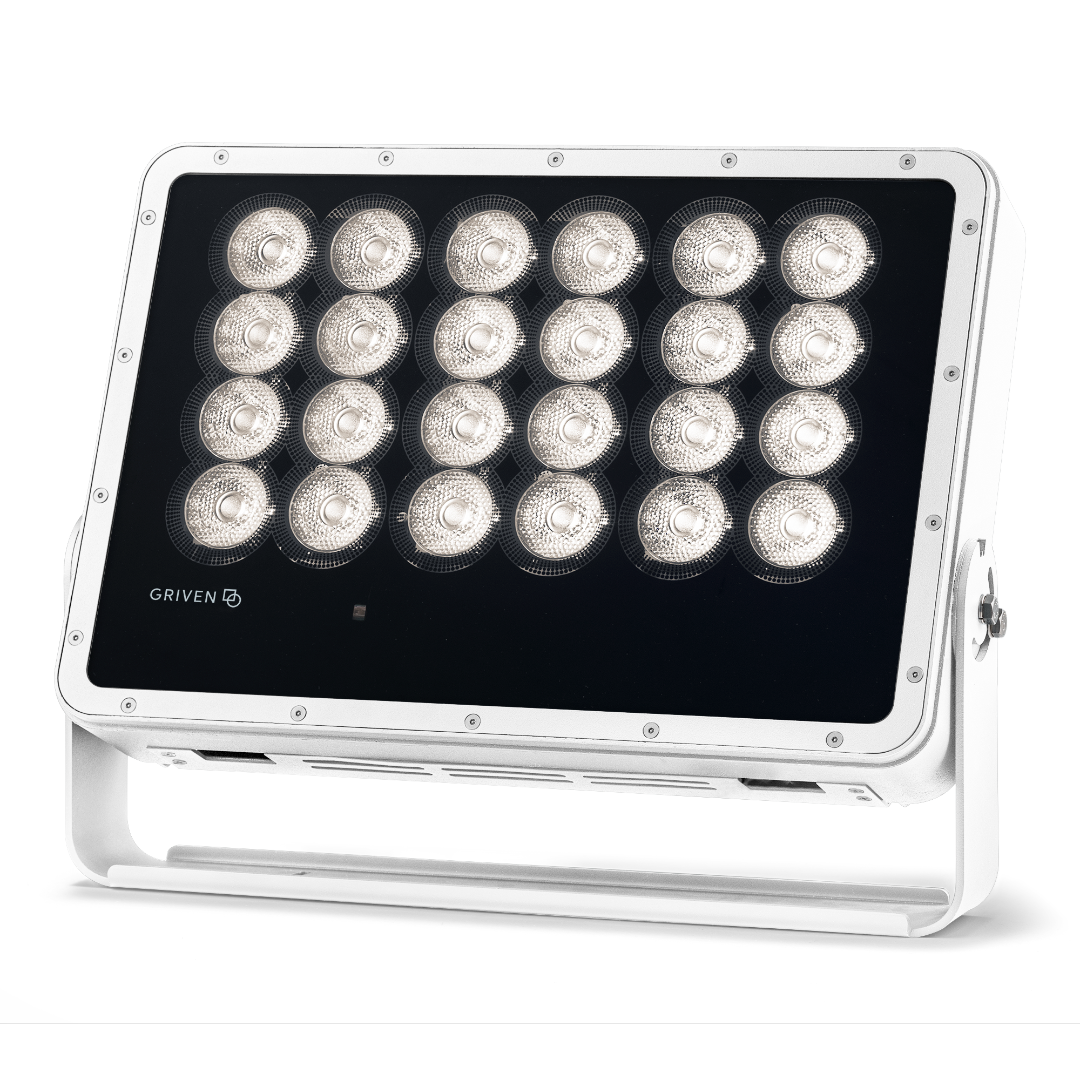

  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
Contact us  Save product
DYNAMIC WHITE
print

General Features

CAPITAL 300 MC is the ideal solution for responding to aesthetic appeal and chromatic adaptability criteria. With a flexible and versatile surface mount floodlight, this luminaire comes with a vast selection of optical configurations and is suitable for a comprehensive variety of installations.
Color configuration
High brightness Dynamic White multichip LEDs with an adjustable color temperature range between 3000K and 6500K
Optical configuration
7° SP (Spot)
10° NB (Narrow)
23° MB (Medium)
35° WB (Wide)

* Contact factory for other optical options
Max. Delivered lumen output
17.641 to 19.556 lumens per luminaire
Max. lumen/Watt
Up to 74 lumens per watt
Input voltage
120 - 277V
Amperage
2.22A @ 120V, 0.96A @ 277V
Power consumption
266 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility.

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • ETL Listed

Optional Features

  • Optional Polar
