Capital 300 MC RGBW

CP300MC
CP300MCPE Polar Edition

  • Powerful surface mount floodlight
  • Comprehensive selection of optical configurations
  • High brightness RGBW (3000K or 4000K White) multichip power LEDs
  • 19.4" L x 4.1" W x 15.1" H

View finishes: Anthracite Grey

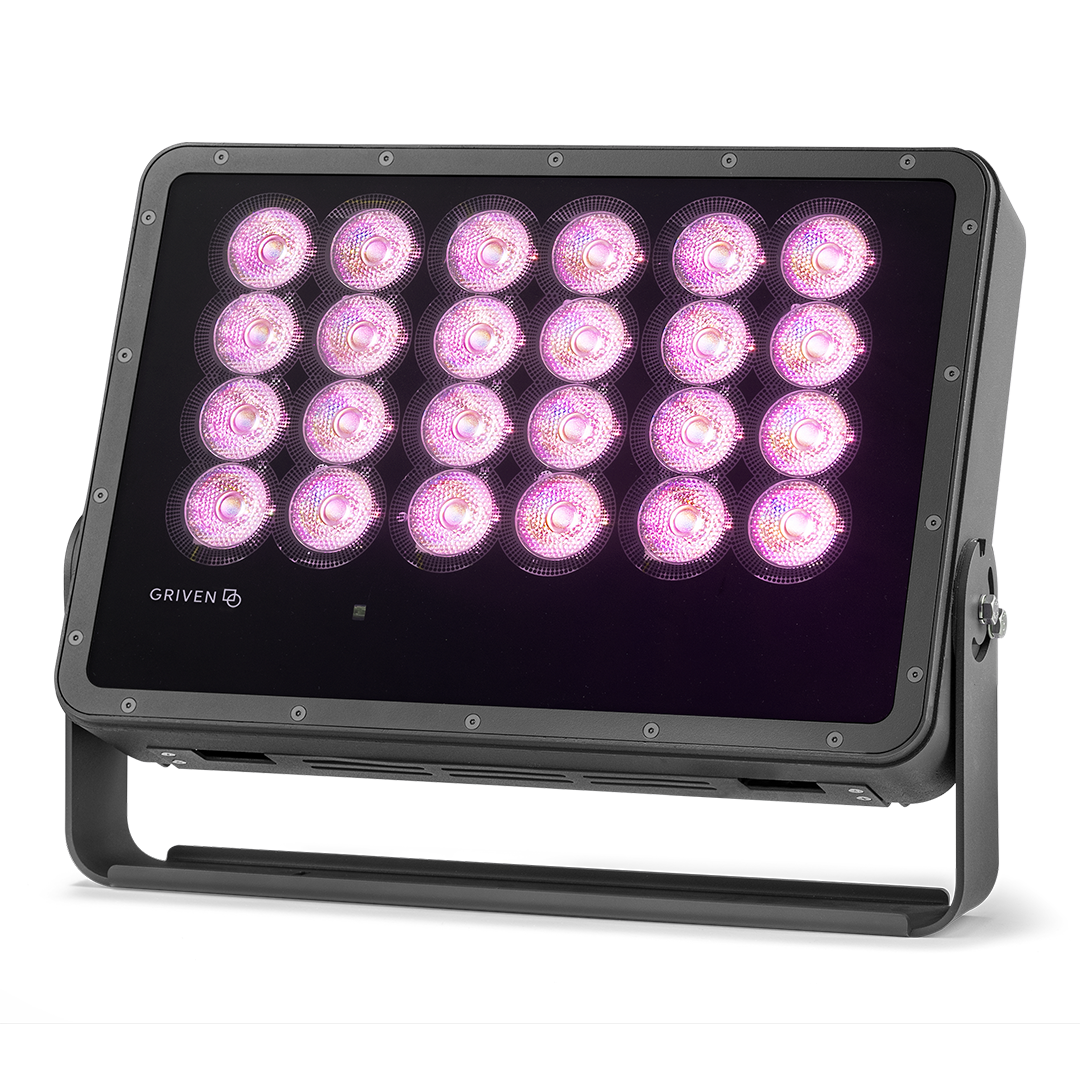

  • Anthracite Grey

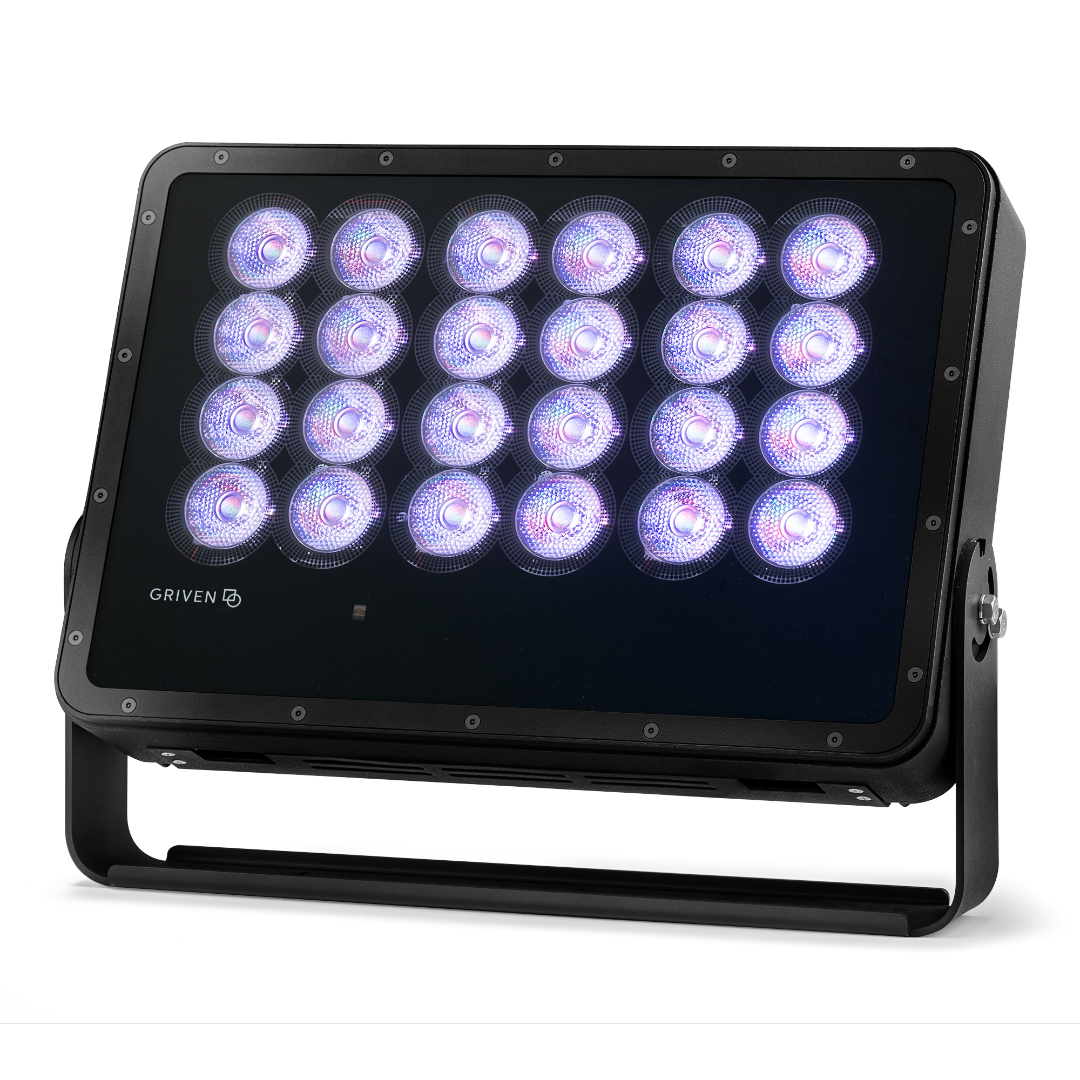

  • Black

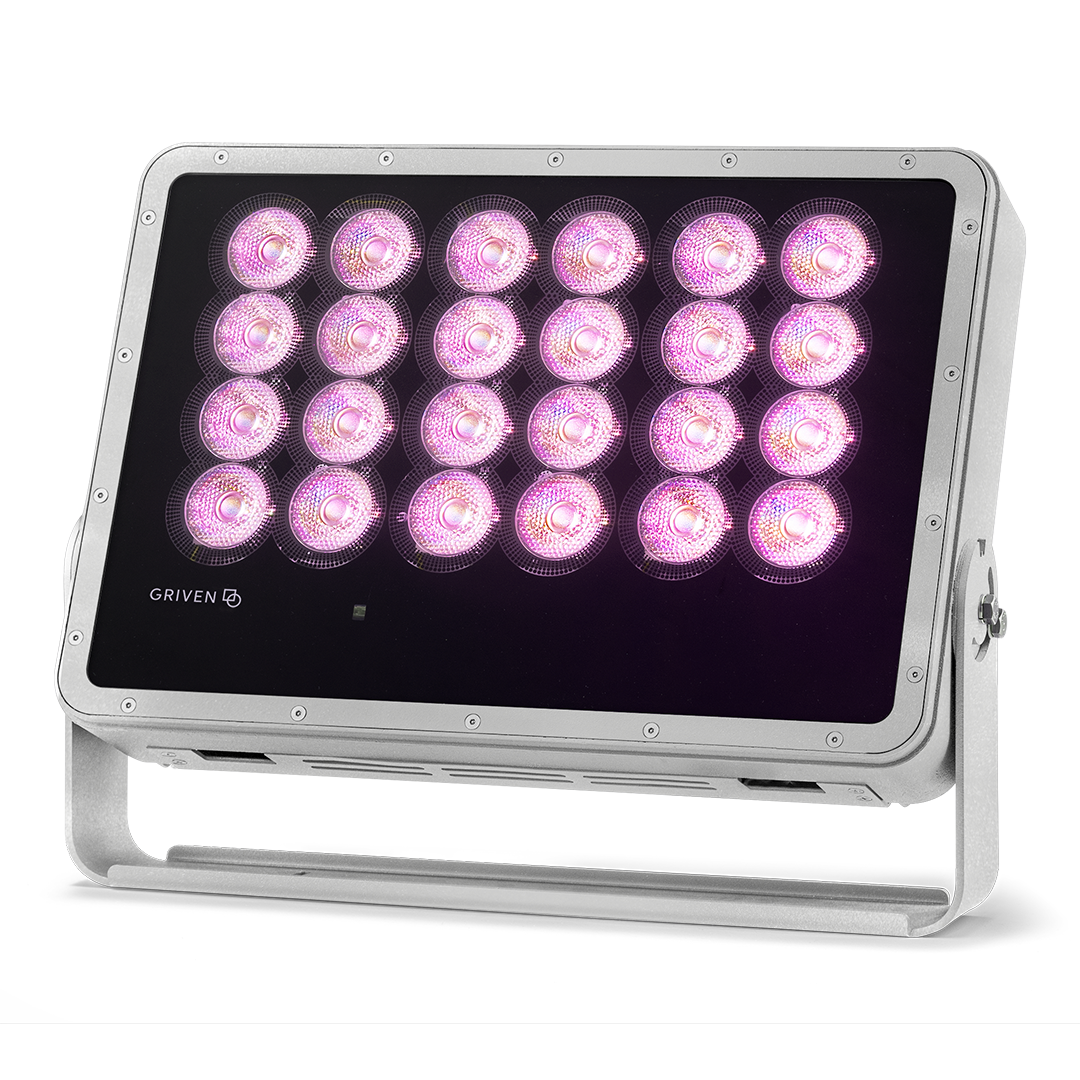

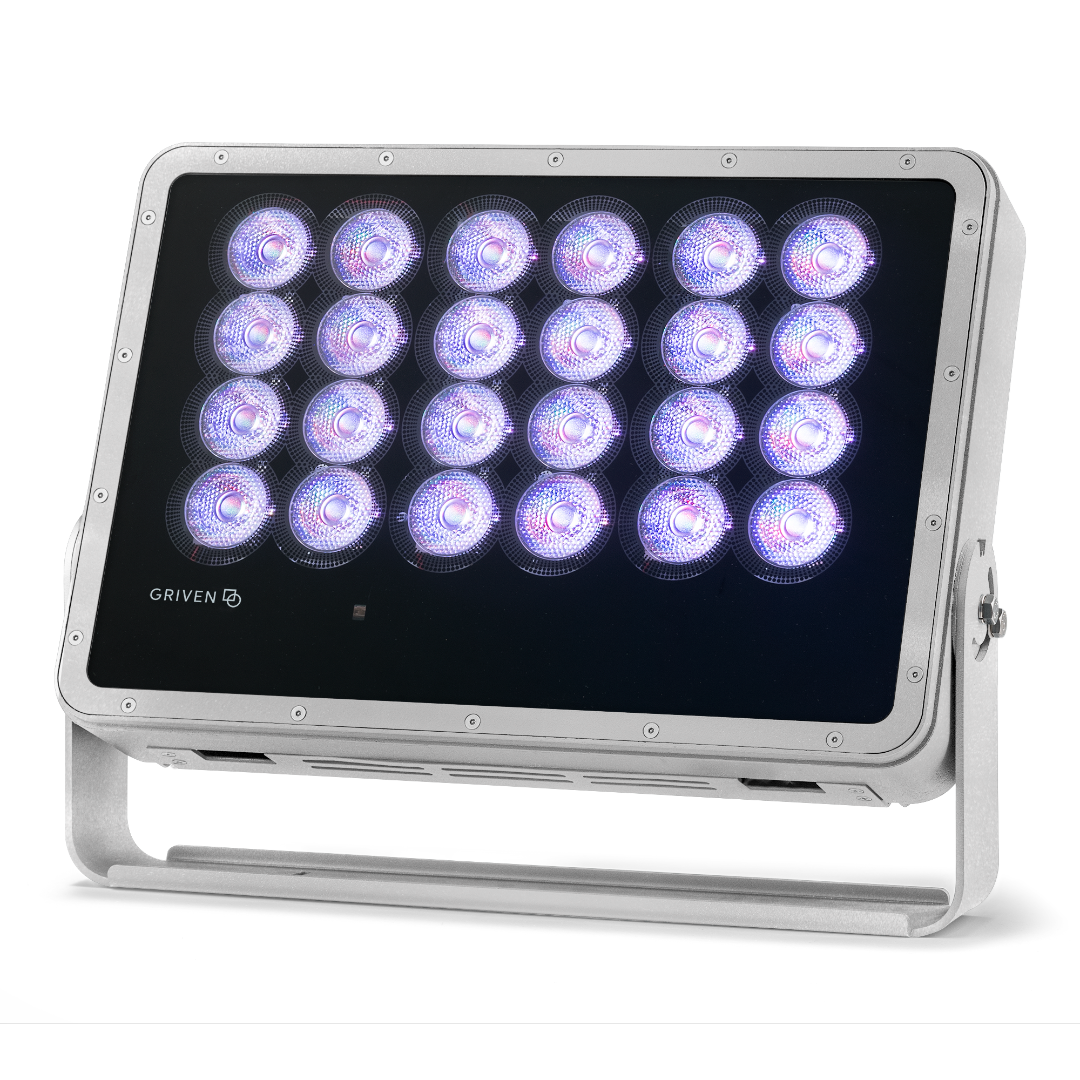

  • Griven Silver Grey

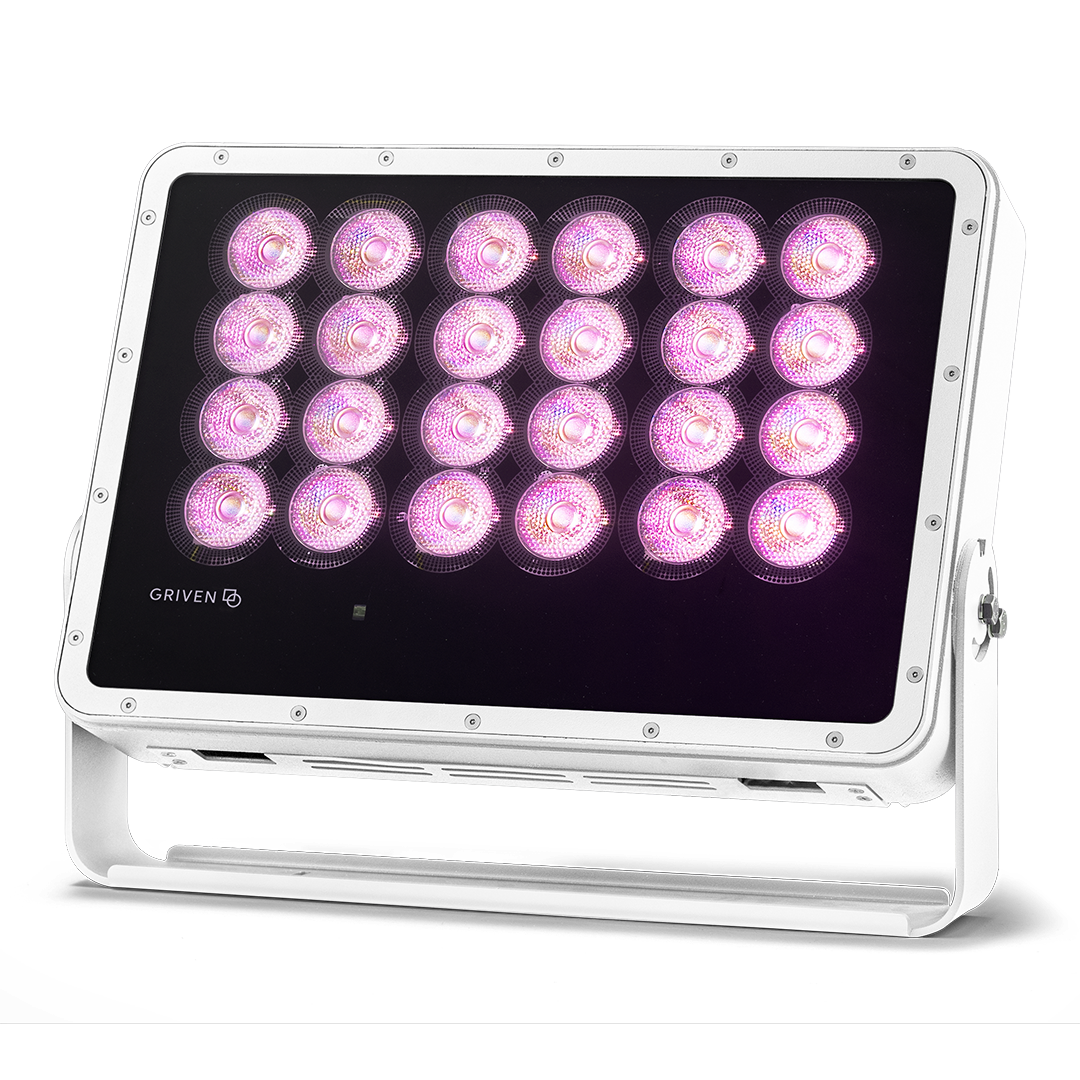

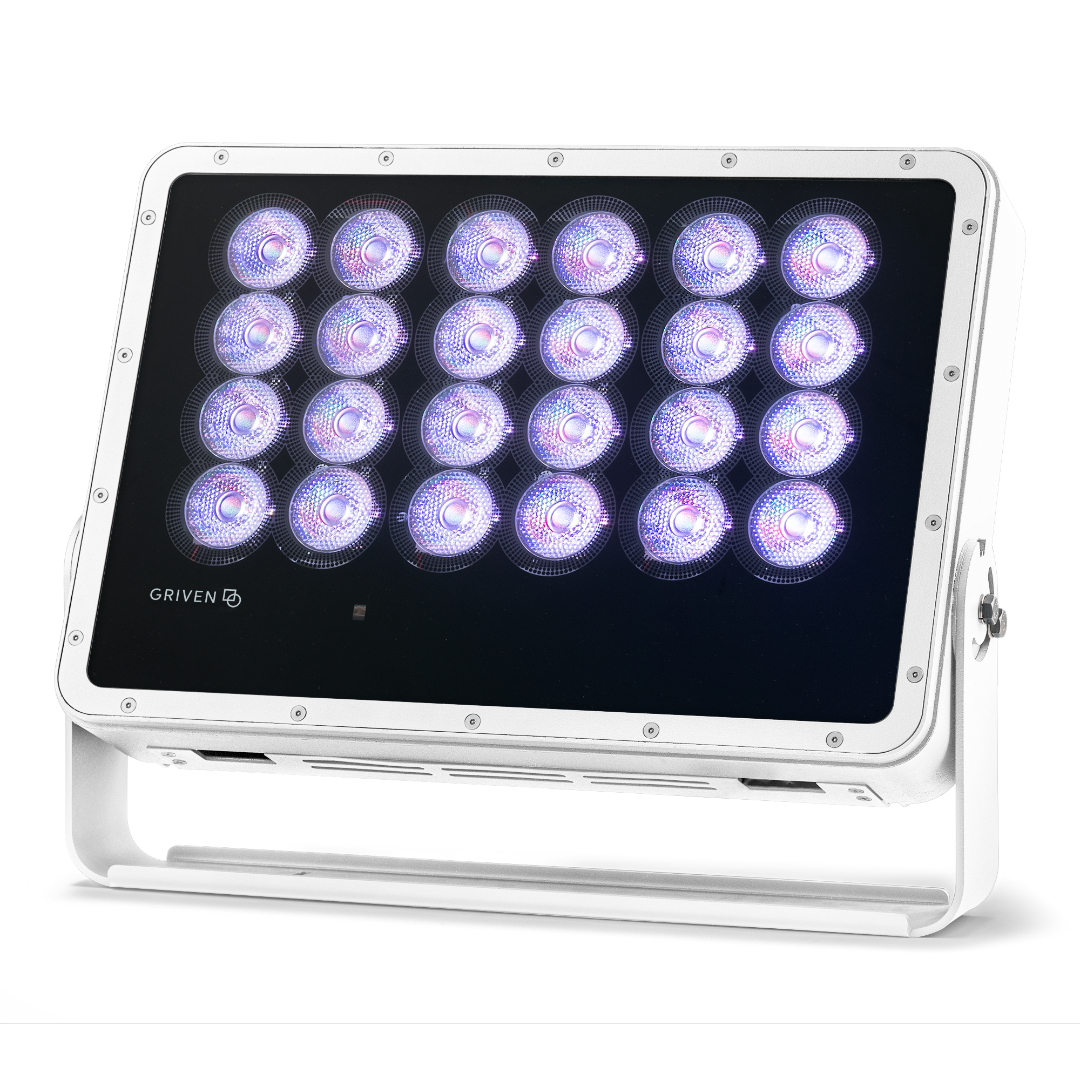

  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: RGBW40K
  • RGBW30K
  • RGBW40K
Contact us  Save product
COLOR CHANGING
print

General Features

CAPITAL 300 MC is the ideal solution for responding to aesthetic appeal and chromatic adaptability criteria. With a flexible and versatile surface mount floodlight, this luminaire comes with a wide selection of optical configurations and is suitable for a comprehensive variety of installations.
Color configuration
High brightness RGBW (3000K or 4000K White) multichip power LEDs
Optical configuration
7° SP (Spot)
10° NB (Narrow)
23° MB (Medium)
35° WB (Wide)

*Contact factory for internal spreading diffusers
Max. Delivered lumen output
From 10377 lumens to 11502 lumens depending on distribution
Max. lumen/Watt
Up to 43 lumens per watt
Input voltage
120 - 277V
Amperage
2.22A @ 120V, 0.96A @ 277V
Power consumption
266 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility.

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • ETL Listed

Optional Features

  • Optional Polar
