Capital 300 Ultra Spot Dynamic White

All products spot/flood/wash capital 300Capital 300 Ultra Spot Dynamic White

Capital 300 Ultra Spot Dynamic White

CP300US
CP300USPE Polar Edition

Powerful surface mount floodlight
Efficient ultra-spot optics
High brightness tunable white power LEDs
18.7 x 4.1 x 15"

View finishes: Anthracite Grey

Contact us Save product

DYNAMIC WHITE

Capital 300 Ultra Spot Dynamic White18584

print

Capital 300 Ultra Spot Dynamic White

General Features

CAPITAL 300 US accentuates the designer's palette with an ultra-narrow 4° beam using 60 high-power LEDs fitted with precision optics. Grazing of vertical columnar features or illumination of objects at distance both benefit from the high-performance of this luminaire.

Color configuration

High brightness Dynamic White LEDs with an adjustable color temperature range between 2700K and 6500K

Optical configuration

3.2° US (Ultra Spot)

Max. Delivered lumen output

12063 lumens

Max. lumen/Watt

78 lumens per watt

Input voltage

120 - 277V

Amperage

1.3A @ 120V per luminaire, 0.6A @ 277V per luminaire

Power consumption

154 watts maximum

Ingress protection rating

IP67

Impact resistance rating

IK09

External operating limits

-40°C to 50°C / (-40°F to 122°F)

Warranty

5-year warranty

Accessories

Optional optical distribution and mounting accessories available for the utmost design flexibility.

Light Beam Effects

Overview

Optional Features

Downloads

Specification Sheet

Specification Sheet

Configuration

User Manual

Pictures

IES

REVIT

Configuration

Capital 300 Ultra Spot Dynamic White

Model

CP300US Capital 300 US
CP300USPE Capital 300 US Polar Edition

Color

From 2700K to 6500K

Control

DMX/RDM

Cable

Power in, DMX in, DMX out
Monocable with connectors
Monocable without connectors

Voltage

120-277V

Optic

Ultra Spot 3.2°

Finish

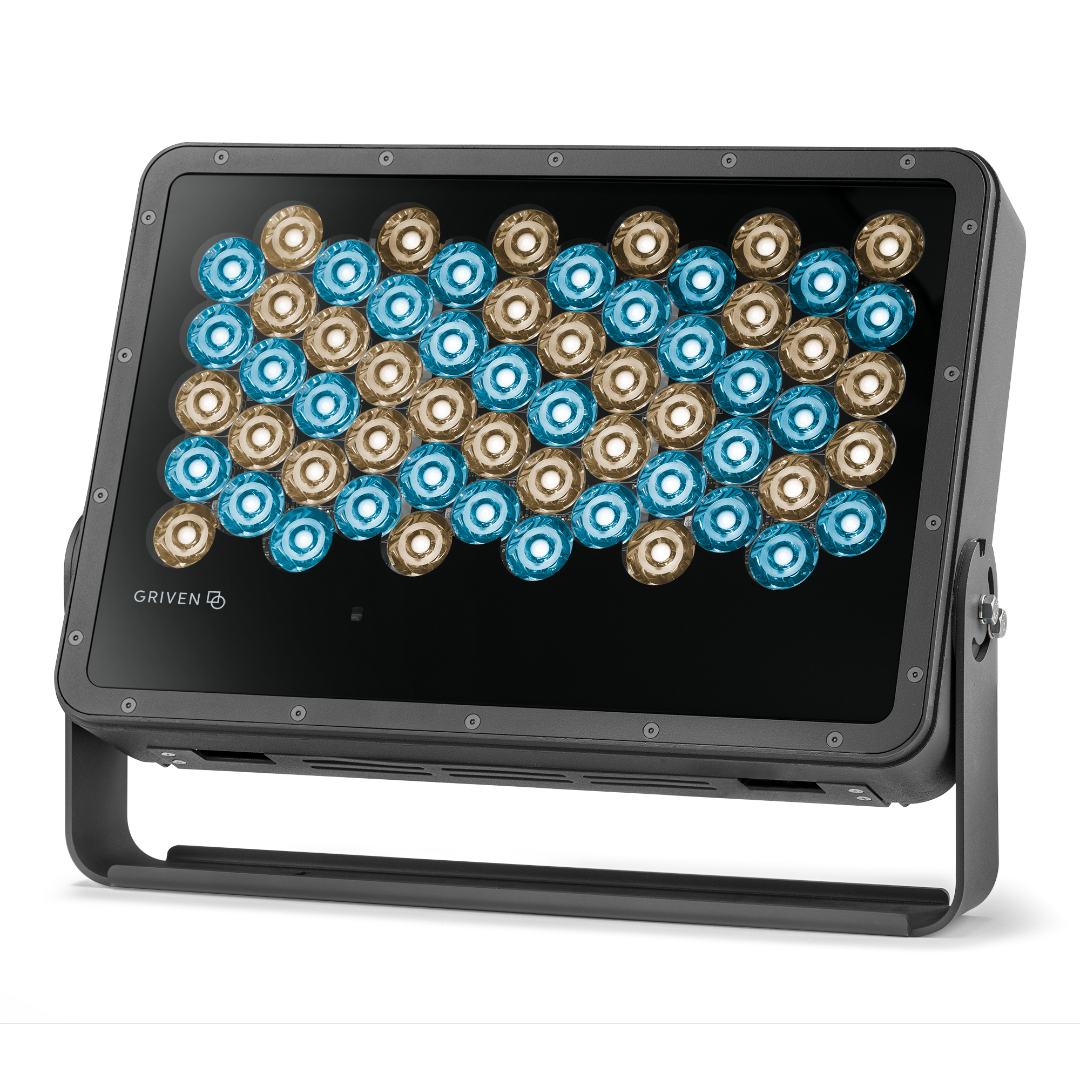

Anthracite Grey

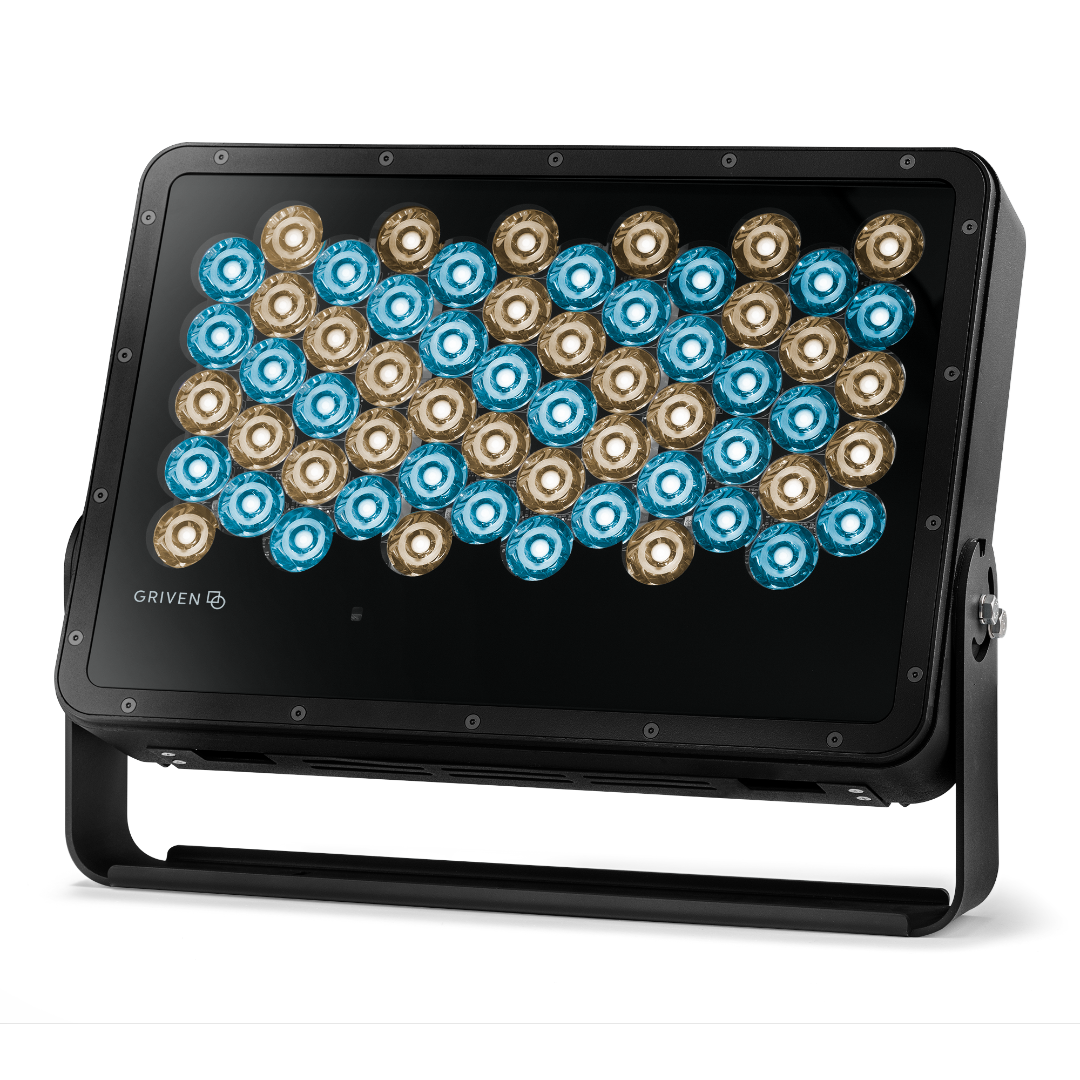

Black

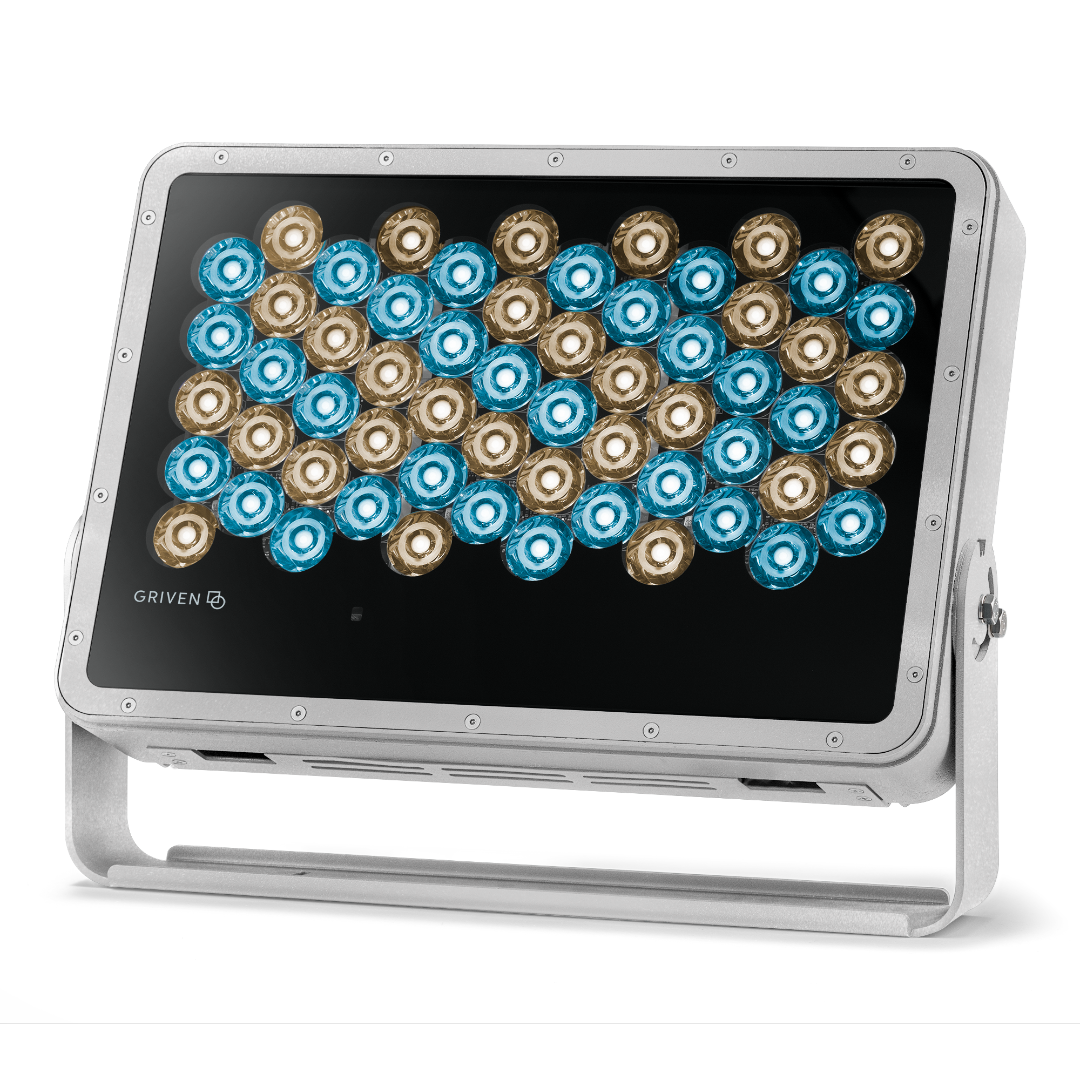

Griven Silver Grey

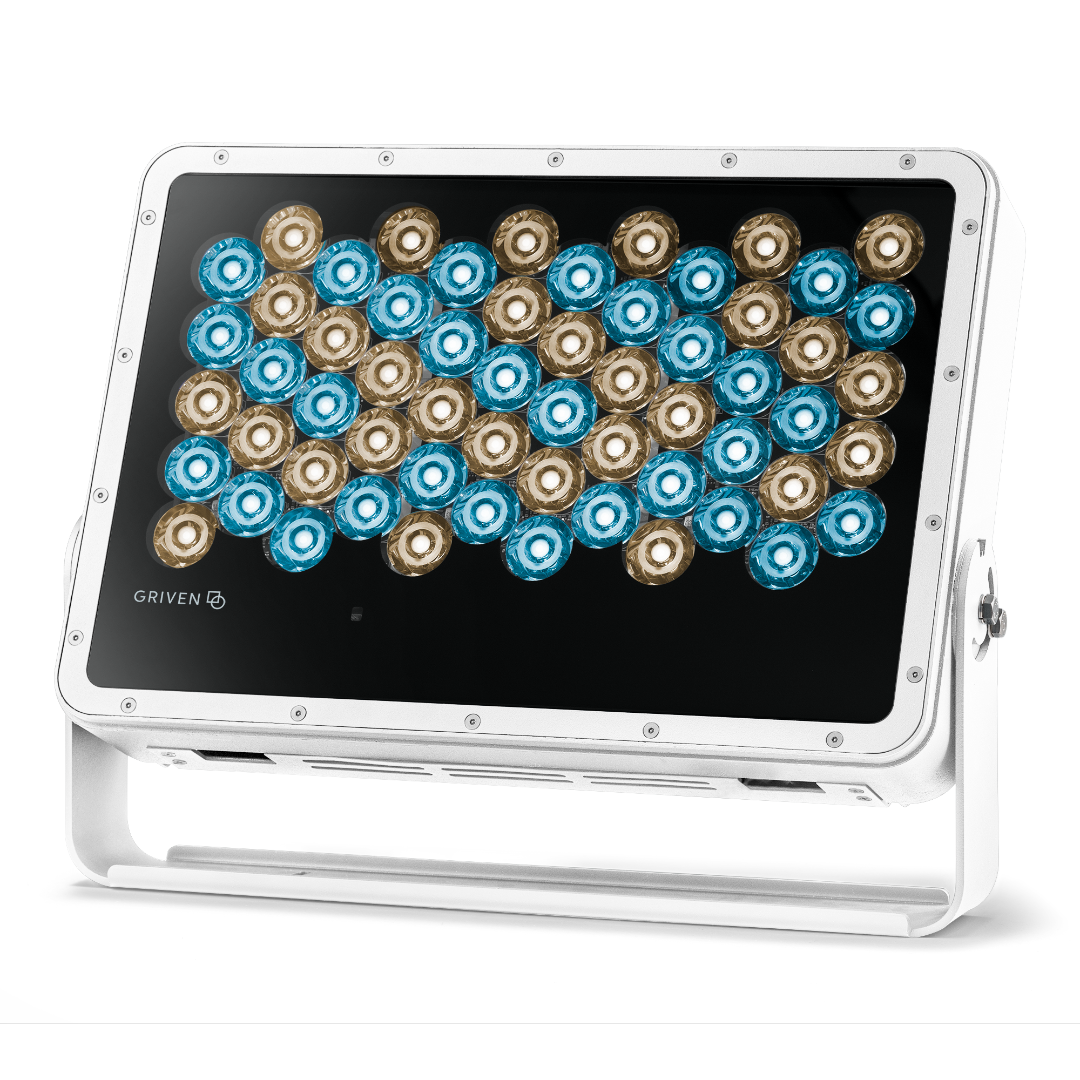

White

Option

Marine Grade Finish
3G Mounting Yoke

Optional Accessories

Infrared Remote Control

Infrared Remote Control

AL1321

Control & Installation Solutions

Snoot

Snoot

AL8236- XX

Control & Installation Solutions

Wire guard

Wire guard

AL8237- XX

Control & Installation Solutions

Visor

Visor

AL8235- XX

Control & Installation Solutions

3G Mounting Yoke

3G Mounting Yoke

AL8260- XX

Control & Installation Solutions
