Capital 600 Discrete Dynamic White

CP600
CP600PE Polar Edition

  • Double cluster surface mount powerful floodlight
  • Full independent control of each LED bank
  • Creation of matching or divergent dynamic effects on large-scale façades
  • 20.4" L x 5.9" W x 29.8" H

View finishes: Anthracite Grey
  • Anthracite Grey

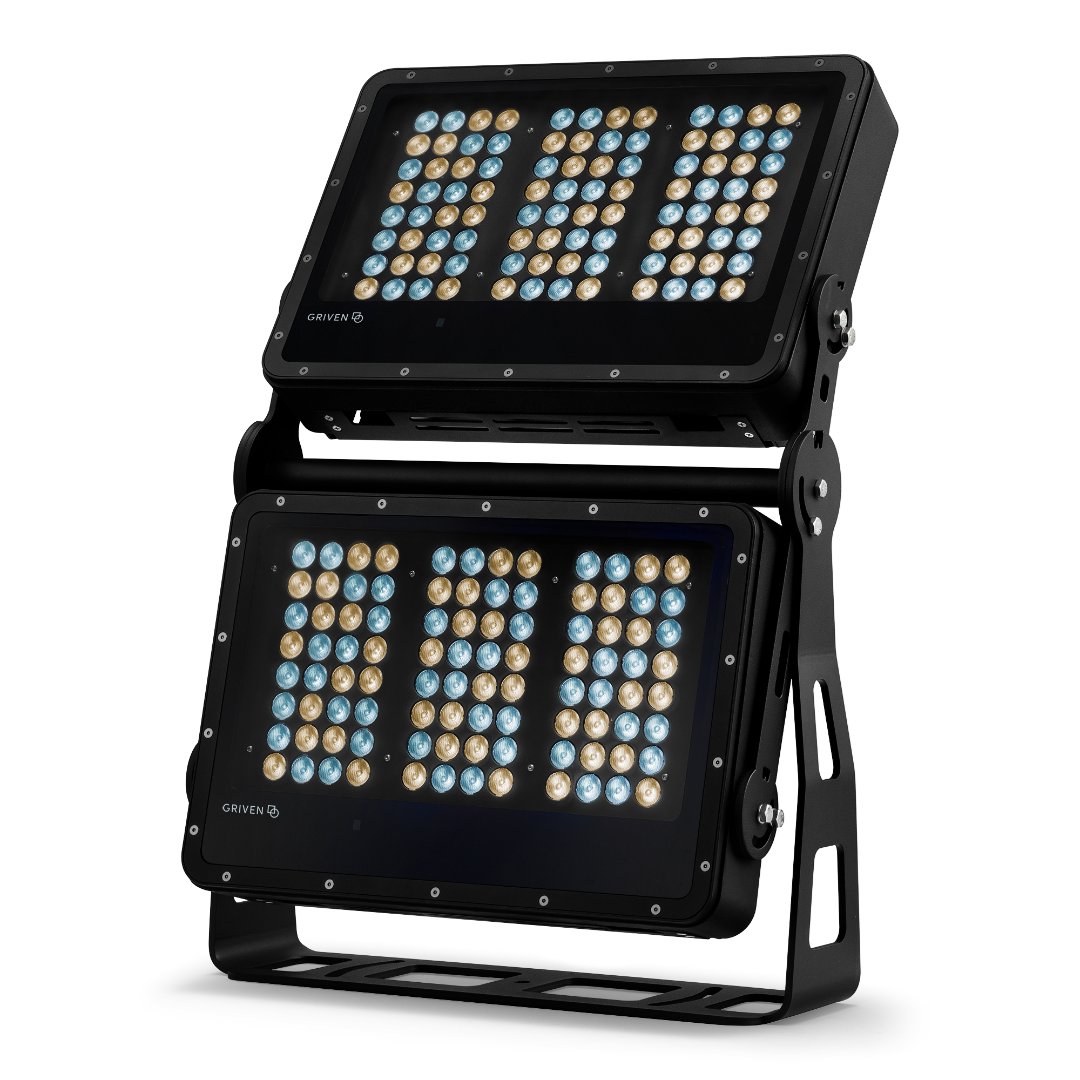

  • Black

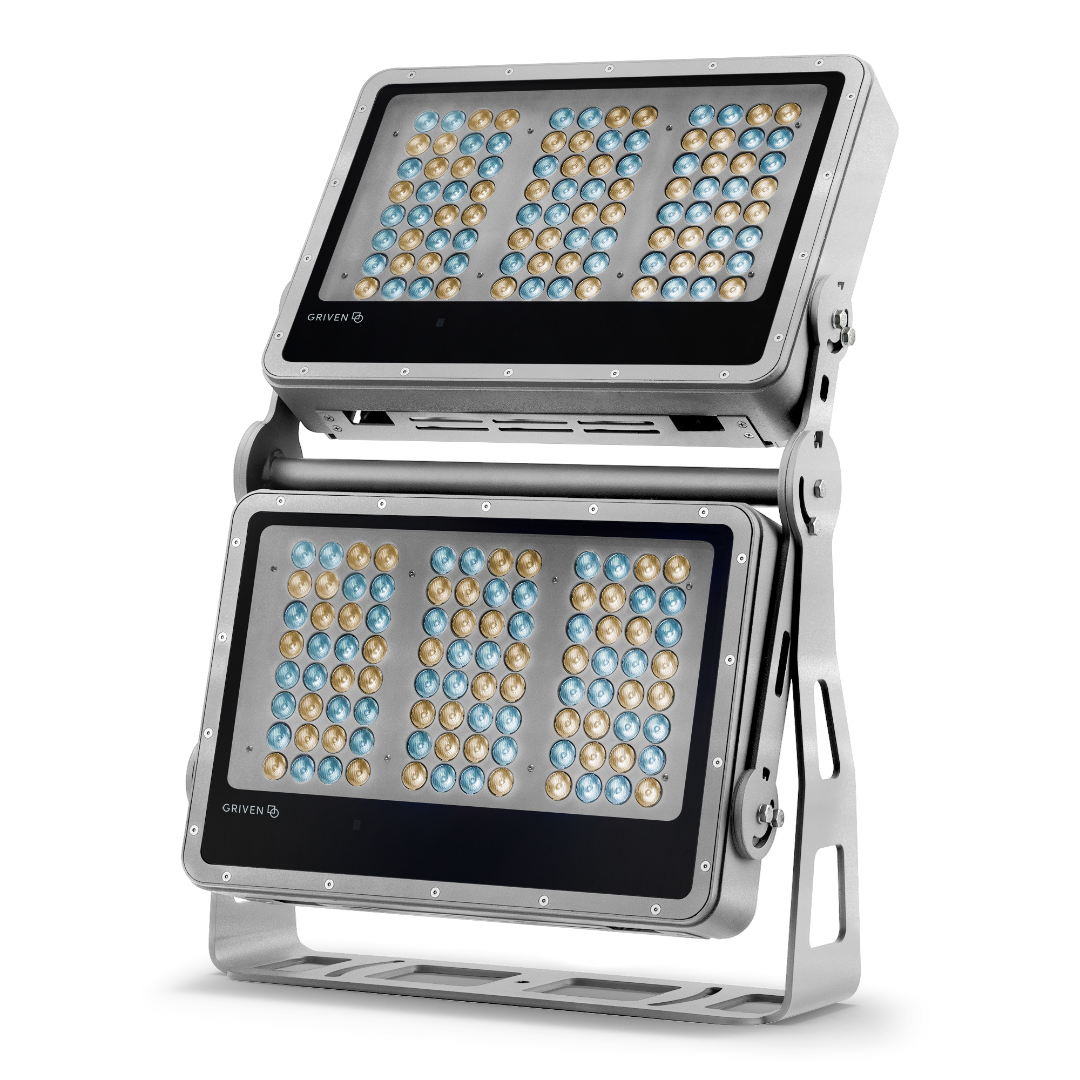

  • Griven Silver Grey

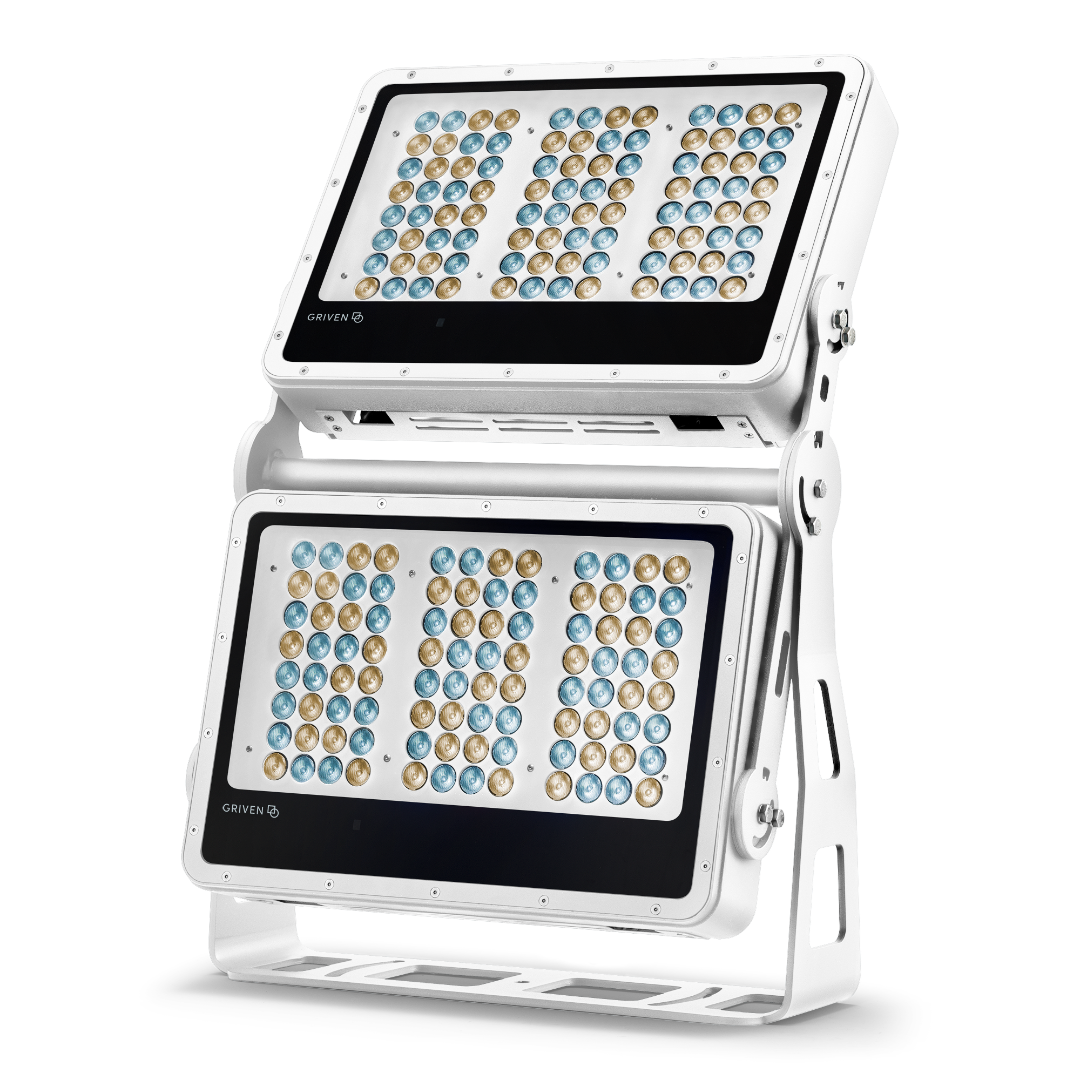

  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
Contact us  Save product
DYNAMIC WHITE
print

Capital 600 Discrete Dynamic White

General Features

CAPITAL 600 floodlight is available with a vast choice of combinable optics and color configurations for the maximum lighting design flexibility. Featuring full independent control of each LED luminaire, this twin cluster luminaire system allows absolute freedom in a minimal footprint to create impressive matching or divergent dynamic effects on large-scale façades and architectural elements from a long distance with surprising luminous output.
Color configuration
High brightness Dynamic White LEDs with an adjustable colour temperature range between 2700K and 6500K
Optical configuration
13° SP (Spot)
16° NB (Narrow)
25° MB (Medium)
46° WB (Wide)
64° EW (Extra wide)
40°h x 14°v ELH (Elliptical Horizontal)
38°h x 23°v ELWH (Elliptical Wide Horizontal)
36°h x 19°v WW (Wall Wash)

*Contact factory for internal spreading diffusers
Max. Delivered lumen output
From 21506 lumens to 27930 lumens for the system depending on distribution
Max. lumen/Watt
Up to 98 lumens per watt
Input voltage
120 - 277V
Amperage
2.05A @ 277V (570 Watts), 4.75A @ 120V (570 Watts)
Power consumption
570 Watts (285 Watts per Luminaire)
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility.


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • ETL Listed

Optional Features

  • Optional Polar
