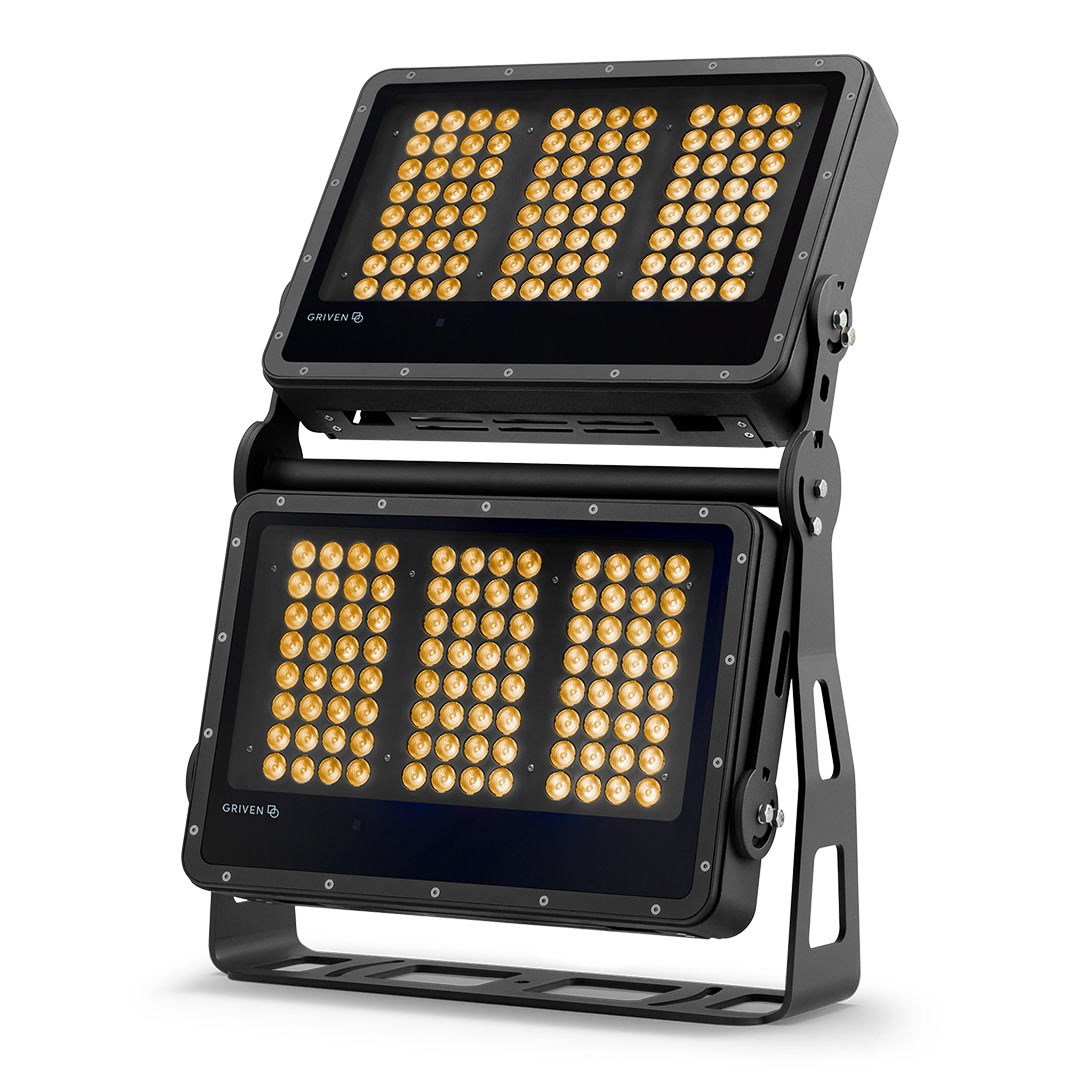

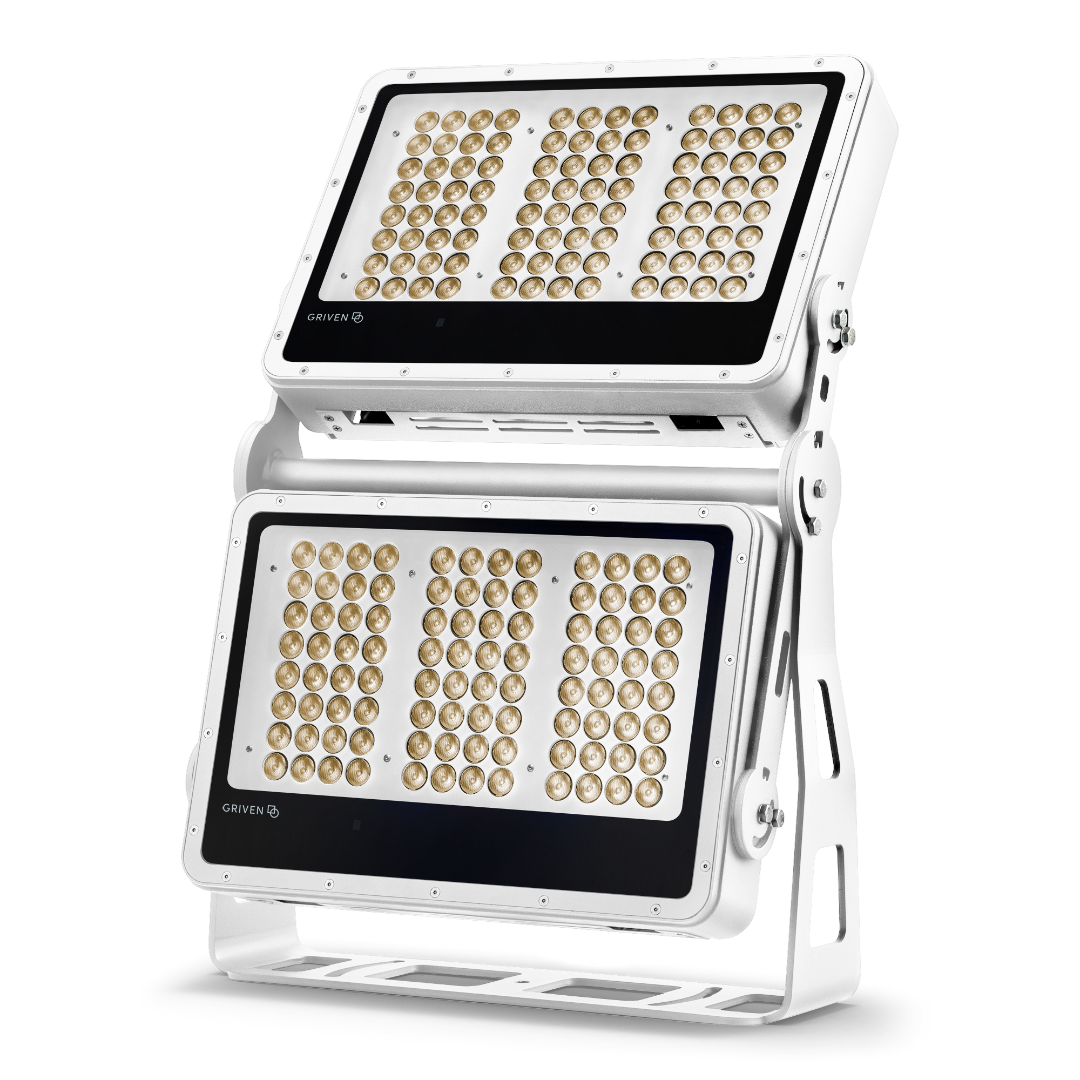

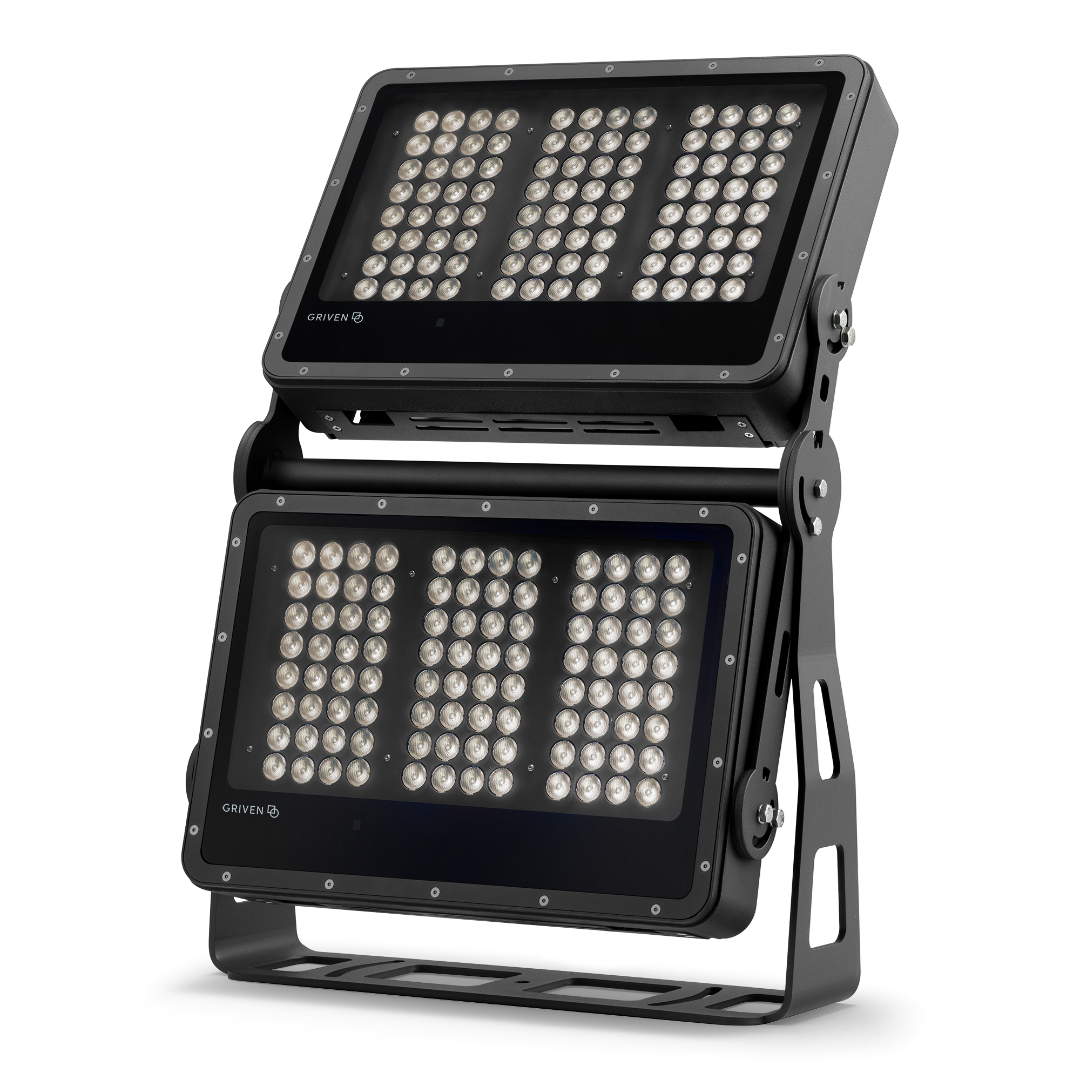

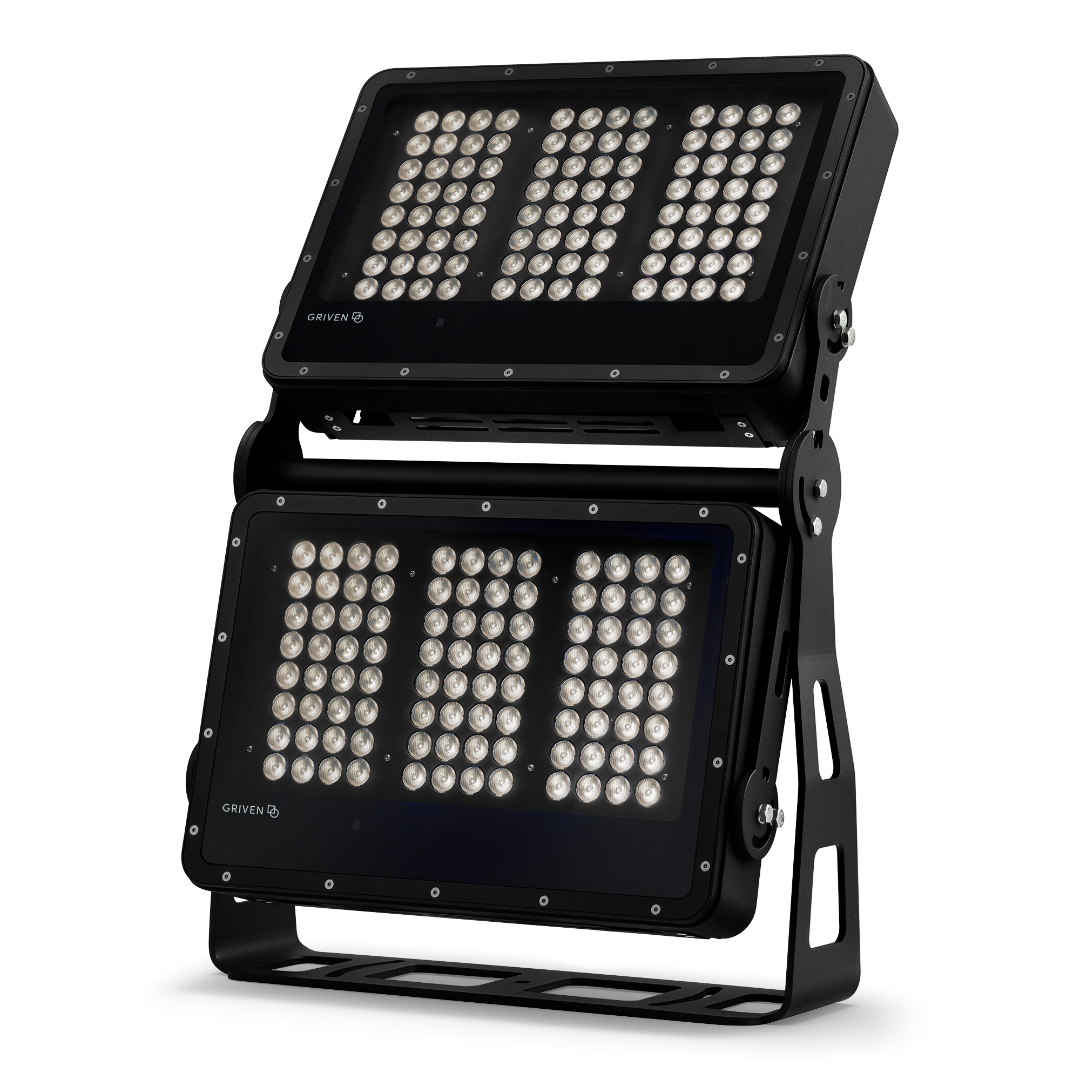

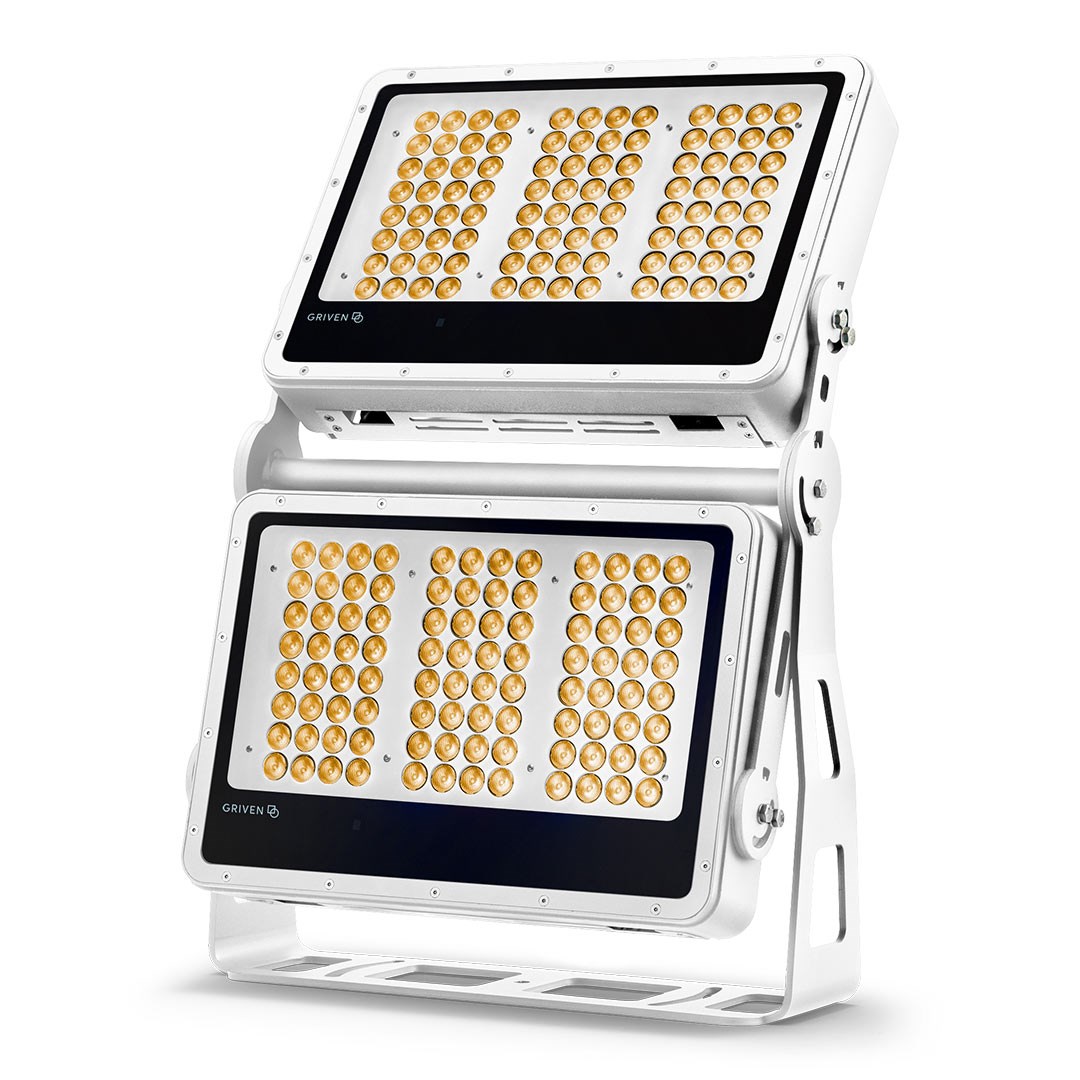

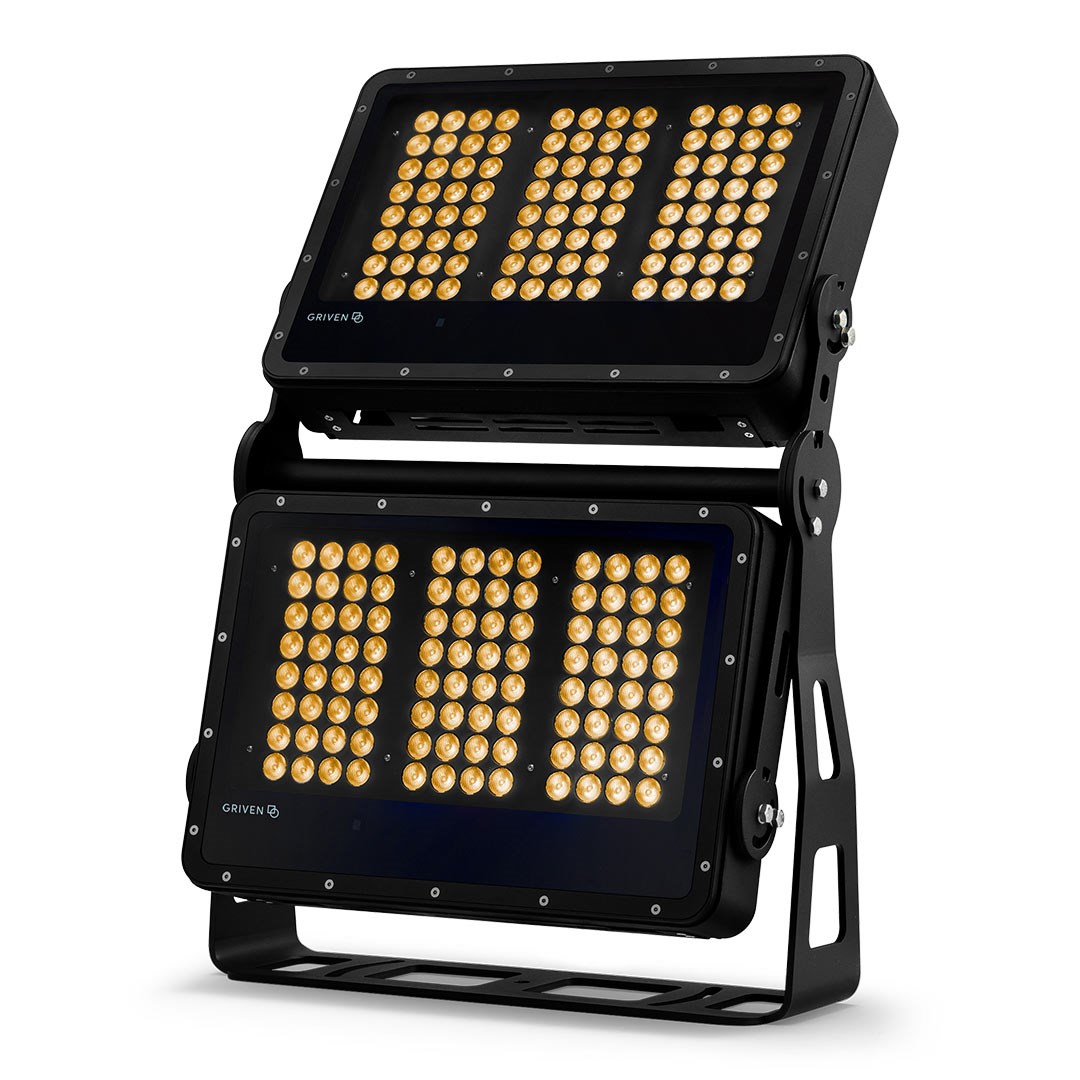

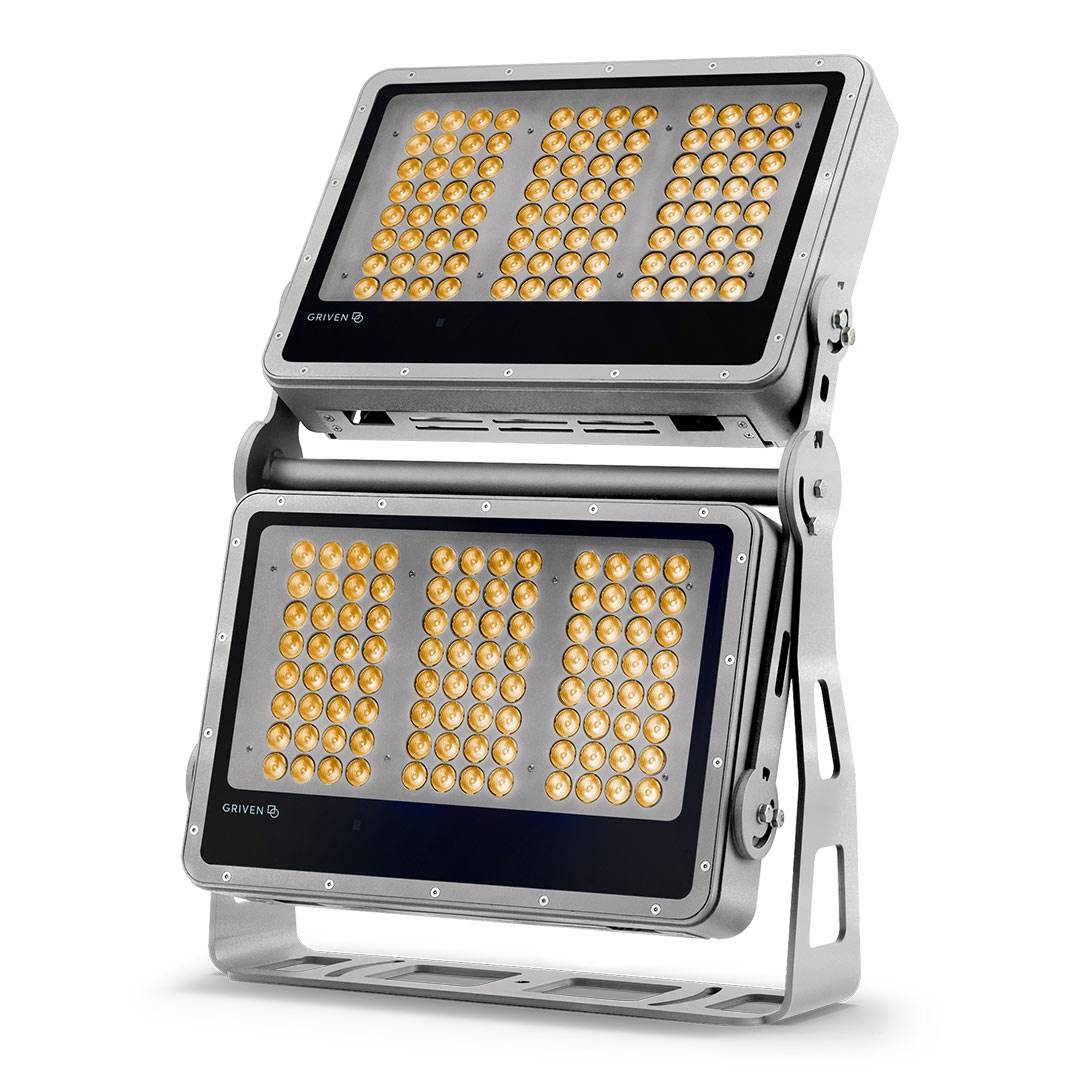

Capital 600 Discrete Static White

CP600
CP600PE Polar Edition

  • Double cluster surface mount powerful floodlight
  • Full independent control of each LED bank
  • High brightness Natural White, Warm White power LEDs
  • 20.4" L x 5.9" W x 29.8" H

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: Warm White 3000K
  • Warm White 2700K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product
STATIC WHITE
print

Capital 600 Discrete Static White

General Features

CAPITAL 600 floodlight is available with a vast choice of combinable optics and color configurations for the maximum lighting design flexibility. Featuring full independent control of each LED luminaire, this twin cluster luminaire system allows absolute freedom in a minimal footprint to create impressive matching or divergent dynamic effects on large-scale façades and architectural elements from a long distance with surprising luminous output.
Color configuration
High brightness Static White 2700K, 3000K, or 4000K
Optical configuration
13° SP (Spot)
16° NB (Narrow)
25° MB (Medium)
46° WB (Wide)
64° EW (Extra wide)
40°h x 14°v ELH (Elliptical Horizontal)
38°h x 23°v ELWH (Elliptical Wide Horizontal)
36°h x 19°v WW (Wall Wash)

*Contact factory for internal spreading diffusers
Max. Delivered lumen output
From 19887 lumens to 27814 lumens for the system depending on distribution
Max. lumen/Watt
Up to 98 lumens per watt
Input voltage
120 - 277V
Amperage
2.05A @ 277V (570 Watts), 4.75A @ 120V (570 Watts)
Power consumption
570 Watts (285 Watts per Luminaire)
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty

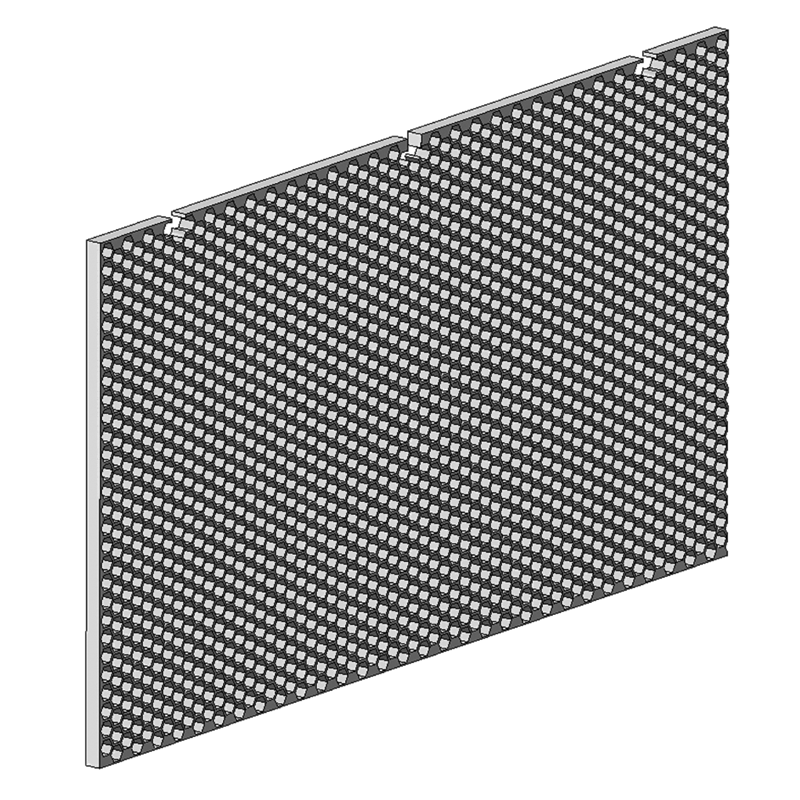

Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility.


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • Rohs
  • ETL Listed

Optional Features

  • Optional Polar
