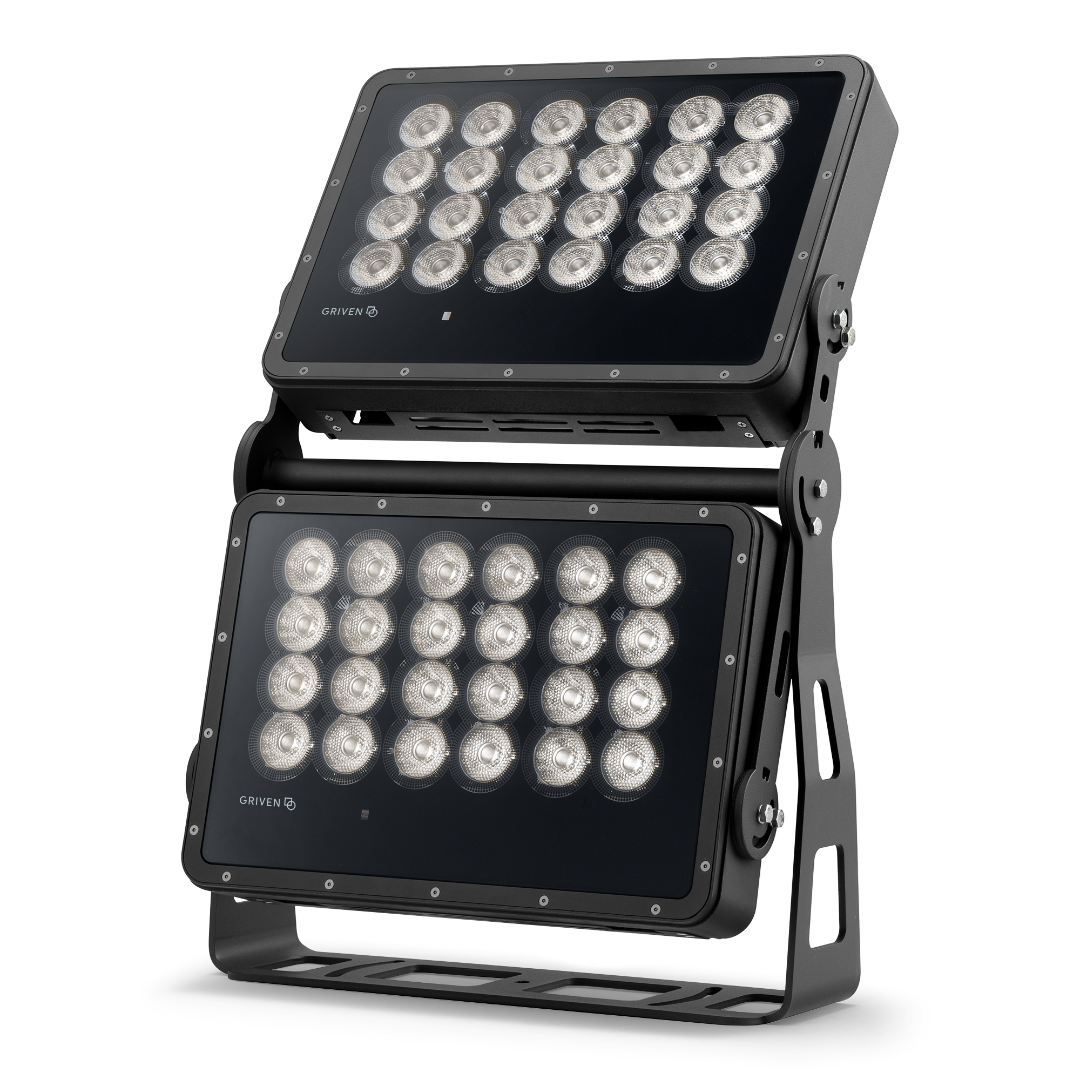

Capital 600 MC Dynamic White

CP600MC
CP600MCPE Polar Edition

  • Double cluster surface mount powerful floodlight
  • Premium quality high brightness dynamic white multichip power LEDs
  • Seamless light distribution and smooth color temperature transition
  • 20.4" L x 5.9" W x 29.8" H

View finishes: Anthracite Grey
  • Anthracite Grey

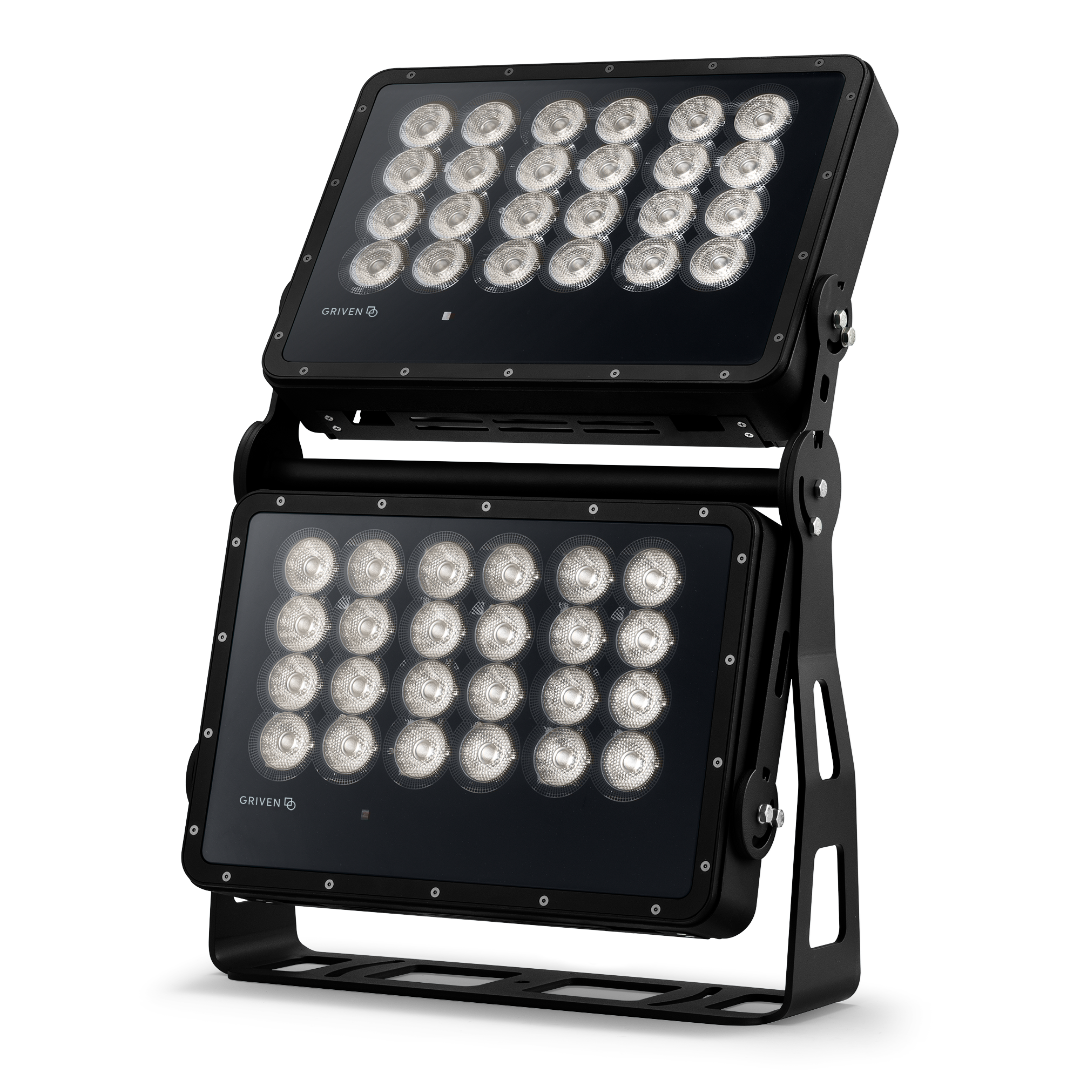

  • Black

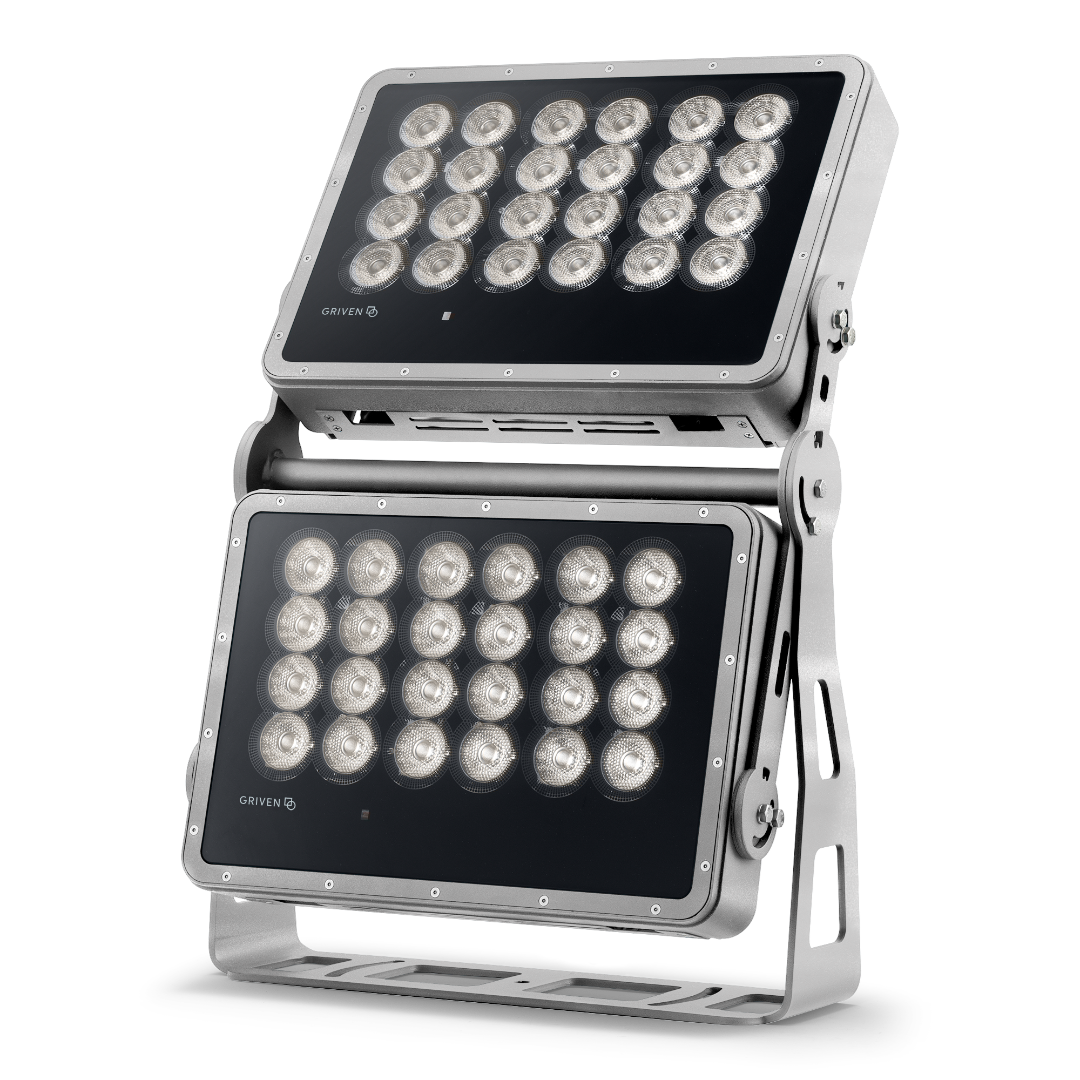

  • Griven Silver Grey

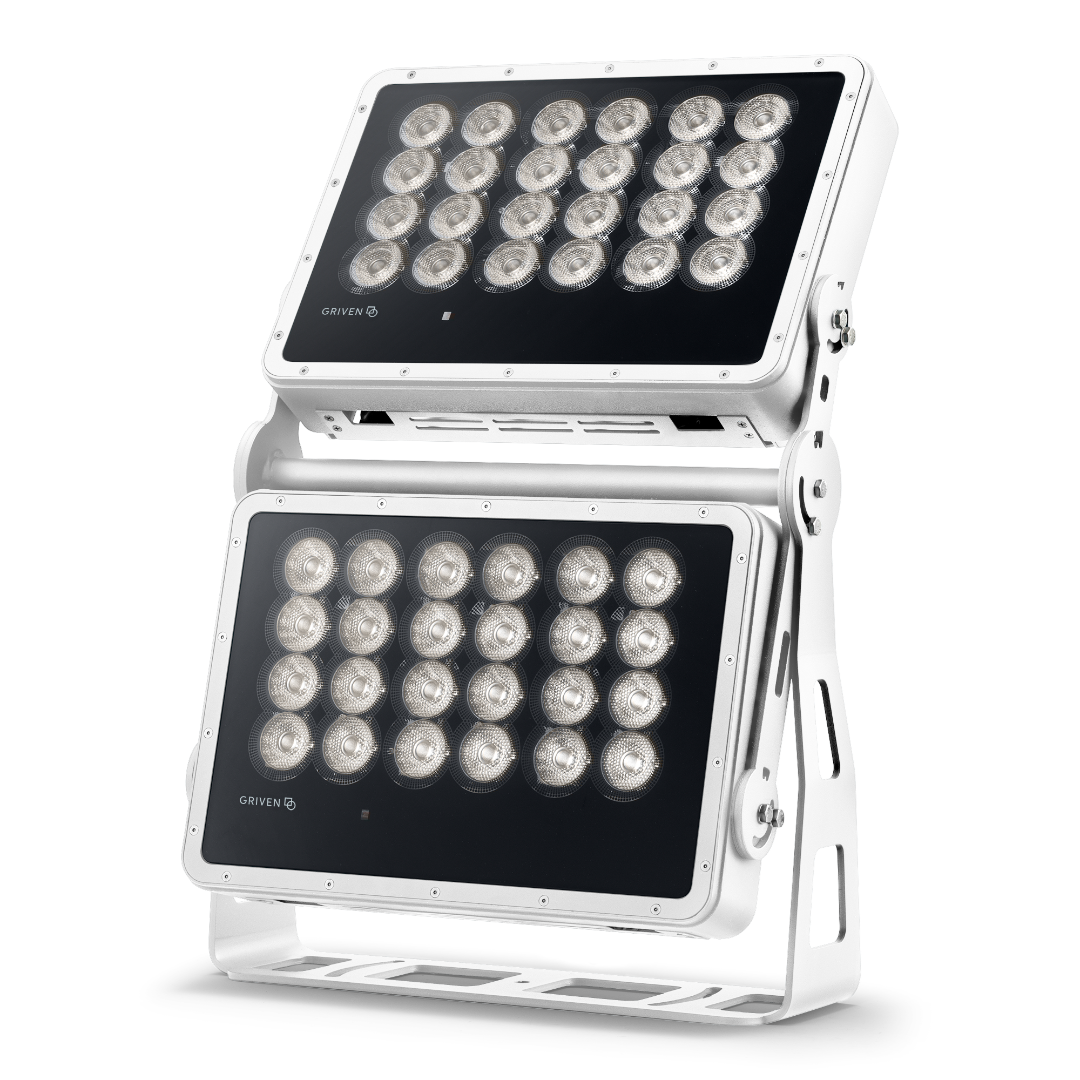

  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
Contact us  Save product
DYNAMIC WHITE
print

General Features

CAPITAL 600 MC floodlight is available with a vast choice of combinable optics and color configurations for the maximum lighting design flexibility. Featuring full independent control of each LED luminaire, this twin cluster luminaire system allows absolute freedom in a minimal footprint to create impressive matching or divergent dynamic effects on large-scale façades and architectural elements from a long distance with surprising luminous output.
Color configuration
High brightness Dynamic White multichip LEDs with an adjustable color temperature range between 3000K and 6500K
Optical configuration
7° SP (Spot)
10° NB (Narrow)
23° MB (Medium)
35° WB (Wide)

* Contact factory for other optical options
Max. Delivered lumen output
up to 39,112 lumens 19,556 lumens per luminaire
Max. lumen/Watt
Up to 74 lumens per watt per luminaire
Input voltage
120 - 277V
Amperage
4.43A @ 120V (532 Watts), 1.92A @ 277V (532 Watts)
Power consumption
532 Watts (266 Watts per Luminaire)
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility.


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • ETL Listed

Optional Features

  • Optional Polar
