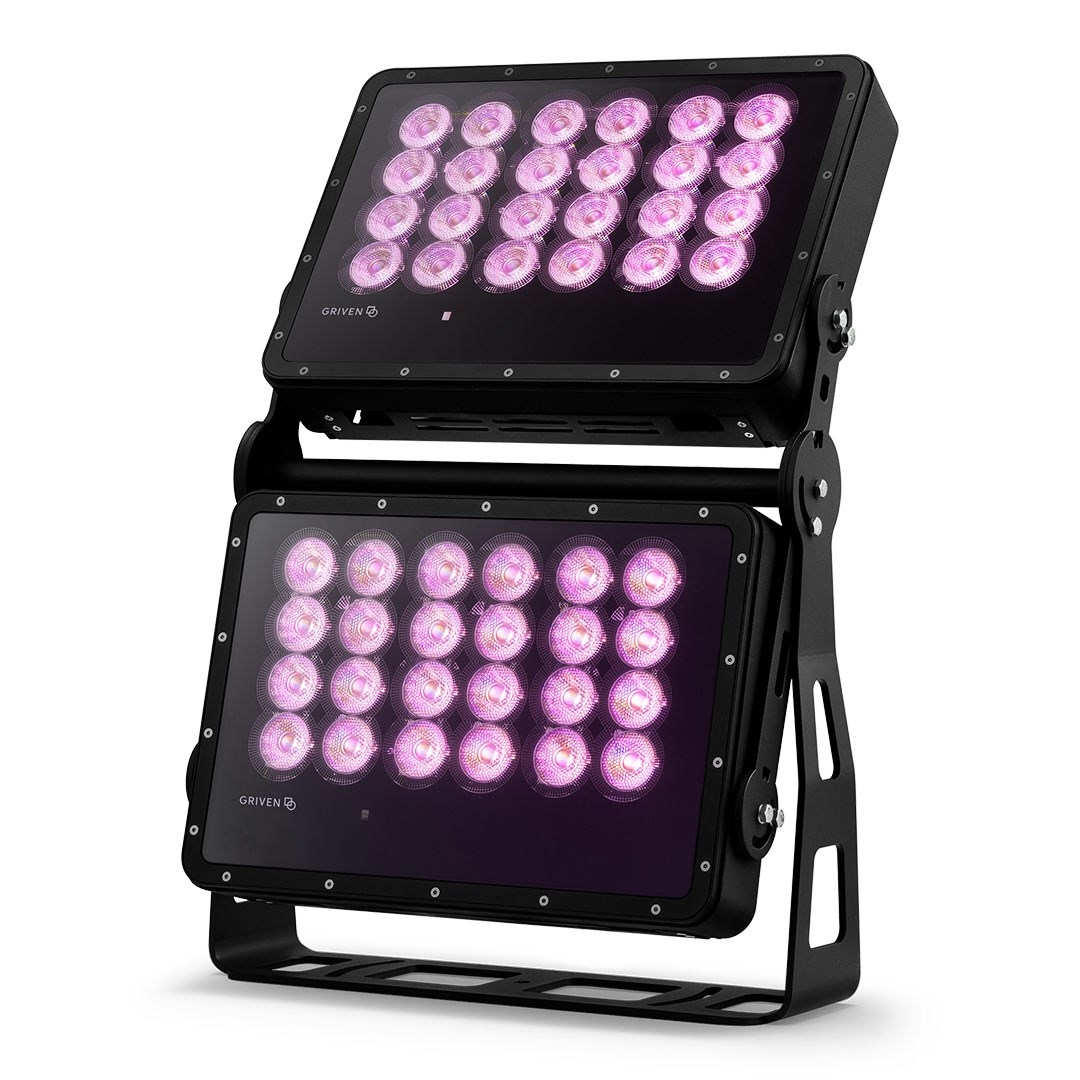

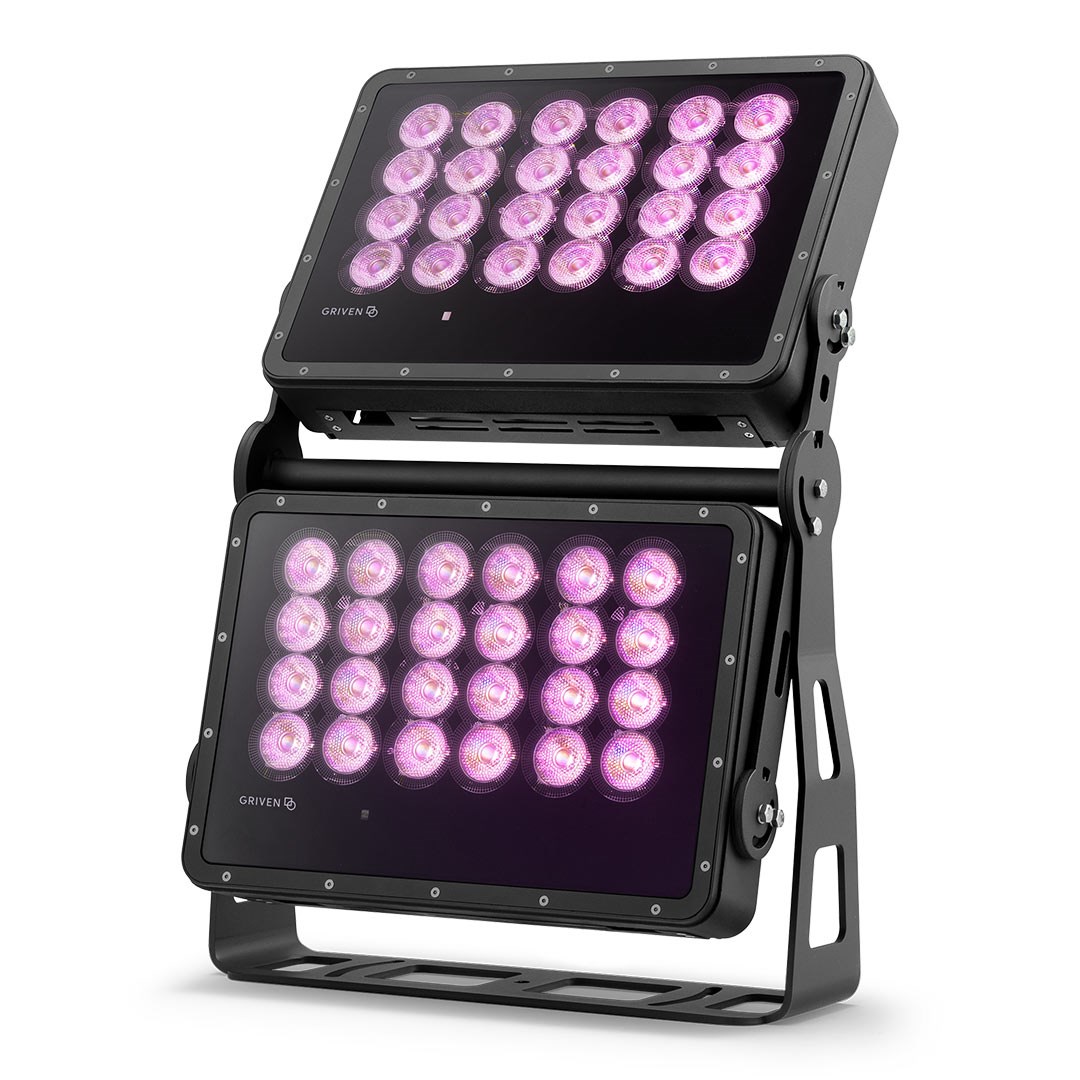

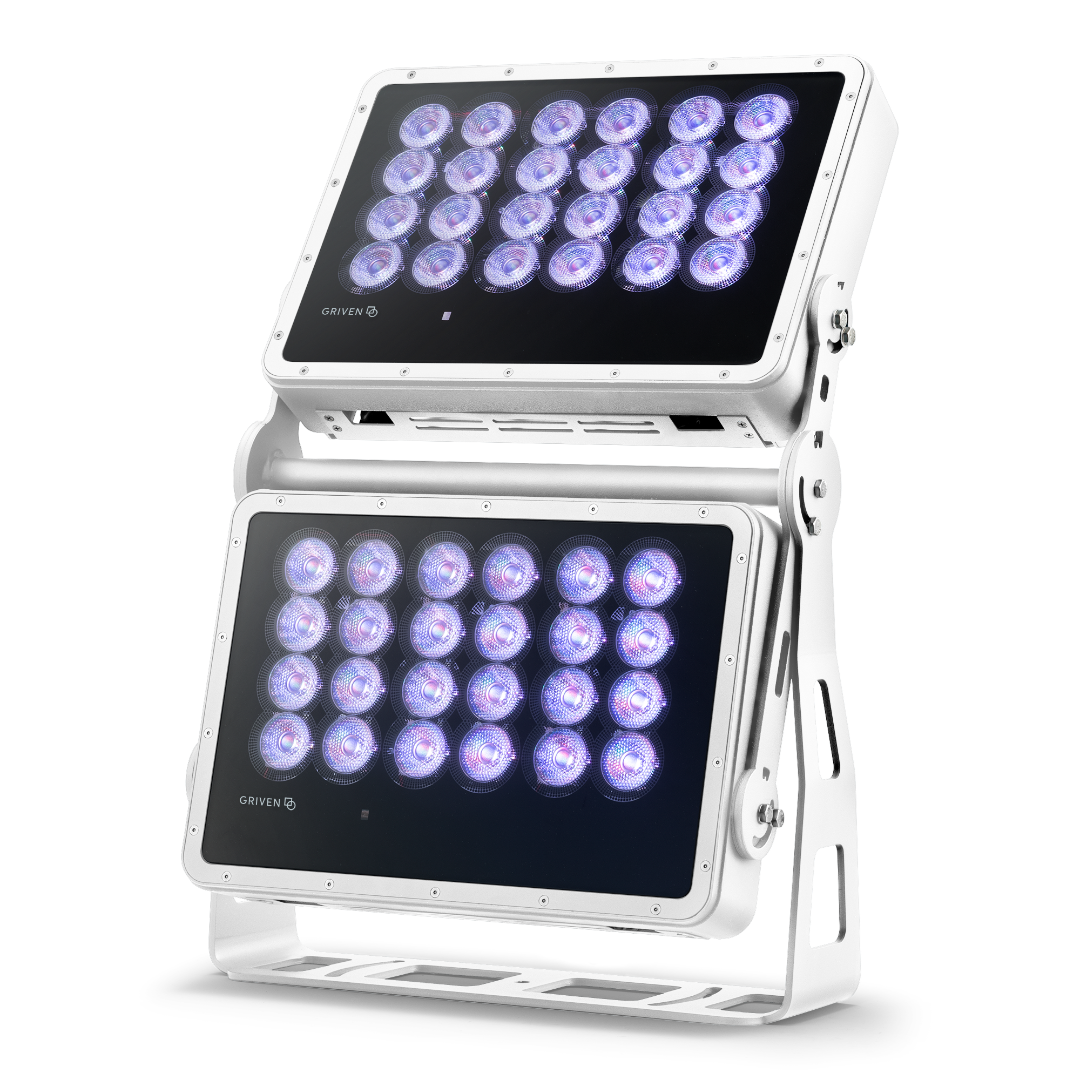

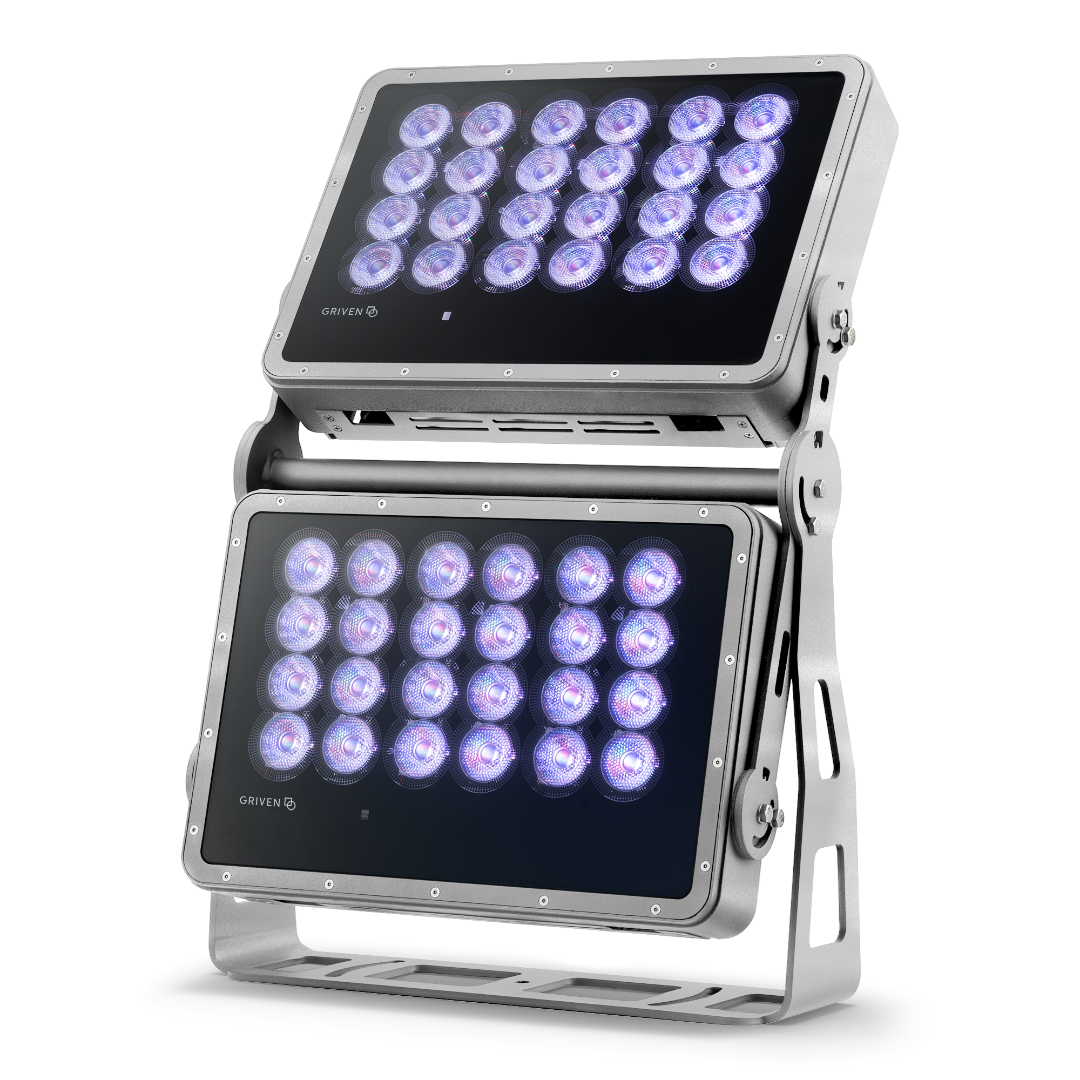

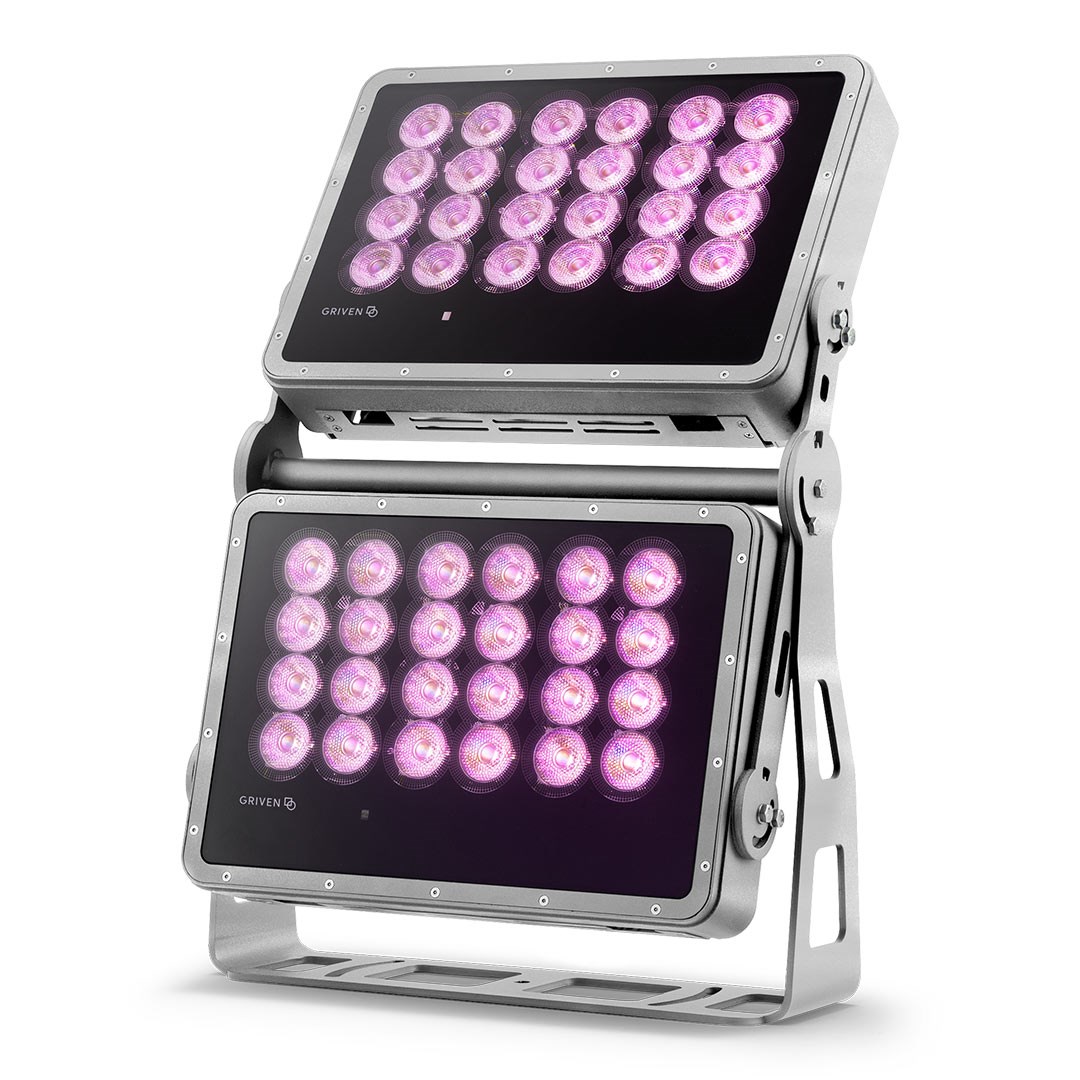

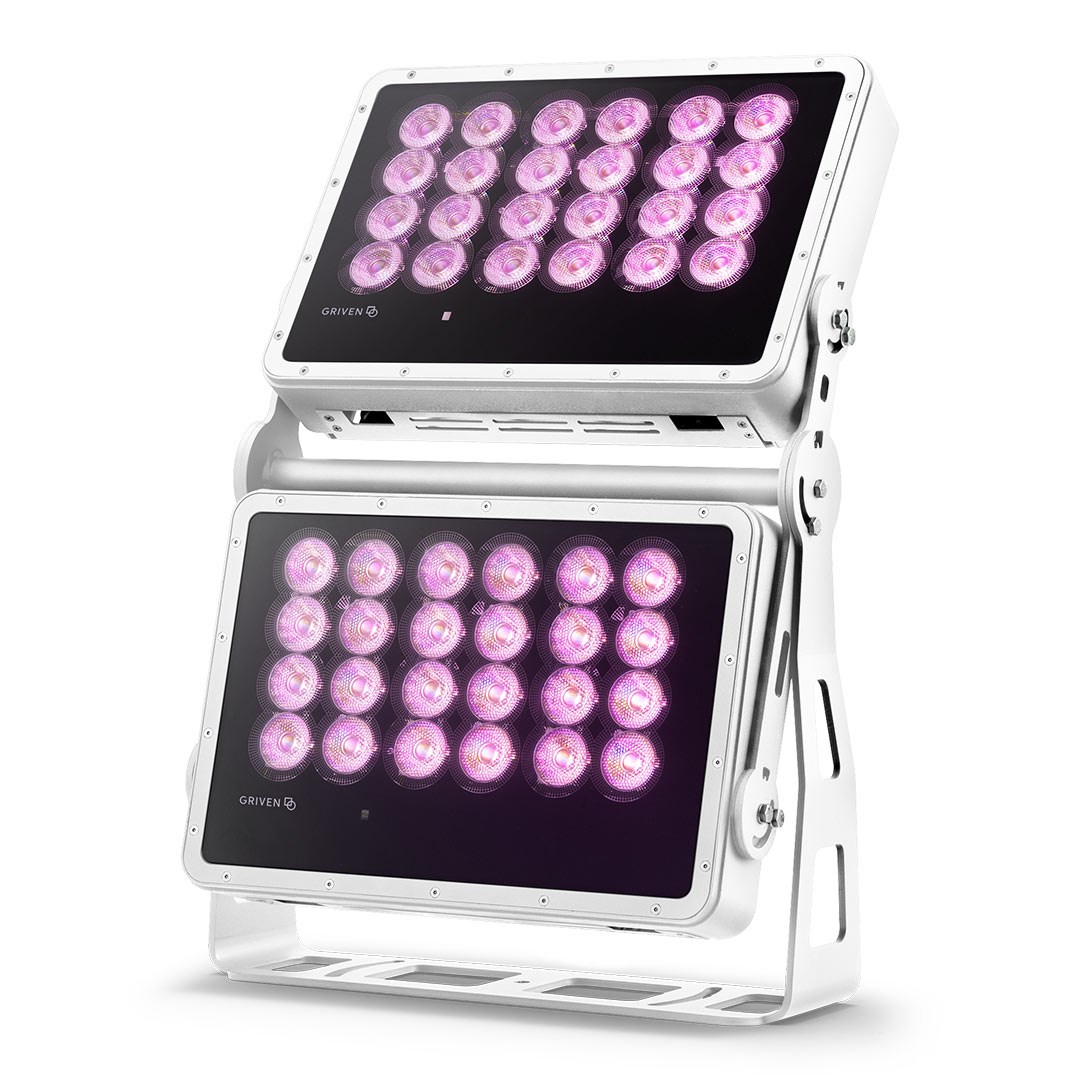

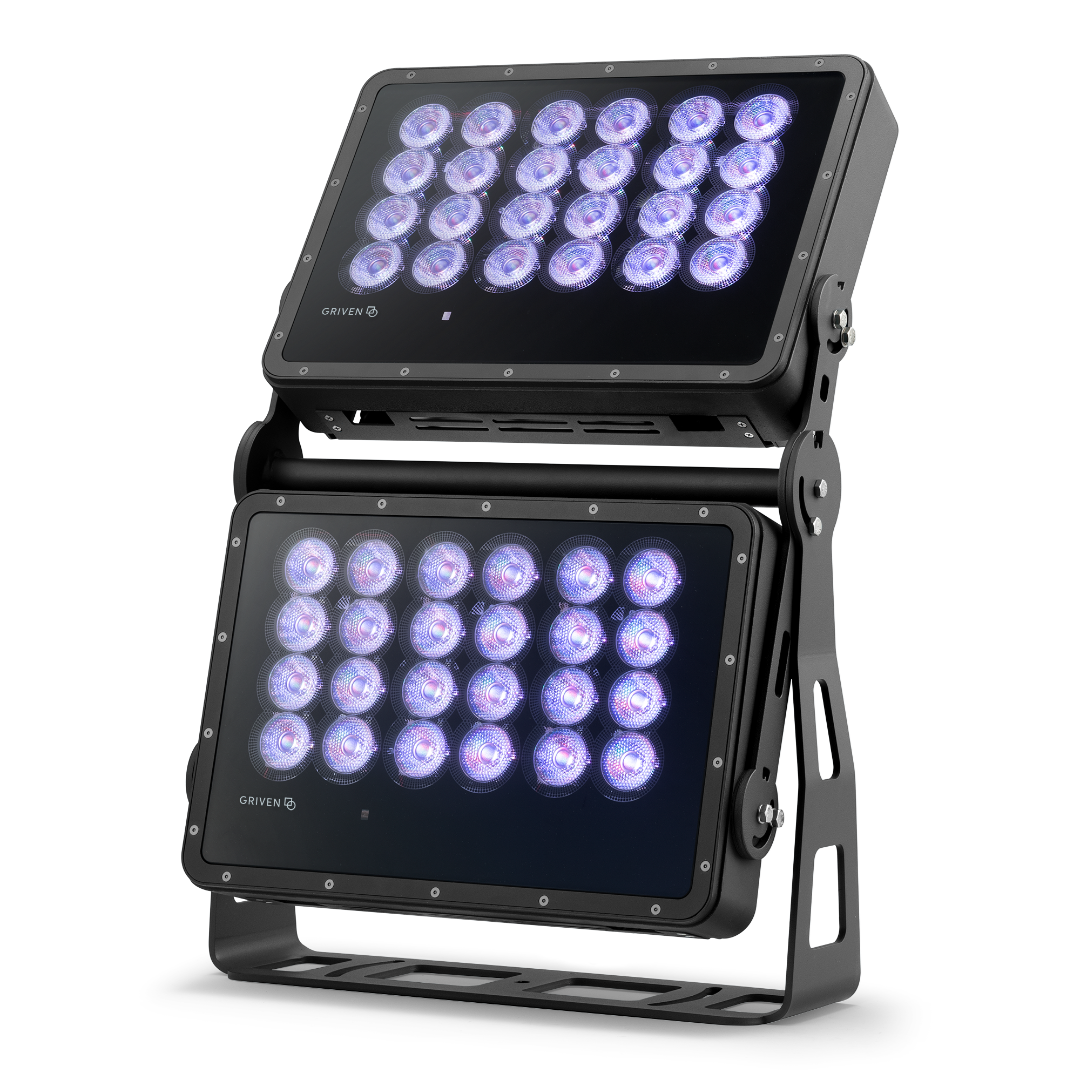

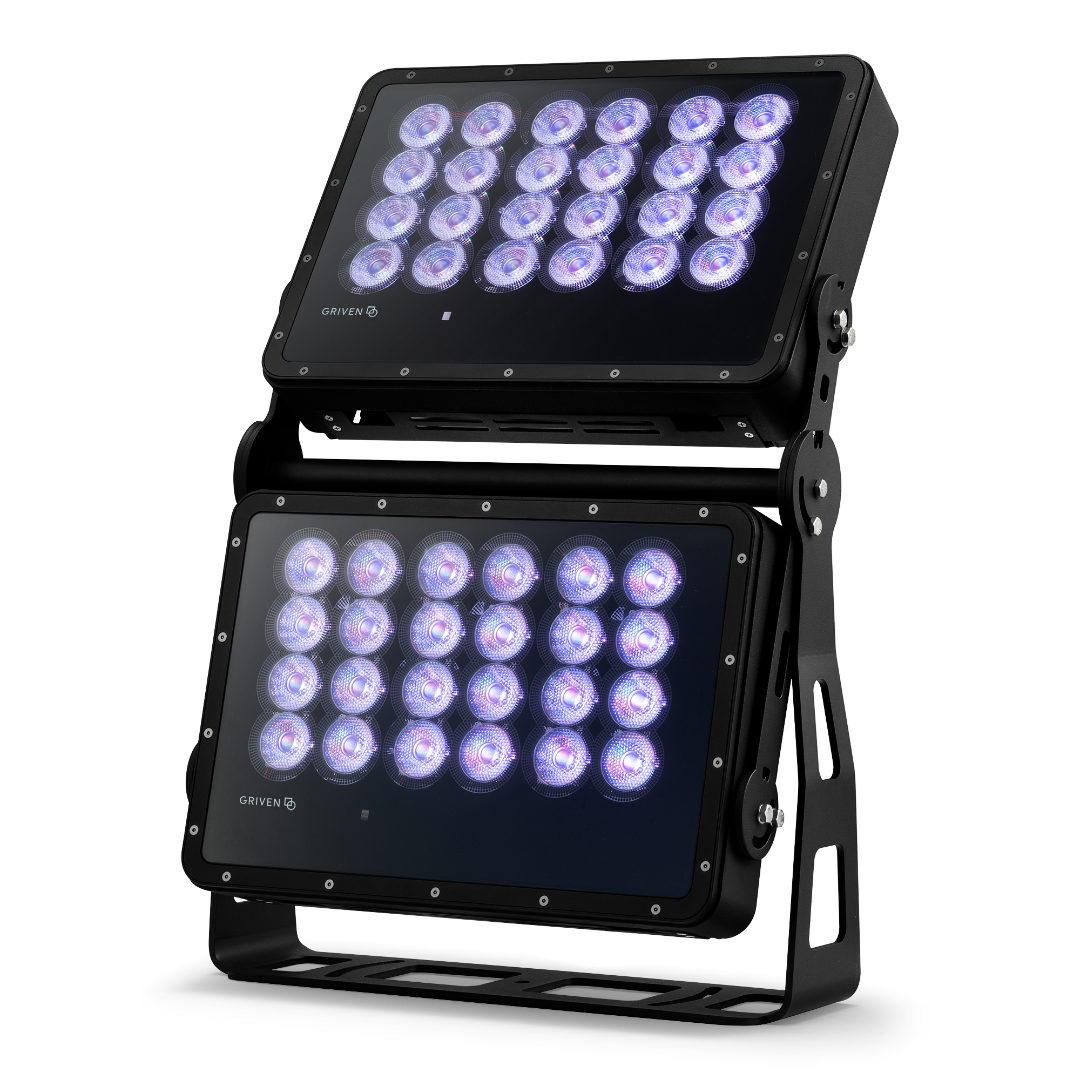

Capital 600 MC RGBW

CP600MC
CP600MCPE Polar Edition

  • Double cluster surface mount powerful floodlight
  • Full independent control of each LED bank
  • Creation of matching or divergent dynamic effects on large-scale façades
  • High brightness RGBW (3000K or 4000K White) multichip power LEDs
  • 20.4" L x 5.9" W x 29.8" H

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: RGBW40K
  • RGBW30K
  • RGBW40K
Contact us  Save product
COLOR CHANGING
print

General Features

CAPITAL 600 MC floodlight is available with a wide choice of combinable optics and color configurations for the maximum lighting design flexibility. Featuring full independent control of each LED luminaire, this twin cluster luminaire system allows absolute freedom in a minimal footprint to create impressive matching or divergent dynamic effects on large-scale façades and architectural elements from a long distance with surprising luminous output.
Color configuration
High brightness multichip RGBW (3000K or 4000K White)
Optical configuration
7° SP (Spot)
10° NB (Narrow)
23° MB (Medium)
35° WB (Wide)
Max. Delivered lumen output
up to 23,004 lumens (11,502 lumens per luminaire)
Max. lumen/Watt
Up to 43 lumens per watt per luminaire
Input voltage
120 - 277V
Amperage
4.43A @ 120V (532 Watts), 1.92A @ 277V (532 Watts)
Power consumption
532 Watts (266 Watts per Luminaire)
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility.


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • ETL Listed

Optional Features

  • Optional Polar
