Capital 600 Ultra Spot Dynamic White

All products spot/flood/wash capital 600Capital 600 Ultra Spot Dynamic White

Capital 600 Ultra Spot Dynamic White

CP600US
CP600USPE Polar Edition

Double cluster surface mount powerful floodlight
Full independent control of each LED bank
Creation of matching or divergent dynamic effects on large-scale façades
20.4" L x 5.9" W x 29.8" H

View finishes: Anthracite Grey

View Swivel:

View Housing Material:

View LED colour configuration: From 2700K to 6500K

Contact us Save product

DYNAMIC WHITE

Capital 600 Ultra Spot Dynamic White18356

print

Capital 600 Ultra Spot Dynamic White

General Features

CAPITAL 600 US accentuates the designer’s palette with an ultra-narrow 3.2° beam using 60 high-power LEDs fitted with precision optics. Grazing of vertical columnar features or illumination of objects at distance both benefit from the high-performance of this luminaire.

Color configuration

High brightness Dynamic White LEDs with an adjustable color temperature range between 2700K and 6500K

Optical configuration

3.2° US (Ultra Spot)

Max. Delivered lumen output

Up to 19,940 lumens (9970 lumens per luminaire)

Max. lumen/Watt

Up to 64 lumens per watt

Input voltage

120 - 277V

Amperage

1.13A @ 277V (312 Watts), 2.6A @ 120V (312 Watts)

Power consumption

312 Watts (156 Watts per Luminaire)

Ingress protection rating

IP67

Impact resistance rating

IK09

External operating limits

-40°C to 50°C / (-40°F to 122°F)

Warranty

Five Year Limited Warranty

Accessories

Optional optical distribution and mounting accessories available for the utmost design flexibility.

Overview

Optional Features

Downloads

Specification Sheet

Specification Sheet

Configuration

User Manual

Pictures

IES

REVIT

Configuration

Capital 600 Ultra Spot Dynamic White

Model

Capital 600 US
Capital 600 US Polar Edition

Color

From 2700K to 6500K

Control

DMX/RDM

Cable

Power In, DMX In, DMX Out
Monocable With Connectors
Monocable Without Connectors

Voltage

120-277V

Optic (Top Luminaire)

Ultra Spot 3.2°

Optic (Bottom Luminaire)

Ultra Spot 3.2°

Finish

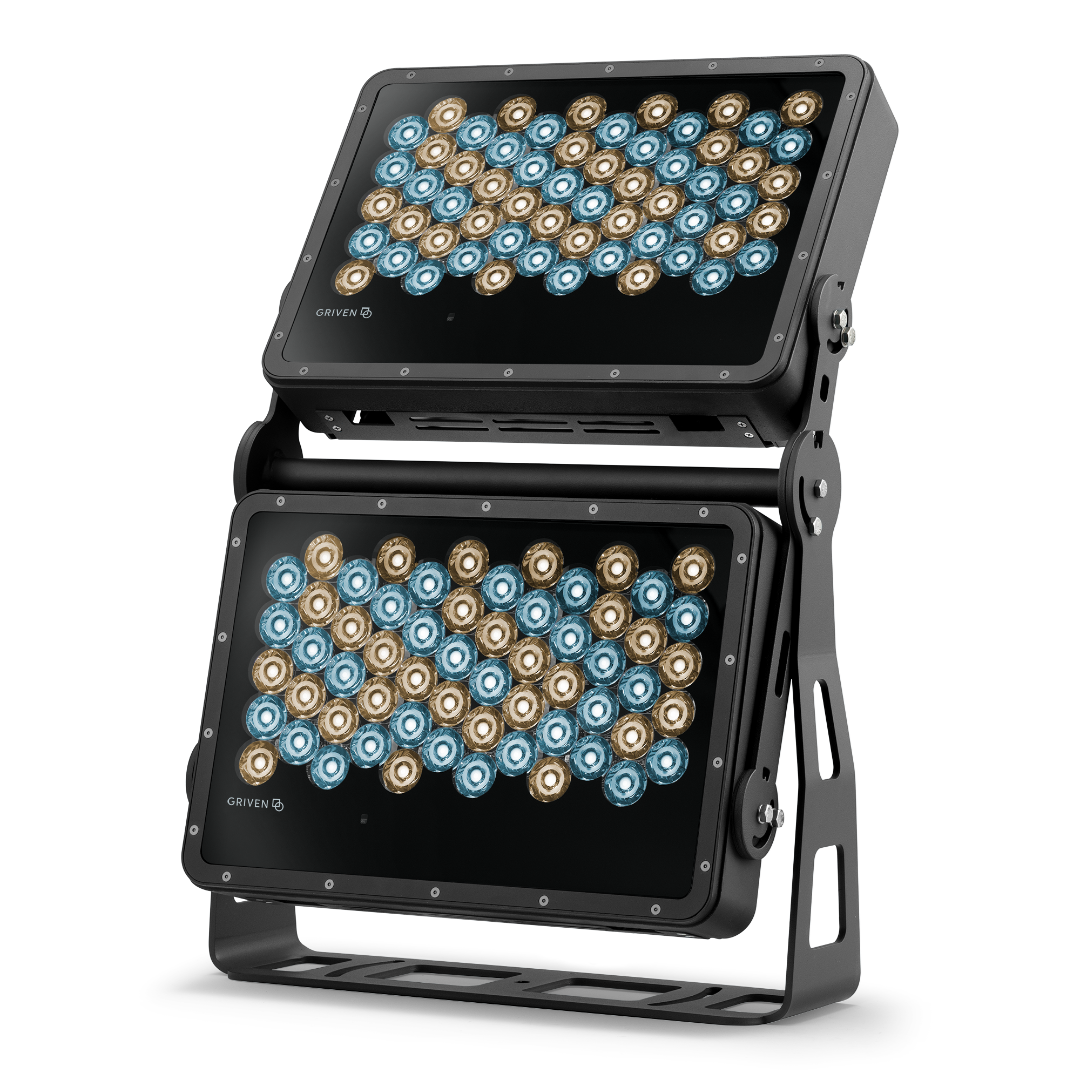

Anthracite Grey

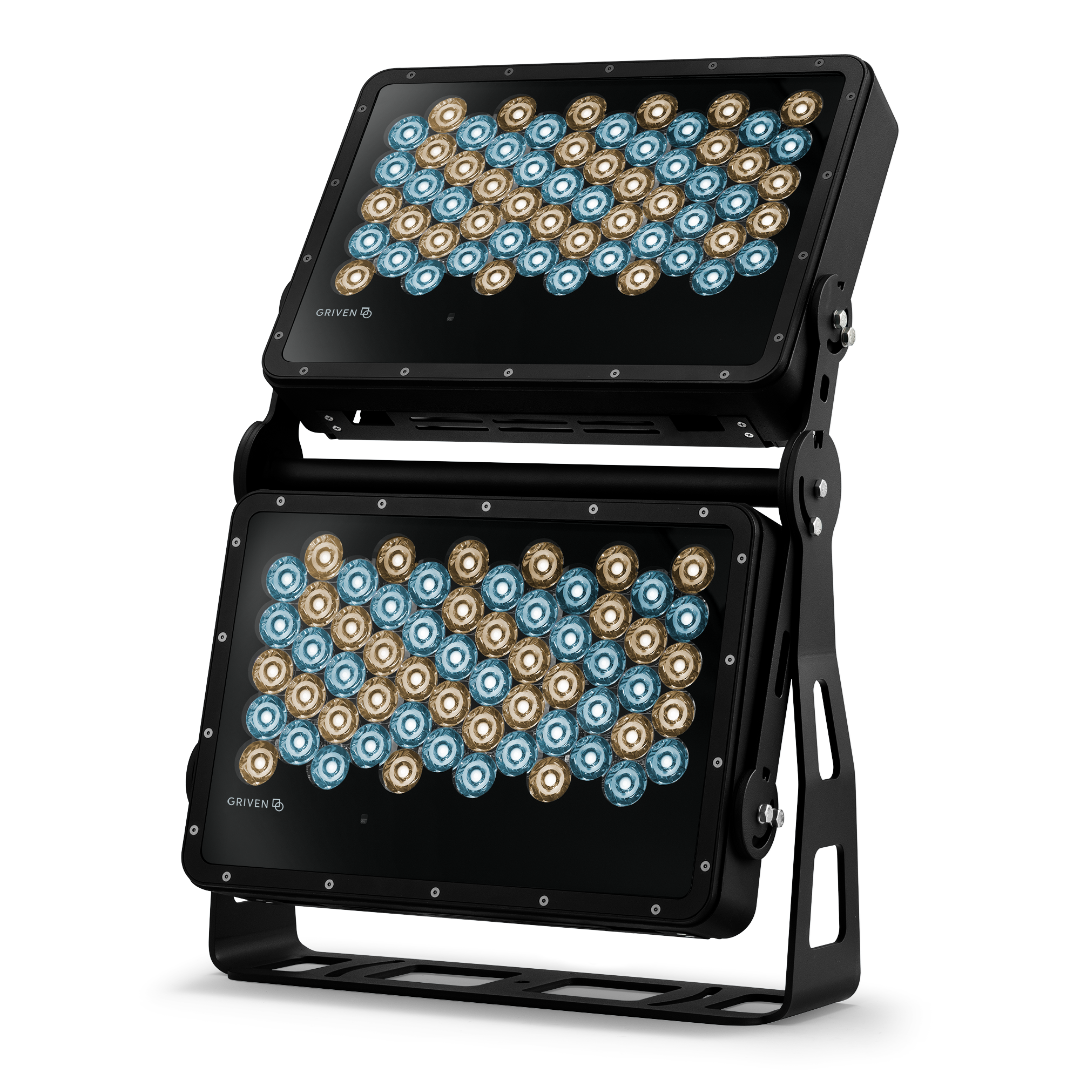

Black

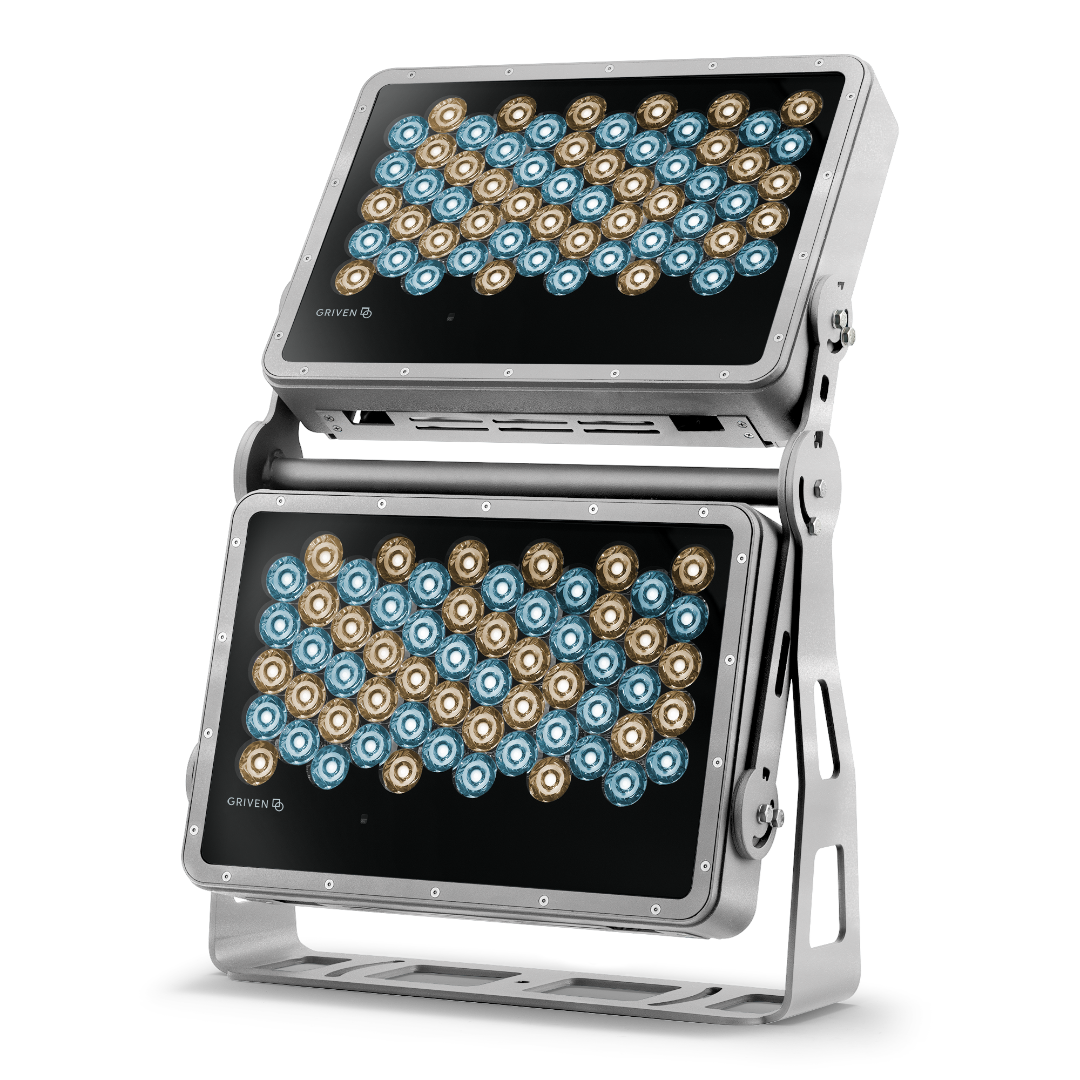

Griven Silver Grey

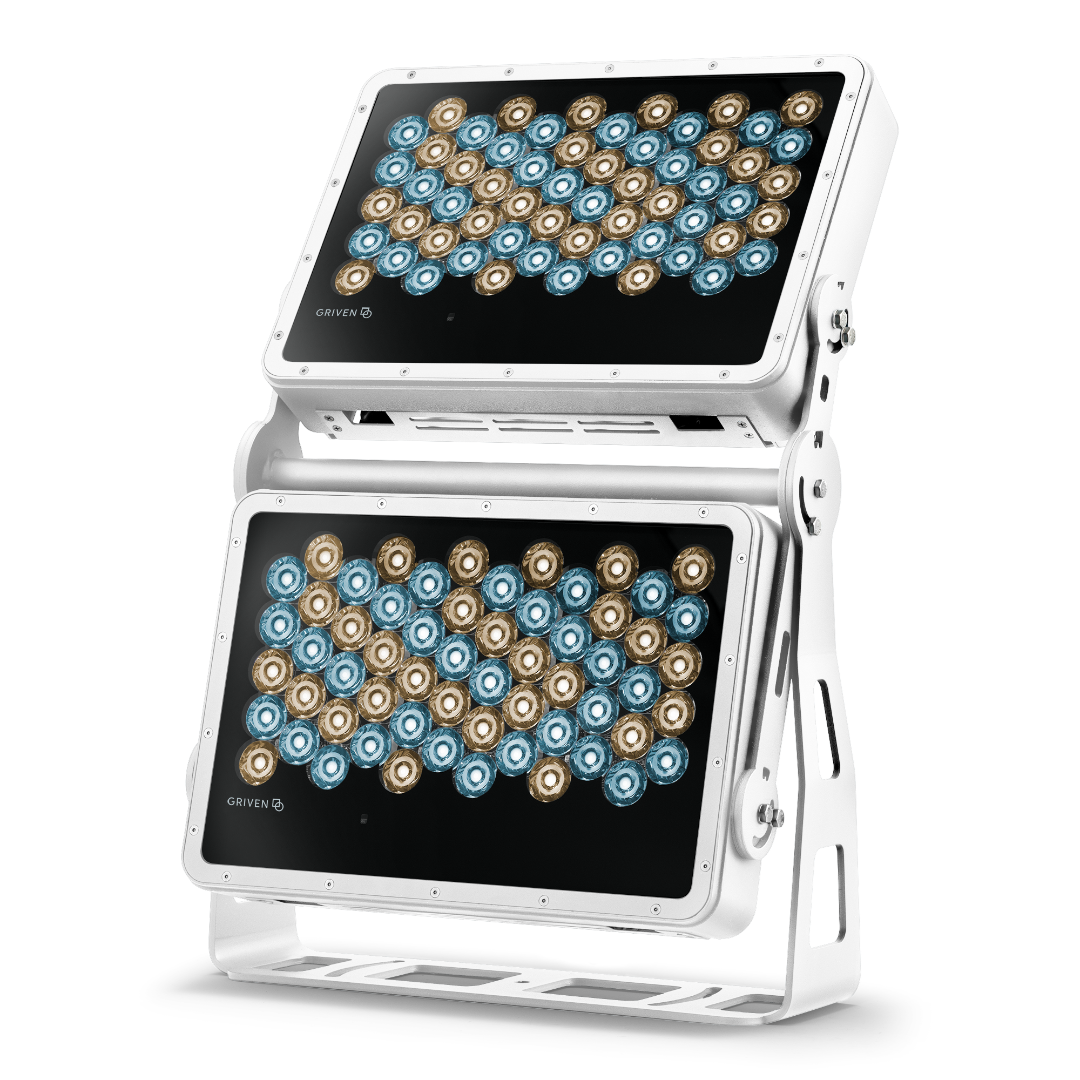

White

Option

Anti-Saline Treatment
3G Mounting Yoke

Optional Accessories

Infrared Configuration Remote

Infrared Configuration Remote

IR-CONFIG-REMOTE

Control & Installation Solutions

Snoot

Snoot

CP300-SNOOT-XX

Control & Installation Solutions

Visor

Visor

CP300-VISOR-XX

Control & Installation Solutions

Wire guard

Wire guard

CP300-WIREGUARD-XX

Control & Installation Solutions

Connection Kit for 2 Power Supplies and 4 DALI Cables:

Connection Kit for 2 Power Supplies and 4 DALI Cables: "D" Cable Type

GRIVEN-CON-KIT-8262

Control & Installation Solutions

Connection Kit for 4 DALI Monocable:

Connection Kit for 4 DALI Monocable: "M" Cable Type

GRIVEN-CON-KIT-8299

Control & Installation Solutions

Connection Kit for 2 Power Supplies and 4 DMX Cables:

Connection Kit for 2 Power Supplies and 4 DMX Cables: "S" Cable Type

GRIVEN-CON-KIT-8327

Control & Installation Solutions

Connection Kit for 4 DMX Monocables:

Connection Kit for 4 DMX Monocables: "M" Cable Type

GRIVEN-CON-KIT-8328
