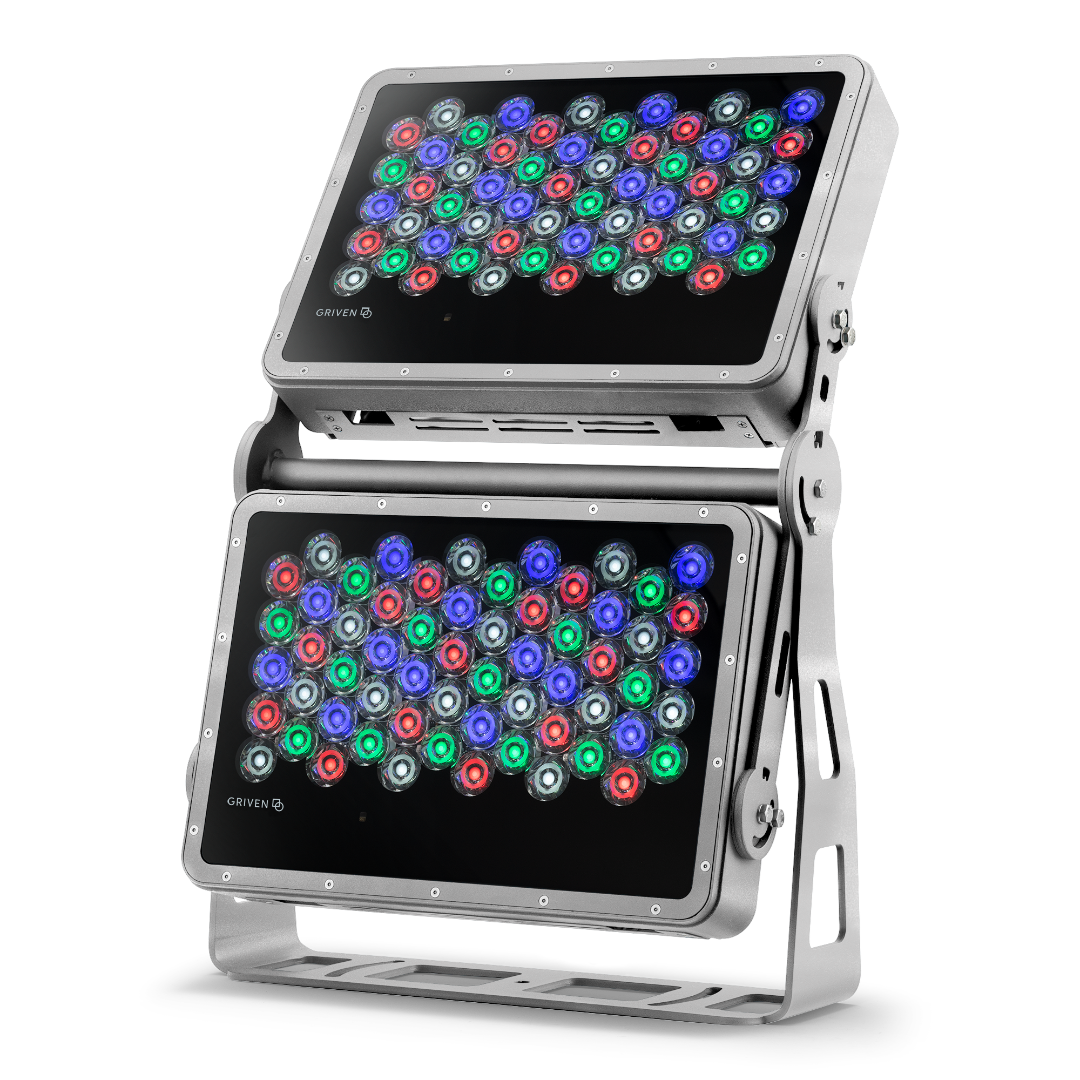

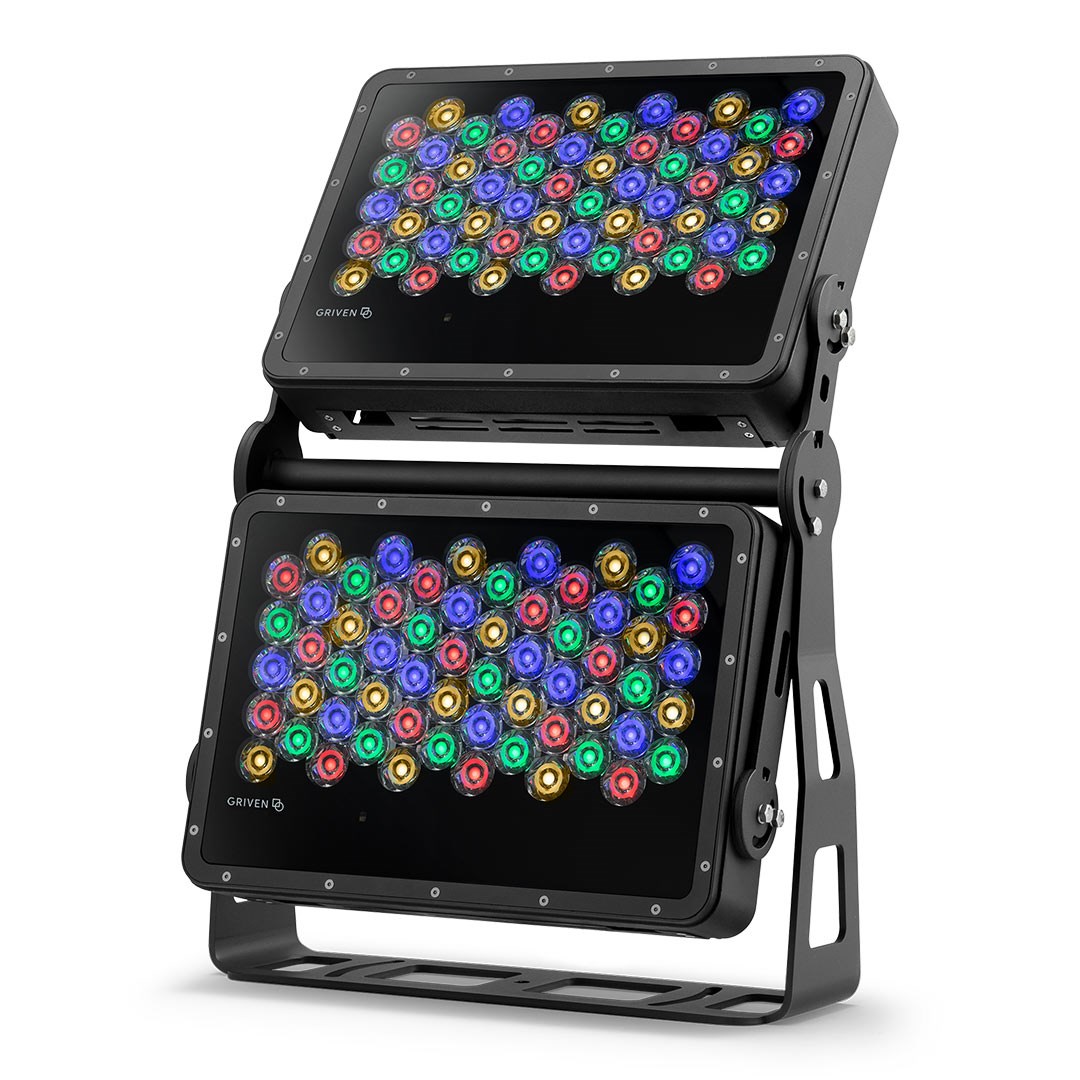

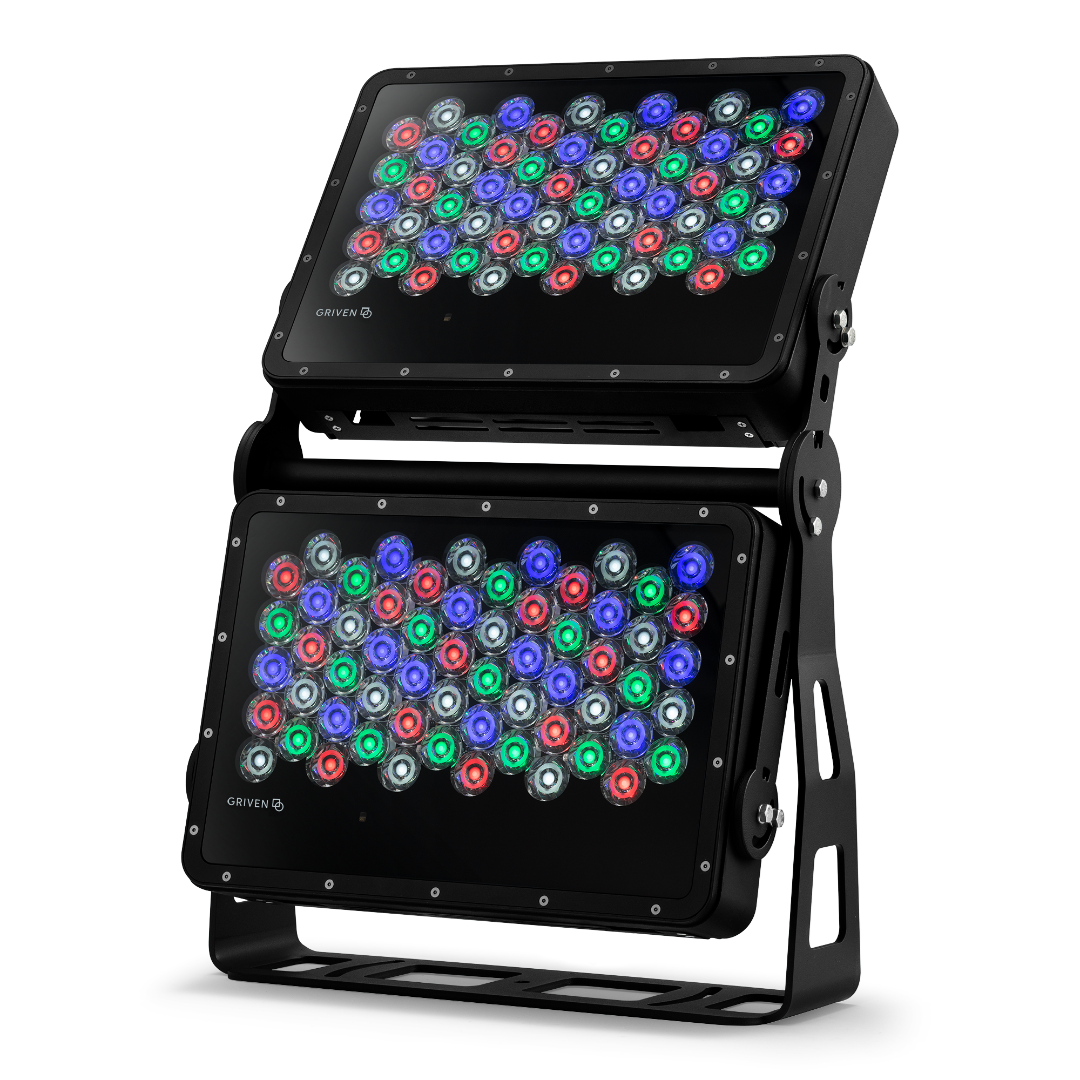

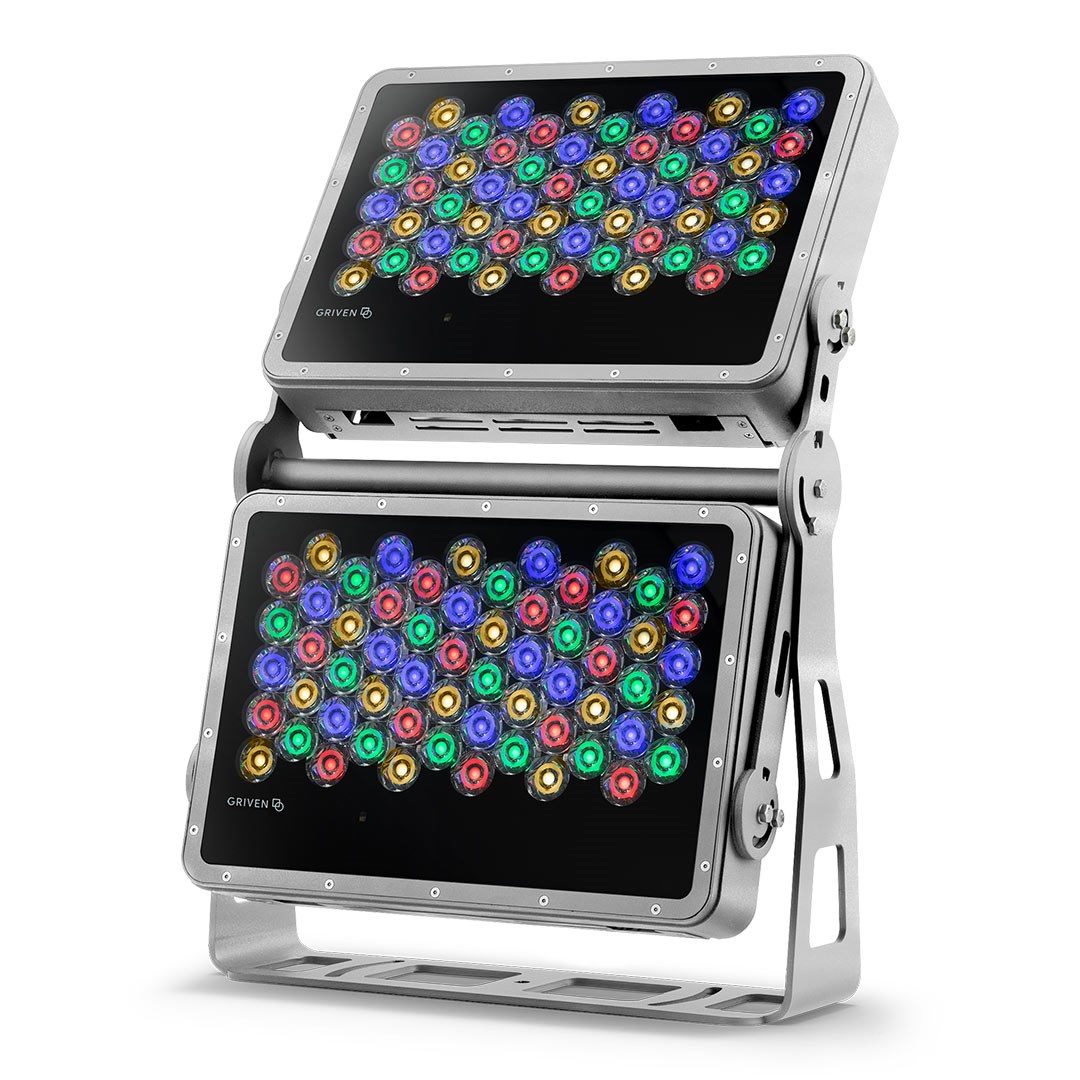

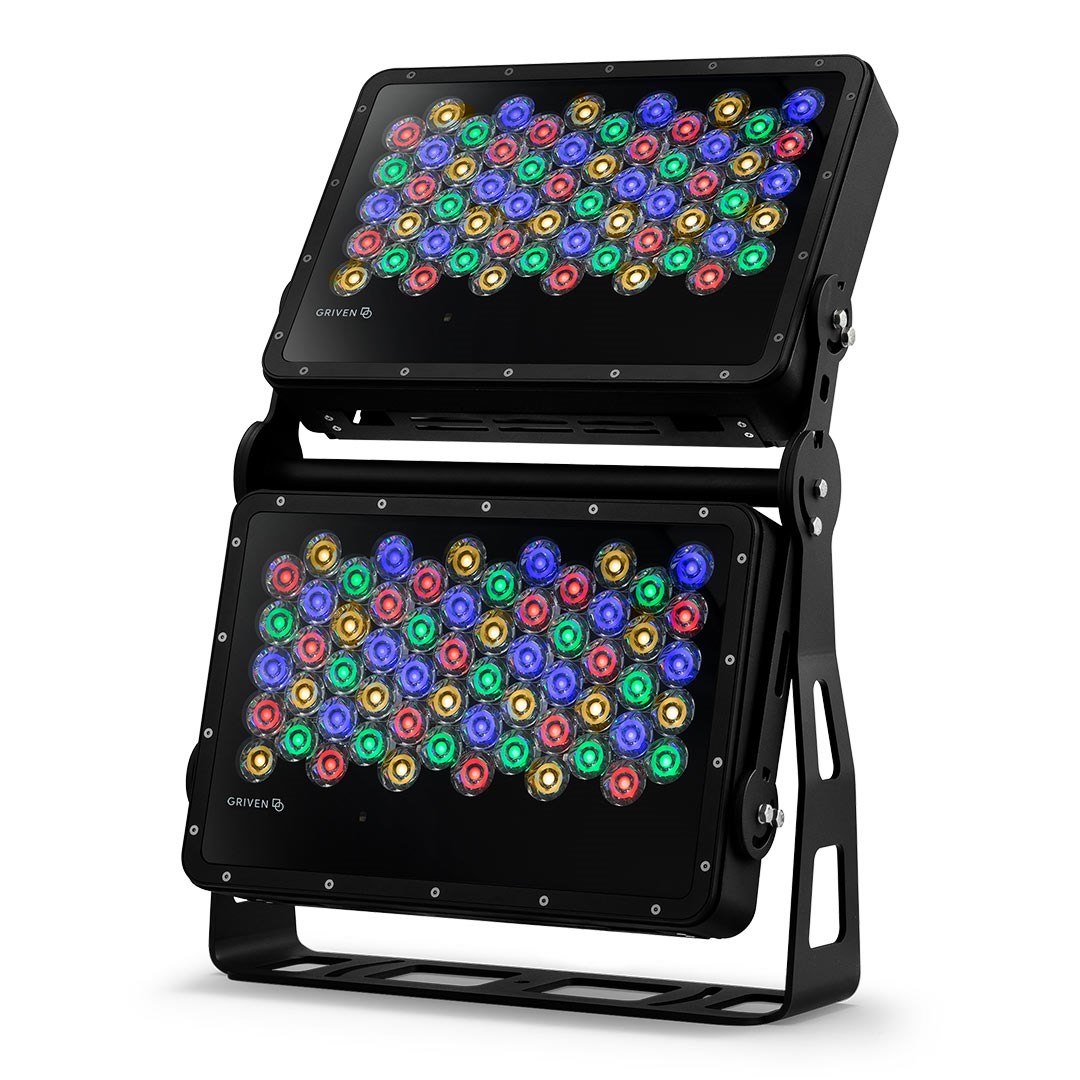

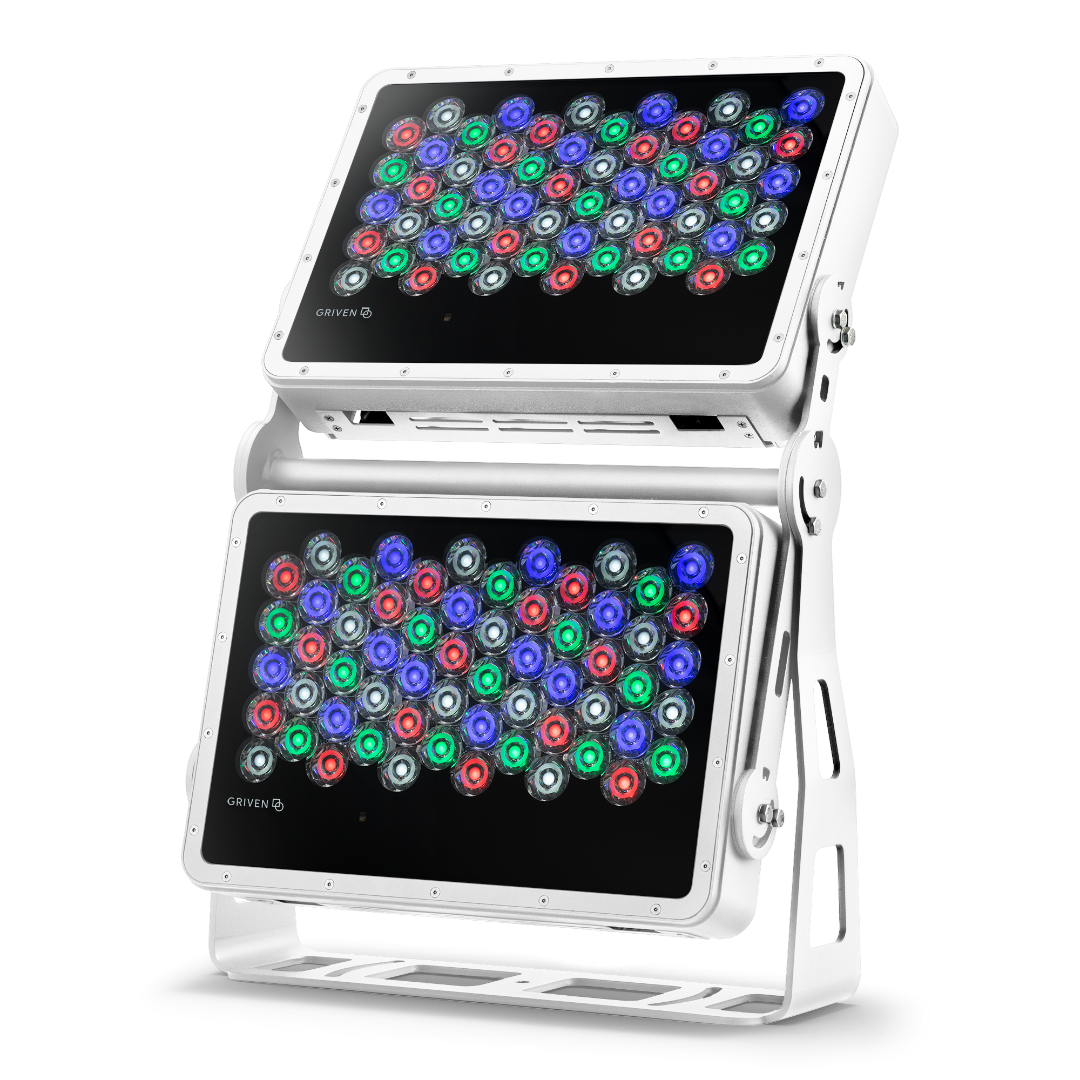

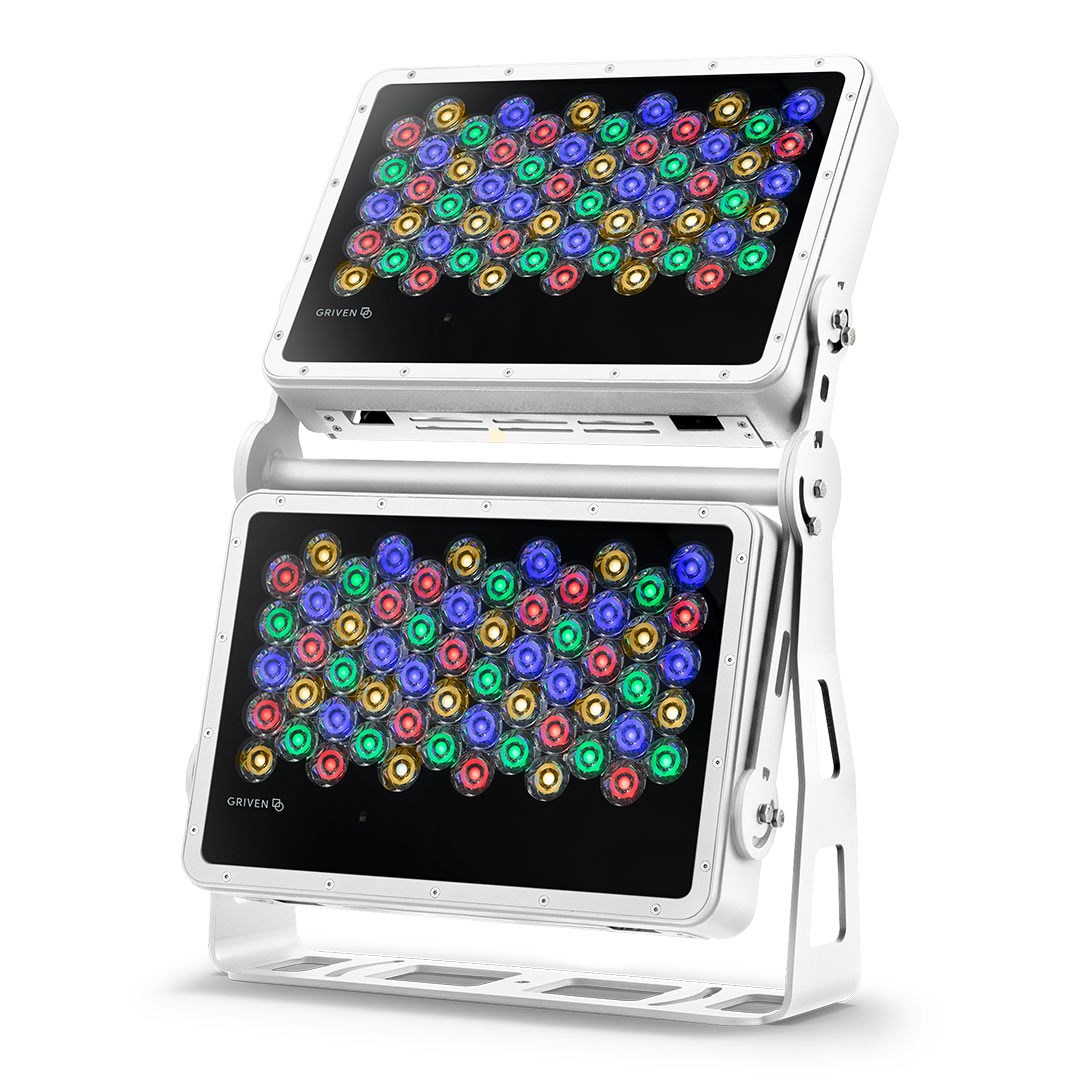

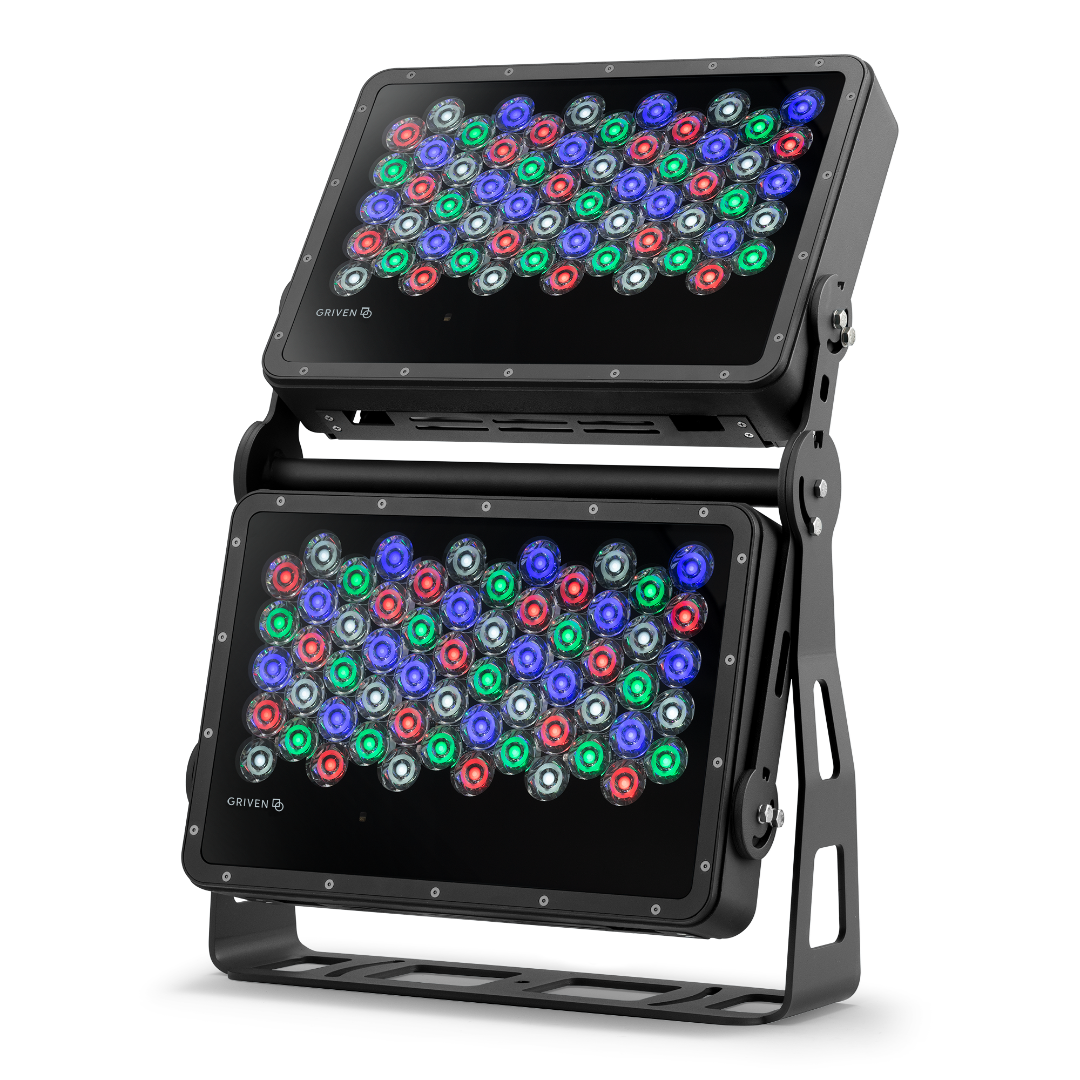

Capital 600 Ultra Spot RGBW

All products spot/flood/wash capital 600Capital 600 Ultra Spot RGBW

Capital 600 Ultra Spot RGBW

CP600US
CP600USPE Polar Edition

Double cluster surface mount powerful floodlight
Full independent control of each LED bank
Creation of matching or divergent dynamic effects on large-scale façades
High brightness RGB+W 3000K or 4000K power LEDs
20.4" L x 5.9" W x 29.8" H

View finishes: Anthracite Grey

View Swivel:

View Housing Material:

View LED colour configuration: RGBW40K

Contact us Save product

COLOR CHANGING

Capital 600 Ultra Spot RGBW18214

print

Capital 600 Ultra Spot RGBW

General Features

CAPITAL 600 US accentuates the designer’s palette with an ultra-narrow 3.2° beam using 60 high-power LEDs fitted with precision optics. Grazing of vertical columnar features or illumination of objects at distance both benefit from the high-performance of this luminaire.

Color configuration

High brightness RGB+W 3000K or 4000K LEDs

Optical configuration

3.2° US (Ultra Spot)

Max. Delivered lumen output

Up to 13,458 lumens (6729 lumens per luminaire)

Max. lumen/Watt

Up to 43 lumens per watt

Input voltage

120 - 277V

Amperage

1.13A @ 277V (312 Watts), 2.6A @ 120V (312 Watts)

Power consumption

312 Watts (156 Watts per Luminaire)

Ingress protection rating

IP67

Impact resistance rating

IK09

External operating limits

-40°C to 50°C / (-40°F to 122°F)

Warranty

Five Year Limited Warranty

Accessories

Optional optical distribution and mounting accessories available for the utmost design flexibility.

Overview

Optional Features

Downloads

Specification Sheet

Specification Sheet

Overview Presentation

Overview Presentation

Configuration

User Manual

Pictures

IES

REVIT

Configuration

Capital 600 Ultra Spot RGBW

Model

Capital 600 US
Capital 600 US Polar Edition

Color

RGBW (3000K White)
RGBW (4000K White)

Control

DMX/RDM

Cable

Power In, DMX In, DMX Out
Monocable With Connectors
Monocable Without Connectors

Voltage

120-277V

Optic (Top Luminaire)

Ultra Spot 3.2°

Optic (Bottom Luminaire)

Ultra Spot 3.2°

Finish

Anthracite Grey
Black
Griven Silver Grey
White

Option

Anti-Saline Treatment
3G Mounting Yoke

Optional Accessories

Infrared Configuration Remote

Infrared Configuration Remote

IR-CONFIG-REMOTE

Control & Installation Solutions

Snoot

Snoot

CP300-SNOOT-XX

Control & Installation Solutions

Visor

Visor

CP300-VISOR-XX

Control & Installation Solutions

Wire guard

Wire guard

CP300-WIREGUARD-XX

Control & Installation Solutions

Connection Kit for 2 Power Supplies and 4 DALI Cables:

Connection Kit for 2 Power Supplies and 4 DALI Cables: "D" Cable Type

GRIVEN-CON-KIT-8262

Control & Installation Solutions

Connection Kit for 2 Power Supplies and 4 DMX Cables:

Connection Kit for 2 Power Supplies and 4 DMX Cables: "S" Cable Type

GRIVEN-CON-KIT-8327

Control & Installation Solutions

Connection Kit for 4 DMX Monocables:

Connection Kit for 4 DMX Monocables: "M" Cable Type

GRIVEN-CON-KIT-8328

Control & Installation Solutions

Projects

Meliá Hotel, Hanoi

Hospitality

Meliá Hotel, Hanoi

Vietnam, 2016

Novy Arbat, 36, Moscow

Commercial

Novy Arbat, 36, Moscow

Russia, 2014

Bridge On the River Brda, Bydgoszcz

Bridges & Towers

Bridge On the River Brda, Bydgoszcz

Poland, 2014

Belgorod TV tower

Bridges & Towers

Belgorod TV tower

Russia, 2014

TV tower, Krasnodar

Bridges & Towers

TV tower, Krasnodar

Russia, 2011

COLOR CHANGING

Capital 600 Discrete RGBW

Capital 600 Discrete RGBW

Exterior surface mount wash lighting

Spot/Flood/Wash

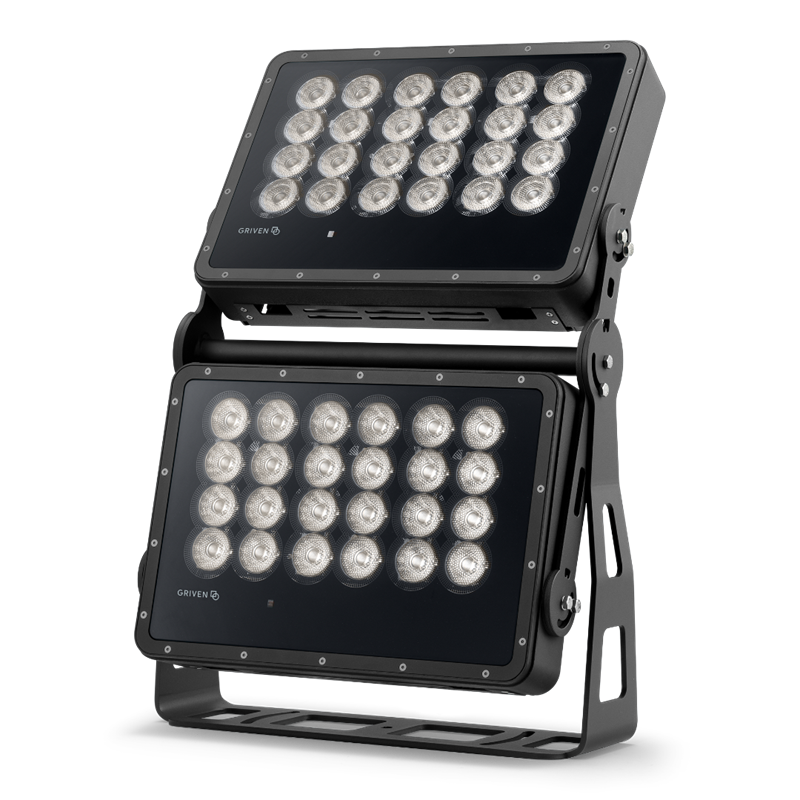

Capital 600 MC RGBW
