Capital 600 Ultra Spot Static White

CP600US
CP600USPE Polar Edition

  • Double cluster surface mount powerful floodlight
  • Full independent control of each LED bank
  • High brightness cold, natural or warm white power LEDs
  • 20.4" L x 5.9" W x 29.8" H

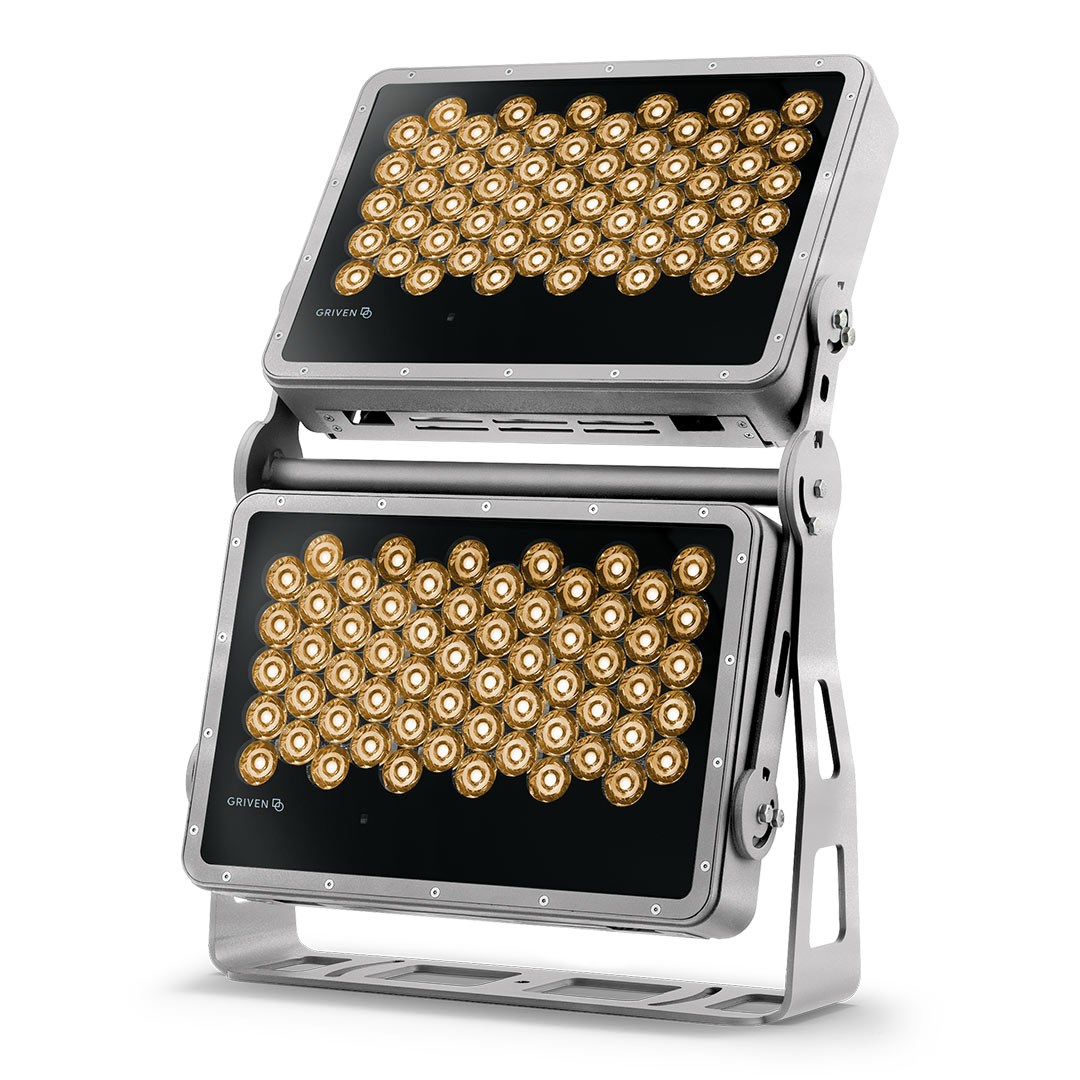

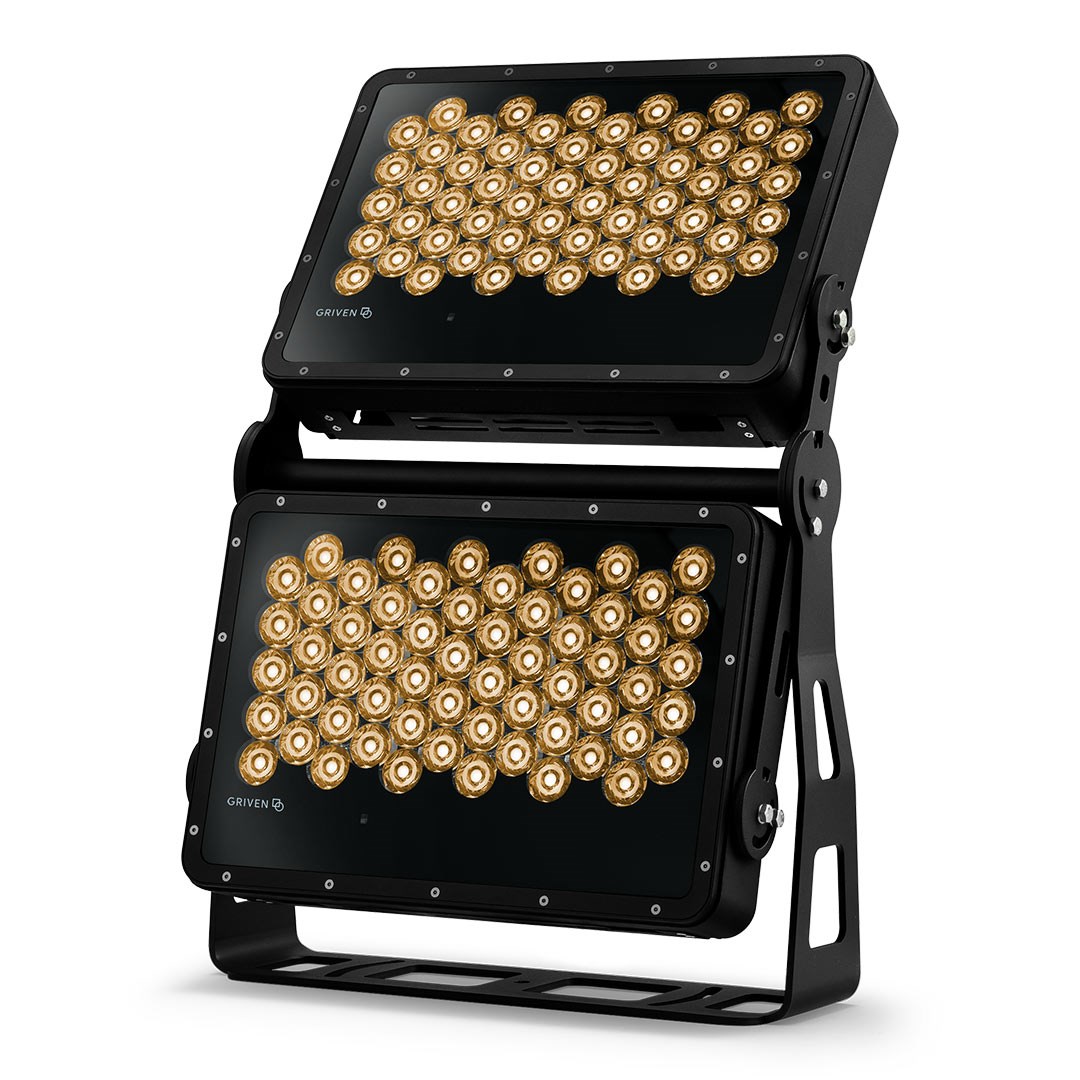

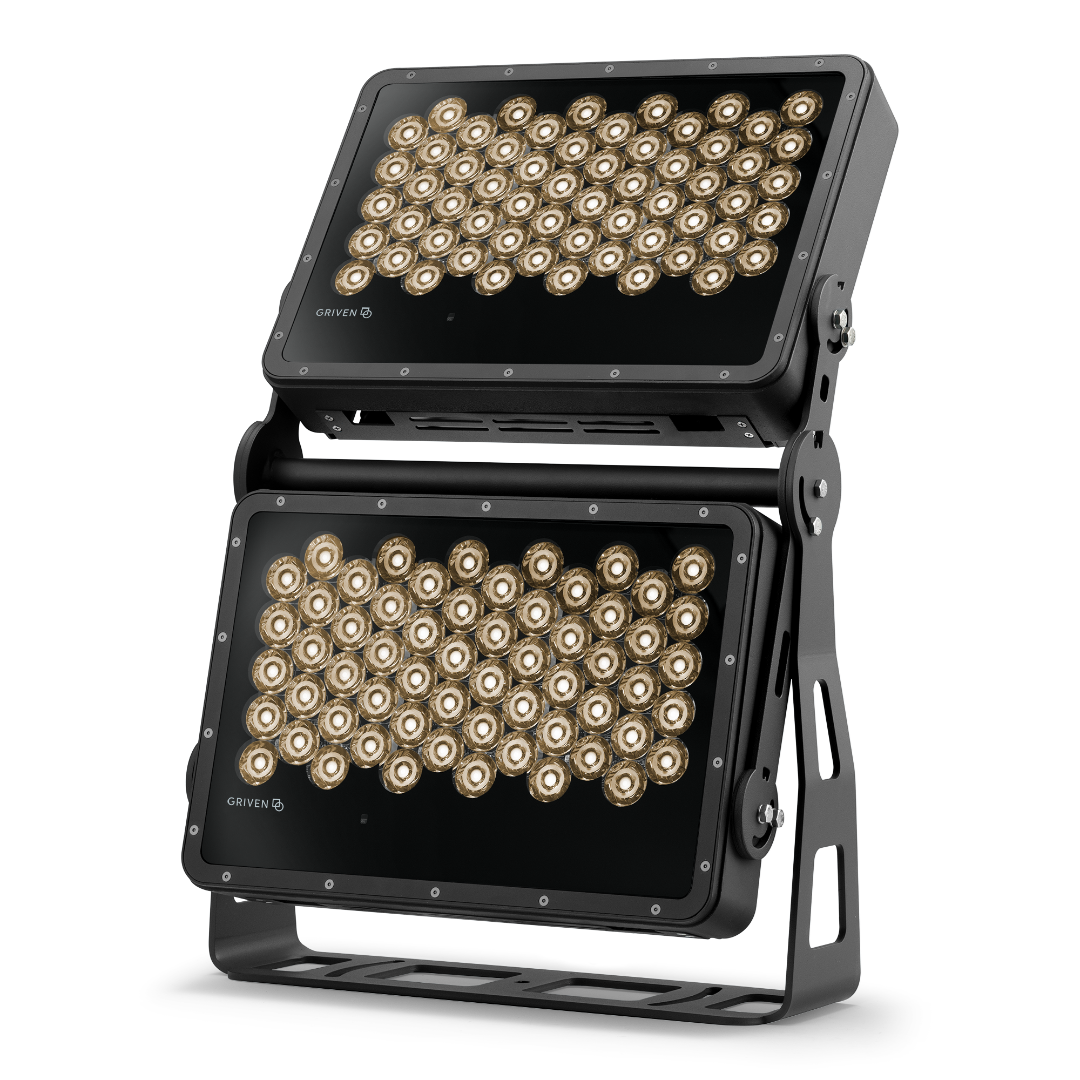

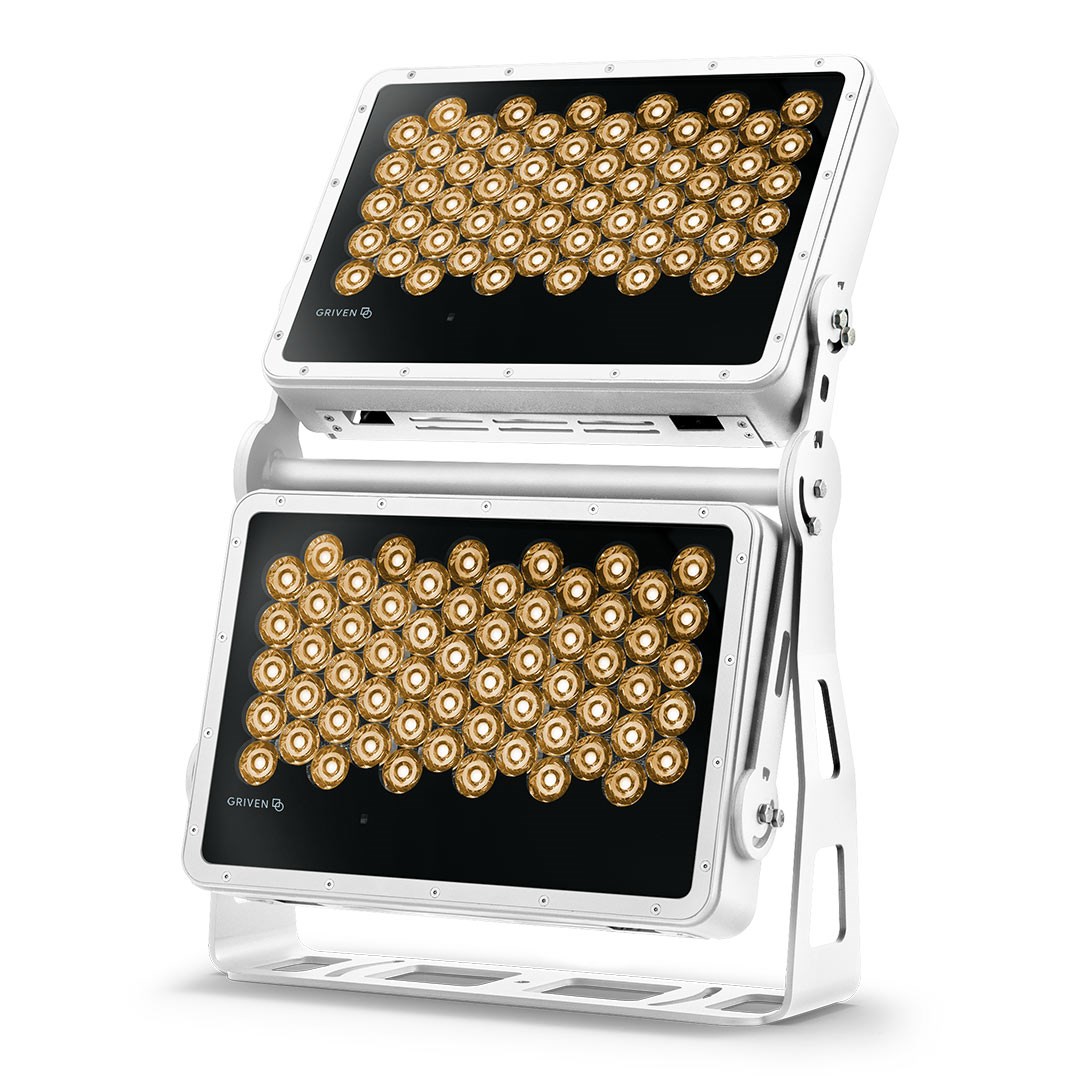

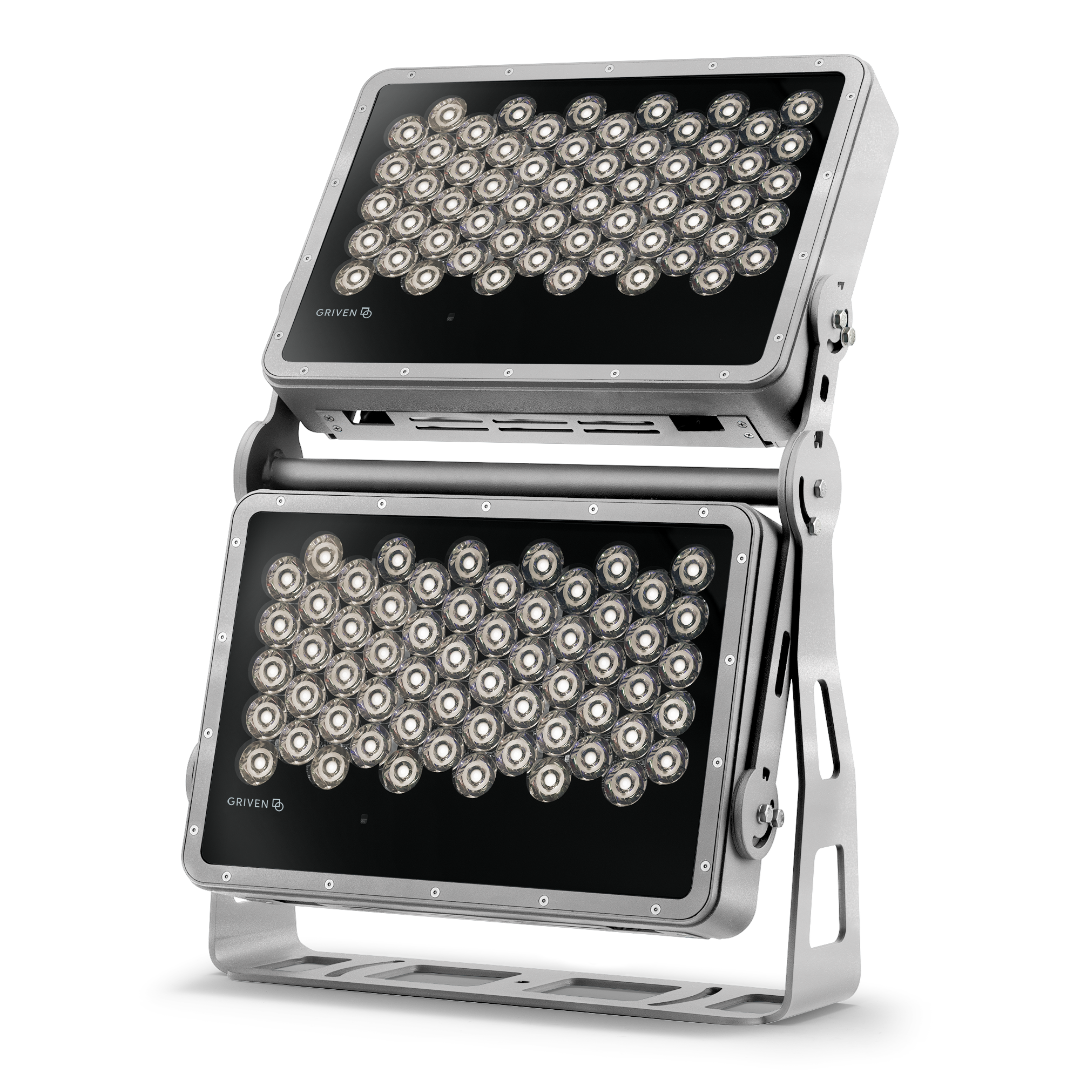

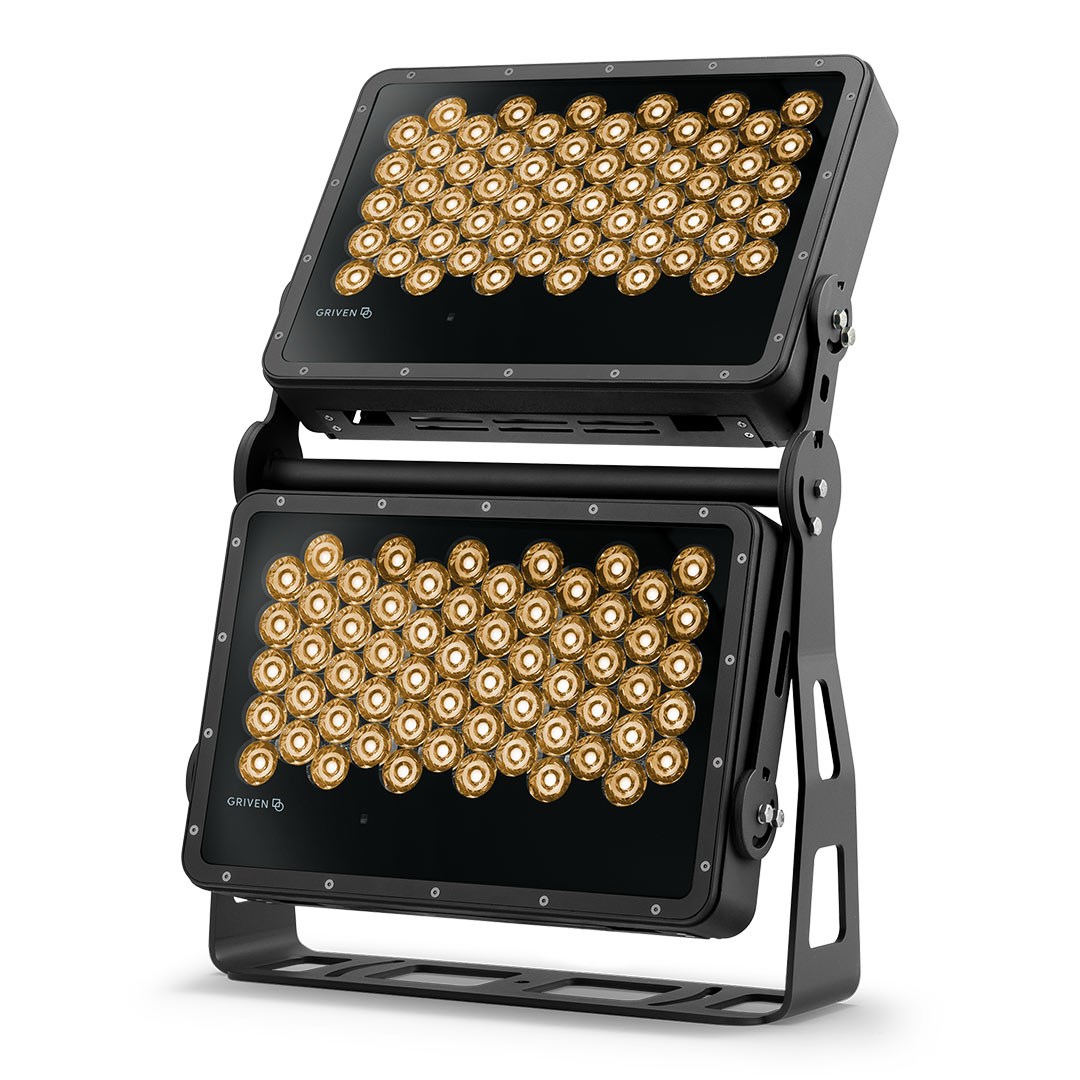

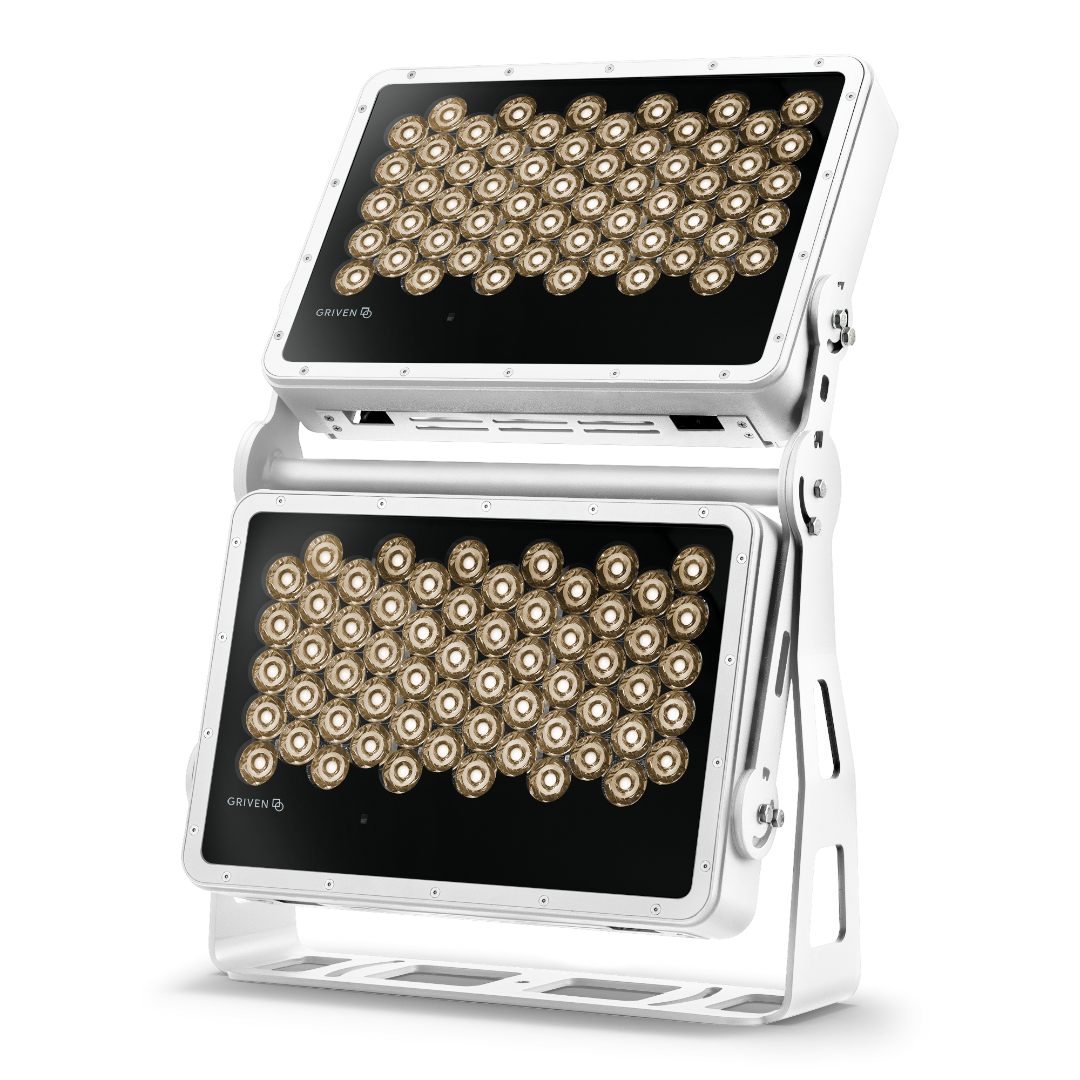

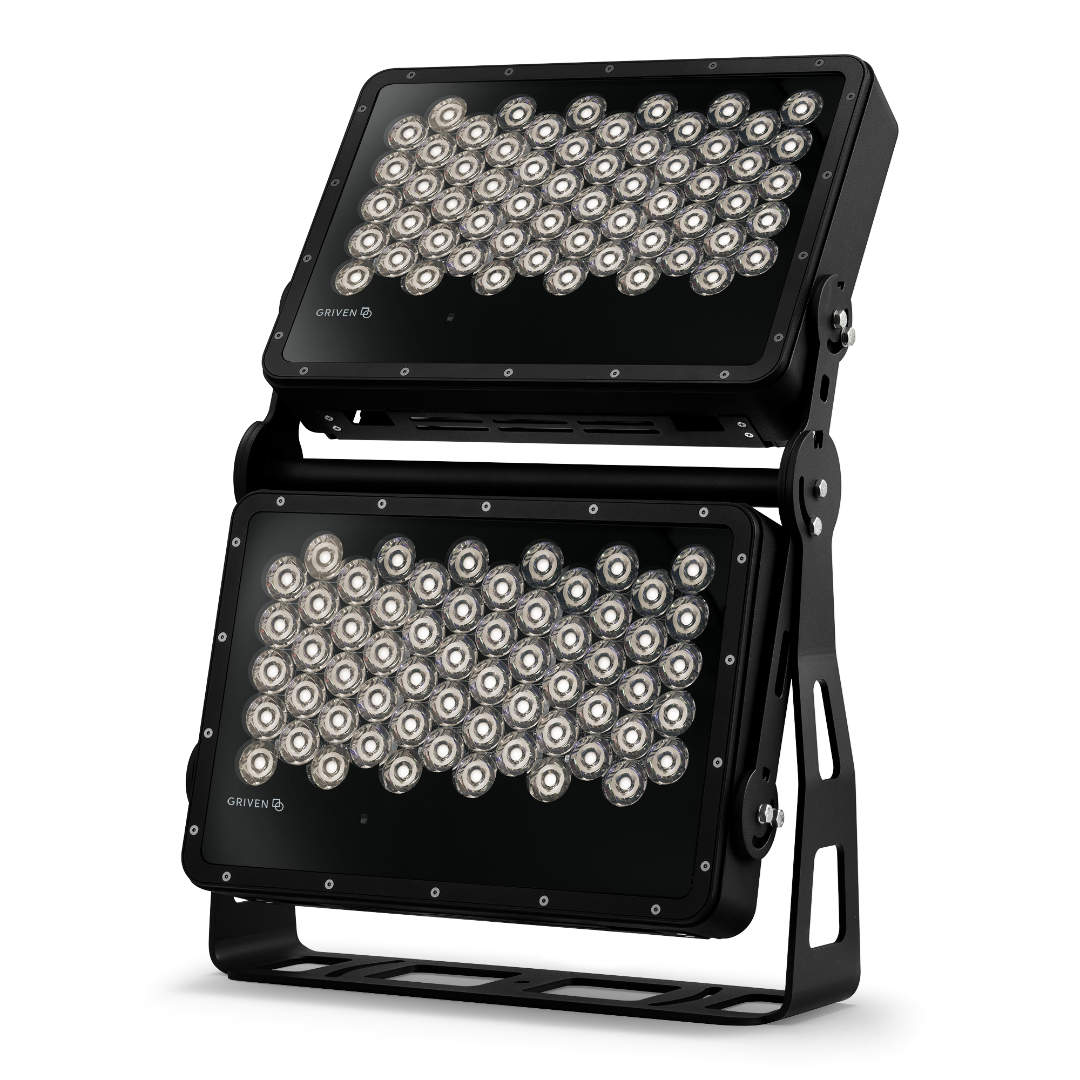

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: Warm White 3000K
  • Warm White 2700K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product
STATIC WHITE
print

Capital 600 Ultra Spot Static White

General Features

CAPITAL 600 US accentuates the designer’s palette with an ultra-narrow 3.2° beam using 120 high-power LEDs fitted with precision optics. Grazing of vertical columnar features or illumination of objects at distance both benefit from the high-performance of this luminaire.
Color configuration
High brightness Natural White, Warm White power LEDs
Optical configuration
3.2° US (Ultra Spot)
Max. Delivered lumen output
Up to 19,858 lumens (9929 lumens per luminaire)
Max. lumen/Watt
Up to 64 lumens per watt
Input voltage
120 - 277V
Amperage
1.13A @ 277V (312 Watts), 2.6A @ 120V (312 Watts)
Power consumption
312 Watts (156 Watts per Luminaire)
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility.


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • Rohs
  • ETL Listed

Optional Features

  • Optional Polar

Downloads
