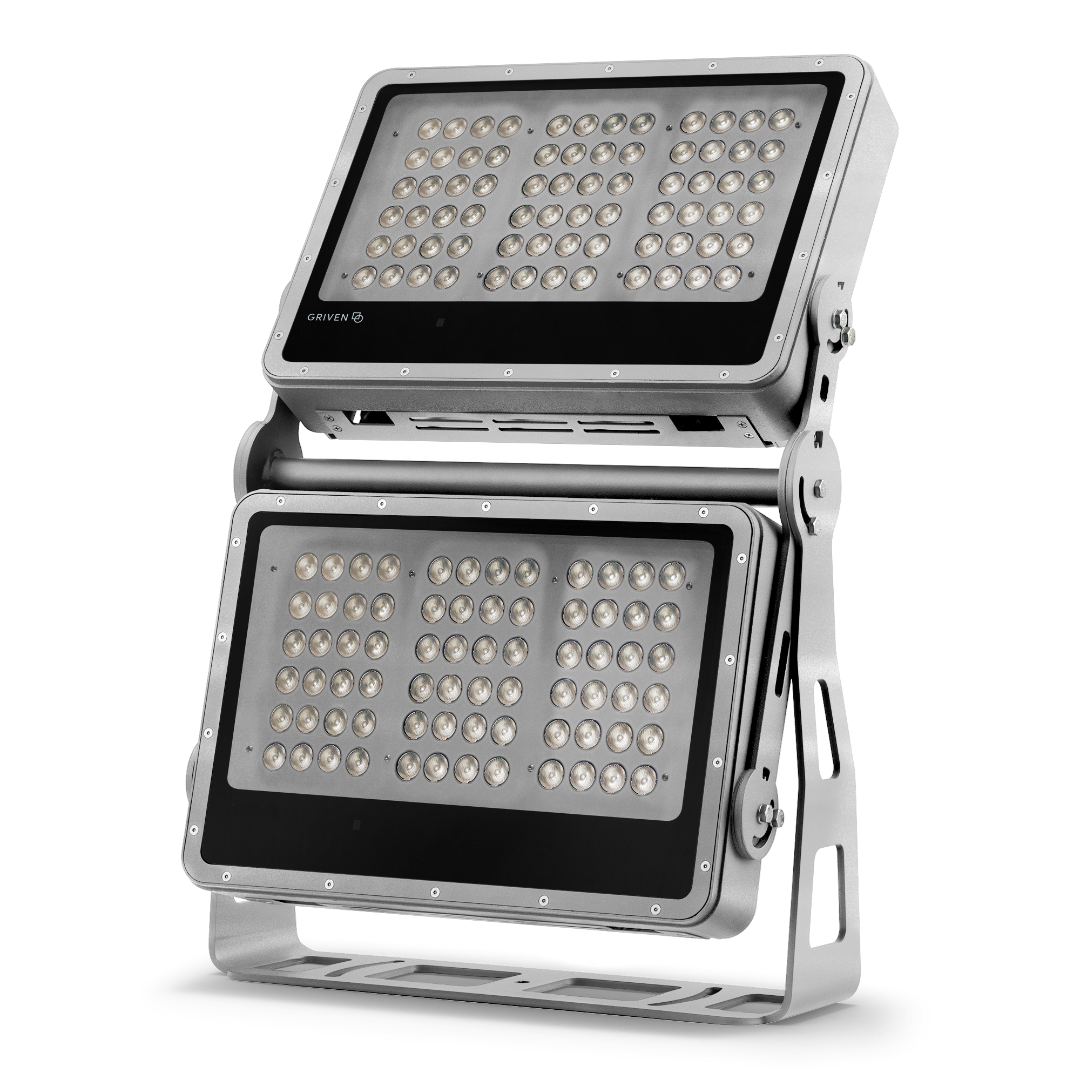

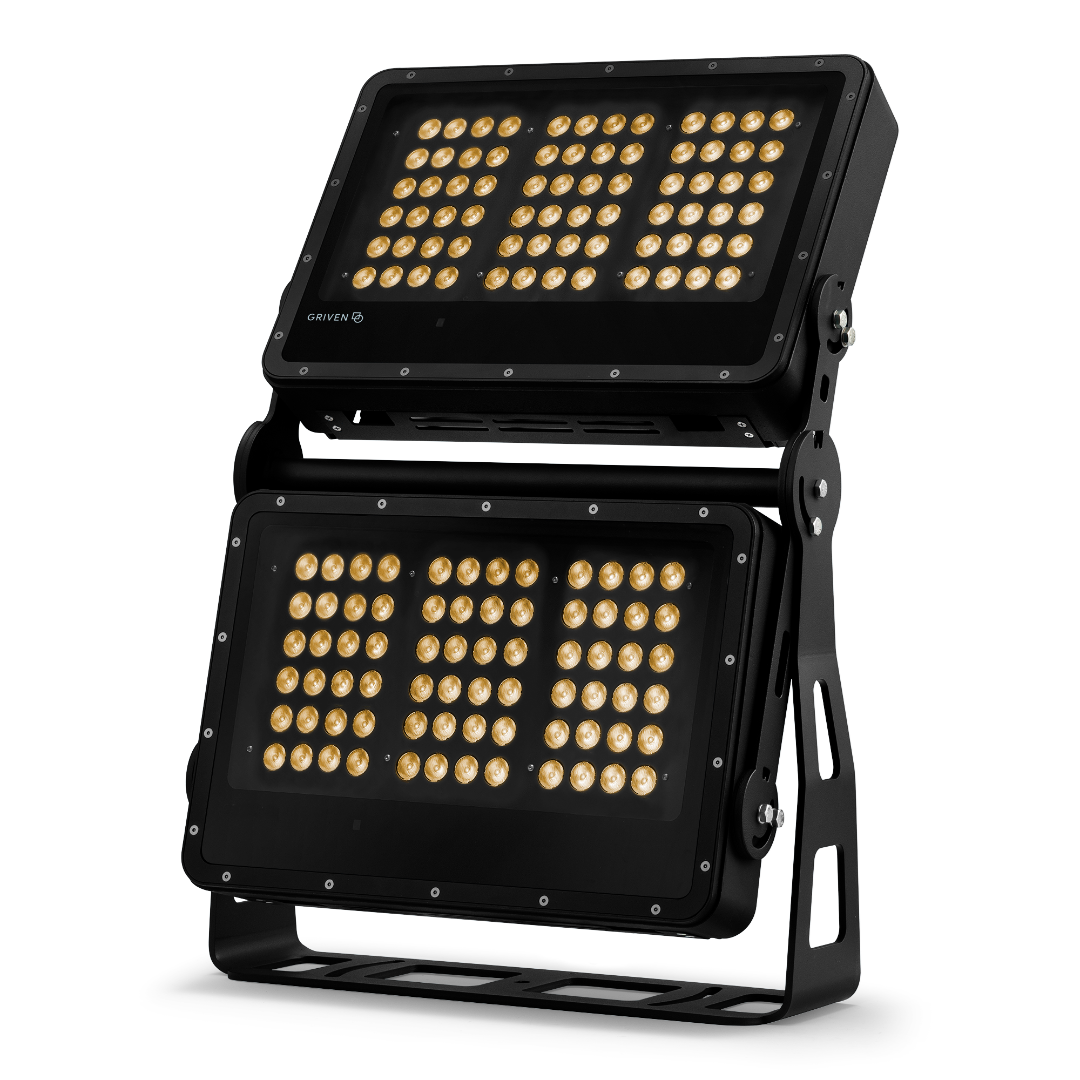

Capital 600 B Static White

CP600B

  • Compact, surface mount ON-OFF floodlight with integrated PSU
  • Control system: ON-OFF, 0-10V, DALI
  • Max. delivered lm output: up to 42,942 lumens (21,471 lumens per luminaire)
  • 20.4" L x 5.9" W x 29.8" H

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: Neutral White 4000K
  • Warm White 2700K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product
STATIC WHITE
print

General Features

CAPITAL 600 B floodlight is available with a vast choice of combinable optics and color configurations for the maximum lighting design flexibility. Featuring full independent control of each LED luminaire, this twin cluster luminaire system allows absolute freedom in a minimal footprint to create impressive matching or divergent dynamic effects on large-scale façades and architectural elements from a long distance with surprising luminous output.
Color configuration
High brightness Static White 2700K, 3000K, or 4000K
Optical configuration
13° SP (Spot)
16° NB (Narrow)
25° MB (Medium)
46° WB (Wide)
64° EW (Extra wide)
40°h x 14°v ELH (Elliptical Horizontal)
38°h x 23°v ELWH (Elliptical Wide Horizontal)
36°h x 19°v (5° incline) WW (Wall Wash)

*Contact factory for internal spreading diffusers
Max. Delivered lumen output
Up to 42,942 lumens (21,471 lumens per luminaire) for the system depending on distribution
Max. lumen/Watt
Up to 98 lumens per watt
Input voltage
120 - 277V
Amperage
3.67A @ 120V, 1.6A @ 277V
Power consumption
440 Watts (220 Watts per Luminaire)
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility.


Overview

  • IP67
  • IK09
  • DALI
  • 0-10V
  • ON-OFF
  • ETL pending
