Eklipse Dynamic White

EKLPS

  • LED graphic light shaper
  • Ideal for architectural accent lighting and optical effects
  • Compact body for an easy positioning in reduced spaces
  • Premium quality high brightness tunable white power LEDs
  • 6.7" L x 3.6" W x 1.8" H

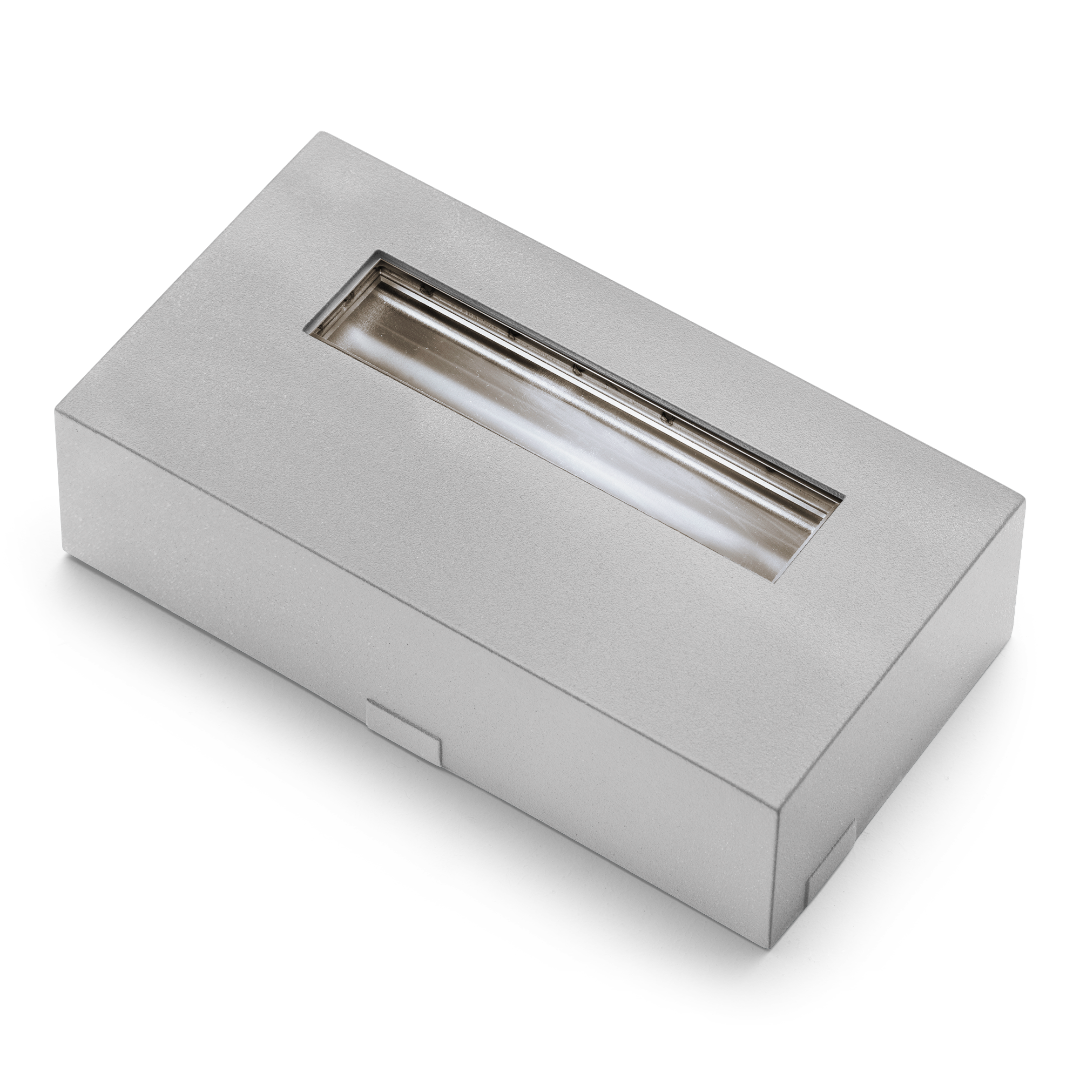

View finishes: Anthracite Grey

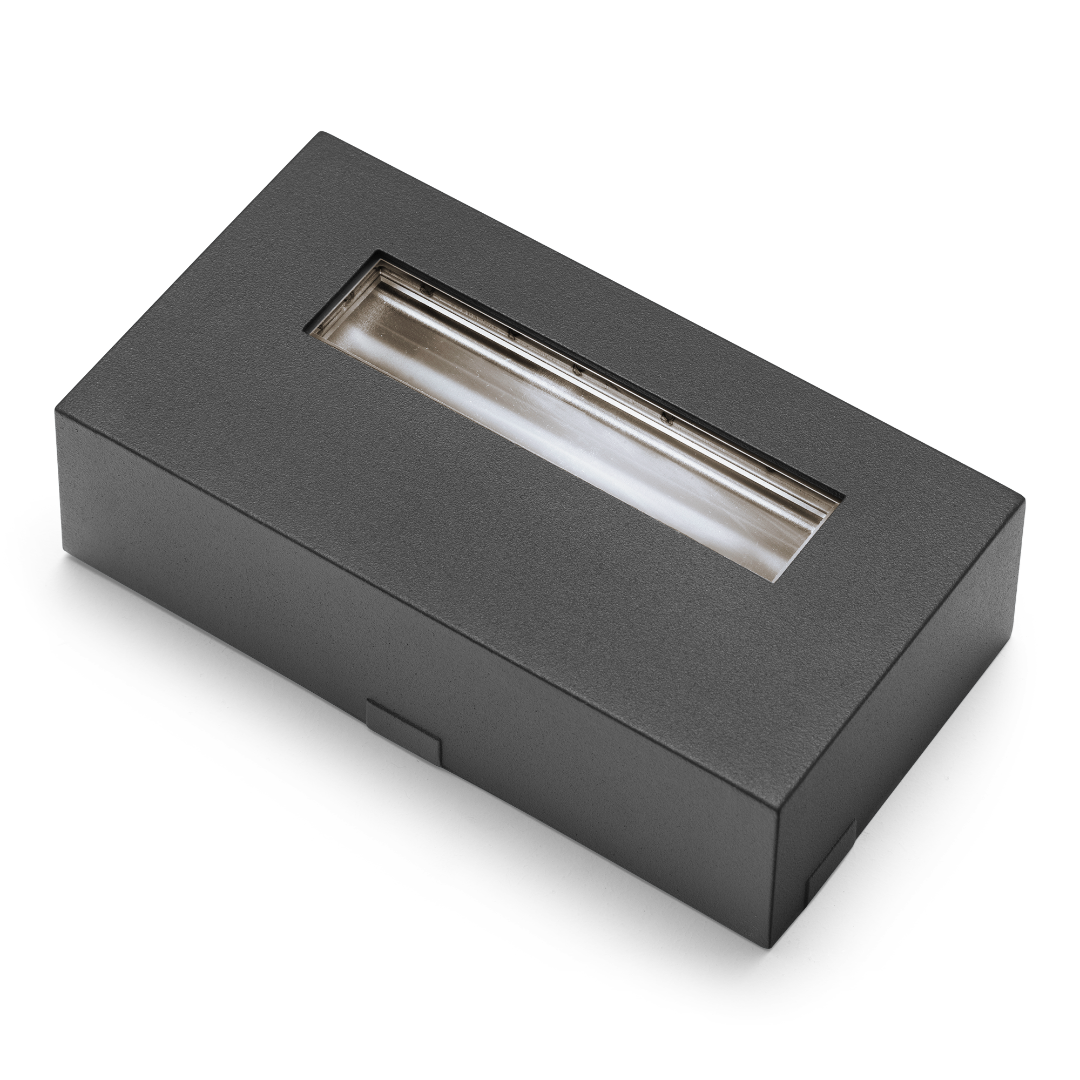

  • Anthracite Grey

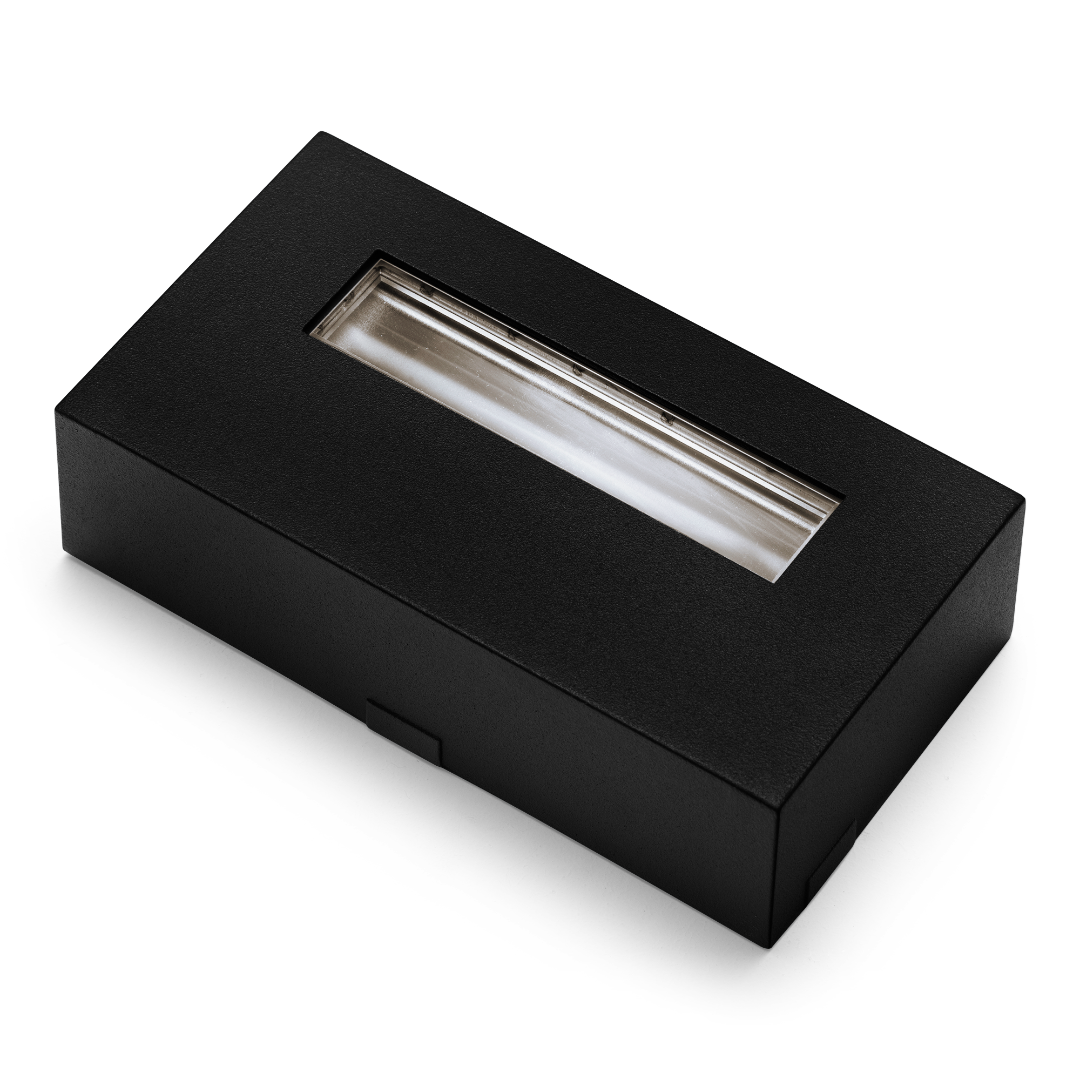

  • Black
  • Griven Silver Grey

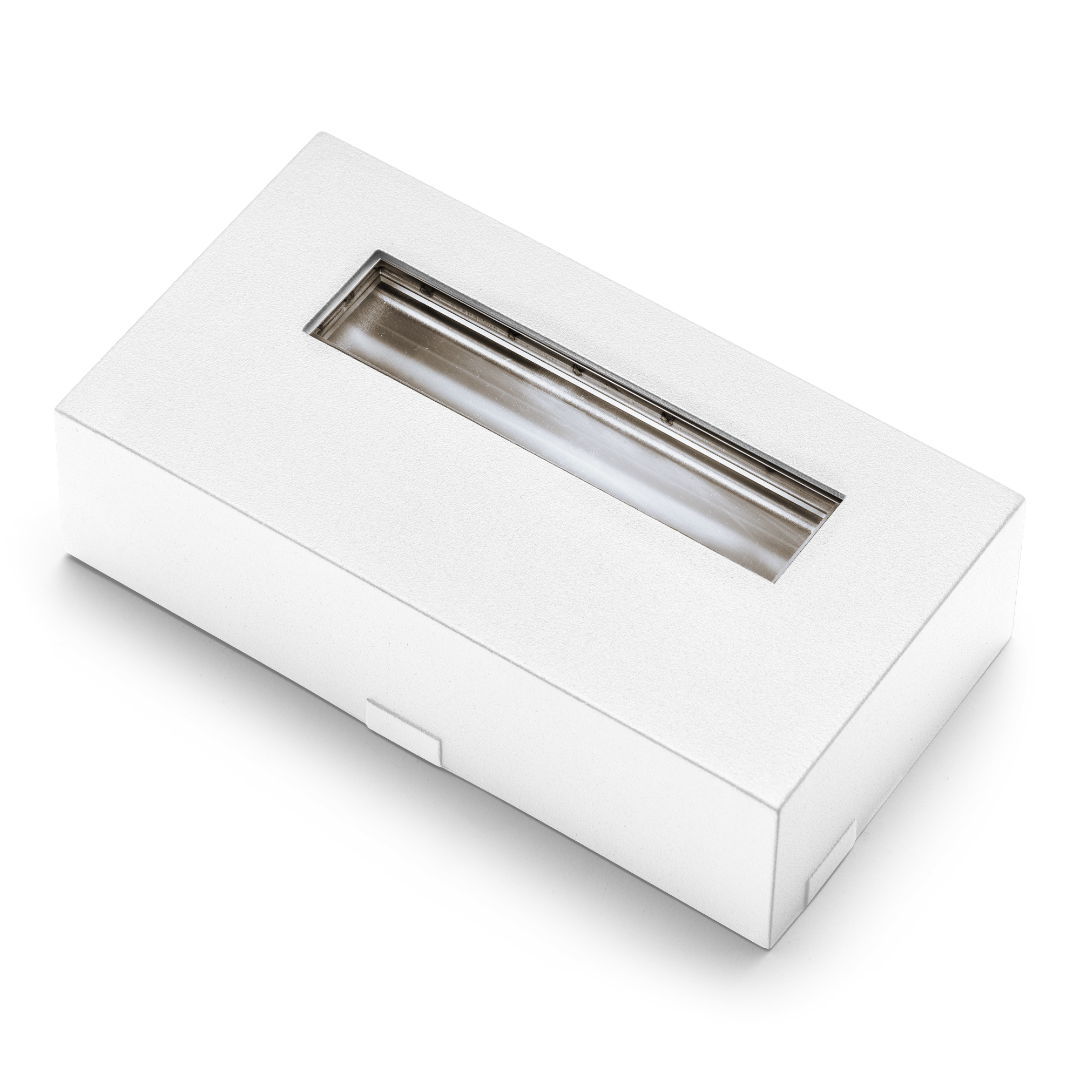

  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
Contact us  Save product
DYNAMIC WHITE
print

General Features

EKLIPSE adds form and depth to buildings of all architectural styles through the illumination of inner frames of fenestration or similar elements. The compact LED "effects" luminaire features four high power LEDs in RGBW, dynamic white, or static colors combined with specialized optics to produce an ultra-narrow 160° elliptical distribution with little spill. RGBW and dynamic white models feature DMX control capability to bring repeating architectural elements to life through patterns or color-changing scenes for visual interest. The LEDs may be dimmed continuously from 0 to 100%. EKLIPSE is IP66 rated and suitable for indoor or outdoor applications. All hardware is stainless steel.
Color configuration
High brightness Dynamic White LEDs with an adjustable color temperature range between 2700K and 6500K
Optical configuration
127° x 13° ELH (Elliptical)
50° x 21° ELWH (Elliptical Wide)
Max. Delivered lumen output
Up to 472 Lumens
Max. lumen/Watt
Up to 47 Lumens per Watt
Input voltage
100-277VAC / 50-60 Hz
Amperage
0.08A @ 120VAC, 0.04A @ 277VAC
Power consumption
10W maximum; maximum 8 per power supply
Ingress protection rating
IP66
Impact resistance rating
IK07
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty

Light Beam Effects

  • Elliptical Horizontal
  • Elliptical Wide Horizontal


Overview

  • IP66
  • IK07
  • DMX
  • RDM
  • Wireless
  • 0-10V
  • Self-addressing
  • CSA certified version available on request
  • ETL Certified for Wet Locations
