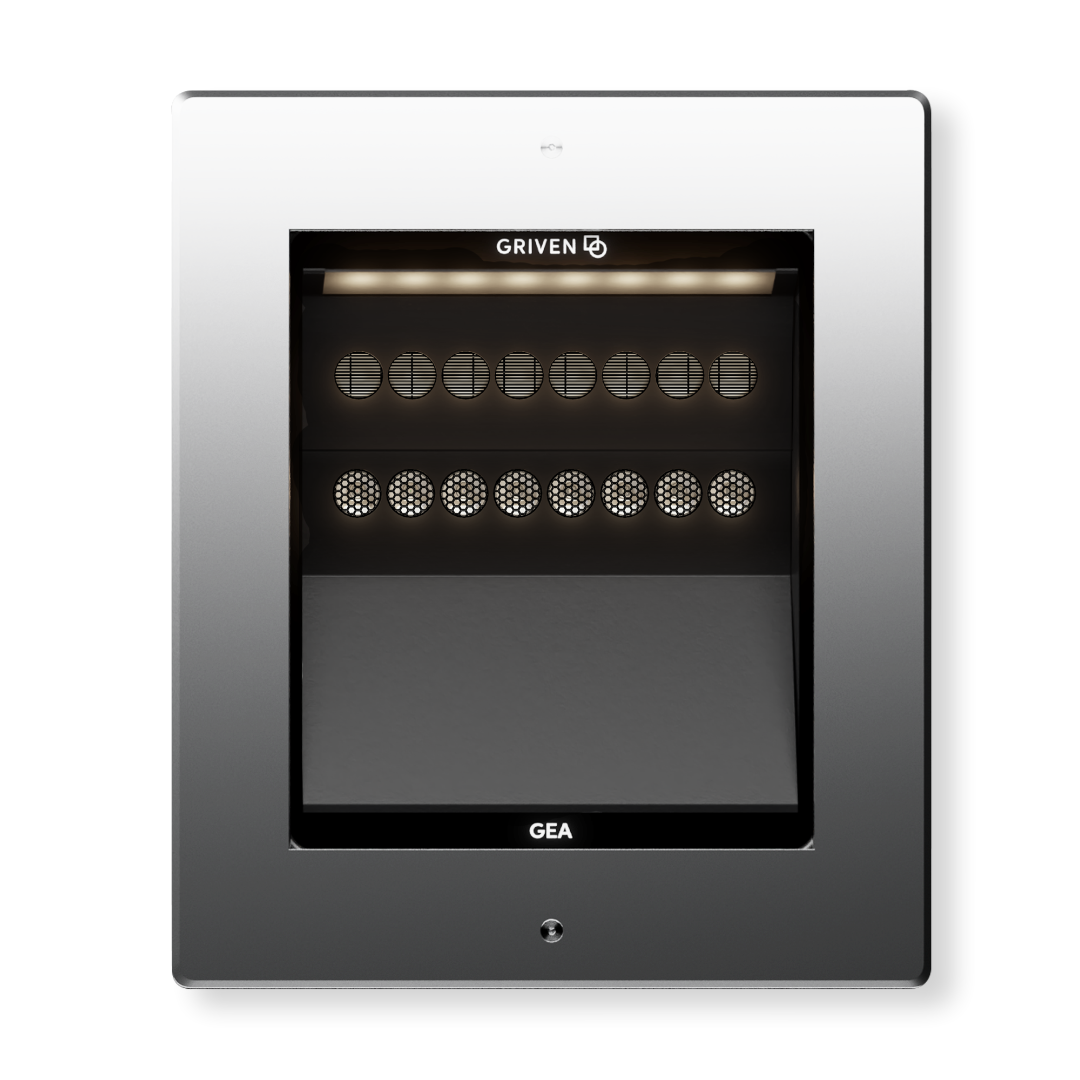

GEA Static White

GEA

  • Max. delivered lm output: 3187 lm / 60 lm/W
  • Control system: DMX-RDM
  • High-performance in-ground uplighter featuring a combination of three different optics to create an even wall wash effect on both close-up and distant installations
  • 16.14" L x 13.58" W x 6.02" D
  • The formwork must be purchased separately

View LED colour configuration: Neutral White 4000K
  • Warm White 2700K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product
STATIC WHITE
print

General Features

GEA is an innovative in-ground luminaire with unprecedented optical configuration for illuminating entire building facades of up to 59-feet. Its unique Dynamic Wall Wash configuration incorporates three distinct, individually configurable LED rows to deliver an even wall-wash effect for both close-up and distant installations. The elegant stainless steel frame allows for a seamless and discrete integration into pavements, and has a load bearing capacity of up to 6613 pounds. GEA is available in RGBW30K, RGBW40K, Dynamic White, or Static White temperatures of 2700K, 3000K, or 4000K standard. Optional antislip lens and internal honeycomb louver are available.
Color configuration
High brightness monochromatic power LEDs natural white or warm white 3000K or 2700K
Optical configuration
Unique optical configuration featuring 3 independently manageable LEDs rows fitted with different bespoke optics.
Max. Delivered lumen output
Up to 3187 lumens (4000K)
Max. lumen/Watt
Up to 60 lumens per watt (4000K)
Input voltage
120-277VAC / 50-60Hz
Amperage
0.44A @ 120V, 0.19A @ 277V
Power consumption
53 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK10
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty

Light Beam Effects

  • Dynamic Wall Wash


Overview

  • IP67
  • IK10
  • DMX
  • RDM
  • ETL pending

Optional Features

  • Anti-slip treatment, for a safe and comfortable use in pedestrian areas, available on request
  • Internal Honeycomb Louver
