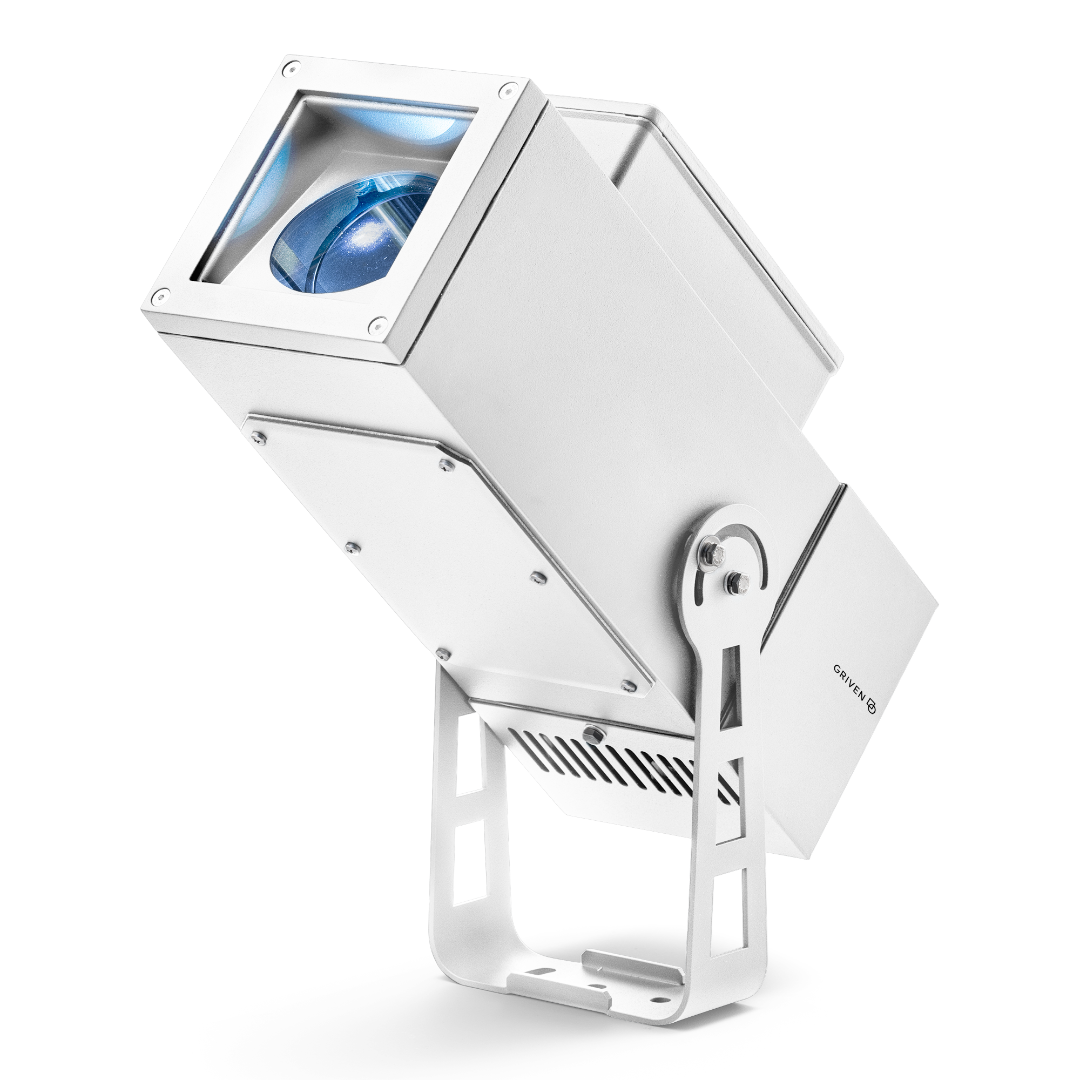

Goboled 80 D


  • Single gobo outdoor rated image projector
  • Maximum creativity, dynamism and flexibility
  • Bright and accurate rendition of graphic designs, logos and pattern
  • 16.7 x 6.5 x 11"

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
Contact us  Save product

General Features

GoboLED projects a bright, accurate rendition of graphic designs or logos through D size dichroic or metal gobos and a single high power LED. Four gobo rotation speeds in clockwise or counter-clockwise directions are possible when using the onboard functions, or fully adjustable when combined with a DMX control system. Gobo indexing is extremely fluid and gobo rotation is silent for operation even in the quietest environments. Accessory gobo available for dynamic effect. The projector features continuous 0 to 100% dimming, strobe effects up to 25 frames per second, and electronic blackout capability. Onboard control functions allow for stand-alone automatic or master-satellite operation with multiple units, or interface with external DMX controllers. Manual focus and beam width tuning from 19° to 35° provides maximum design flexibility for the most demanding applications. The IP65 rated projector is suitable for outdoor or indoor use.
Color configuration
One high brightness 6500K power LED
Optical configuration
Manual adjustment of focus and linear zoom (20°÷32°)
Max. Delivered lumen output
2325 lumens @ 19 degrees, 2105 lumens @ 32 degrees; CCT 6100K
Max. lumen/Watt
23 lm/W
Input voltage
100-240VAC / 50-60 Hz
Power consumption
100 watts
Ingress protection rating
Impact resistance rating
External operating limits
-20°C to 40°C / (-4°F to 104°F)


  • IP65
  • IK07
  • DMX
  • CSA certified version available on request
