Half Moon Marine Static White

MOONHF-MR

  • Max. delivered lumen output: 275 lm / 92 lm/W
  • ø1.25" x 1.5" L x 3.6" W x 2.2" H
  • Corrosion resistant compact coastal lights specific for the enhancement of landscape and architectural details in marine environments

View Housing Material: Stainless Steel

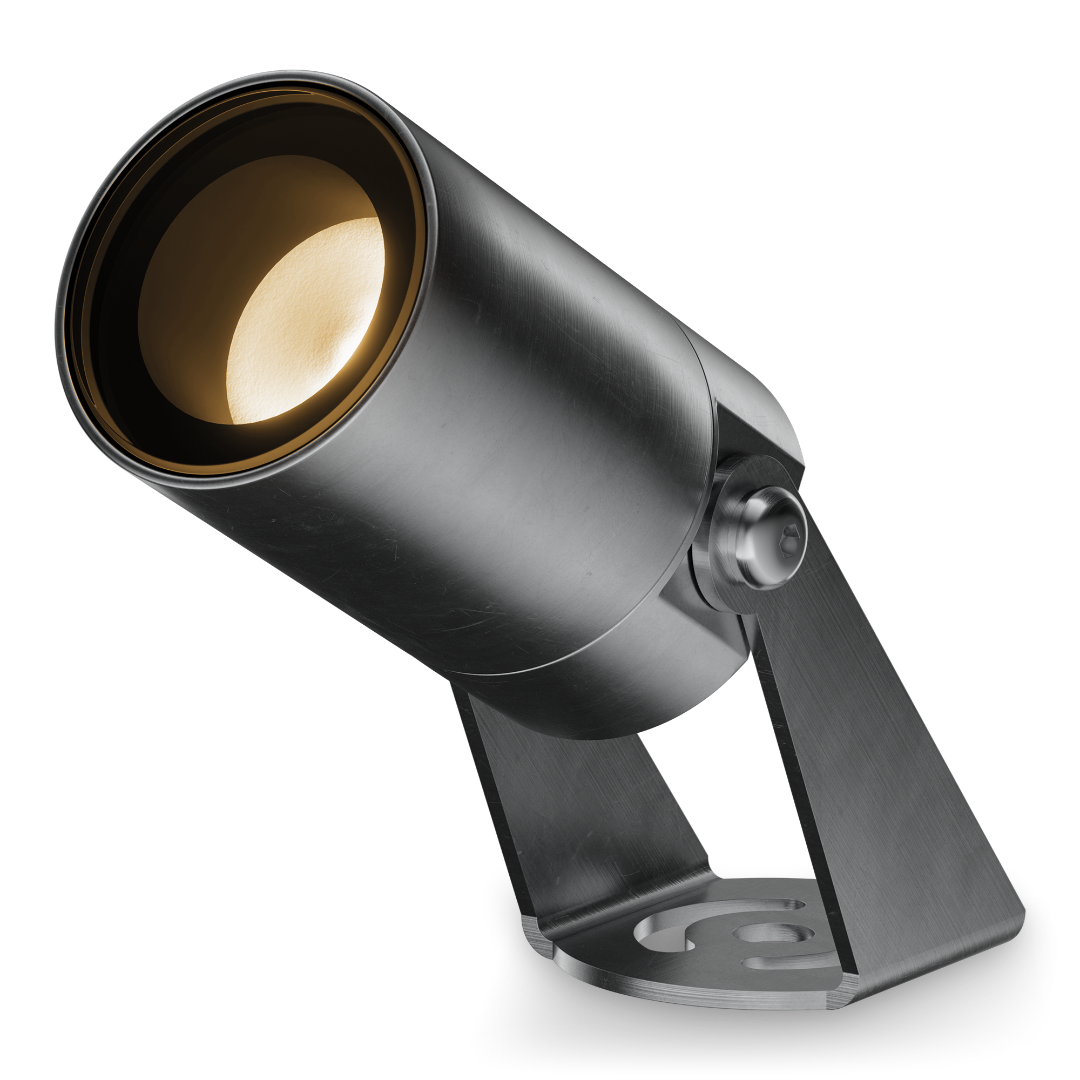

  • Stainless Steel

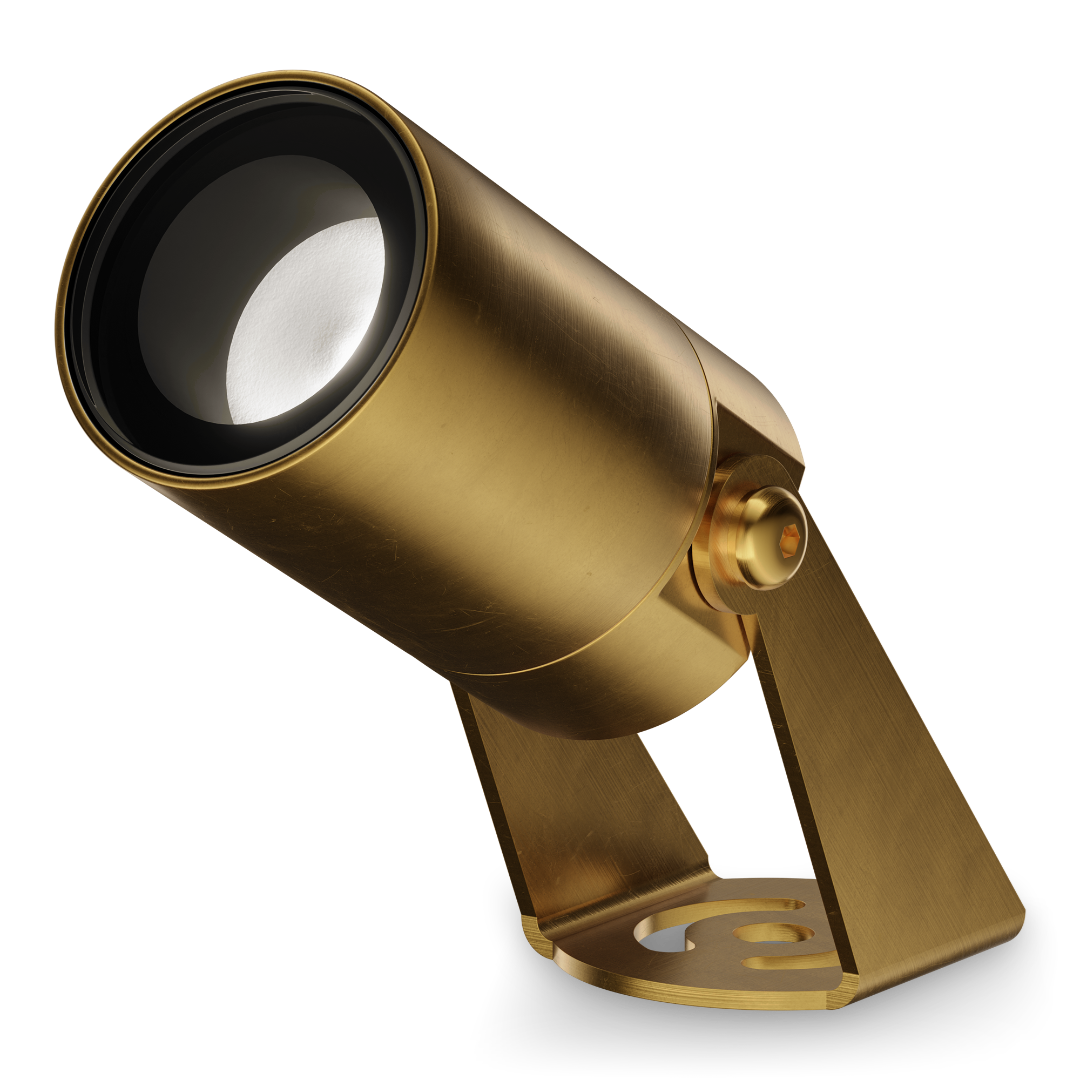

  • Brass
View LED colour configuration: Neutral White 4000K
  • Warm White 2700K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product
STATIC WHITE
print

General Features

HALF MOON MARINE is an advanced LED luminaire designed to enhance landscape and architectural features located near coastal regions. This adaptable luminaire provides decorative and functional lighting with smart color management. Corrosion resistant stainless steel or brass materials ensure the longevity of the luminaire even in harsh, salt water areas. Four optical options are available ranging from Narrow to Extra Wide beam spreads. Use of an external power supply enables easy management of multiple units. Electropolishing and clear coating are available on request.
Color configuration
High brightness monochromatic power LEDs natural white or warm white 3000K or 2700K
Optical configuration
15° NB (Narrow)
24° MB (Medium)
45° WB (Wide)
38°x14° ELH (Elliptical)
Max. Delivered lumen output
Up to 275 lumens (4000K)
Max. lumen/Watt
Up to 92 lumens per watt (4000K)
Input voltage
120-277VAC / 50-60Hz
Amperage
Constant Current @ 900mA
Power consumption
3 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK08
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Electropolishing
Electropolishing
Clear Coating
Clear Coating
Warranty
Five Year Limited Warranty

Light Beam Effects

  • Narrow
  • Medium
  • Wide
  • Elliptical Horizontal


Overview

  • IP67
  • IK08
  • 0-10V
  • ETL Certified for Wet Locations

Optional Features

  • Electropolishing
  • Clear Coating
