Jupiter B Remote Static White

JUPI-BR

  • Compact medium-throw floodlight specific for wall wash and spotlight effects on diverse architectural elements
  • Max. delivered lm output: 4755 lm / 91 lm/W

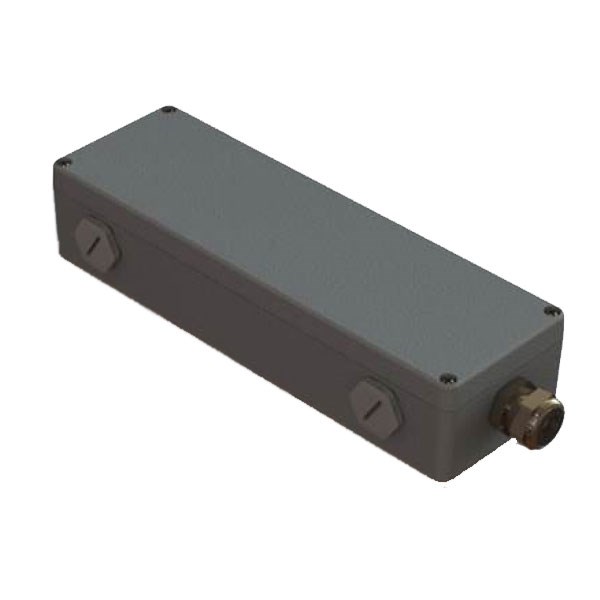

  • Control system: remote power supply unit
  • 7.3 x 5.3 x 8.8"

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: Warm White 2700K
  • Warm White 2700K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product
STATIC WHITE
print

General Features

JUPITER B REMOTE is a versatile medium-throw, exterior surface mounted floodlight distinguished by excellent luminous efficacy. The IP67 rated luminaire works with external 48vDC power supplies and is the ideal solution for applications which do not require DMX/RDM functionality. The JUPITER B REMOTE offers remarkable design flexibility, featuring eight optical configurations and optional light control accessories such as snoot, visor, and internal honeycomb louvers. The luminaire has a lightweight compact die-cast aluminum body with an elegant screen-printed front glass with no visible screws for a modern clean appearance with minimum impact on the urban landscape. Anthracite, silver grey, black, or white finishes are available as standard options, along with a choice of natural and warm white LED color temperatures.
Video
Color configuration
High brightness Warm White 2700K, 3000K and Natural White 4000K
Optical configuration
12° SP (Spot)
15° NB (Narrow)
25° MB (Medium)
47° WB (Wide)
61° EW (Extra wide)
39°h x 14°v ELH (Elliptical)
37°h x 22°v ELWH (Elliptical Wide)
37°h x 19°v WW (Wall Wash)
Max. Delivered lumen output
Up to 5801 lumens
Max. lumen/Watt
Up to 111 lumens per watt
Input voltage
120 - 277V
Power consumption
52 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK07
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
5-year warranty
Accessories
Visor, Snoot, Internal Honeycomb Louver.

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal
  • Wall wash


Overview

  • IP67
  • IK07
  • 0-10V
  • ON-OFF
  • ETL Listed
